USB 100KHz 4-Axis CNC Motion Controller Card + Jog Handle

USB 100KHz 4-Axis CNC Motion Controller Card + Jog Handle Description

USB 100Khz Motion Controller Card Board for CNC Engraving

Features:

Support for 4-axis linkage, you can connect four stepper motor drives or
servo drives.


Maximum step-pulse frequency is 100KHz, which is suitable for the servo or
stepping motor.


Support automatic probe tool.


Support emergency input.


Support for limit switch.


Support for connecting electronic hand wheel.


Need use external 24V DC power supply to isolate USB and external port, and
to make the system more stable.


Have 0-10V output port, you can use software to control the spindle
motor speed.


4 general-purpose inputs, you can connect the limit switch, estop switch,
probe switch, back to zero and other device.


4 general-purpose isolated relay drive output interface, can drive four
relays for controlling the spindle starts, forward rotating and reverse
rotating, pumps and other device.


Status LED, indicate connection status on the board.


Specification:
Interface board size: 9*6.3*2cm/3.5*2.5*0.8in
Jog handler size: 10*6*2.5cm/3.9*2.4*1in
Weight: Approx.200g/7.1oz

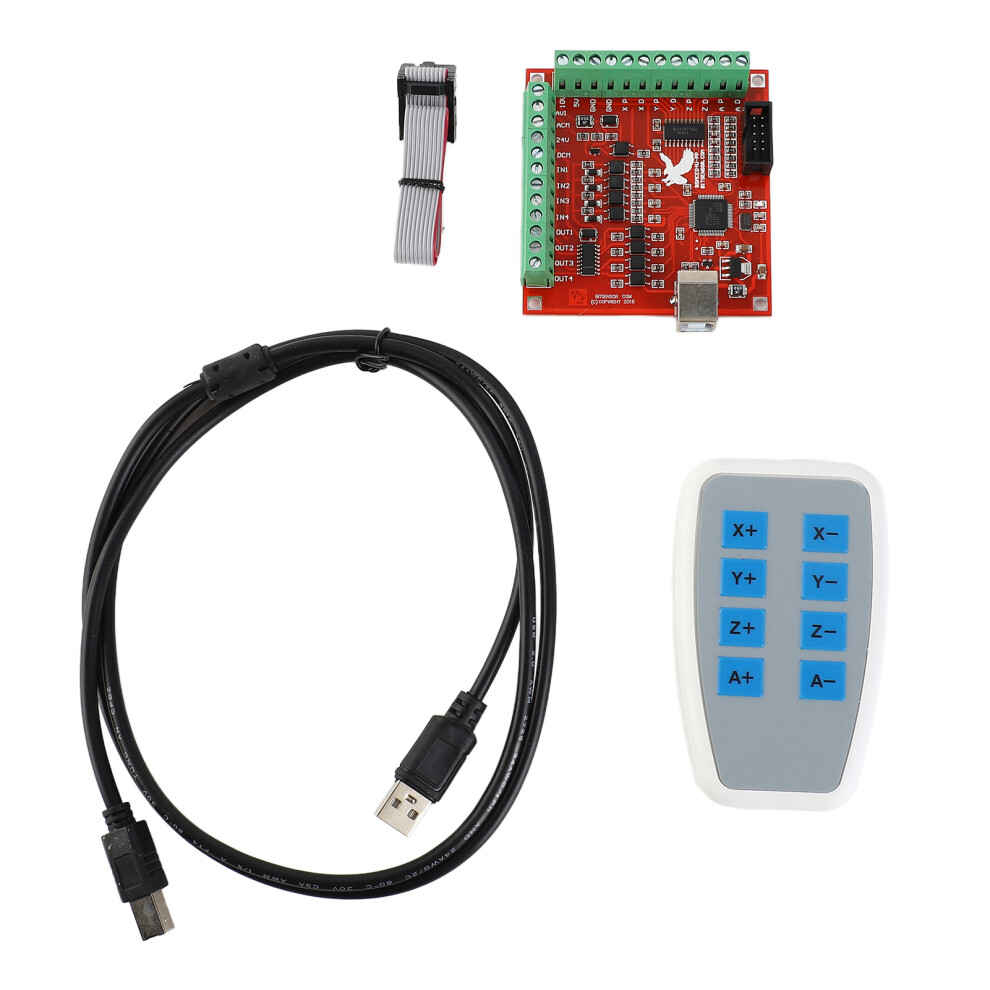

Package list:

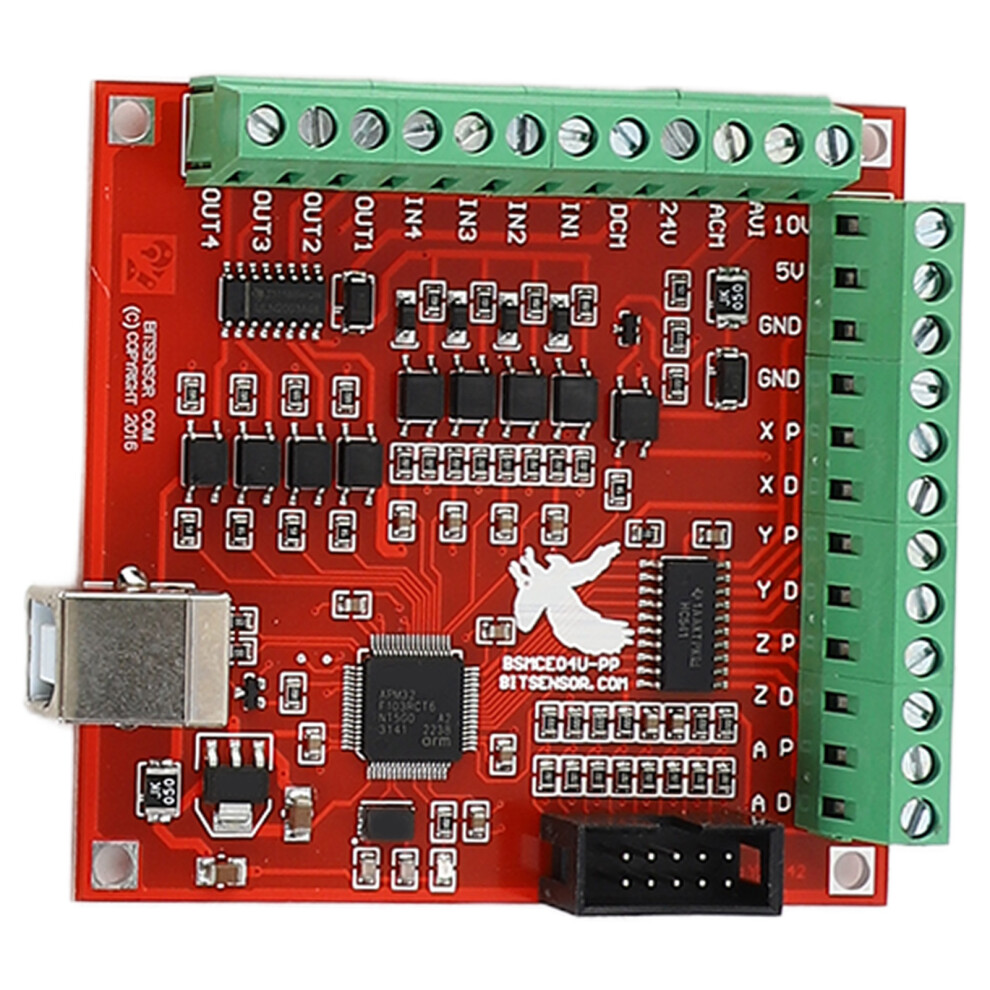

1 x USB CNC Controller Card

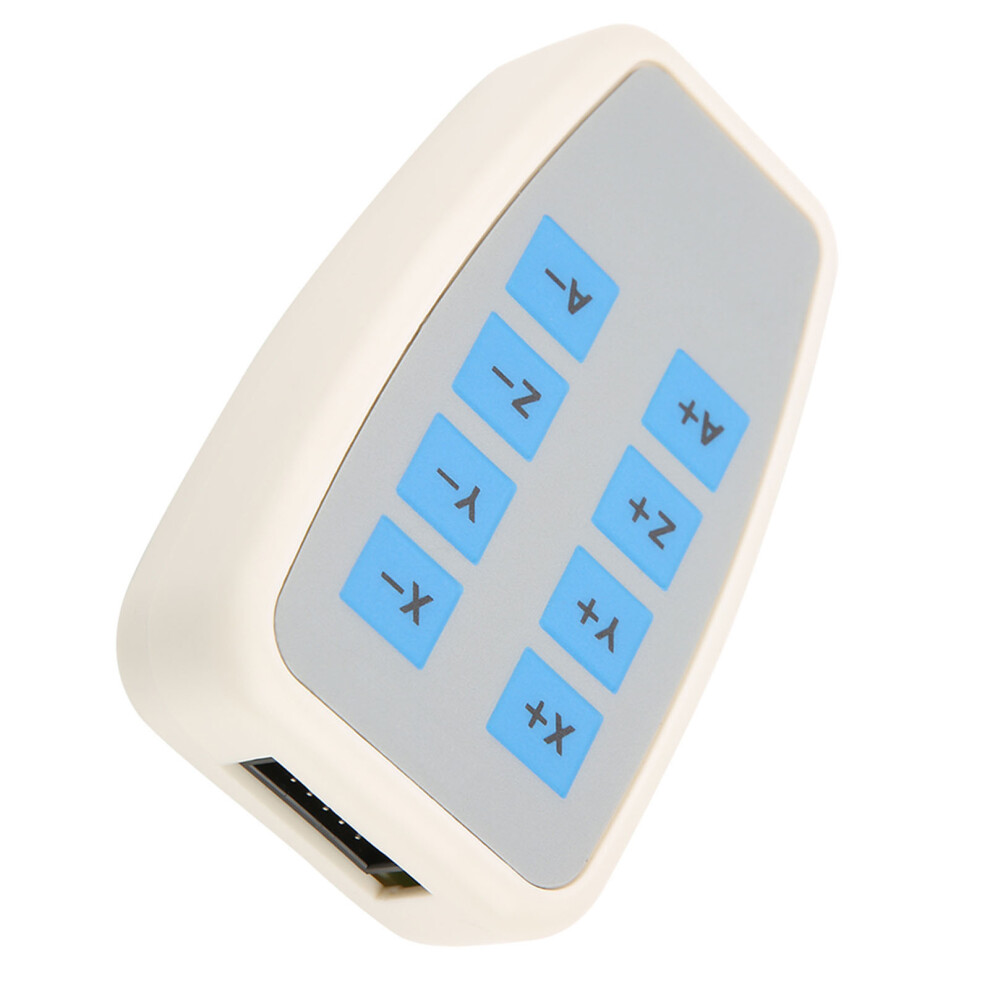

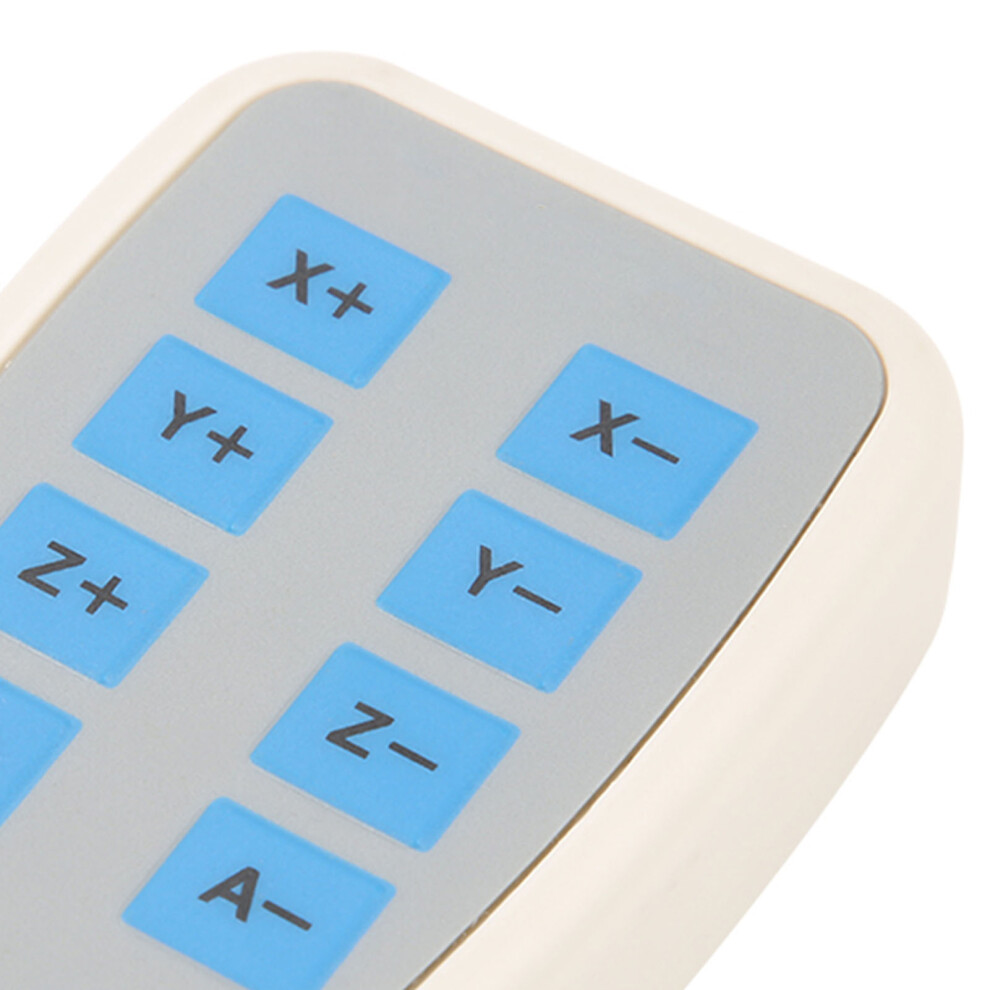

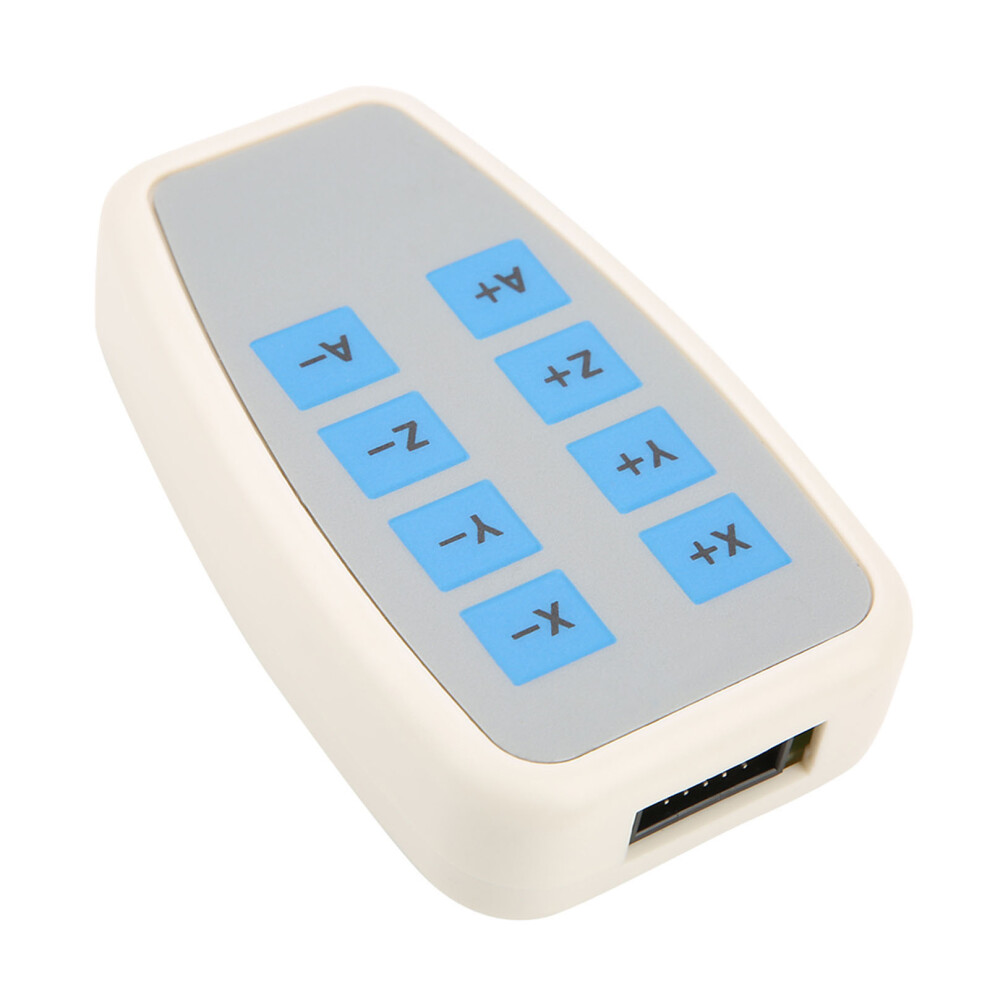

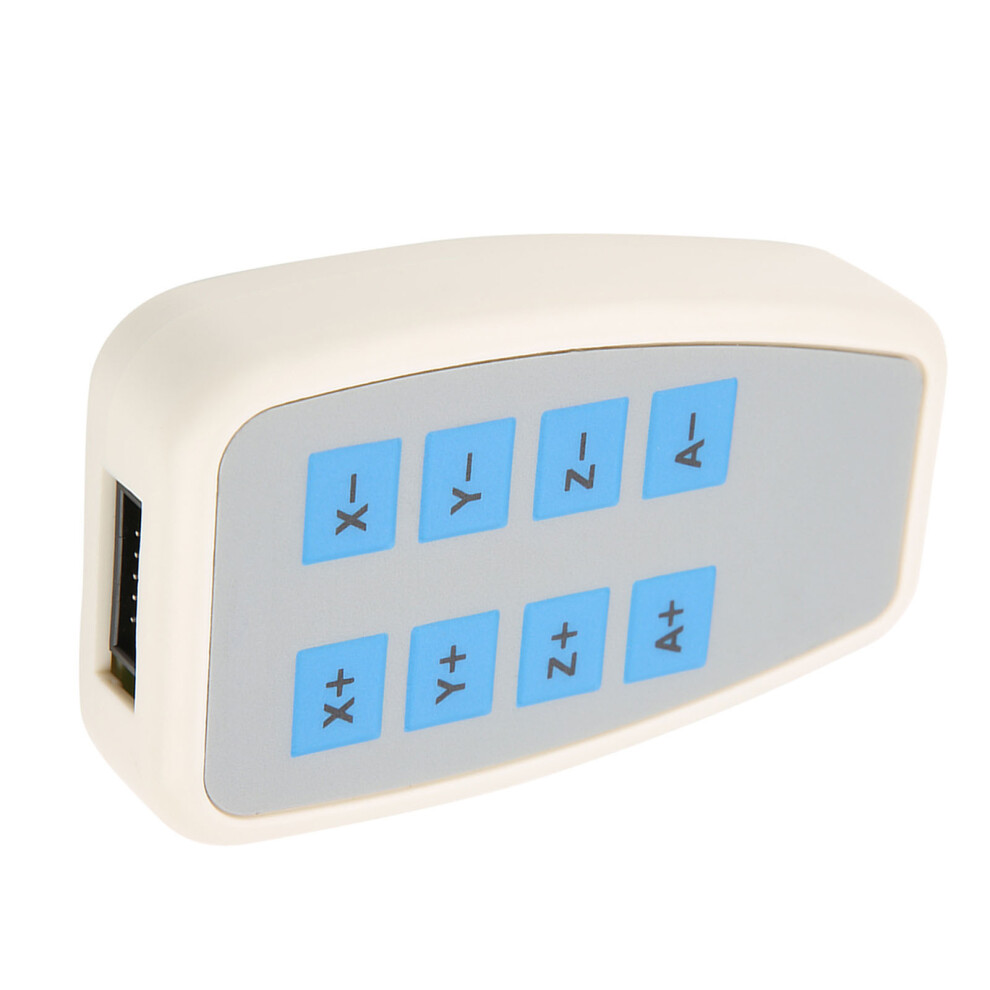

1 x Jog Handler

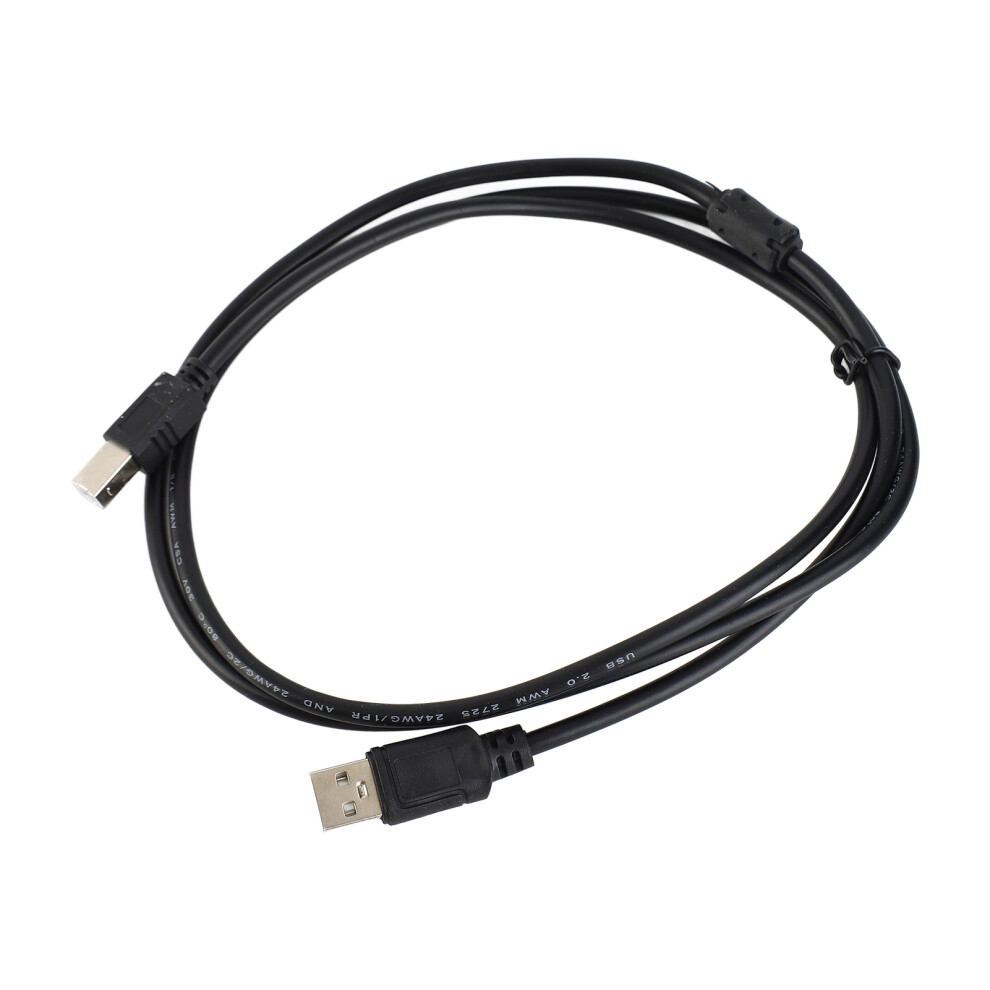

1 x USB cable
1 x Connecting Cable
