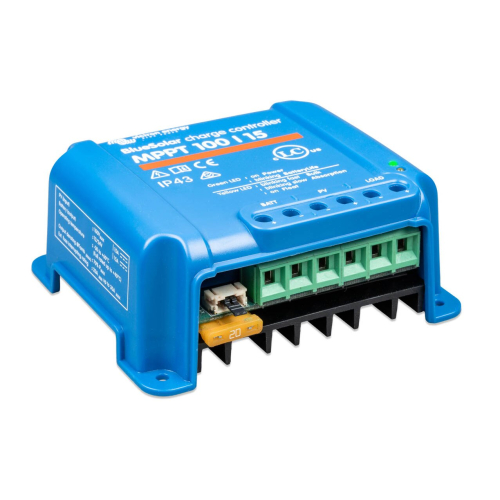

Victron Energy BlueSolar MPPT 100V 15 amp 12/24-Volt Solar Charge Controller

Victron Energy BlueSolar MPPT 100V 15 amp 12/24-Volt Solar Charge Controller Description

Ultrafast Maximum Power Point Tracking (MPPT).  Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will

improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve.

Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.

The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency.  No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).  Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection. Over-temperature protection and power derating when temperature is high.  PV short circuit and PV reverse polarity protection.  PV reverse current protection.

Internal temperature sensor compensates absorption and float charge voltage for temperature.

Real-time data display options - Color Control GX or other GX devices: see the Venus documents on our website.  A smartphone or other Bluetooth-enabled dongle needed.

BlueSolar Charge Controller MPPT 100/15 - Battery voltage (auto detect) 12/24V; Rated charge current 15A; Nominal PV power, 12V 220W; Nominal PV power, 24V 440W; Max. PV short circuit current 15A; Max. PV open circuit voltage 100V; Peak efficiency 98%; Self-consumption – load on 12V: 25mA 24V: 15mA; Charge voltage ‘absorption' 14,4V / 28,8V / (adjustable); Charge voltage ‘float' 13,8V / 27,6V / (adjustable); Power terminals 6 mm² / AWG10; Weight 0.65 kg; Dimensions (h x w x d) 100 x 113 x 50mm, Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm; Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm.
