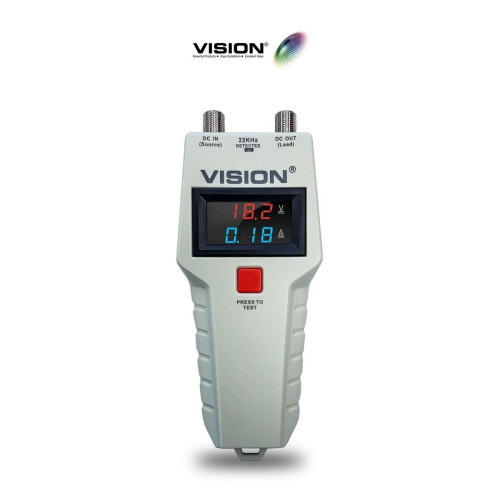

VISION V18-310 TV Satellite IRS dSCR Multi Meter DC Power Tester UK

The Vision V18-310 DC Power Tester is a compact and practical tool designed for professional installers working with TV, satellite, IRS, dSCR, CATV and MATV systems.

This inline coaxial tester can simultaneously measure DC voltage and current, while also detecting 22kHz signals in live satellite installations. It is ideal for fault finding, checking power supplies and confirming correct system operation.

The unit features dual LED displays for easy reading in darker locations such as lofts and risers, and uses standard F-type connectors for fast and simple connection.

• Measures DC voltage from 0 to 30V and current up to 10A
• Detects 22kHz tone in live satellite systems
• Suitable for IRS, dSCR, SCR, multiswitch and masthead systems
• Useful for testing Sky, Sky Q, Freesat and other receivers
• Dual LED display for clear voltage and current readings
• Compact design with F-type input and output
• Supplied with safety lanyard

The tester requires a 9V PP3 battery (6LR61 / MN1604) for accurate current measurement. The press-to-test button must be operated to obtain precise current readings.

The unit can indicate an approximate current value when line powered without the battery, but this is for convenience only.

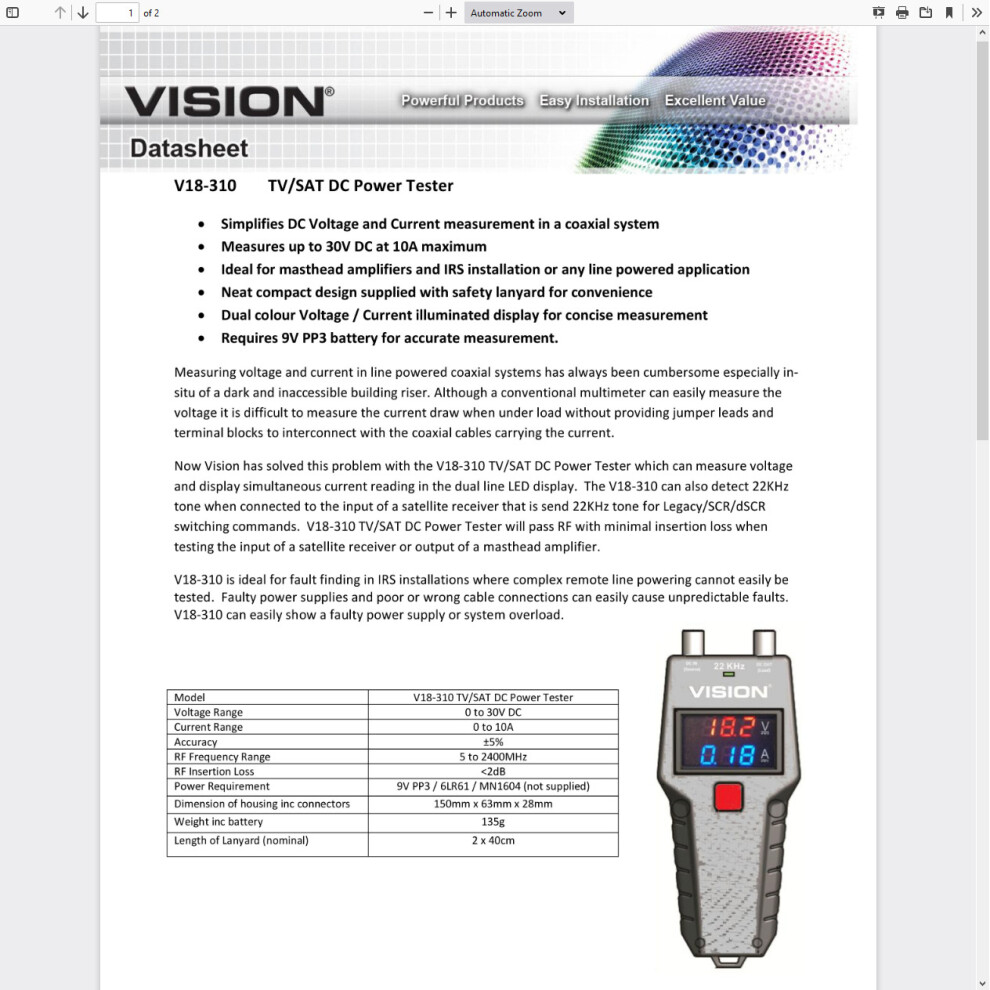

• Model: V18-310
• Voltage Range: 0 to 30V DC
• Current Range: 0 to 10A
• Accuracy: ±5%
• RF Frequency Range: 5 to 2400MHz
• RF Insertion Loss: <2dB
• Power Requirement: 9V PP3 / 6LR61 / MN1604 (not included)
• Dimensions: 150mm x 63mm x 28mm
• Weight including battery: 135g

• 1 x Vision V18-310 DC Power Tester
• 1 x English manual
• 1 x Safety lanyard

Please note: 9V PP3 battery is not included.

This product is supplied with a 12 month RTB warranty.
