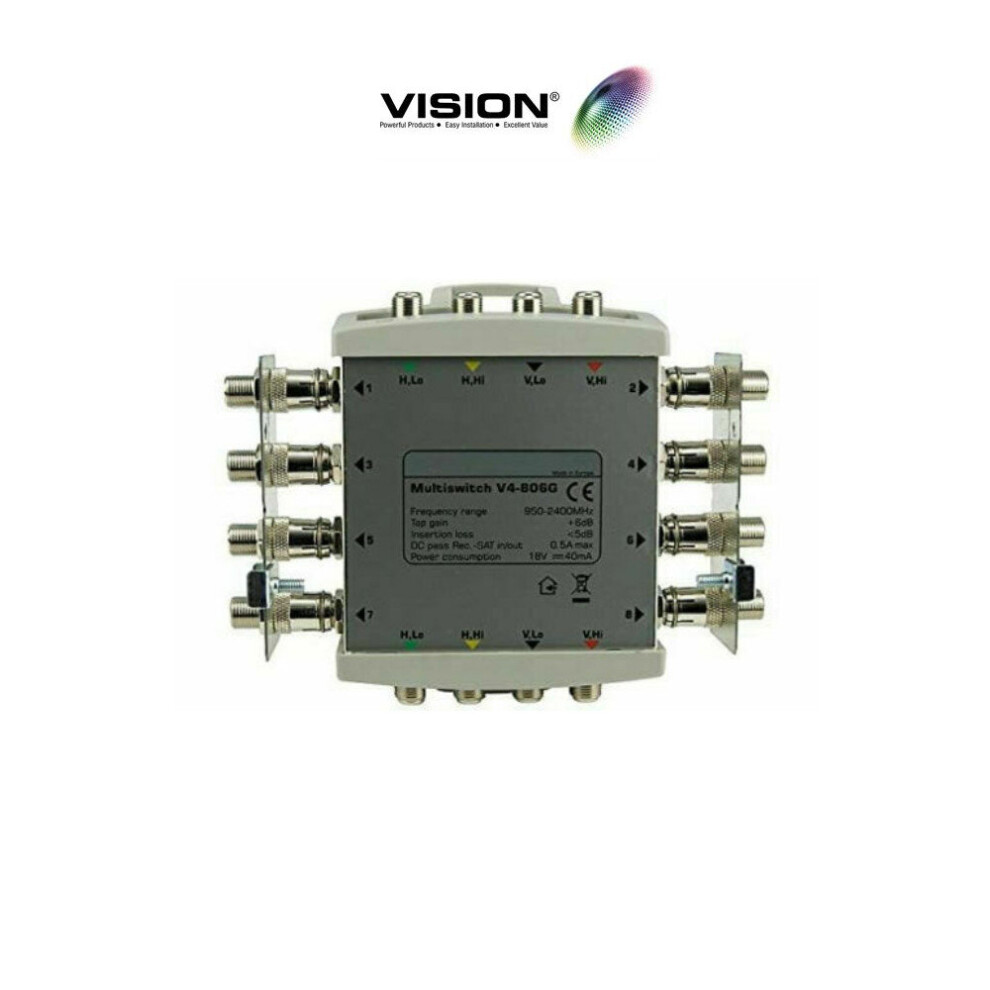

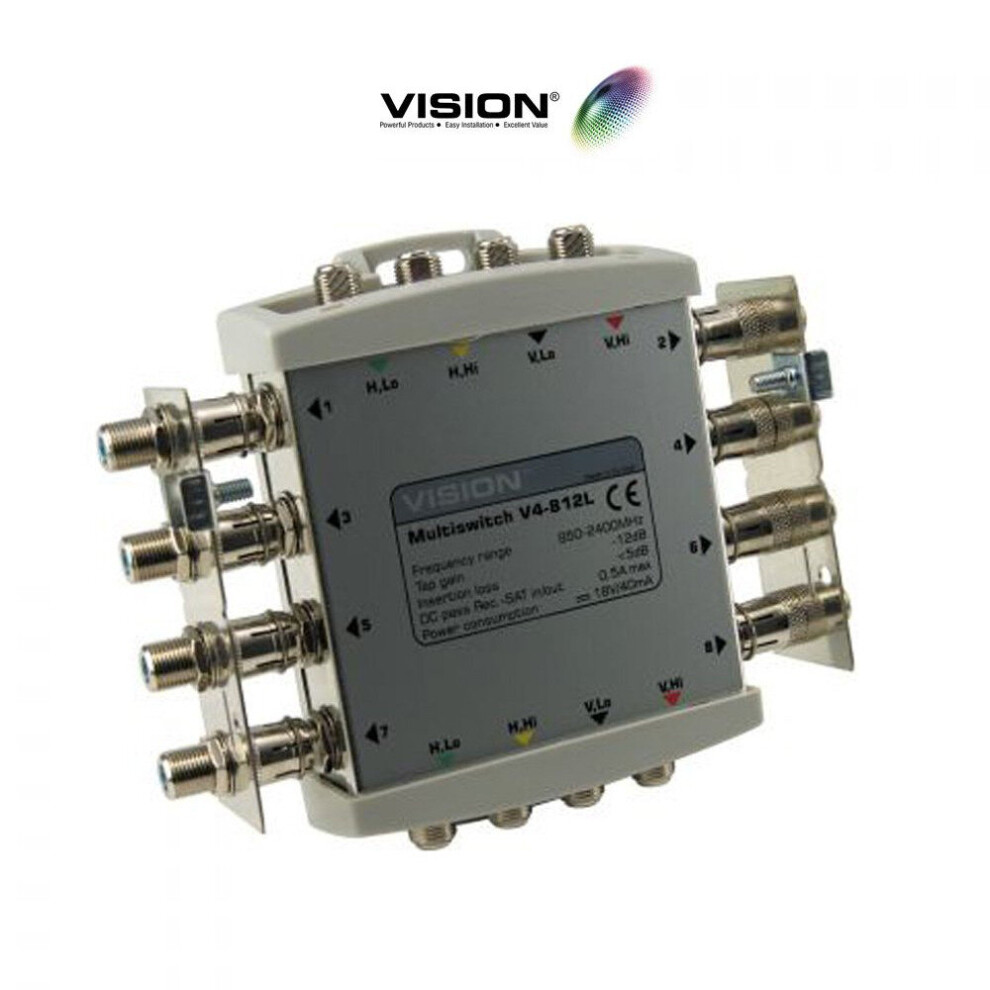

Vision V4-812G Cascadable Line Powered Multiswitch 12dB Gain 4x8 Way

Vision V4-812G Cascadable Line Powered Multiswitch 12dB Gain 4x8 Way Description

The Vision V4-812G is a satellite-only distribution Multiswitch that uses very low levels of power. This makes line-powering of the system very simple.

Line powered 8-way satellite switch with 6dB gain. Very small size. High performance for long cable lengths. Entirely receiver-powered. No landlord supply required. 4 inputs with 4 loop through outputs to next switch and 8 outputs for receivers.

Pre-installed earth bars for compliance with UK regulations. Up to 8 switches can be cascaded together, totaling a maximum 32 receivers powered points per system. For MATV upgrade work to reliably add satellite at minimum cost and very little time.

Features:

• 4 x inputs  8 x outputs
• Pre-installed earth bars for compliance with UK regulations
• Receiver powered multiswitches for use where there is no “landlord” mains power
• Pre-mounted earth-bars fitted on subscriber line
• Single satellite receiver will power multiswitch and quattro LNB
• Cascadable up to 32 points

Technical Specification:

Model: V4-812G
Input: 950-2400 MHz
Tap Gain: +12dB
Gain Slope 950-2400 MHz: +8 to +12dB
Satellite Input Isolation: >25dB
Output Isolation: >25dB
Trunk Through Loss: <5dB
Return Loss: >15dB
Maximum Output Level*: 93dBμV
Maximum Input Level*: 81dBμV
Current Consumption from Receiver: <40mA
Control Signals V/Lo: 11.5-14.5V/0KHz
Control Signals H/Lo: 16.5-19V/0KHz
Control Signals V/Hi: 11.5-14.5V/22KHz
Control Signals H/Hi: 16.5-19V/22KHz
DC pass Rec to Trunk Input: 0.5A
DC pass Trunk Line: 1.0A
Operating Temperature: -20°C to +50°C
Earth-bonding bar: YES
Dimensions inc fixing lugs and earth-bar connectors: 144mm x 117mm x 36mm
Weight: 0.270Kg
*Maximum levels to IMDS=35dB (EN50083-3):

What's included:
      1x Vision V4-812G Cascadable Line Powered Multiswitch

Warranty: 12 Months RTB Warranty.
