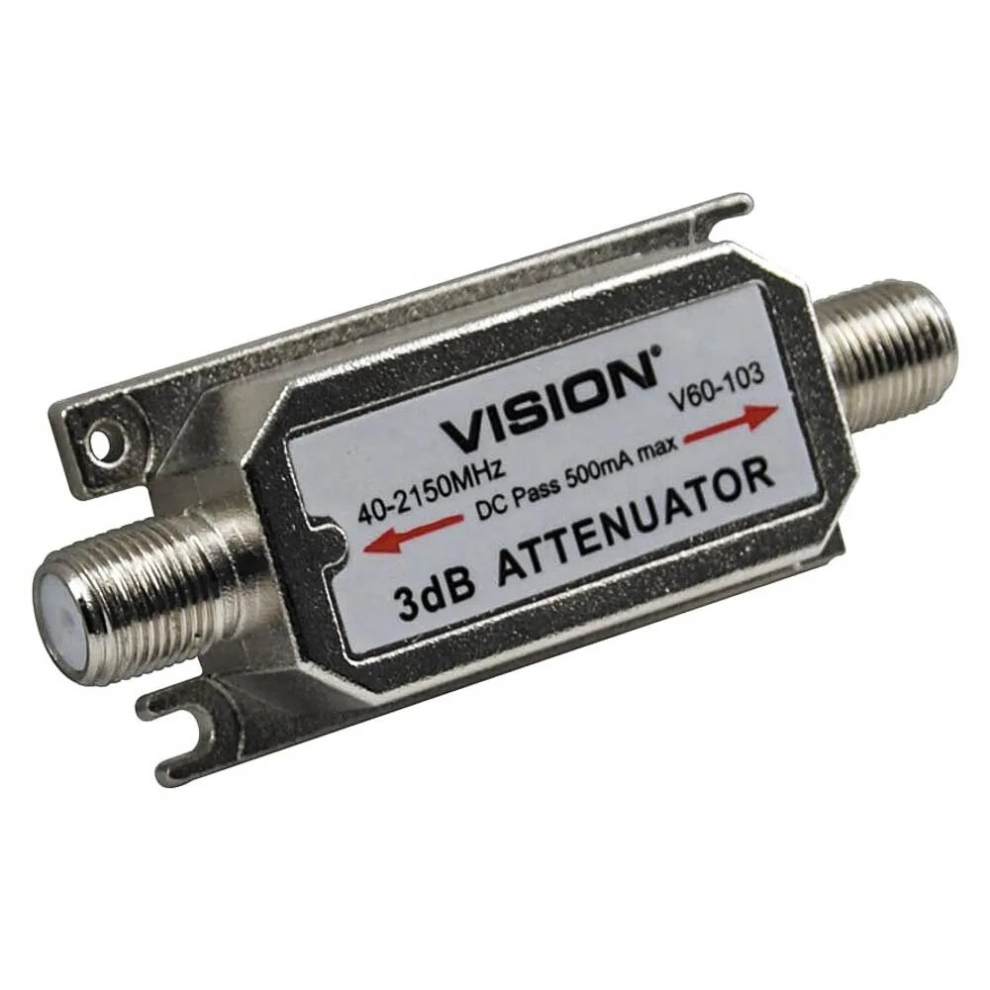

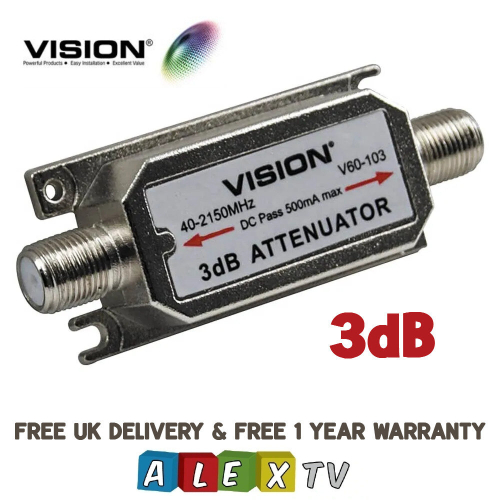

Vision V60-103 In Line Attenuator 3dB F-Type connection for IRS / MATV System

Vision V60-103 In Line Attenuator 3dB F-Type connection for IRS / MATV System Description

In line F connected attenuator to protect amplifiers from potential signal overload.

3dB Attenuator for IRS and MATV Systems. High accuracy and stability performance design with PCB construction. Unique wall mount design with secure fixing to avoid connector strain. DC pass for use with line powered accessories

An attenuator performs the opposite function of an amplifier. While an amplifier provides signal gain, an attenuator reduces signal strength (provides loss), or gain less than 1. Having a signal that is too strong can cause the same kind of reception problems as having a signal that is too weak.
A combination of attenuators may be used together to create the exact signal loss needed.

The signal would be reduced by: 3dB

Features:

• Eliminate Distortion
• High accuracy and stability performance design with PCB construction
• Unique wall mount design with secure fixing to avoid connector strain
• Die-cast screened bulkhead fixings
• Stable performance 40-2100MHz
• DC pass 18V 500mA
• F-female connectors
• 3dB

Specifications:
Brand: Vision
Model: V60-103
Frequency Range: 40-2100MHz
Attenuation Value: 3dB ±0.2
Return Loss: >23dB
Screening factor: >105dB
Connector: 2 x F female connector
DC Pass: Bi-directional 18V 500mA max
Power Requirement: 12V-18V 30mA maximum
Material: Diecast Zinc Alloy
Dimensions (inc fixings and connectors): 70 x 26 x 16mm
Part Number:  V60-103

What's Included:
1 x V60-103 In-Line Attenuator 3dB
