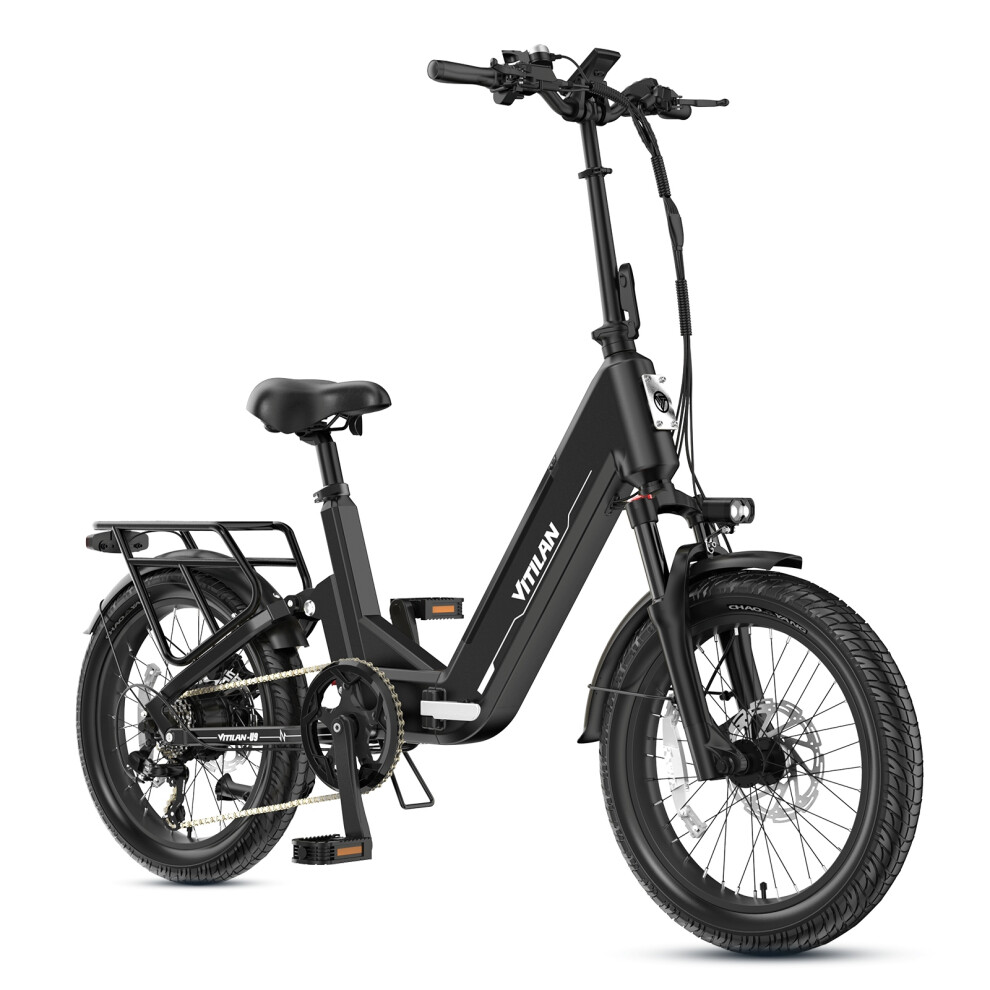

Vitilan U9 Folding EBike 500W 15Ah Full Suspension

Vitilan U9 Folding EBike 500W 15Ah Full Suspension Description

The Vitilan U9 is a folding fat tyre electric bike designed for commuting, leisure cycling and outdoor adventures. It combines a 500W brushless motor, a removable 48V 15Ah LG lithium battery, full suspension and a Shimano 7-speed gear system.

With its folding frame, 20-inch fat tyres, hydraulic disc brakes and torque sensor, the U9 brings together practical storage, adaptable gearing and suspension for a variety of riding environments.

Key Features

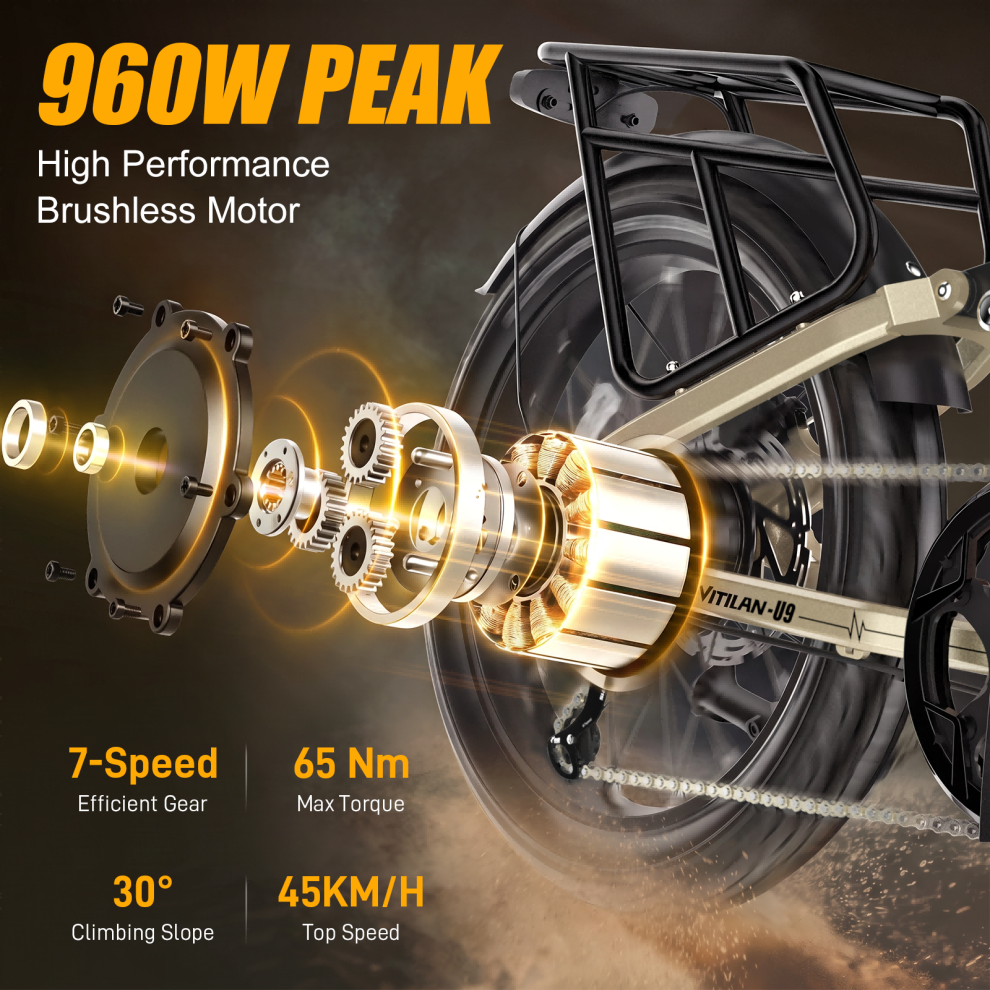

1. 500W Brushless Motor

The Vitilan U9 features a 48V 500W brushless motor with a stated peak power of 960W and maximum torque of 65 Nm. These specifications are designed to support responsive power delivery and assist with climbing.

The product information specifies a maximum climbing angle of 30°.

2. Removable 48V 15Ah LG Battery

The U9 is equipped with a 48V 15Ah LG lithium battery. Its removable design provides flexibility when charging and storing the battery.

• Battery type: LG lithium battery

• Voltage: 48V

• Capacity: 15Ah

• Stated range: Up to 50 km

• Charger: 54.6V 2.0A smart charger

Actual range may vary depending on rider weight, terrain, temperature, riding mode and other operating conditions.

3. Folding Frame for Convenient Storage

The folding frame is designed to reduce the space required for storage and transportation. When folded, the bike can be more conveniently stored in a suitable vehicle or storage area.

The folding design makes the U9 a practical option for riders who need flexibility between cycling and other forms of transport.

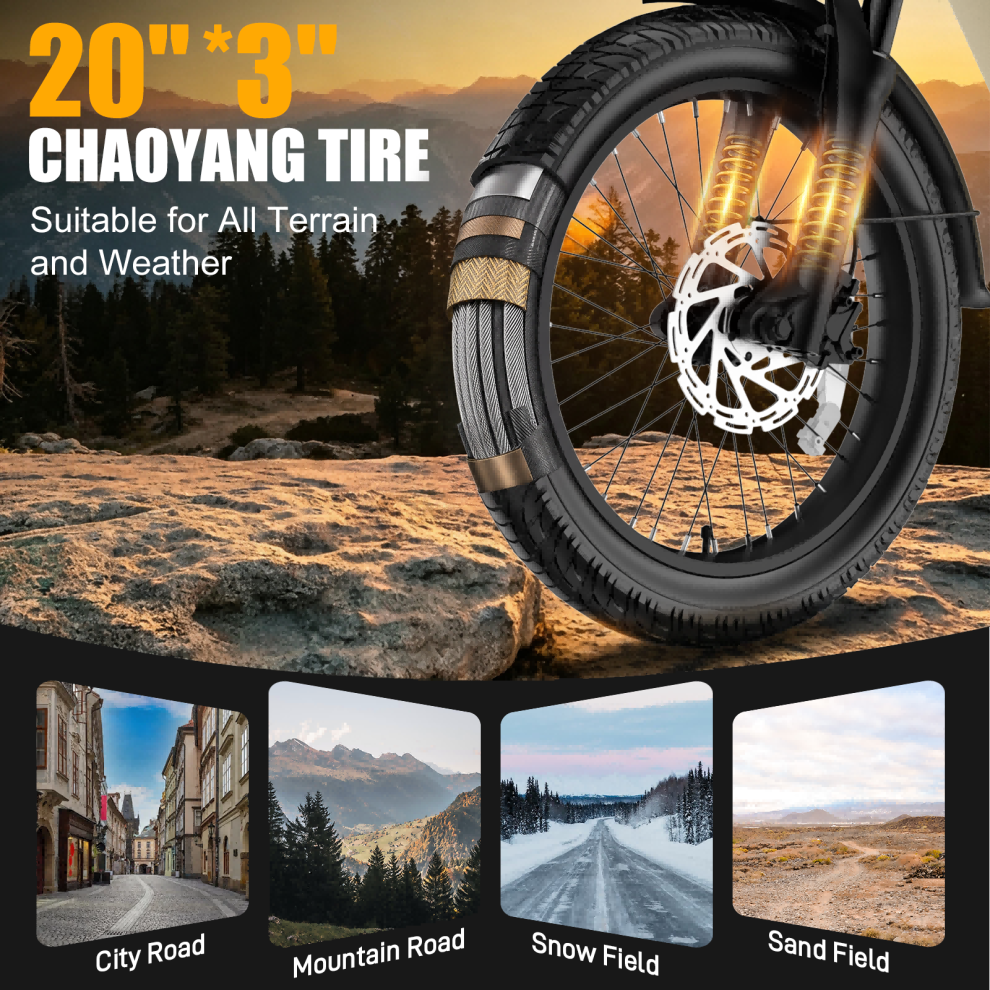

4. 20 x 3-Inch CHAOYANG Fat Tyres

The Vitilan U9 features 20 x 3-inch CHAOYANG fat tyres. Their wide profile is designed to provide a stable riding feel across a variety of surfaces.

The product imagery presents the tyres for use on city roads, mountain paths, snowy surfaces and sandy terrain. Riding conditions and tyre grip can vary depending on the surface and weather.

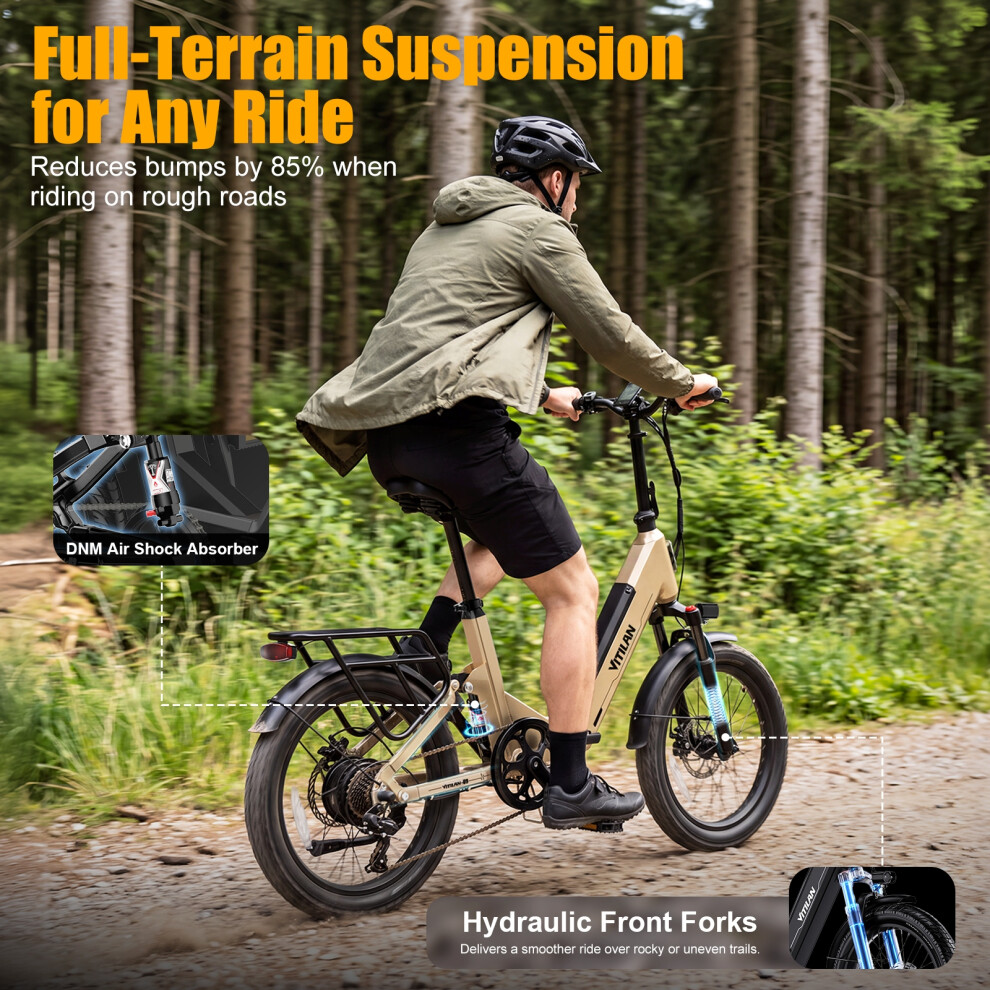

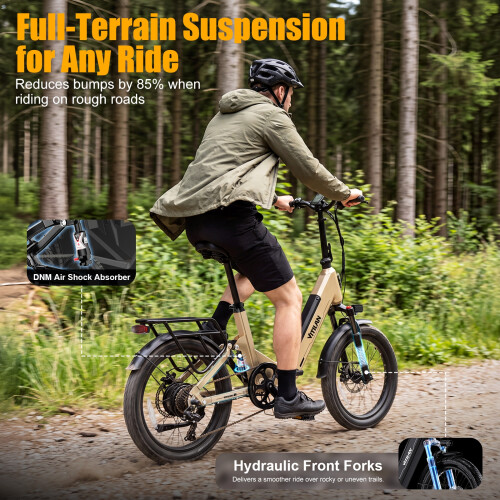

5. Full Suspension System

The U9 combines a hydraulic front fork with a DNM air rear shock absorber.

This front and rear suspension arrangement helps absorb impacts and vibrations when travelling over uneven roads and trails, supporting a more comfortable riding experience.

6. Logan Hydraulic Disc Brakes

The bike is equipped with Logan hydraulic disc brakes.

• Brake type: Hydraulic disc brakes

• Disc diameter: 180 mm

• Disc thickness: 2.3 mm

The hydraulic braking system is designed to provide controlled braking. Riders should inspect the brakes regularly and adjust their riding speed to suit road and weather conditions.

7. Shimano 7-Speed Gear System

The Shimano 7-speed gear system allows riders to select a suitable gear for different gradients and riding conditions.

The U9 also features five levels of pedal assistance, giving riders options for adjusting the level of electric assistance during a ride.

8. Torque Sensor for Pedal Assistance

The integrated torque sensor detects the rider's pedalling effort and supports a more responsive pedal-assistance experience.

Combined with the 7-speed gearing and five assistance levels, it provides flexibility for different riding preferences.

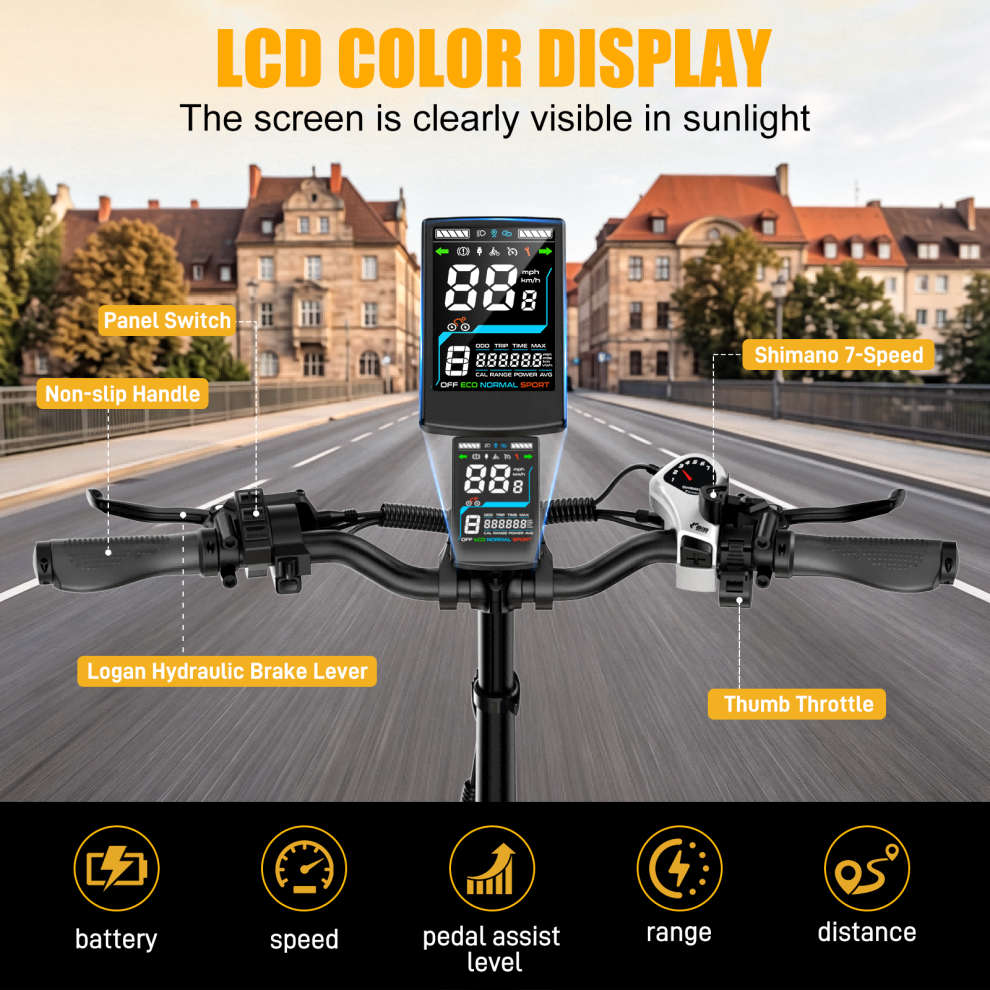

9. Colour LCD Display and Practical Controls

The 48V colour LCD display presents key riding information, including:

• Battery level

• Riding speed

• Pedal-assistance level

• Range information

• Distance information

The display is advertised as clearly visible in sunlight and includes a USB charging port.

Additional controls and equipment include a thumb throttle, non-slip handlebar grips and an electric horn.

10. Integrated Lighting

The U9 features a 48V LED rear light with turn signals to improve visibility and indicate turning intentions.

Lighting should be checked before every ride, particularly when travelling in low-light conditions.

11. IPX6 Protection Rating

The product specification lists an IPX6 protection rating. This indicates a stated level of protection against powerful water jets under specified test conditions. It should not be interpreted as permission to submerge the bike or battery in water.

Technical Specifications

• Brand: Vitilan

• Model: U9

• Product type: Folding fat tyre electric bike

• Motor: 48V 500W brushless motor

• Maximum torque: 65 Nm

• Battery: LG 48V 15Ah lithium battery

• Battery design: Removable

• Stated range: Up to 50 km

• Stated maximum speed: 45 km/h

• Stated climbing angle: 30°

• Tyres: CHAOYANG 20 x 3 inches

• Gear system: Shimano 7-speed

• Pedal-assistance levels: 5

• Sensor: Torque sensor

• Front suspension: Hydraulic front fork

• Rear suspension: DNM air shock absorber

• Brakes: Logan hydraulic disc brakes

• Brake disc diameter: 180 mm

• Brake disc thickness: 2.3 mm

• Display: 48V colour LCD with USB charging port

• Rear light: 48V LED light with turn signals

• Additional equipment: Thumb throttle and electric horn

• Protection rating: IPX6

• Maximum payload capacity: 330 lbs (approximately 150 kg)

• Recommended rider height: 5 ft 3 in to 6 ft 5 in

• Charger: 54.6V 2.0A smart charger

• Package dimensions: 144 x 27 x 70 cm

Suitable Applications

The Vitilan U9 is designed for a range of recreational and everyday cycling activities, including commuting, campus travel, city journeys and outdoor leisure rides.

Its folding frame supports more convenient storage, while the fat tyres, suspension system and multi-speed gearing provide versatility across different riding environments.

Important Information for UK Buyers

The stated motor power, maximum speed and thumb throttle configuration should be checked against the applicable UK electric bicycle regulations before the bike is marketed as a road-legal electric bicycle.

The specifications above describe the product as supplied and do not constitute a claim that it meets the requirements for an electrically assisted pedal cycle (EAPC) or is authorised for use on public roads in the UK.
