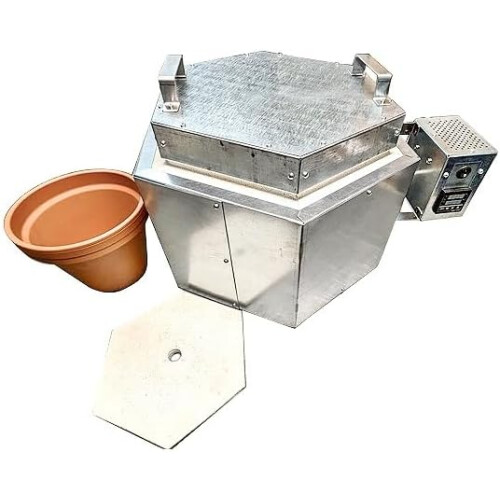

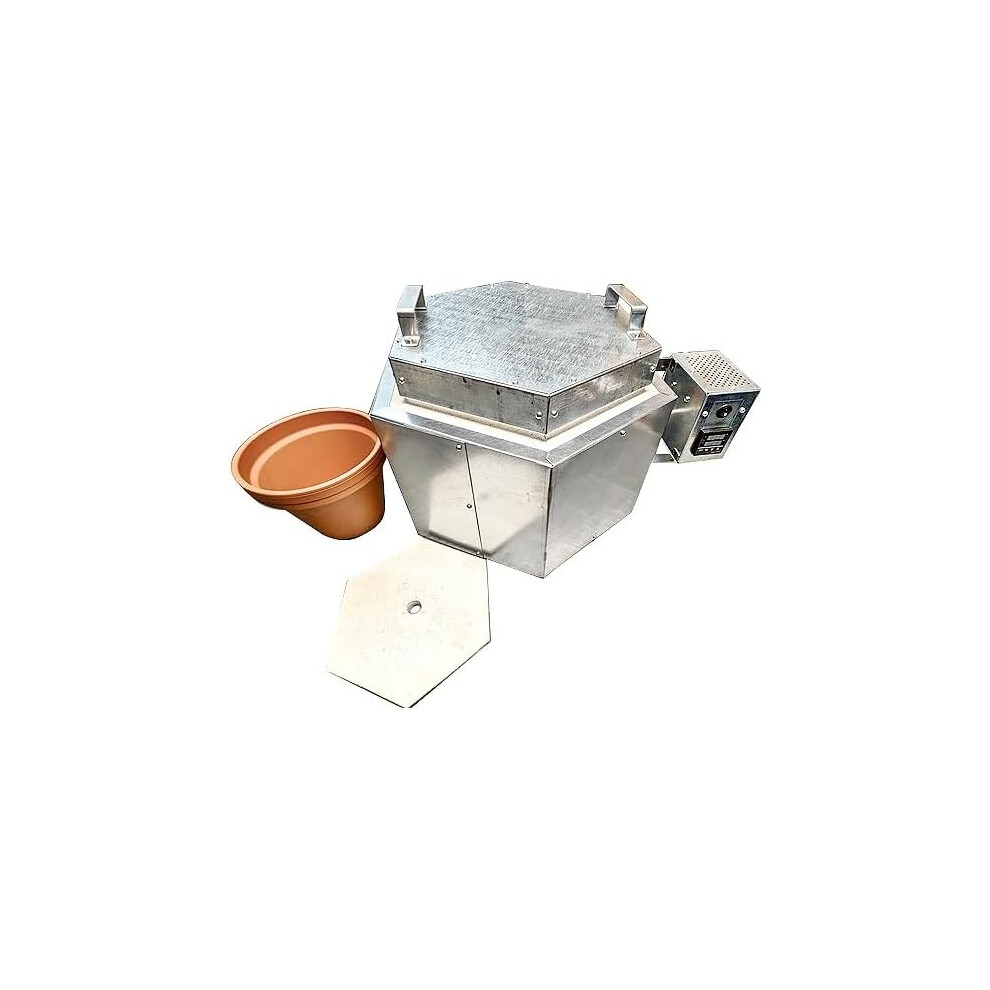

VITRIGRAPH TOP-LOADED KILN 1100C GLASS STRINGS OR OTHER GLASS PROJECTS
Brand Technical Super Market
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£720.00
+£80.20 Delivery
1%
Earn £7.20 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£80.20) | Thu 23rd - Sat 25th Jul
Sold by: Technical Super Market
Returns: 30 days
180-day payment protection
Most Popular in Pottery Kilns & Firing Accessories
Description & Details
Summary
- Supplied with one clay pot with bottom diameter 110 mm x top diameter 200 mm x 160 mm (high) with 1″ (25-mm) bottom hole *** Other pots with other dimensions and suitable for this temperature and this size of chamber can be used as well
- Digital over/low-temperature regulation secure system and smoothing circuit (controller's stability work) digital guard
- Industrial graded K-thermocouple, movable lid with two handles as support, two heating elements around all inner walls
- Included one bottom plate for covering the central bung if you're planning to use this kiln also for other purpose.
- 32 time/temperature segments on 2-line programmable controller that will allow you to automatically reach, hold (soak) and change up to 32 temperature/time points (for regulating the heating and cooling speed)
VITRIGRAPH TOP-LOADED KILN 1100C GLASS STRINGS OR OTHER GLASS PROJECTS Description
One year manufacturer warranty.
One year FREE online (Skype, WA, Zoom) technical support or/and re-programming service.
All after-selling services include online help and parts-by-post are available on this product worldwide.
Do not want to spoil firing materials with a non-calibrated kiln (because real temperature may on 100 c - 150 c be higher then you can see on temperature controller)?
Do not want to have an electrical shock with fake home-made heating equipment? Do not want to lose professional after-selling support by phone, email or by skype? Looking for a table-top kiln with large enough chamber to work with pieces of wood, metals, stones, pmc, clay, waxes, hot enamels or glass?
Then probably this pretty kiln is right for you because it is: this professional, 1100 c (2012 f) top-loaded electrical muffle kiln with a 32-segment programmable temperature/time controller and 10 l spacious chamber was especially designed to create stringer that is pretty much what is sounds like "Strings" of glass that are used to create many designs in art glass. In the vitrigraph kiln the scrap glass is slow melted (up to 9 hours) at about 1030-1050 c (1900 f). Once melted, it is pulled through a small hole in the bottom of the kiln and its stand and cools as it is being pulled. With this professional kiln you will be able to create the "Stringer" that will be twisted, flat or bent in any form with any thickness before it completely hardens.
You can use for this process any type of glass include scrap. This, 32-segments (temperature-time steps) programmable controller has a digital, over/low-temperature regulation secure system (for holding same temperature during the whole soaking process) and a smoothing circuit digital guard for accurate reading and stability work on fluctuations of electricity that is very important option for most materials such as glass, ceramic, glazing and pottery.
User manual on this kiln is available before purchase. Please feel free to send to us your email address for receive it in attachment in pdf format. For uk customers - vat is already included. For non-uk customers - vat will be automatically removed by ebay on checkout process.
Technical specification:
- brand name: technical supermarket (london);
- made in uk (london); - model: vgk-20;
-power supply: single phase, 115v+/-10% or 230v +/-10% with many type mains plug on request - please see picture;
- power - 2200 watt;
- volume of chamber: 10 l.
- maximum working temperature - 1100 c (2012 f);
- kiln dimensions with electrical box in mm (inch): 530 (21") wide x 400 (16") x 350 (14") height;
-estimated heating time to 1100 c - 150 minutes;

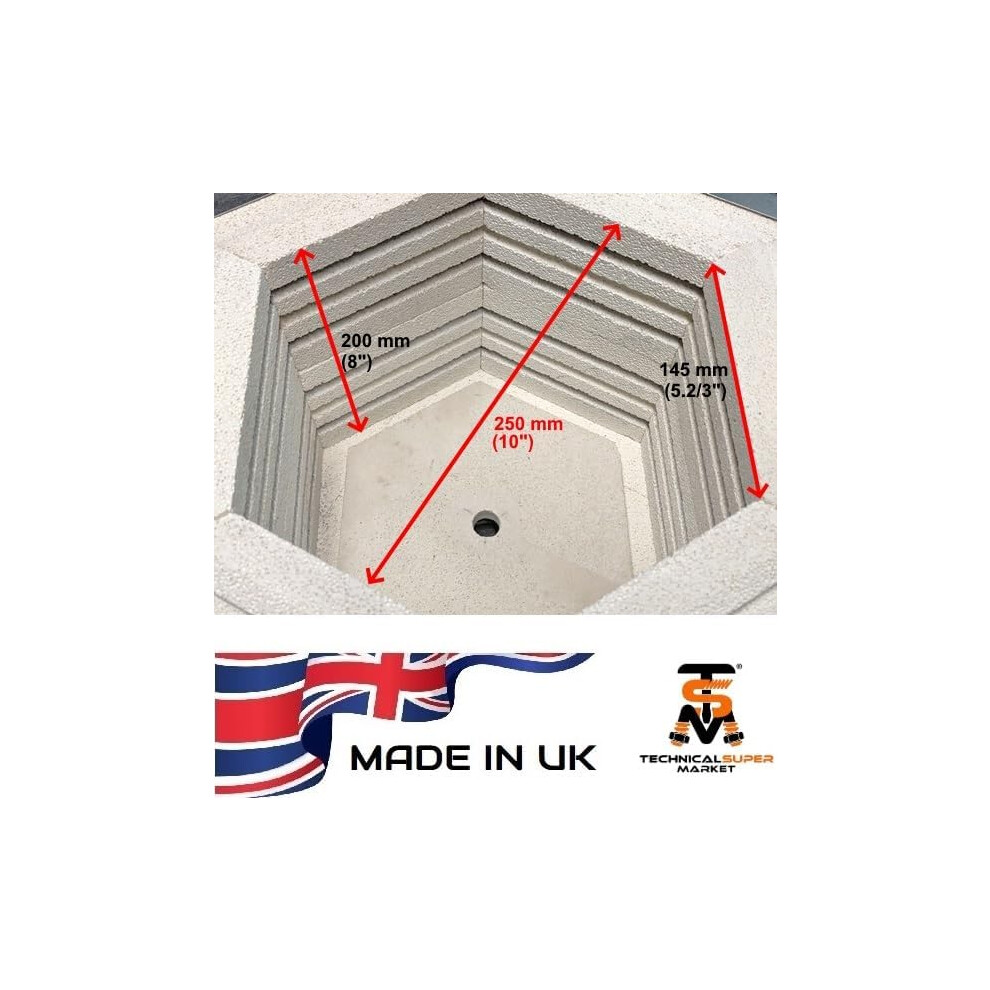

- chamber's dimensions in mm (inch): 250 (10") diameter x 200 (8") height
- please see an image; - 32 time/temperature segments on 2-line programmable temperature controller that will allows you automatically reach, hold (soak) and change up to 32 temperature/time points;
- two heating elements around all walls;
- has 50-mm hole on the bottom for melted glass;

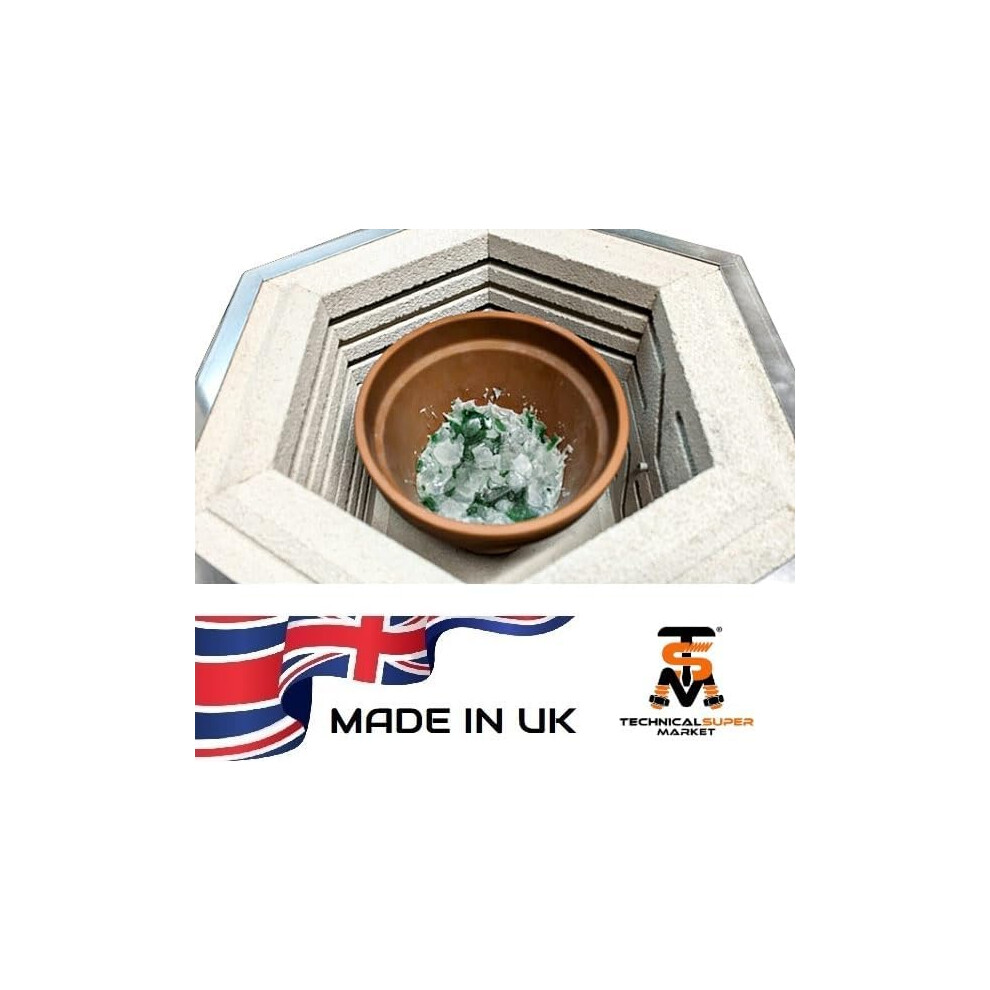

- supplied with one clay pot with bottom diameter 110 mm x top diameter 200 mm x 160 mm high. Bottom hole 1" (25 mm).
Any other pots with other dimensions and suitable for this temperature can be used as well;
- digital over/low-temperature regulation secure system;
- smoothing circuit (controller's stability work) digital guard;
- movable lid with two handles as a supports;
- industrial graded thermocouple;
- calibrated on five points. Estimated accuracy of soaking temperature: +/- 1 c;
- you will require a standard screw-driver to fix electrical box with temperature controller and a thermocouple to this kiln by few screws (supplied). - weight - 30 kg (39 kg in wooden box);
- cable - 2.5 m;
- one year manufacturer warranty + parts-by-post service;
- one year free online (skype, wa, zoom) technical support or/and re-programming service.
Delivery specification:
- the vgk-20 top-loaded programmable electrical kiln;
- k-thermocouple;
- electrical box with 32 temperature/time segment programmable controller;
- clay pot for with 25-mm (1") hole for glass pieces;
- downloadable user manuals and programming video (by email);
- one year standard manufacturer warranty;
- one year free online technical support and re-programming service by email, telephone, skype, zoom or wa.
Details
| OPC | PFWTWVT |
|---|---|
| Brand | Technical Super Market |
| Codes | 5065019870537 (EAN) |
| MPN | MESP-9713835629 |
Detailed Product Information
| Colour | Grey |
|---|---|
| Material | Steel |
| Weight | 39kg |
| Height | 40cm |
| Length | 53cm |
| Width | 35cm |
