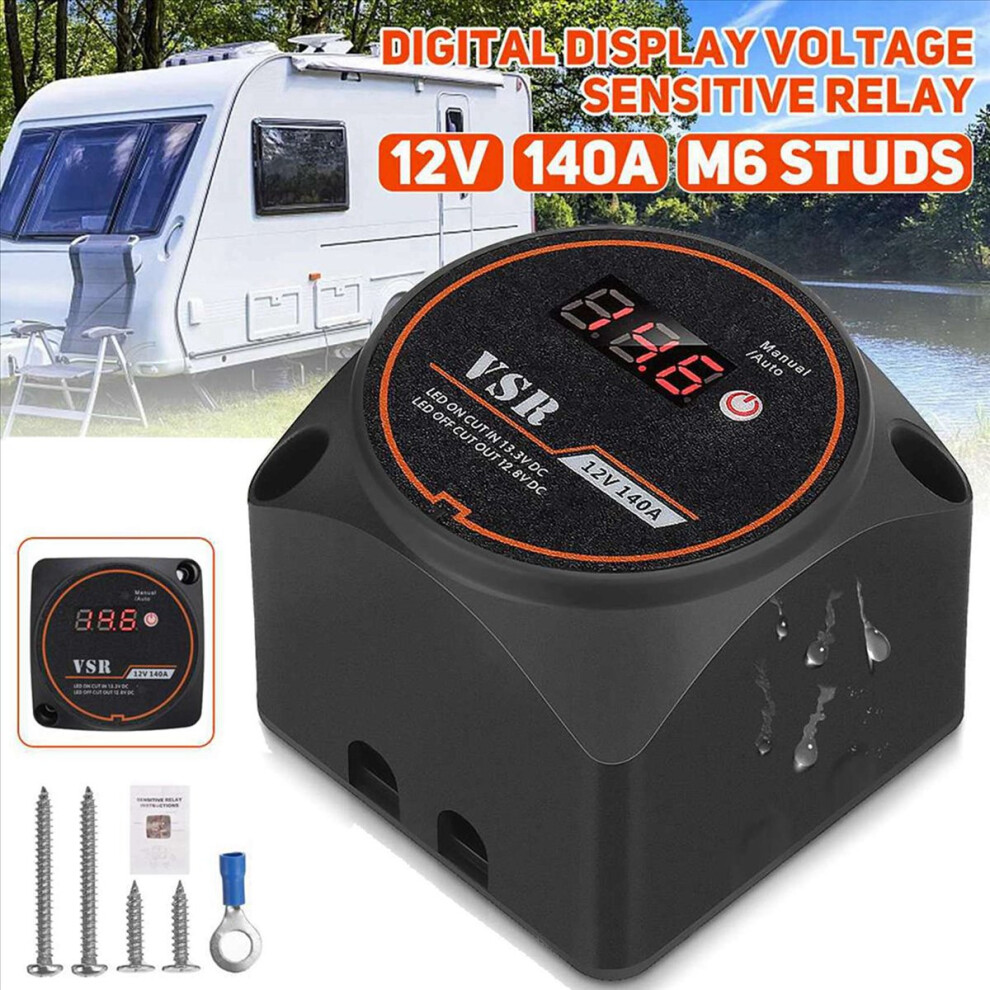

Voltage Sensitive Split Charge for Car RV Yacht Smart Battery

Voltage Sensitive Split Charge for Car RV Yacht Smart Battery Description

Automatically combines two batteries when charging and isolates the two batteries when not charging.
Suitable To Install into , , Leisure Vehicles & Marine Applications.
Not 70 Amp Cable As Per Some Other Similar Priced Kits.
No voltage drops comparing to battery isolator diodes (0.6V).
Meets ISO8846 Ignition Protection, suitable for use in engine room.

Built-in LED indication (ON when VSR engages).
or panel mount options provides flexibility when installing.
Optional Storage Mode allows zero power consumption when engine is off.
Product Specifications:
Automotive Dual Battery Isolator Relay Protection Voltage Split Charge 12V 140A
Nominal Voltage: DC 12V
Combine Voltage: DC 13.3V
Open Voltage: DC 12.8V
Continuous Rating: DC 125A
Intermittent Rating: DC 140A
Power Consumption: 10mA (Standby)/ 330mA(Engage) / 0mA (Storage)
Terminal Studs|: M6(1/4inch)
Waterproof Level: IP67
Material:ABS
colour:As Shown

Package Contents:

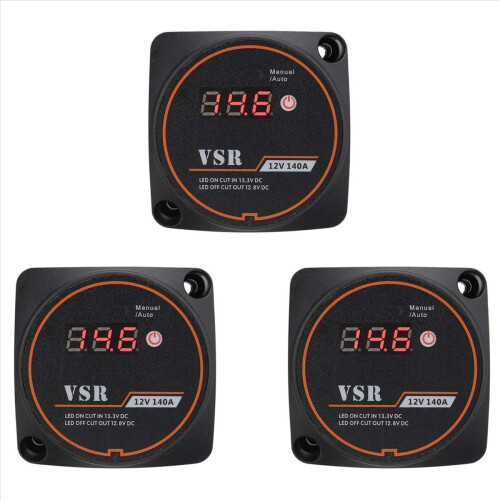

3 x Split Charge Relay

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
