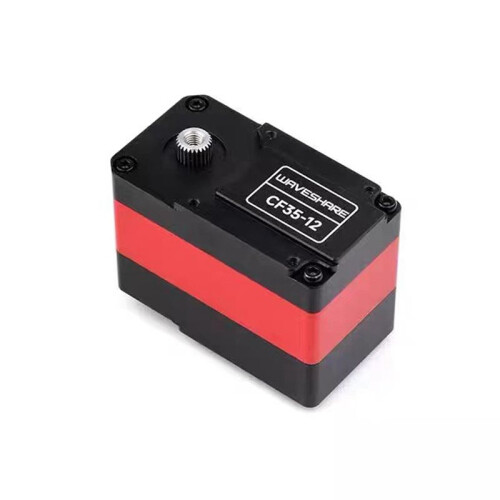

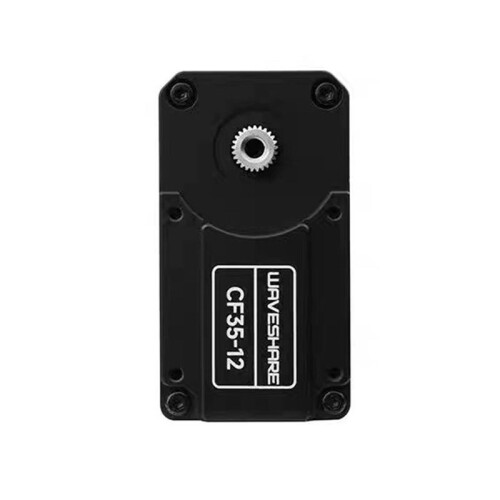

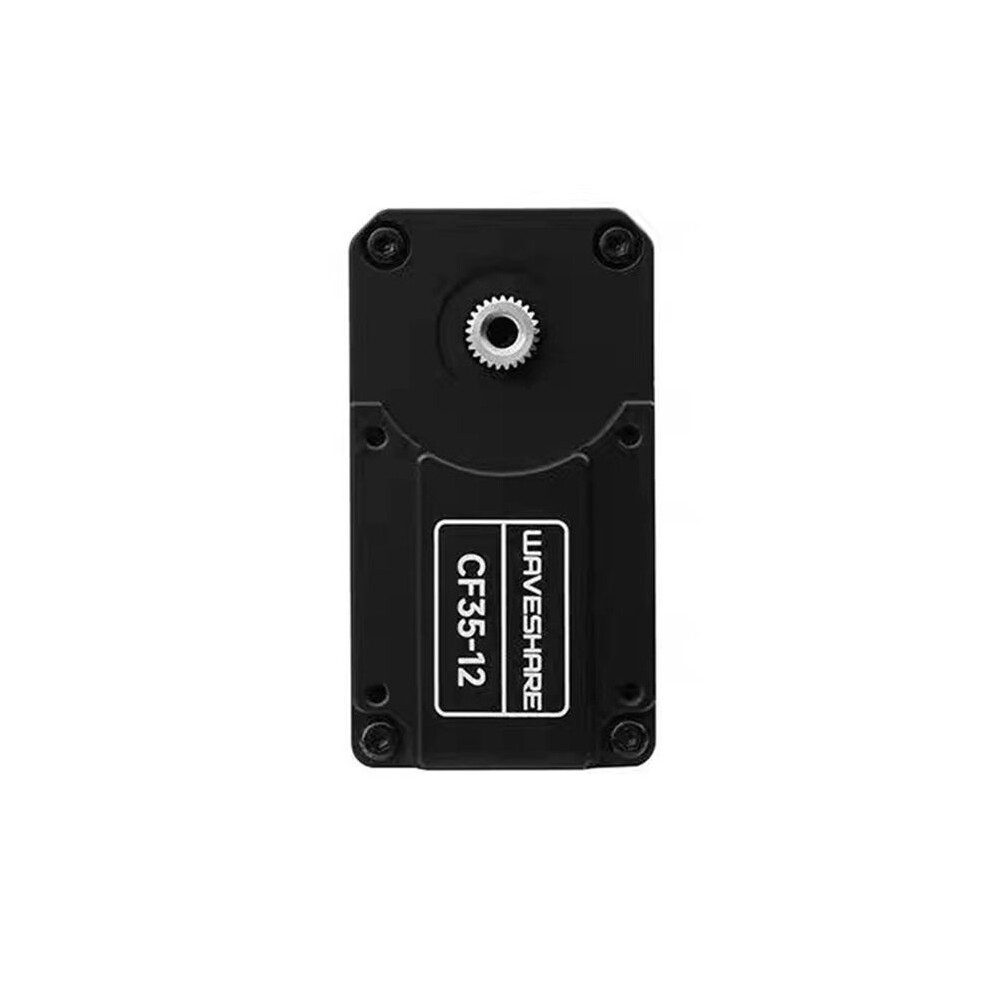

Waveshare 35KG.cm Bus Servo High Precision and Large Torque Bus Servo with Programmable 360 Magnetic Encoder

Waveshare 35KG.cm Bus Servo High Precision and Large Torque Bus Servo with Programmable 360 Magnetic Encoder Description

1. High-precision servo: The bus servo adopts a solid aluminum alloy shell to ensure accuracy, thereby improving durability and performance

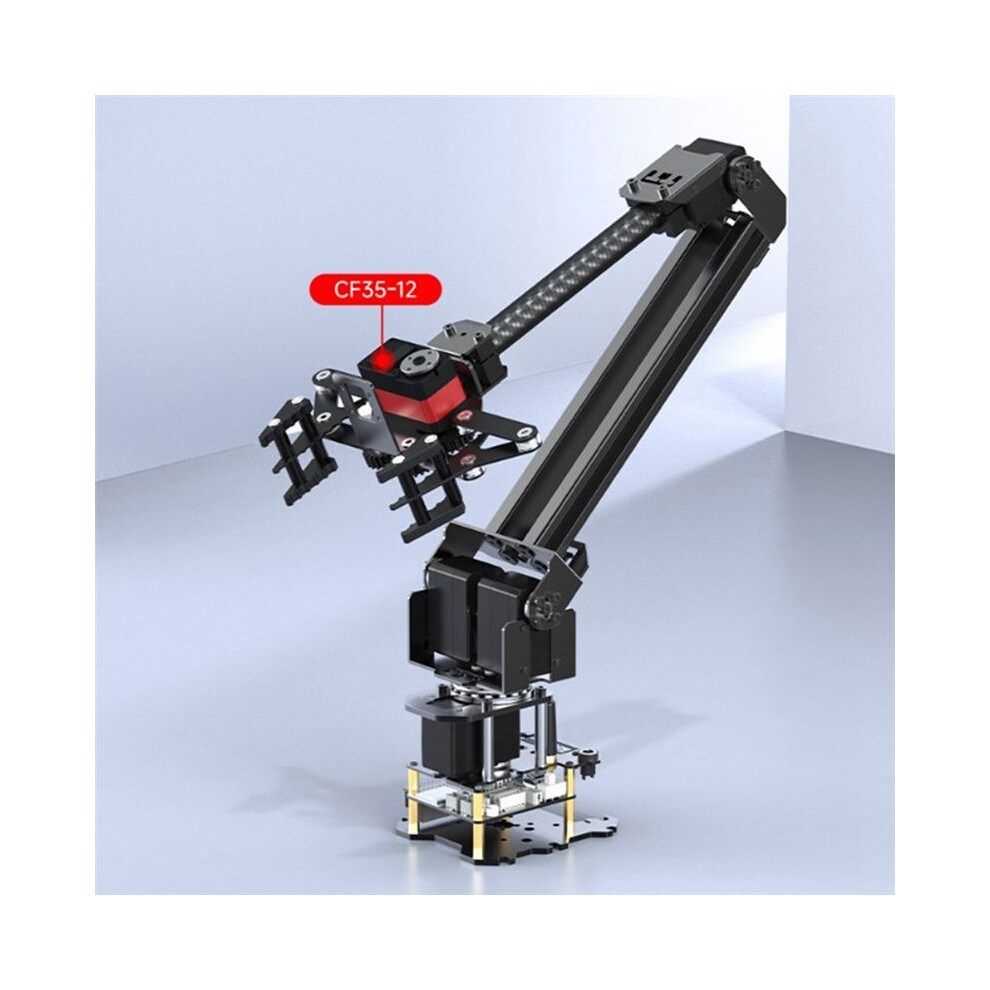

2. Large torque: 35KG.CM torque brings excellent control experience, which is very suitable for robots and industrial applications that require high torque

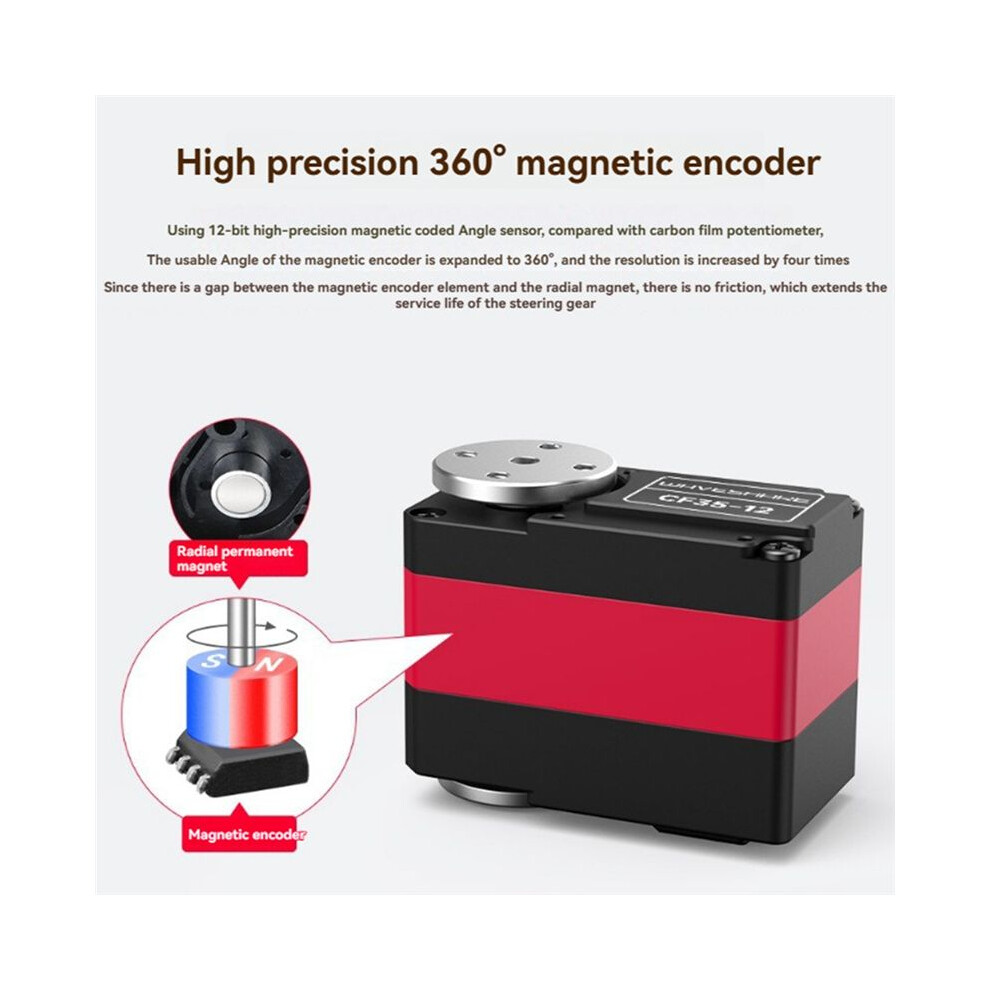

3. Programmable encoder: It has a 360 magnetic encoder that can be programmed to achieve multi-functional positioning and precise motion control

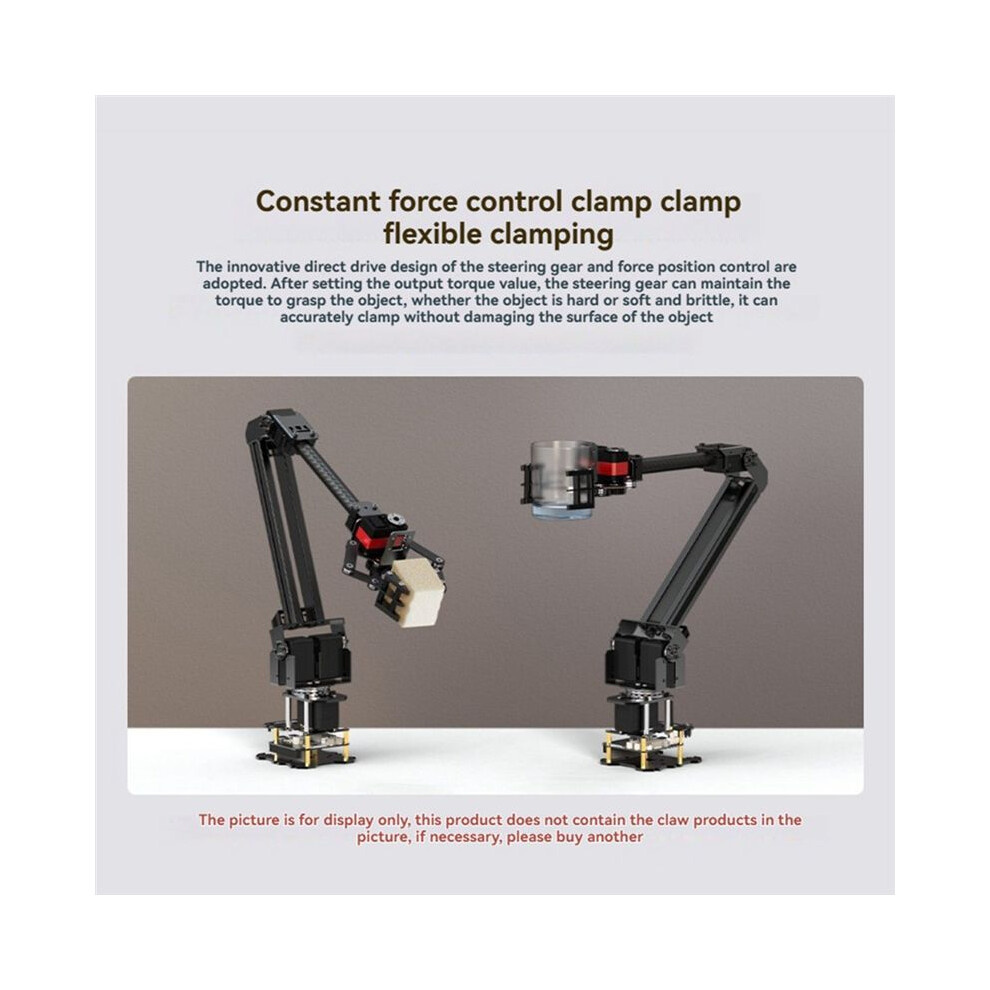

4. Direct drive design: force position control, after setting the output torque value, the servo can maintain the torque to grasp the object, whether the object is hard or soft and brittle, it can be accurately clamped without damaging the surface of the object
5. Multi-turn angle position control: Under the default accuracy, the position control of or minus 7 turns of angle can be achieved, but the number of turns after power-off is not saved. After reducing the angle resolution, the number of turns can be doubled

Torque:35KG.CM
Rotation angle:360 (0-4096)
Position sensor resolution:0.088 (360/4096)
Mechanism limit angle:No limit
Operating voltage:9V - 12.6V (typ. 12V)
Gear:high precision steel gear (reduction ratio 1:345)
No-load speed:0.222sec/60 (45RPM)
Encoder type:12Bits magnetic encoder

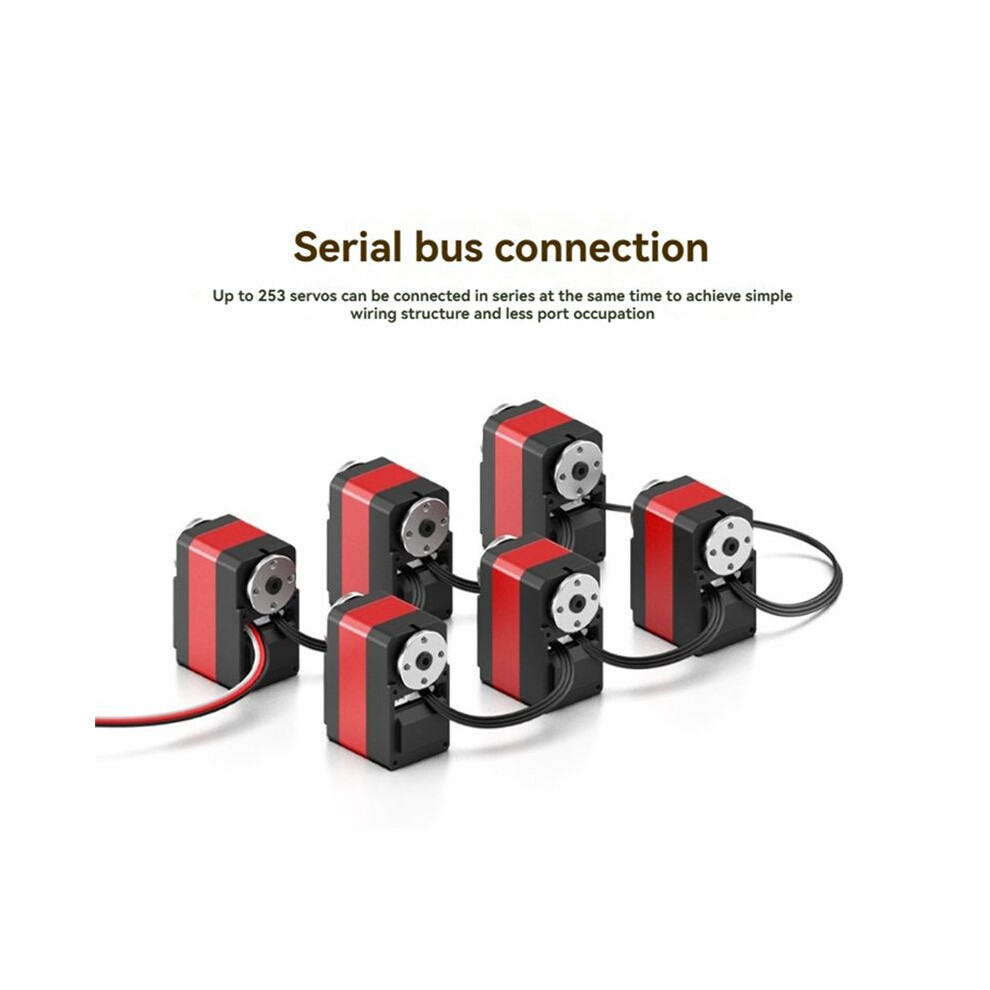

ID range:0 - 253
Baudrate:38400bps - 1Mbps (1Mbps by default)
No-load current:150mA
Locked-rotor current:2.8A
Kt:12.5KG.CM/A
Feedback:Position, Load, Speed, Input Voltage, Current, Temperature
Colour:Black
Material:Aluminum Alloy

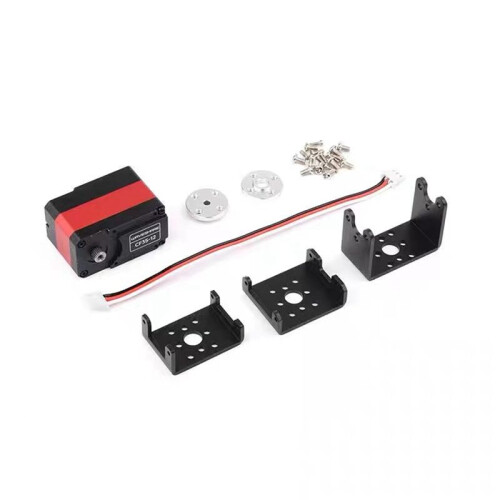

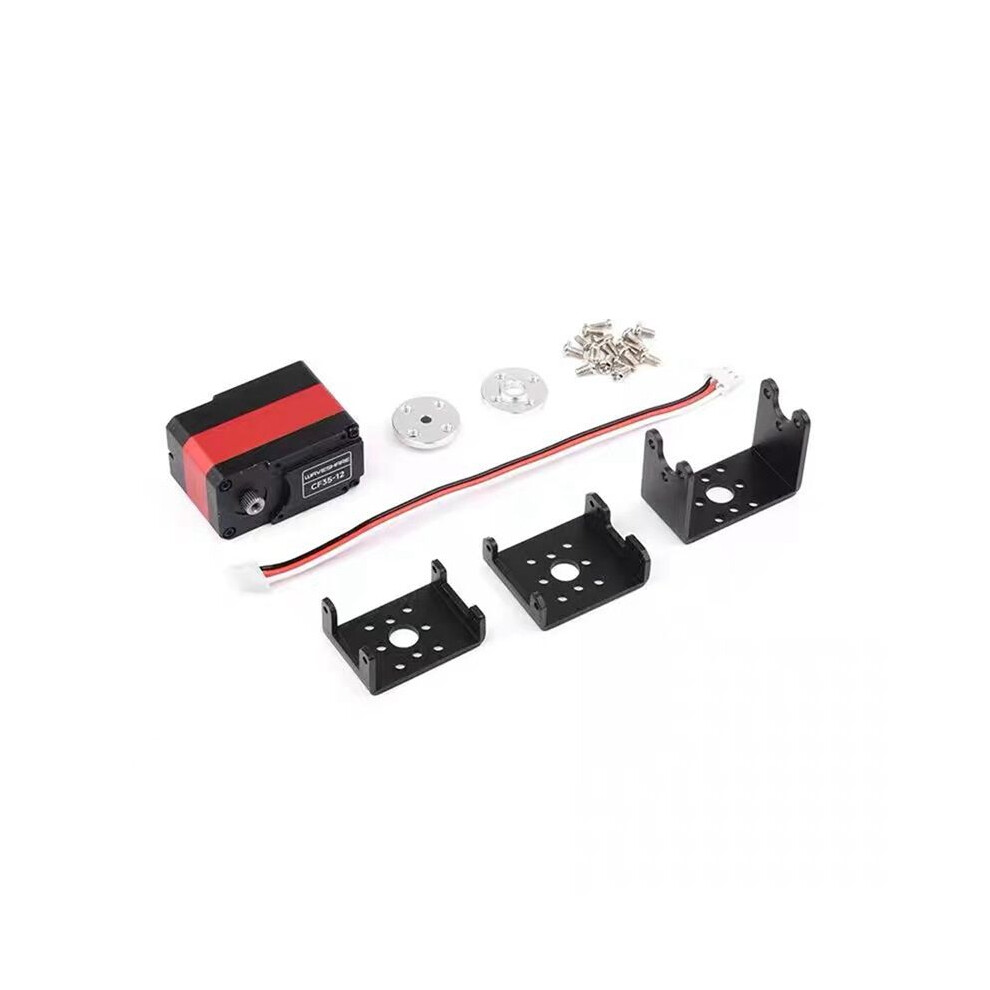

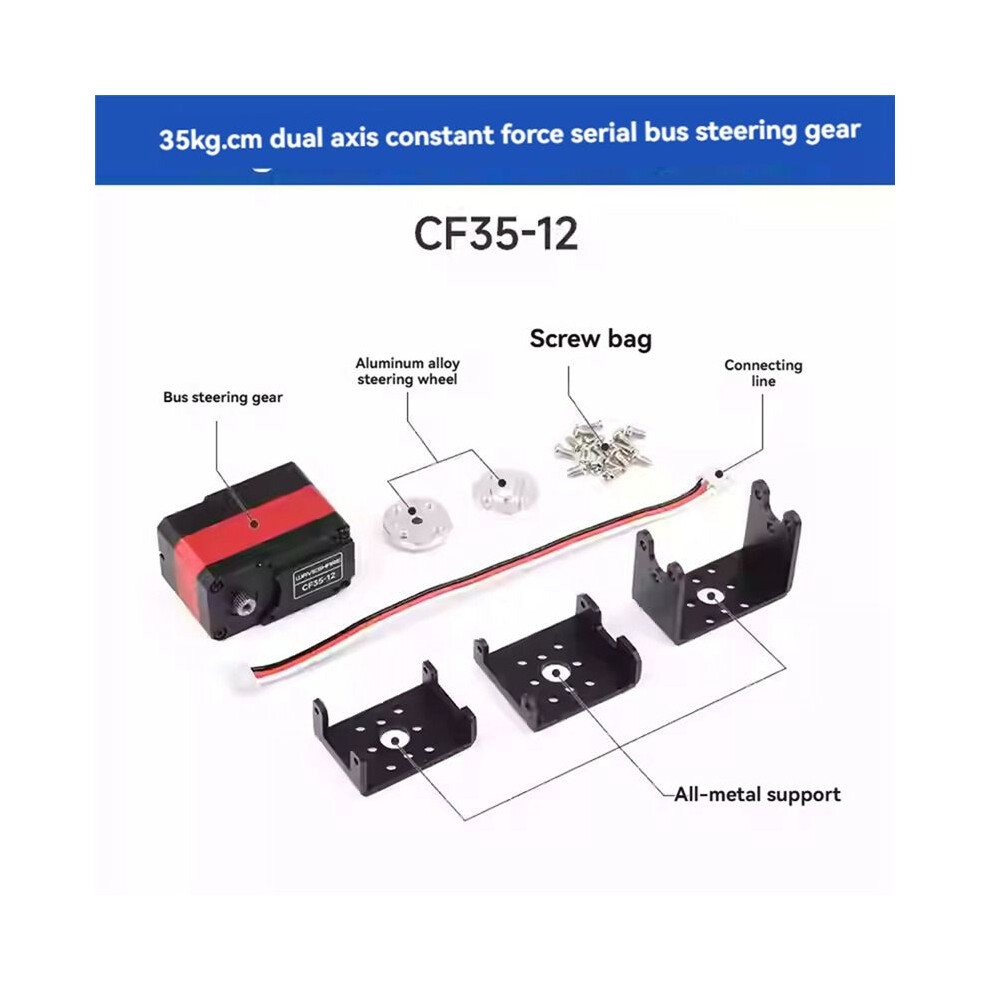

Package Contents:
1 x Bus Servo Kit
