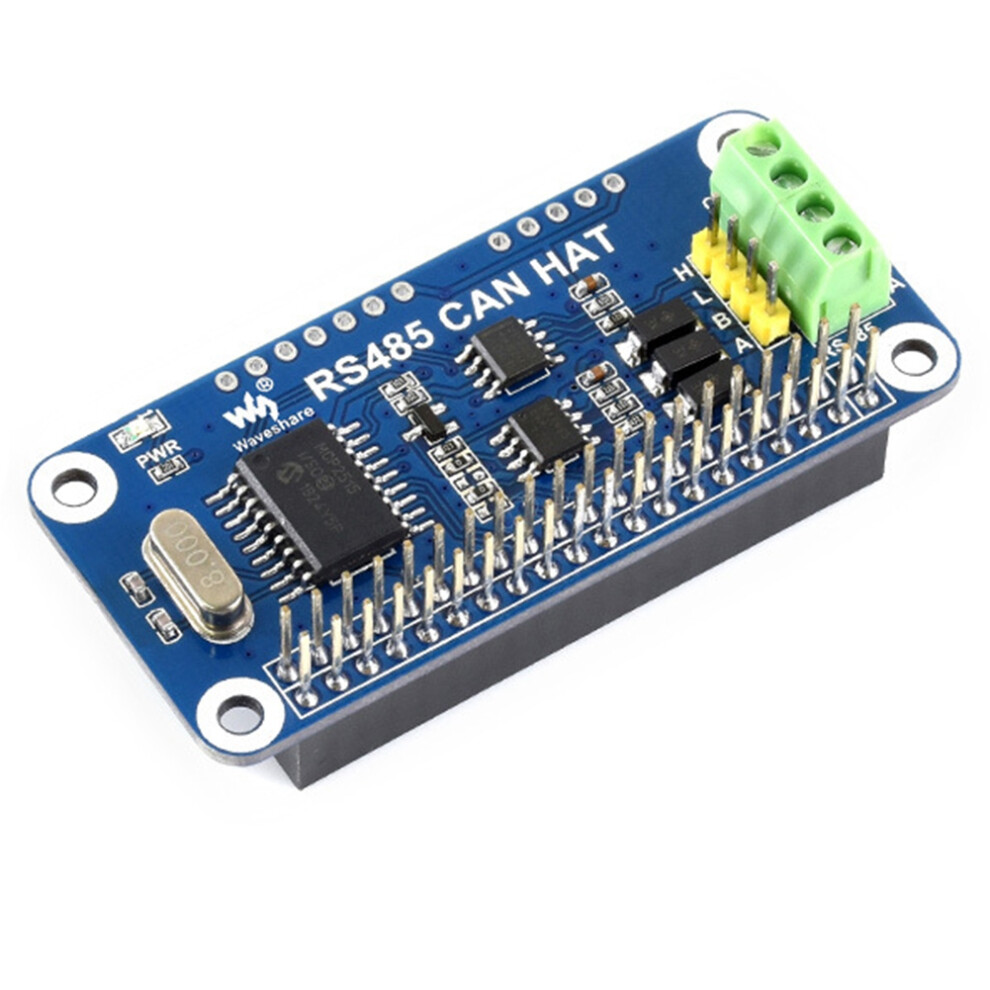

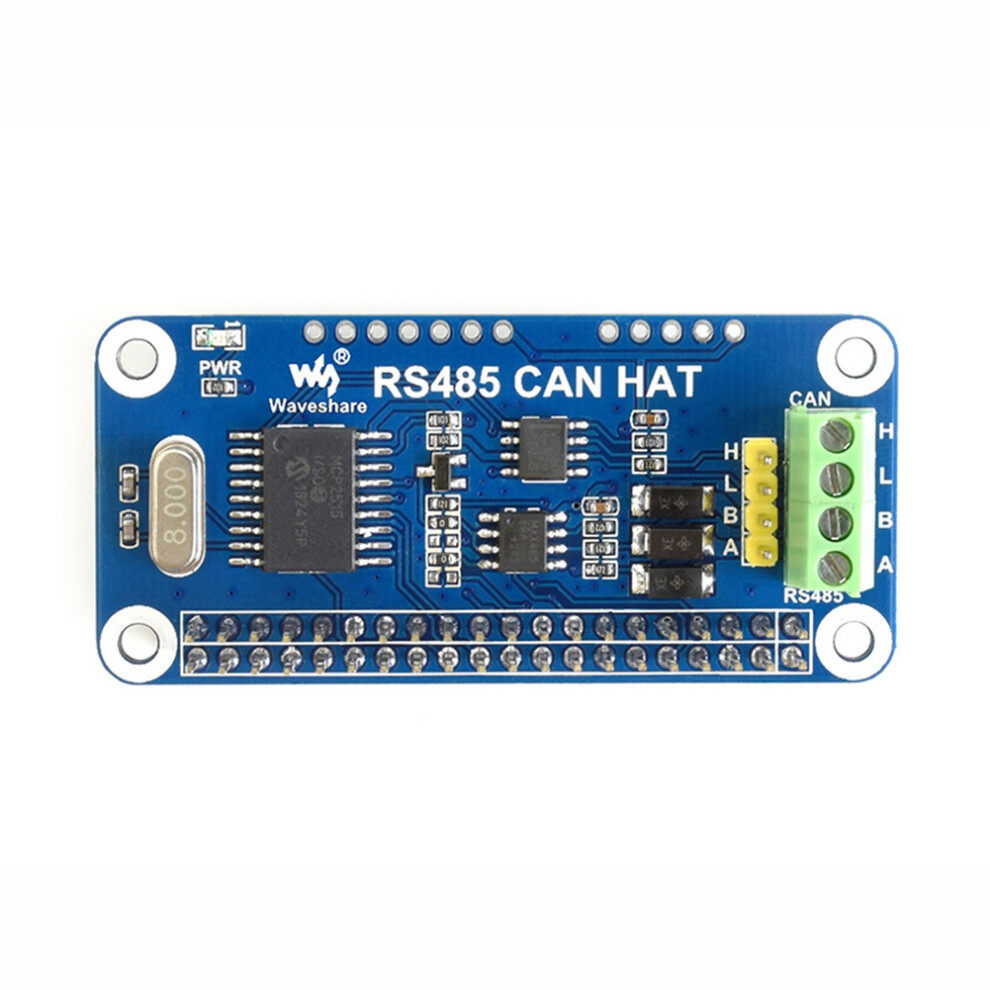

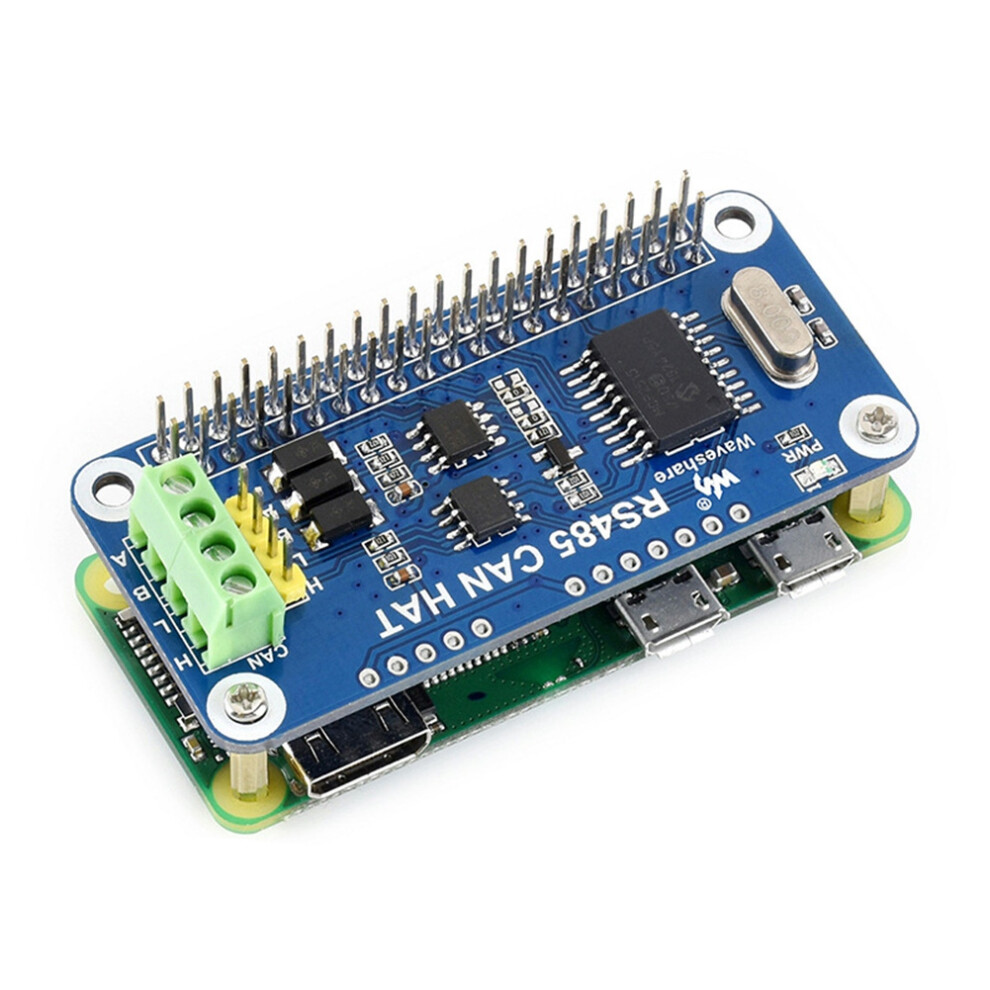

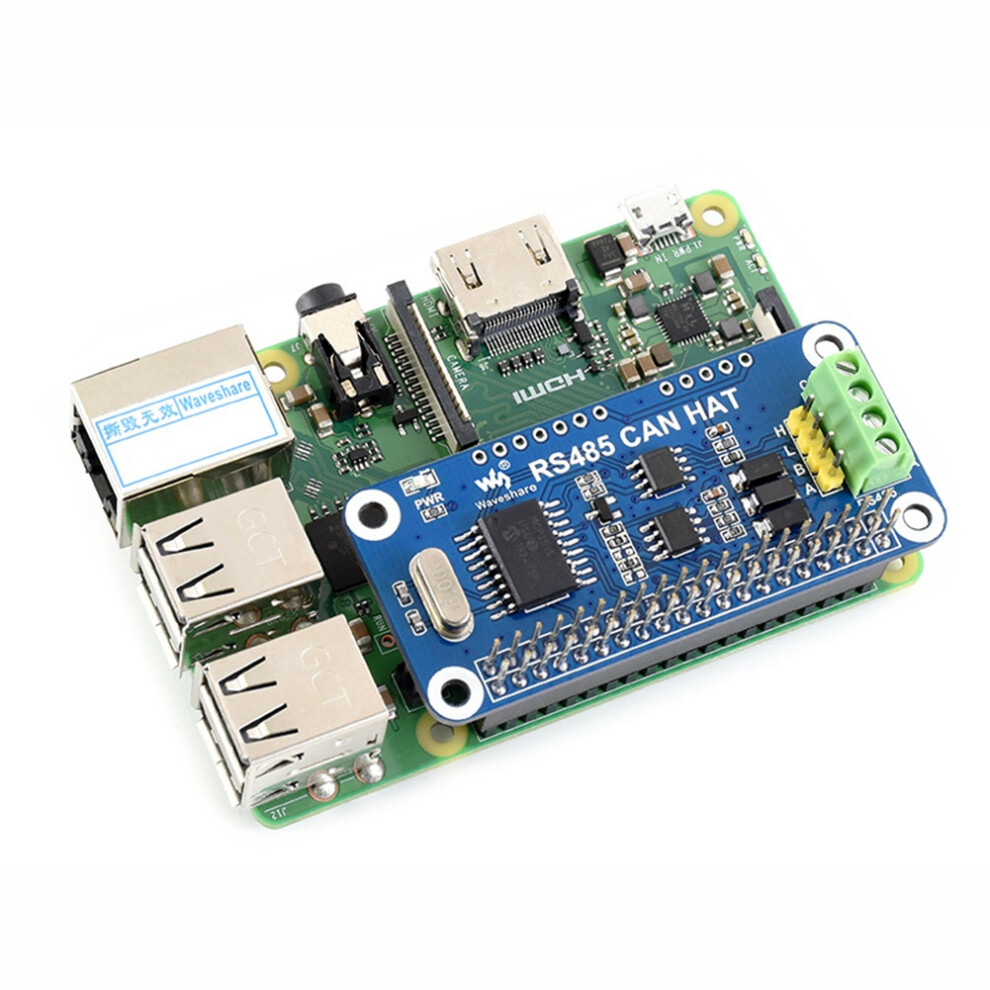

Waveshare MCP2515 RS485 Communication CAN BUS Module HAT Expansion Board for Raspberry Pi 3 Model B+ 3B 4 4B Zero
New
£11.03
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary
- Standard for Raspberry Pi 40PIN GPIO extension header, supports for Raspberry Pi series boards
- CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
- RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, anti-electrostatic

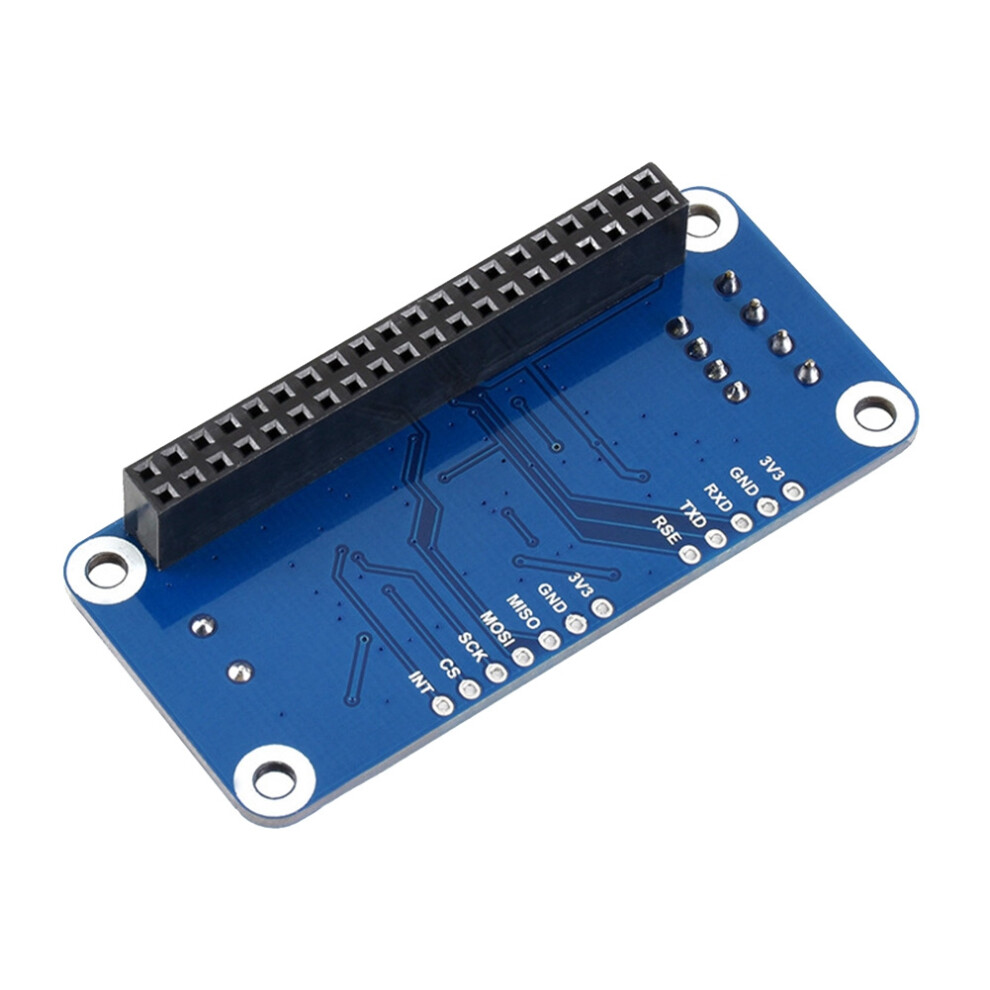

- Reserved control pins, allows to work with other control boards
Waveshare MCP2515 RS485 Communication CAN BUS Module HAT Expansion Board for Raspberry Pi 3 Model B+ 3B 4 4B Zero Description
Standard for Raspberry Pi 40PIN GPIO extension header, supports for Raspberry Pi series boards
CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SN65HVD230
RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, anti-electrostatic
Reserved control pins, allows to work with other control boards
Operating voltage: 3.3V
CAN controller: MCP2515
CAN transceiver: SN65HVD230
485 transceiver: SP3485

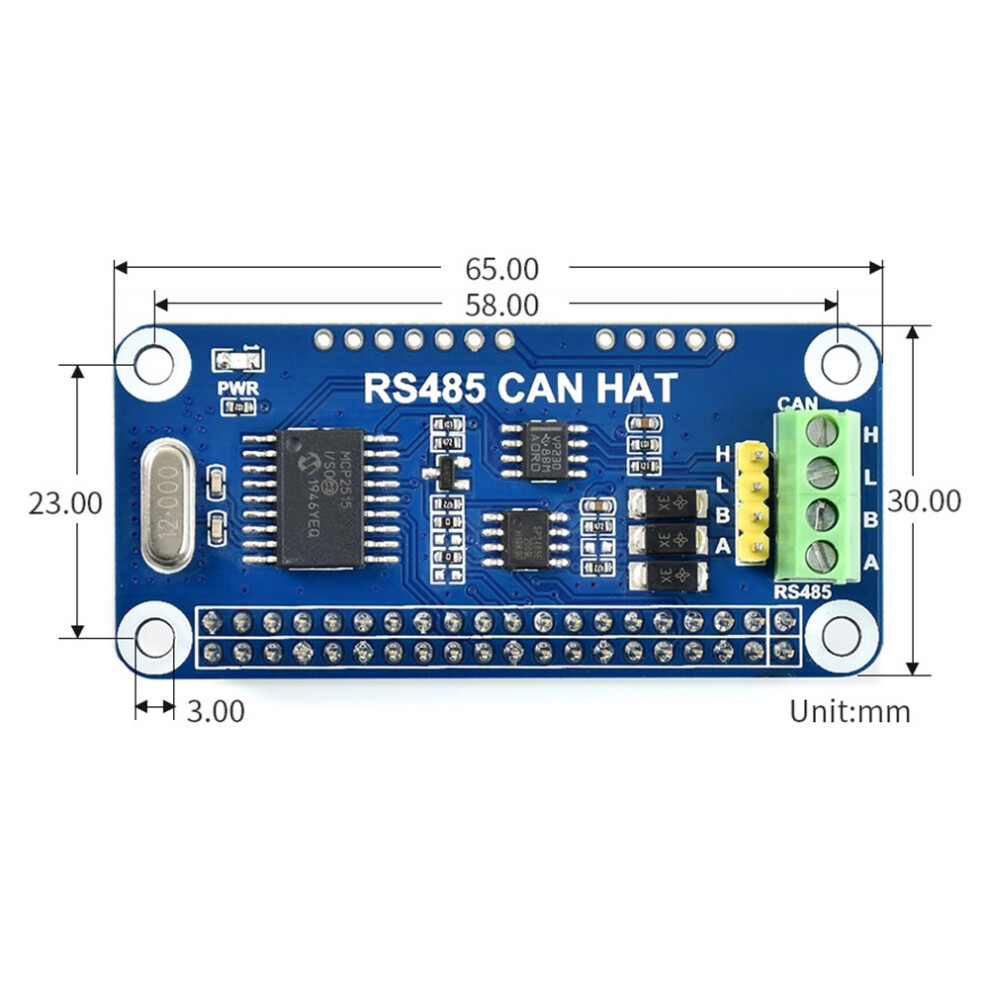

Dimension: 65mm x 30mm
Material:plastic
colour:
Package Contents:
1 * Module HAT Expansion Board
Details
| OPC | PRJFHFD |
|---|---|
| Codes | 4713114310168 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 8cm |
| Length | 12cm |
| Weight | 0.019kg |
| Colour | blue |
| Material | plastic |
