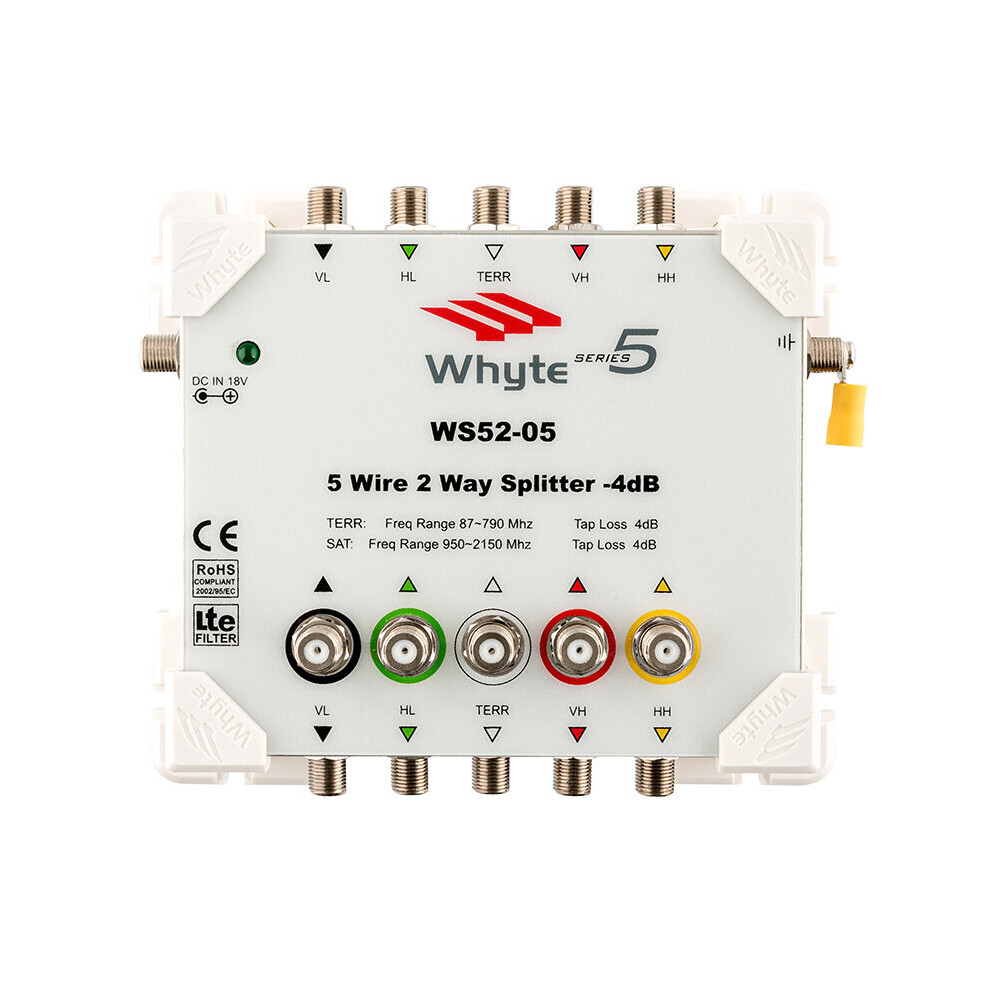

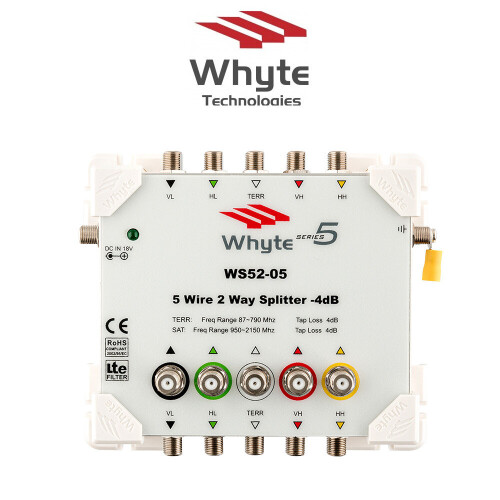

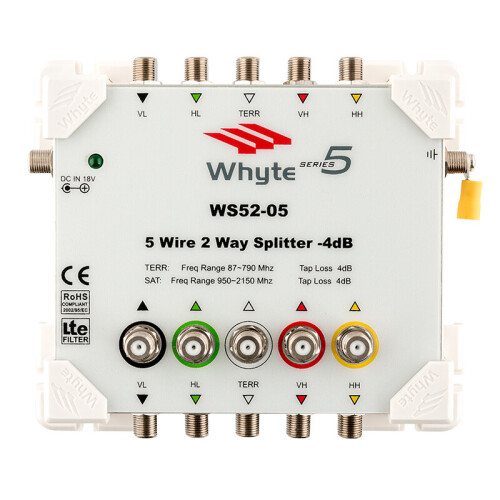

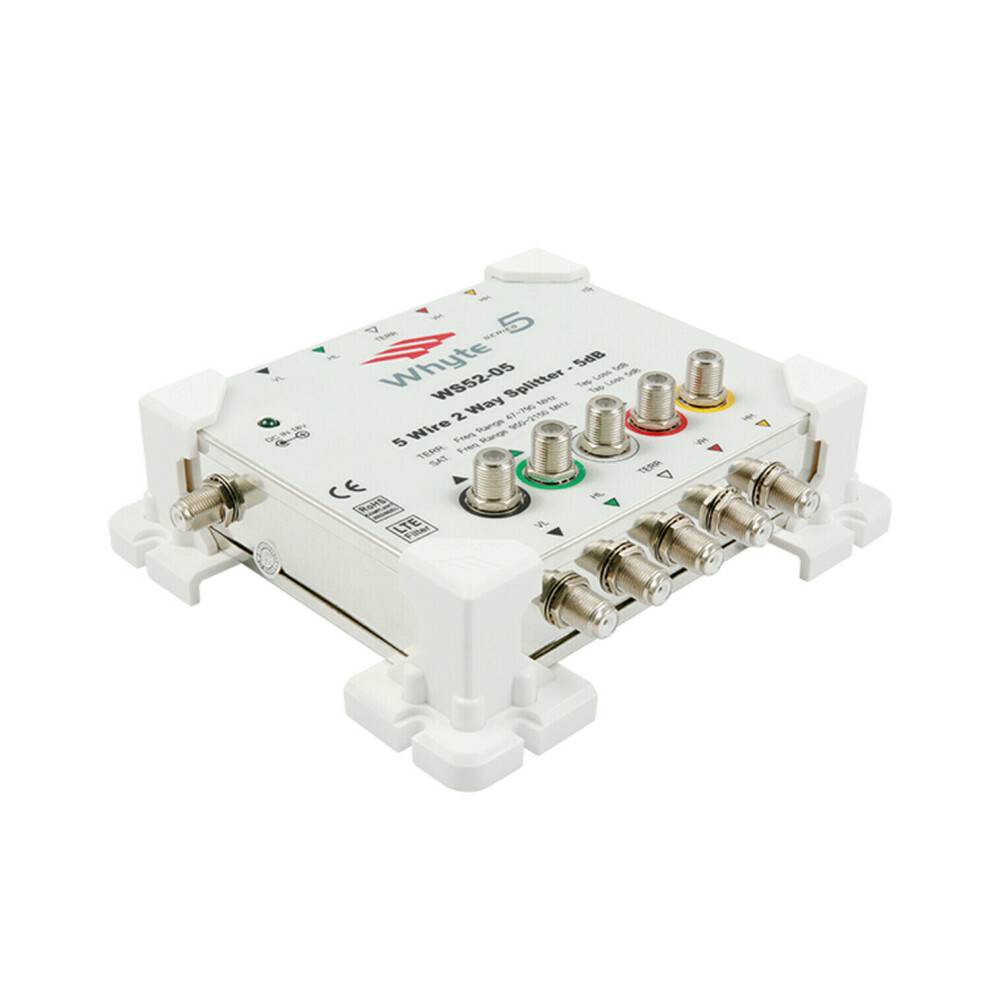

Whyte 5 Wire 2 Way Multiswitch Splitter x Sat / Terrestrial -WS52-05

Whyte Series 5 Splitters are a range of 5 wire passive devices that distribute SAT and Terrestrial Signals. . For ease of installation, each Tap comes complete with a set of high-quality colour coded 600mm F-type leads which enables the Multiswitches to be positioned either side of the Tap and to be orientated vertically or horizontally depending on available space.
Product Overview:

• Unit comes complete with colour coded 600mm F-type leads

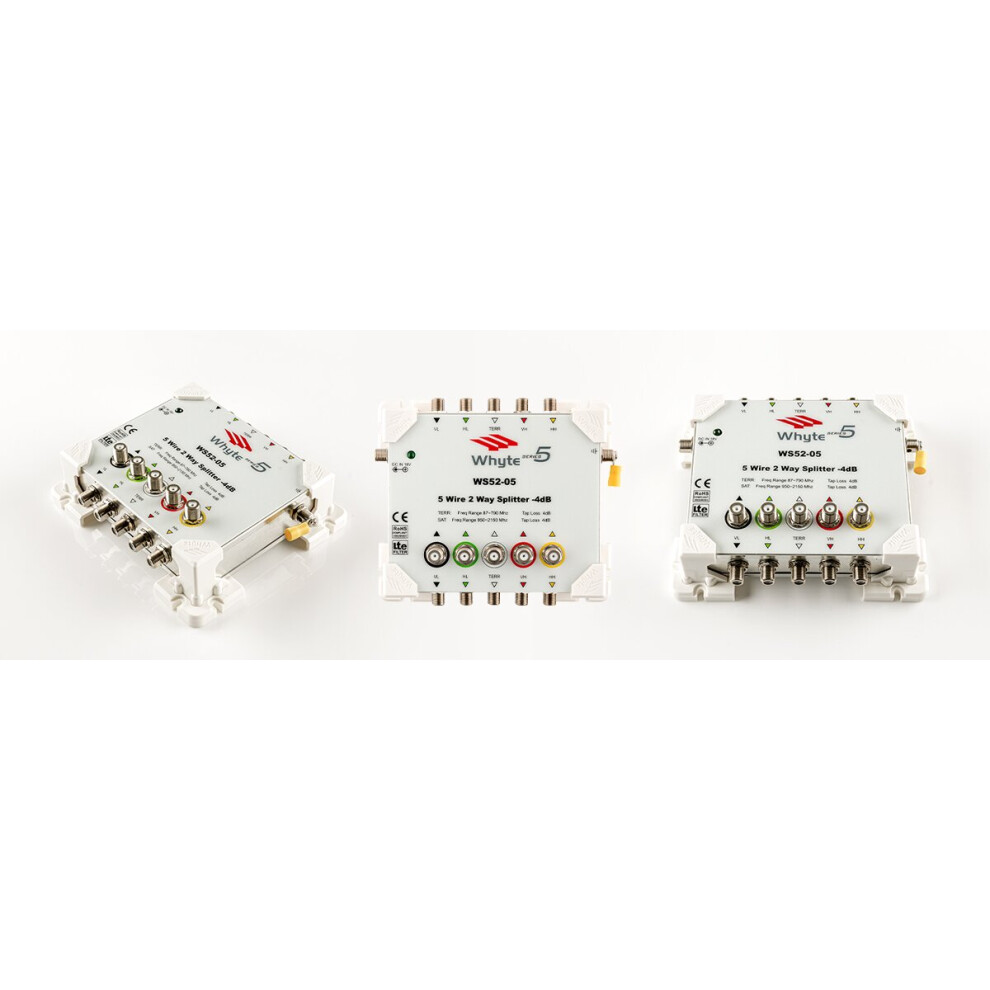

• Enables multiswitches to be positioned to either and orientated horizontally or vertically

• Colour coded inputs and outputs

• Tap outputs on top of unit for easy access

• Auxiliary 18V input injects power to HL and HH trunk cables

• Taps and splitters can be connected together to create multitude of splitters with varying attenuation levels

• Inbuilt LTE filter

• LED power indicator

Technical Specifications:

• Whyte Multiswitch Splitter
• Model: Whyte Series 5 WS52-05 5 Wire 2 Way Splitter
• Frequency: Satellite: 950-2150MHz, Terrestrial 87-790MHz
• INPUTS (F-Type Connector): 4 SAT + 1 TERR
• OUTPUTS (F-Type Connector): 3×4  SAT ;  3 x 1 Terrestrial
• DC Input (Injection of DC applied to): SAT Trunks HL + HH
• DC Pass Trunk To Tap: Satellite : ALL , Terrestrial : No
• Fixed Slope Taps: Satellite: 4dB
• Max Current Pass (Trunk/Split): 2A
• Insertion Loss Satellite: 4±2dB, Terrestrial: 4±2dB
• Integrated 4G LTE filter
• Colour coded inputs & outputs
• Power Indication: LED
• Dimensions (mm): 156 x 136 x 43
• Weight: 376g

Details:

• Model No: WS52-05
• Brand: Whyte
