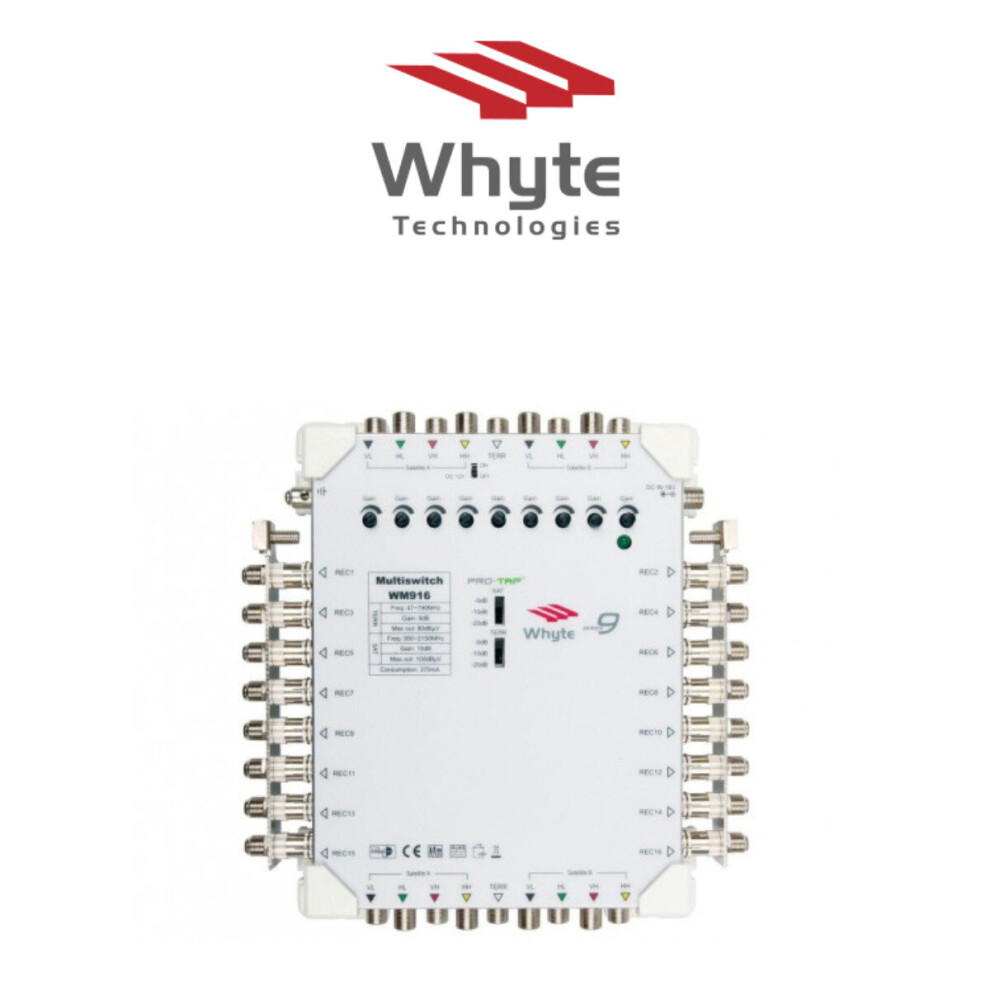

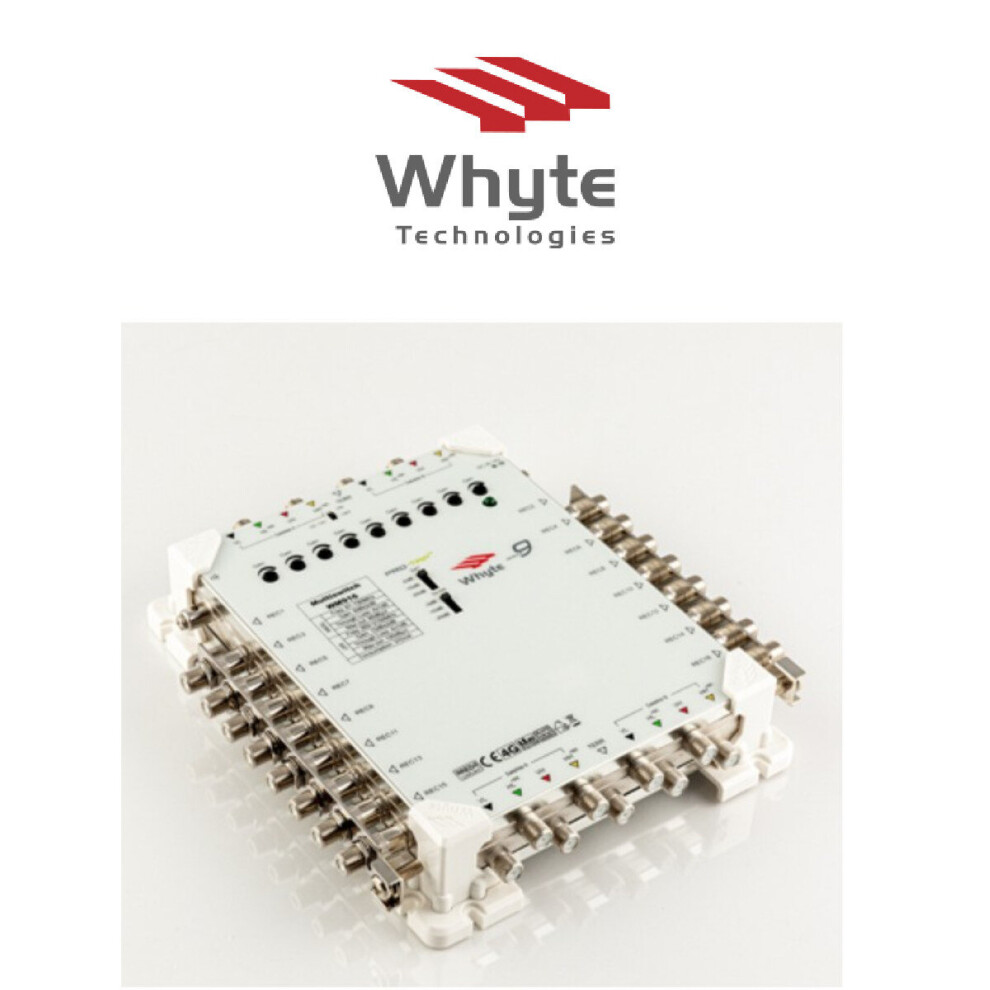

Whyte Series 9 Multiswitch 9 Wire 16 Way Line Powered Cascading WM916
Brand Whyte Technologies
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
£319.95
FREE Delivery
1%
Earn £3.20 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Thu 13th - Fri 14th Aug
Sold by: Creative Superstore
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Gain Control on all inputs
- Comes with earth bars fitted
- SAT Gain 10dB / TERR Gain 8dB
- Colour coded inputs & outputs
- Line Powered cascading Multiswitch
Whyte Series 9 Multiswitch 9 Wire 16 Way Line Powered Cascading WM916 Description
Whyte Series 9 Multiswitch 9 Wire 16 Way Line Powered Cascading WM916

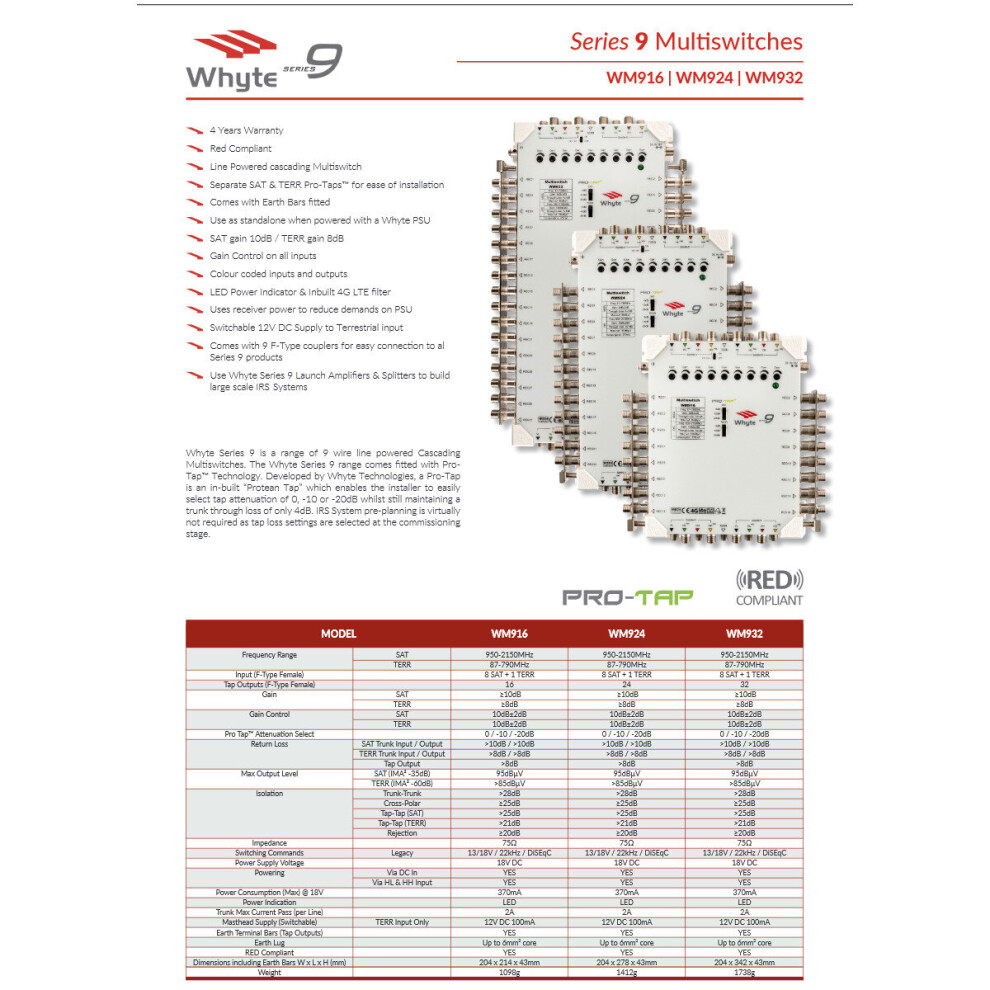

Whyte Series 9 WM916
The Series 9 Whyte 16-Way Standalone Multiswitch is is 9 wire line powered Cascading Multiswitch. It comes fitted with Pro-Tap Technology which enables the installer to easily select input tap losses of 0-10 or -20dB whilst maintaining a trunk through loss of only 4dB.
- Gain Control on all inputs
- Comes with earth bars fitted
- SAT Gain 10dB / TERR Gain 8dB
- Colour coded inputs & outputs
- Line Powered cascading Multiswitch
- Switchable 12V DC Supply to Terr Input
- LED Power indicator & Inbuilt LTE filter
- Uses receiver power to reduce demands on PSU
- Use As standalone when powered with a Whyte PSU
- Separate SAT & TERR Pro-Taps for ease of installation
Specifications:
Frequency Range: SAT 950-2150MHz | TERR 87-790MHz
4G LTE Filter: YES
Input (F-Type Female): 8 SAT + 1 TERR
Tap Outputs (F-Type Female): 16
Gain: SAT: ≥10dB | TERR:≥8dB
Gain Control: SAT 10dB±2dB | TERR 10dB±2dB
Protean Tap Attenuation: SAT & TERR 0/-10/20dB
Return Loss SAT Trunk Input/Output:
SAT >10dB/>10dB
TERR >8dB/8dB
Return Loss Tap Output: >8dB
Max Output Level: SAT (IMA³ -35dB) 95dBμV
TERR (IMA³ -60dB) >85dBμV
Isolation: Trunk - Trunk >28dB
Cross Polar: ≥25dB
Tap-Tap TERR >21dB
Rejection ≥20dB
Impedance: 75 Ohms
Switching Commands: Legacy 13/18V / 22kHz Tone / DiSEqC
Power Supply Voltage: 18V DC
Powering: Via DC Input / Via HL and HH Input
Power Consumption (Max)@18V: 330mA
Power Indication: LED
Trunk Max Current Pass (per SAT line): 2A
Masthead Power Supply (Switchable): TERR Input Only 12V DC 100mA
Earth Terminal Bars (Tap Outputs): Fitted
Earth Lug: Up to 6mm² Core
Dimensions Incuding Earth Bars (mm): 208 x 214 x 43
Weight: 1098g
What's included:
1 x Whyte Series 9 Multiswitch 9 Wire 16 Way Line Powered Cascading WM916
Warranty for this product is 6 Months RTB Warranty
Details
| OPC | P7DSRBM |
|---|---|
| Brand | Whyte Technologies |
| Codes | 7626018268398 (EAN) |
| MPN | WM916 |
Detailed Product Information
| Colour | White |
|---|---|
| Material | Metal |
| Weight | 1.098kg |
| Height | 43mm |
| Length | 214mm |
| Width | 208mm |
