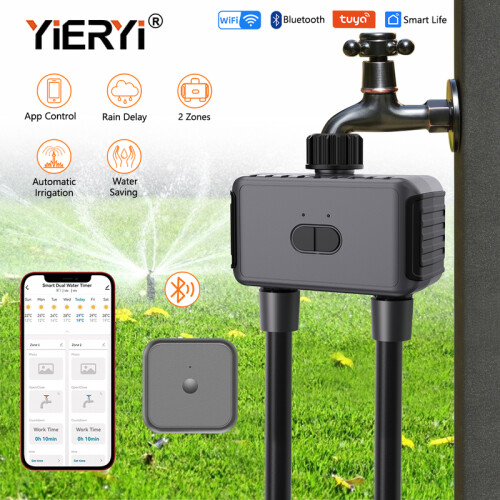

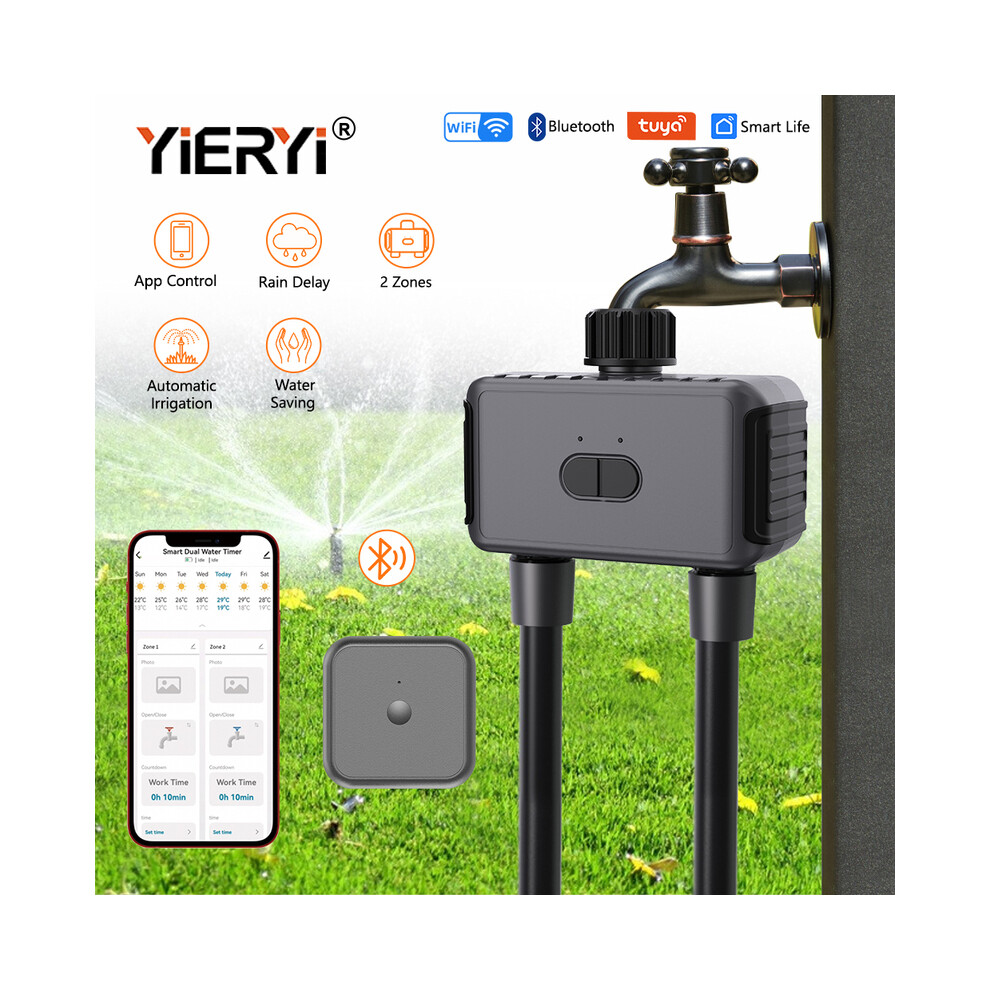

(WIFI Smart Timer US)Yieryi WIFI Automatic Sprinkle Timer Tuya Smart Valve Garden Water Timer Intelligent Irrigation System

(WIFI Smart Timer US)Yieryi WIFI Automatic Sprinkle Timer Tuya Smart Valve Garden Water Timer Intelligent Irrigation System Description

Please rest assured to buy, we will send you the corresponding version according to the usage standards of the country you purchased.
Yieryi WIFI Automatic Sprinkle Timer Tuya Smart Valve Garden Water Timer Intelligent Irrigation System Rain Delay Support Alexa
How Do I Connect My Water Valve and Gateway to Smart Life ?
1. Scan the QR code on the box to download the Smart Life app. Or search for " Smart Life " in the app and download it.
2. Pair the WI-FI hub
Turn on your phone's Bluetooth and WiFi; enter your password and connect to Wi-Fi (only 2.4G Wi-Fi is supported).
Plug the Wi-Fi hub into an indoor outlet.
Press and hold the gateway button until the light flashes.
Open the Smart Life App and click on "+" and "Add device";
Select "Gateway Control" > "Wireless Gateway (BLE)" > Add WiFi Hub.
Wait for 100% connection. Edit the name of the Hub and finish.

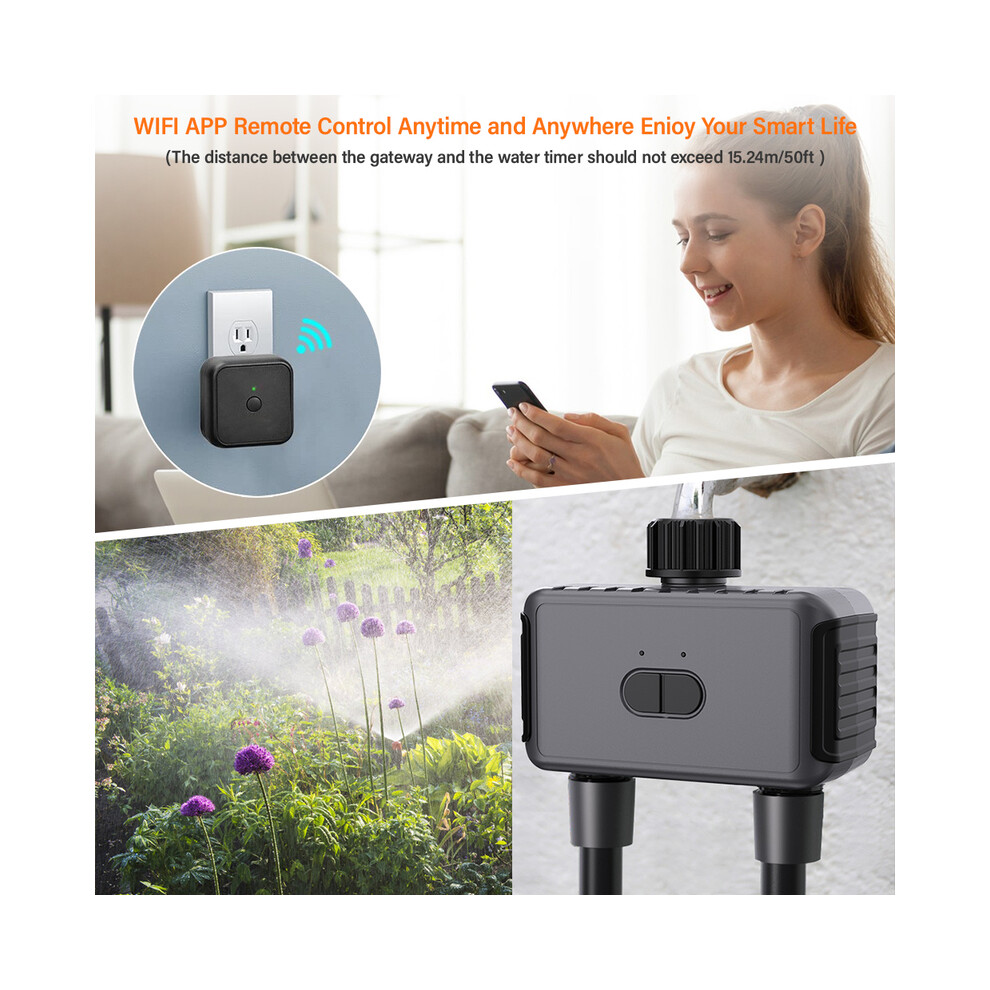

Select an indoor location for the hub that is close to the router and an external location for the timer that is within Wi-Fi range. (The distance between the gateway and the water timer should be no more than 50 feet).
3. After Connecting The Wifi Hub, Add The Timer To The Wifi Hub.
a. Pull Out The Tray On The Back of The Timer, Insert 4 Aa Batteries and Install The Tray.
b. Press and Hold One of The Buttons for 6 Seconds Until Both Green Lights Flash Rapidly At The Same Time To Keep The Water Timer In Pairing Mode. Click On "add Device" To Add A Timer To The Hub. Select "add New Device"
4. Wait for The Connection To Be 100%. Edit The Name of Your Water Timer and Finish.
This WiFi Smart Control Dual Port Water Valve Is Equipped with A Wifi Gateway Designed To Improve Irrigation Efficiency In Homes, Agriculture and Smart Gardening Systems. with Remote Control, Users Can Easily Manage Water Flow, Save Water and Achieve Intelligent Management. It Is Suitable for Multiple Application Scenarios Such As Home Garden, Lawn, and Agricultural Irrigation. Its Durable Design and Smart Features Provide Users with A Convenient Irrigation Solution.

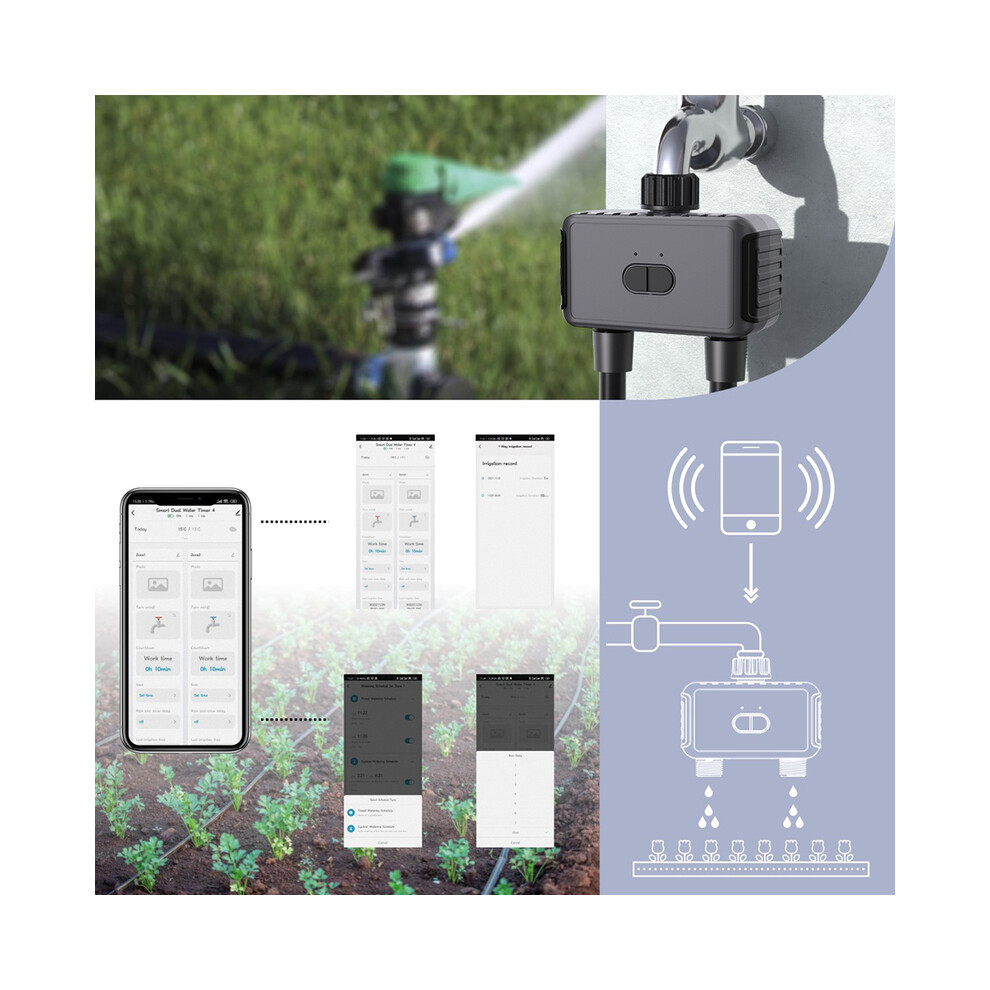

WiFi Smart Water Valve Control ----
Scan The Qr Code To Download The Free Android or Ios App (App: Tuya Smart / Smart Life). After Connecting The Wifi Water Pipe Timer To 2.4Ghz Wifi, Through The Mobile Phone App, Set The Timer for Smart Watering, Users Can Easily Control The Water Valve To Turn On and Off for Remote Operation and Monitoring. Check The Irrigation Status In Real Time and Precisely Control The Irrigation Time and Frequency To Avoid Wasting Water. Will Automatically Water Your Plants, Lawns, Pots, Nurseries, Gardens, Farms, Suitable for Patio Drip Irrigation, Outdoor and More. It Can Even Be Used To Automatically Fill Water for Fish Tanks, Aquariums, Swimming Pools, Etc. Without Wifi You Can Still Connect To Bluetooth Within An Effective Distance of 15M.
Intelligent Voice Control ----
Smart Dual Timer with Wifi Hub Works with Alexa and Google Assistant, Allowing You To Turn The Garden Hose Watering Timer On and Off with Simple Voice Commands.

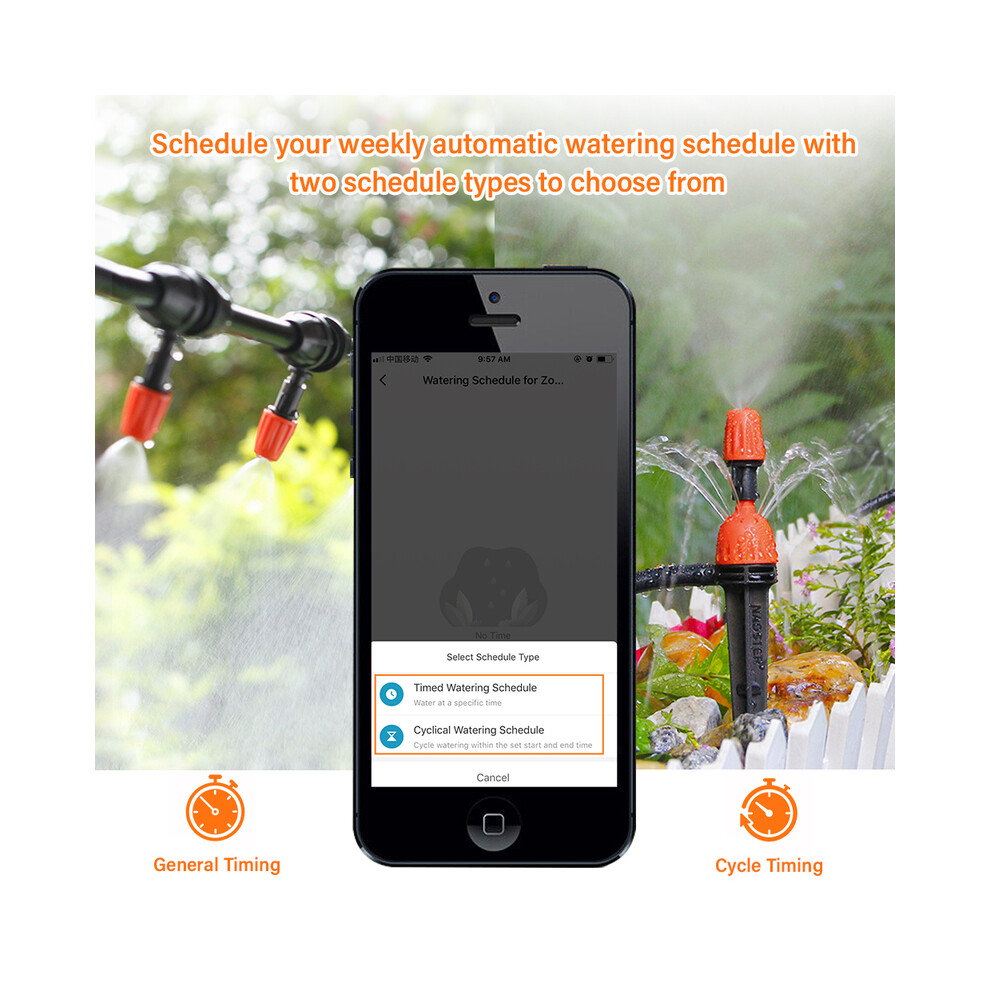

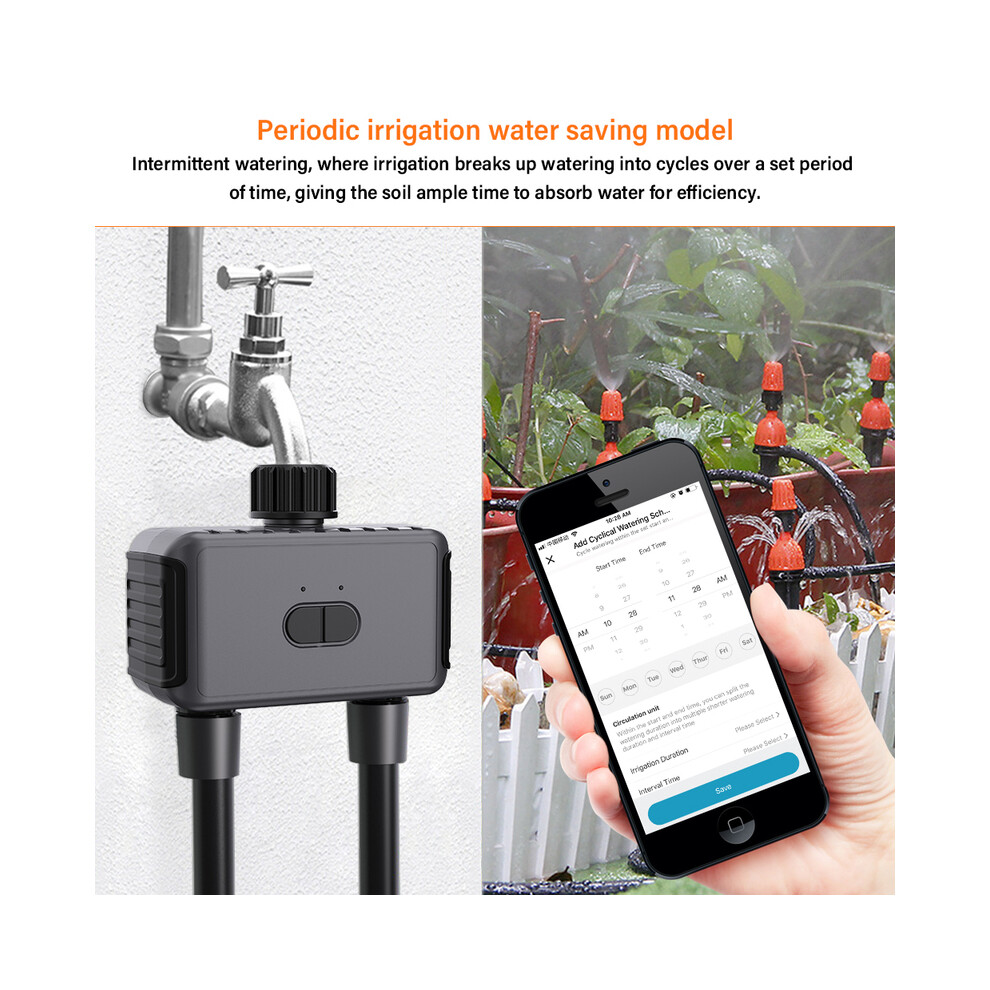

Cyclic Watering Pattern ----
The Hose Timer Has A Cyclic Watering Pattern That Allows You To Cycle The Watering Over A Set Period of Time. You Can Set The Start Time, Duration, Interval and End Time of Watering On The Irrigation Timer. for Example, You Can Set The Duration of Each Watering To 10 Minutes and The Watering Interval To 1 Hour.
Timed Watering Mode ----
The Hose Timer Has A Timed Watering Mode, Which Allows You To Set A Timed Watering Schedule for The Garden Hose Watering Timer. You Can Customise The Start Time, Continuous Watering Time and Weekly Watering Cycle of The Faucet Timer, Watering On Odd Days/even Days/every Few Days To Meet Your Different Watering Needs.
Dual-Port Water Valve Design ----
This Hose Timer for Watering Has Two Independent Watering Ports, Two Control Ports Can Manage Different Water Sources At The Same Time, You Can Set Up 2 Separate Watering Schedules for Each Area. Up To 20 Watering Schedules Can Be Set To Meet Different Watering Needs. (One Port Can Only Set 10 Schedules, 2 Ports Is 20 Schedules).
Rain Delay Mode ----
The Hose Programmable Watering Timer Has A Rain Delay Feature That Allows You To Flexibly Set A Delay Time From 1 To 7 Days Depending On Local Rainfall Conditions. It Delays The Watering Schedule During Rainfall and Automatically Resumes The Previous Watering Schedule To Avoid Over-Watering. Click The Button To Activate Manual Watering. The Timer Allows You To Water Manually Without Disrupting The Programme. You Can Stop The Water Flow At Any Time.
Waterproof, Low Power Consumption ----
This Garden Hose Timer Is Made of Ip55 Waterproof Material To Withstand All Weather Conditions.the Battery Cover Has A Seal To Keep Out Moisture, Making It Ideal for Outdoor Use.the Battery Has A Low Power Consumption and Can Last for More Than 6 Months.the App Reminds You To Change The Batteries When They Fall Below 20%.
Easy Installation----
360 Rotatable Interface, Easy and Quick Installation. Built-In Metal Filter, Can Withstand High Water Pressure From 7.25Psi-116Psi, More Stable Water Flow Control and Stronger Anti-Interference Ability. Comes with 2 Thread Reducers, 2 1/2' Garden Hose Male Threads, and 2 Thread Seals. Hose Faucet Ports Are Suitable for Connection To 3/4' or 1/2' Size Faucets, and The Two Outlets Can Be Connected To Any Standard 3/4' or 1/2' Faucet.
Extension of Irrigation Systems ----
One Wifi Hub Can Be Extended with Up To 32 Wifi Sprinkler Timers To Build A Smart Irrigation System for Your Garden and Take Over The Watering Tasks for Your Garden.in Addition, You Can Add Family Members To The App To Share The Home Irrigation Management.
Dual Hose Faucet Timer Specification :
1.Bluetooth Range ： 49.2ft without Interference
2.Working Water Pressure ： 7.25-116 Psi
3.Working Temperature ：40.1F-113F (4.5C-45)
4.Rain Delay Time ：1 day and up to 7 days
5.Waterproof ：IPX5
6.Battery ：4x AA Alkaline Batteries（Not Included）
Note :
A . Do Not Mix Alkaline Batteries, Standard Batteries (Carbon Zinc) or Rechargeable Batteries.
B . Turn On Your Waterthe Water Must Remain On for The Timer To Work Properly.
Gateway Specification :
1.Working Humidity ：10%-90% RH (No Condensation)
2.Range ：49.2ft Without Interference
3.Input ：110-250V-50/60Hz
4.WiFi Frequency ：2.4GHz only
5.Protocol ：IEEE 802.11b/g/n & Bluetooth
6.APP ：Smart Life
7.Total Number Connected ：32 MAX
8.Note ：For Indoor Use Only
Note : Only 2.4G Wi-Fi Is Supported. Choose An Indoor Location for Your Hub That Is Close To The Router and Outside of Your Timer and Within Range of The Wi-Fi. Do Not Place The Timer In An Underground Valve Box or Anywhere That Will Block The Bluetooth Signal.
Frequently Asked Questions (QA) :
Q1: How do I connect the WiFi Smart Valve to my home network?
A1: Simply connect the water valve to your home WiFi network via the included WiFi gateway and configure it using the APP for easy setup.
Q2: Does this water valve support automated timer function?
A2: Yes, this water valve supports automated timer function, you can set the timer switch via mobile phone APP to control the irrigation time automatically.
Q3: Can I control multiple irrigation zones at the same time?
A3: Yes, this water valve is designed with dual ports, which can control two irrigation zones at the same time, perfect for large garden or farmland.
Q4: Can I use this water valve outdoors?
A4: This water valve is weatherproof and waterproof design, suitable for outdoor use, and can work stably in garden, lawn or farmland.
Q5: Do I need to use it with other smart home systems?
A5: This product supports compatible use with common smart home systems, you can integrate it into your existing smart home devices to enhance the smart life experience.
Q6 : Why Bluetooth Keeps Dropping Connection ?
A6 : The Bluetooth of Water Timer Is Currently In Sleep Mode, Please Wait 5-10 Seconds, The Device Will Automatically Reconnect. or Scroll Down To Refresh The Home Page of The App, or Disconnect The Bluetooth From Your Phone and Turn It On Again
If The Device Has Been Connected By Other Mobile Phones, Please Disconnect First.
Make Sure The Device Battery Is Charged and Place The Phone As Close To The Device As Possible.
Please Note That You Don't Need To Stay Connect Once You Setup Your Schedule. The Device Will Always Keep Your Watering Settings and Work Automatically According To The Schedule.
Q7 : Why Is The Water Valve Out of Little Water ?
A7 :If Your Are Gravity Feed System Such As Rain Barrel System, Then It Won't Work and Will Keep Low Water Pressure. Gravity Feedhas No Real Pressure When Dealing with A Rain Barrel. It Needspressure Measuring.
Note :
1. There Is A Default Name of The Device(Zone1 / Zone2). You Can Edit The Device Name By Yourself. and If You Use The Incorrect Command, It Will Not Work.
2. If You Not Use Wifi Hub, It Will Not Work.
Warm Tips :
1. The Best Range for Connection and Control Is Within49.2Ft In The Open Area.
2. Do Not Use Your Timer When The Air Temperature Is Below 40F(4.5), The Timers Should Be Removed From The Hose Faucet and Stored Indoors To Avoid Potential Frozen Damage.
3. Filter Can Trap Dirt Particles, Please Clean Filter Regularly and Replace If Worn.
4. Please Replace Batteries When The Low Battery Indicator Appears The Display. When Replacing The Power Unit, Please Make Sure That The Water Timer Is Dry.
5. To Prevent Leakage, Make Sure That The Water Timer Is Tightly Attached To The Faucet and Hose, Add Rubber Washer and Thread Seal Tape If Necessary.
Note :
(1) The Water Flow Is Reduced By Half When The Two Zones Are Turned On At The Same Time.
(2)The Water Flow In Two Zones May Be Different If You Turn On One Zone First and Then Turn On The Other Zone.
Trouble Shooting :
Q1 : Why The Bluetooth Water Timer Didn't Turn On/off At Preset Time ?
A1. Programming Is Incorrect
A2. Water Pressure Is Too Low
A3. Particles of Dirt or Debris Stuck In Valve
A4. More Than One Start Time Is Programmed with 5.overlapping Schedules
A6. Manual Watering Is On
A7. Faulty Valve
A8. The Batteries Were Low
A9. The Faucet Is Off.
