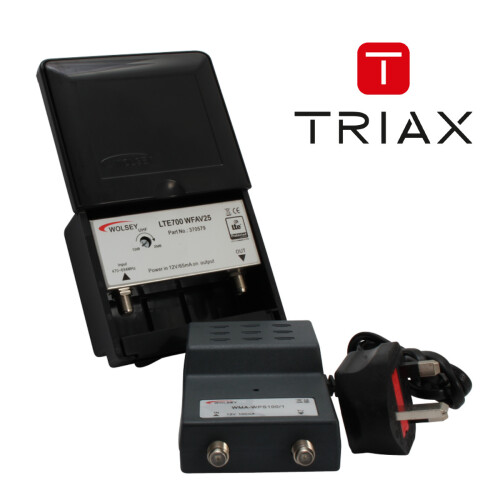

Wolsey 1 Way WFAV25 LTE 25dB Variable Masthead Amplifier Kit with Power Supply

LTE700 filtering 12–25 dB variable gain 1 input / 1 output Weatherproof housing Suitable for Freeview / DVB-T/T2

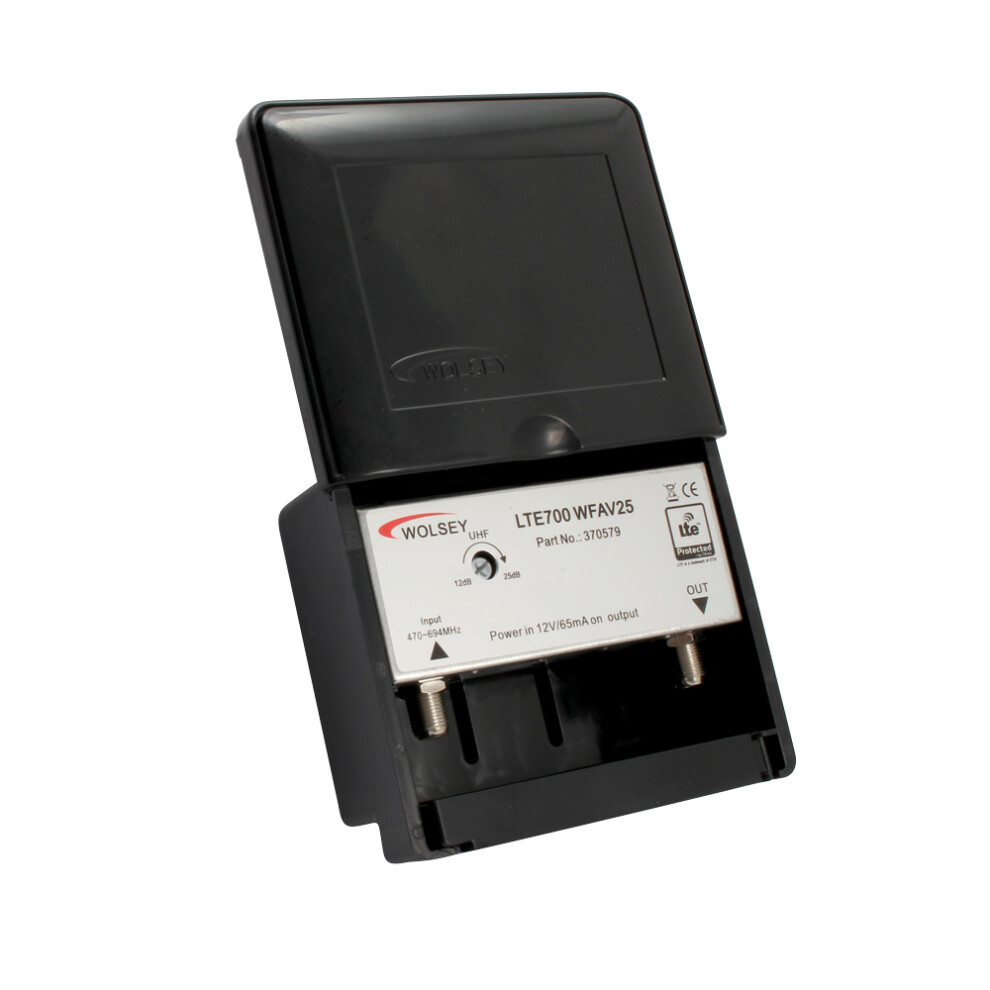

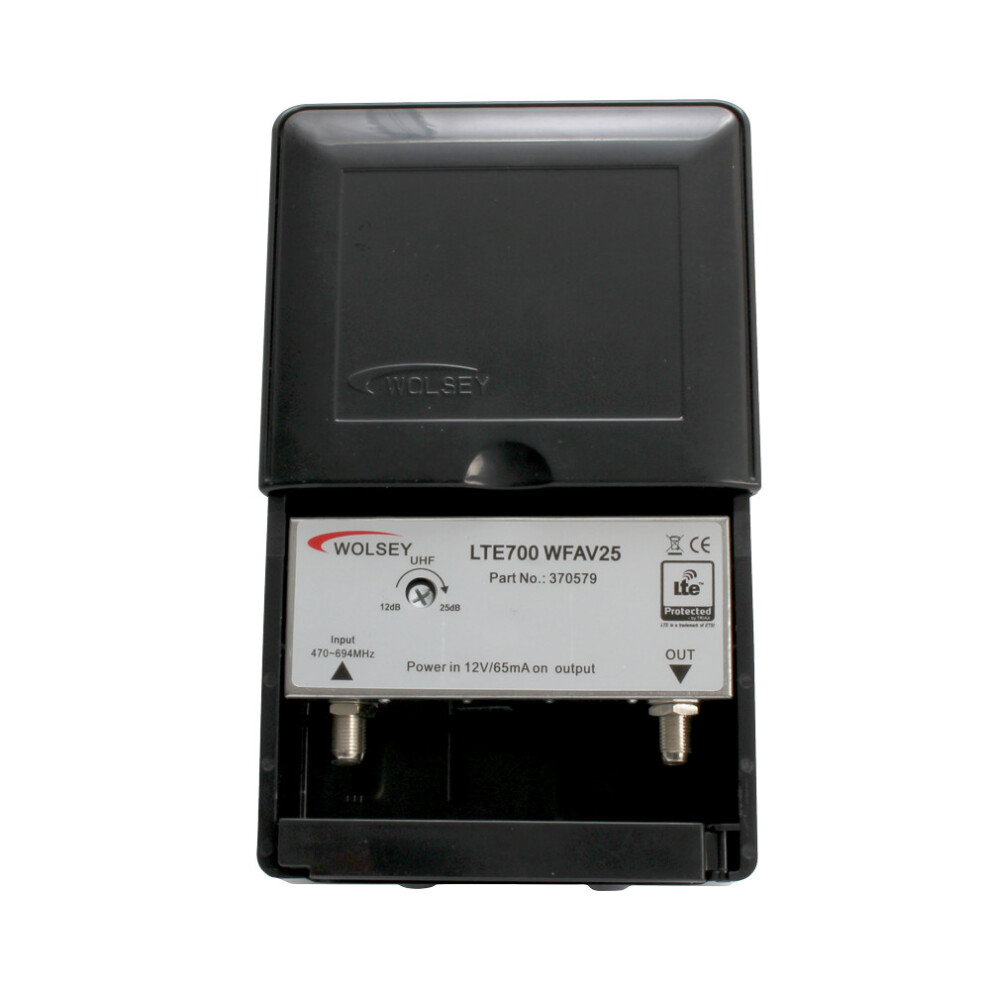

The Wolsey WFAV 25 LTE700 Masthead Amplifier Kit is a high-quality solution for boosting and distributing terrestrial TV signals, ideal for Freeview / DVB-T/T2 / HDTV. Suitable for low-signal areas or installations with long cable runs.

Featuring 1 input and 1 output with wideband UHF coverage (470–694 MHz, channels 21–48), the WFAV25 provides a stable signal. The integrated LTE700 / 5G / 4G / TETRA filtering minimises interference from mobile networks.

With 12–25 dB variable gain, a fully screened weatherproof enclosure and a 12 V PSU, this kit suits both installers and home users.

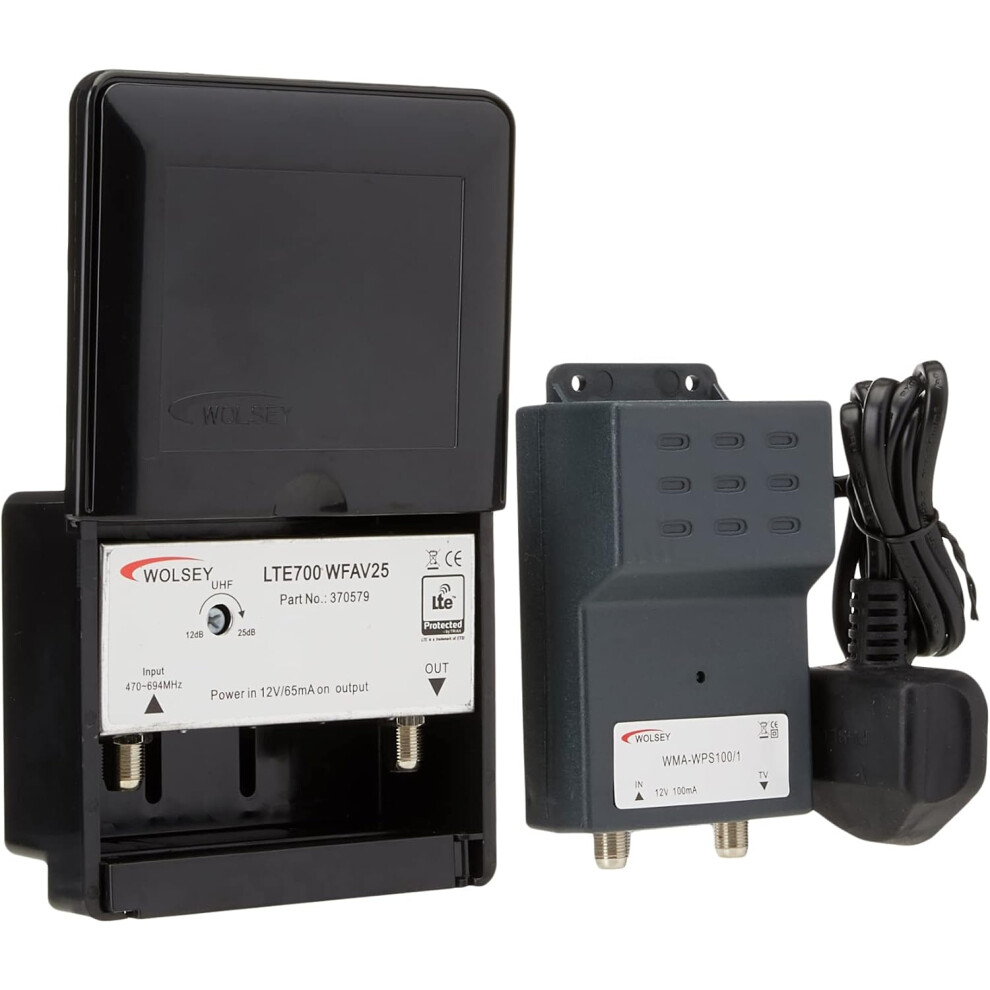

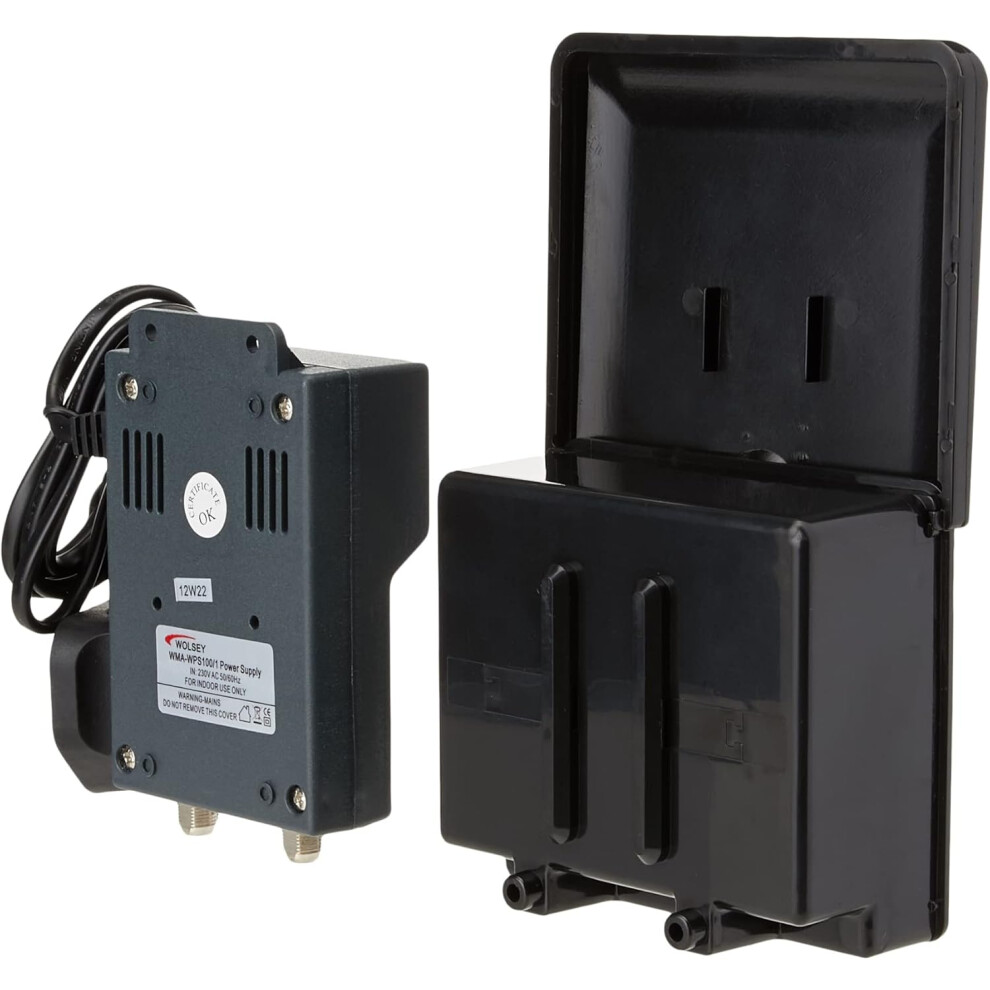

• Complete kit including masthead amplifier, 12 V PSU and tie-wrap
• LTE700 / 5G / 4G / TETRA filtering for reduced interference
• 12–25 dB variable gain
• 1 input / 1 output wideband UHF amplifier
• Frequency range 470–694 MHz (channels 21–48)
• Low noise figure under 4 dB
• Fully screened RF enclosure
• Weatherproof outdoor housing
• F-connector terminations
• Suitable for Freeview, DVB-T/T2 and HDTV signals

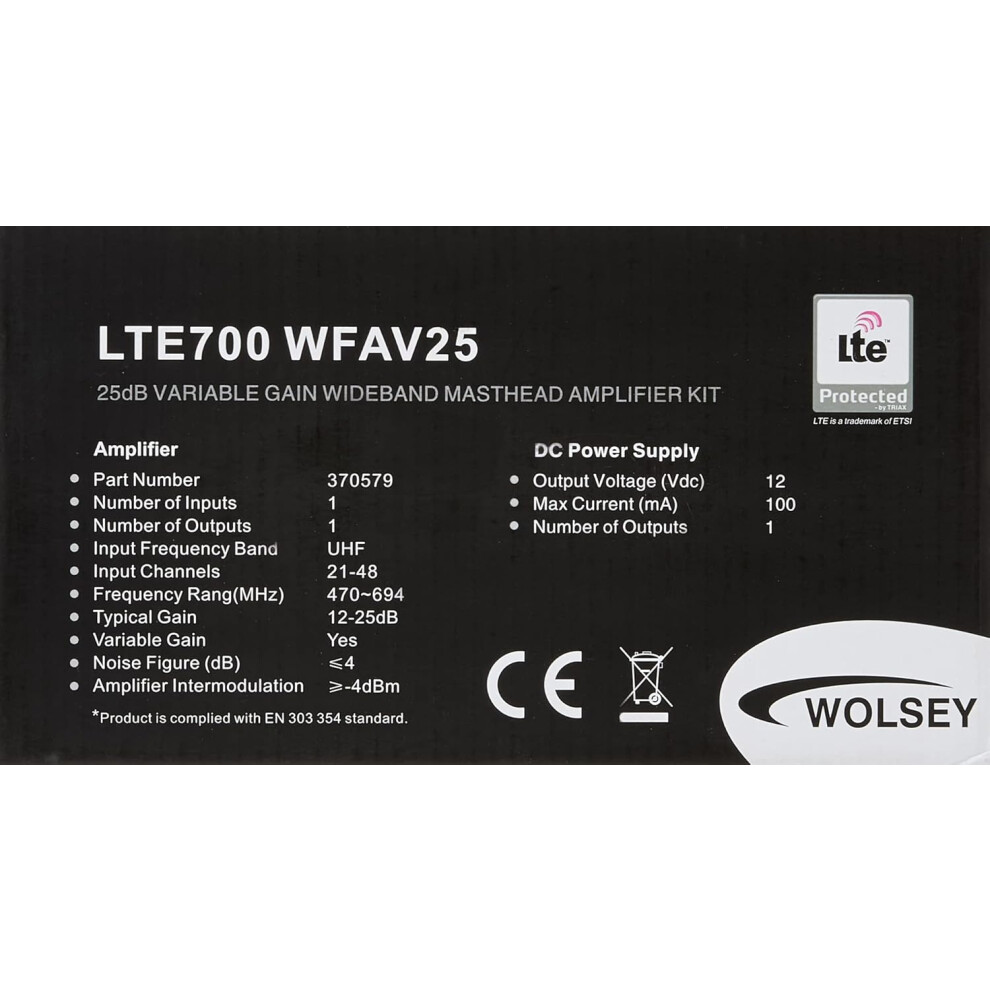

• Brand: Wolsey
• Model: WFAV 25
• Product Code: 370579
• Application: Terrestrial UHF TV (Freeview / DVB-T/T2 / HDTV)
• Inputs: 1
• Outputs: 1
• Frequency Range: 470–694 MHz
• Channel Range: 21–48
• Gain: 12–25 dB (variable)
• Noise Figure: Under 4 dB
• Filtering: LTE700 / 5G / 4G / TETRA
• Housing: Fully screened, weatherproof
• Power Requirement: 12 V / 65 mA

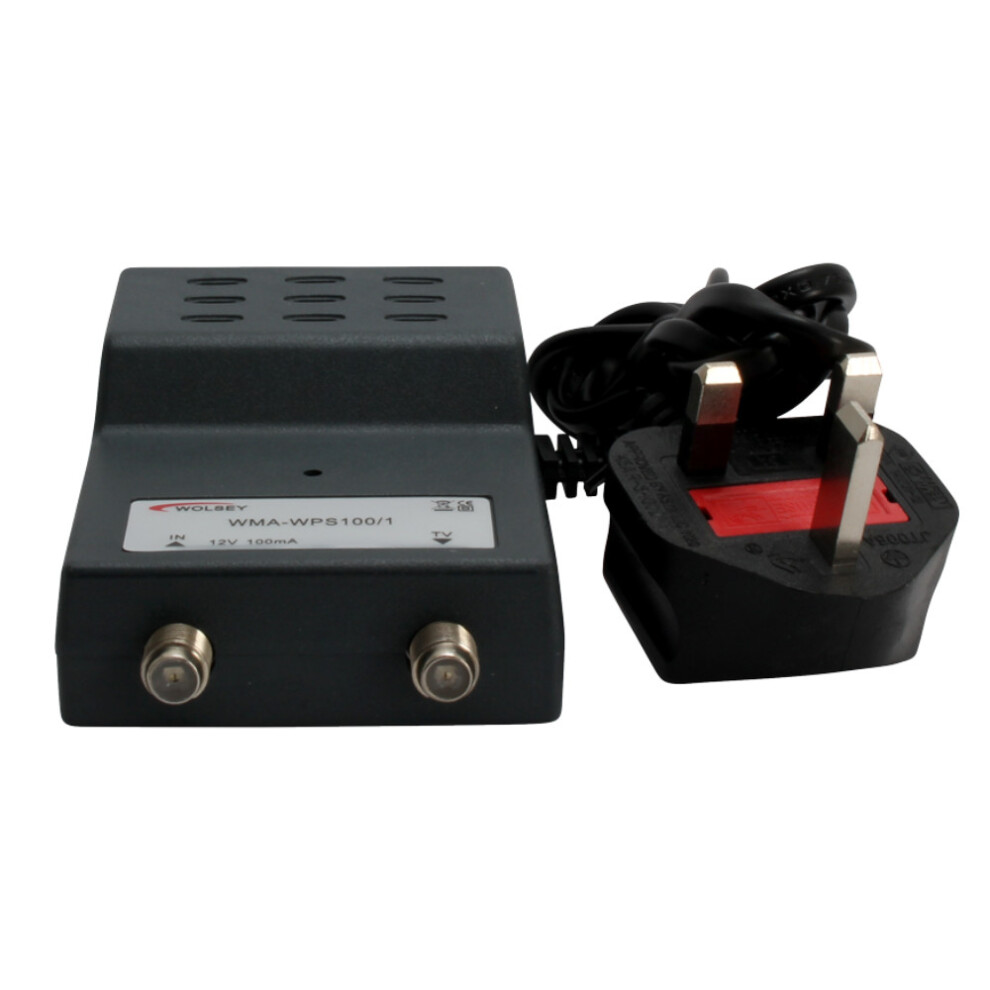

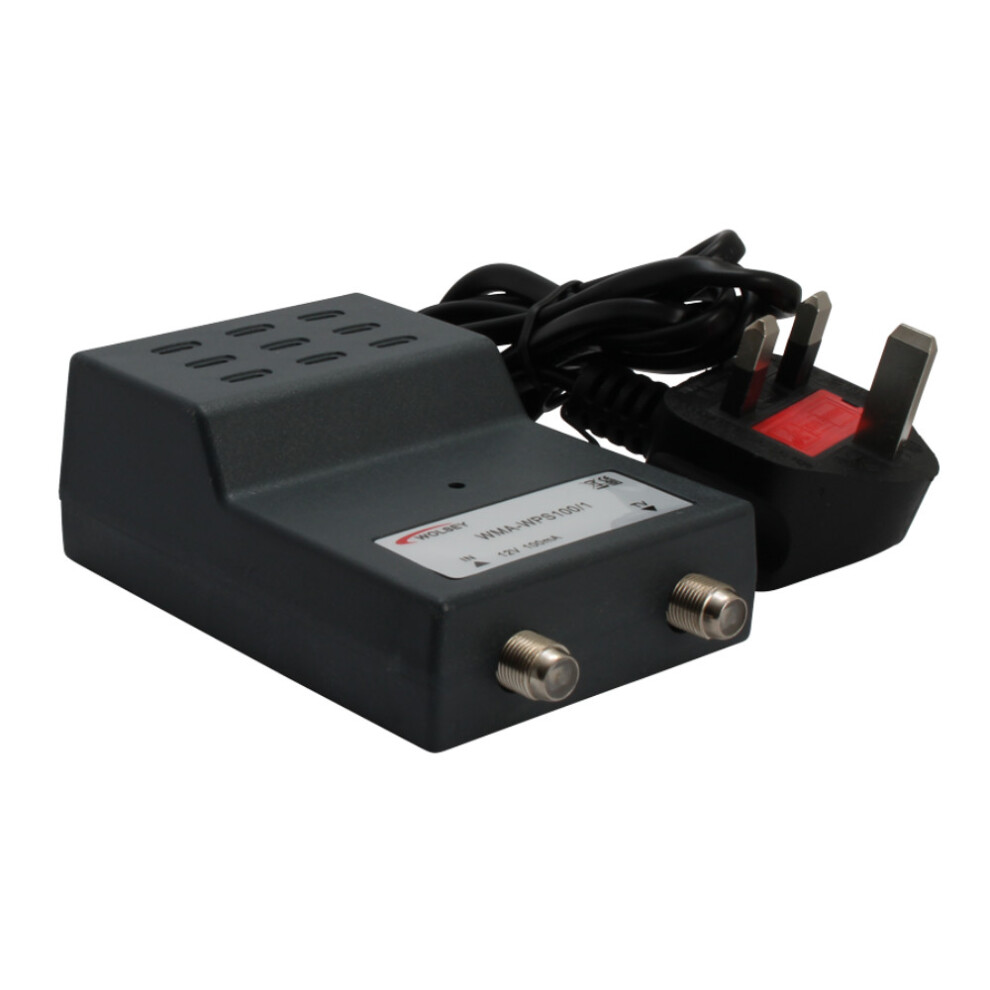

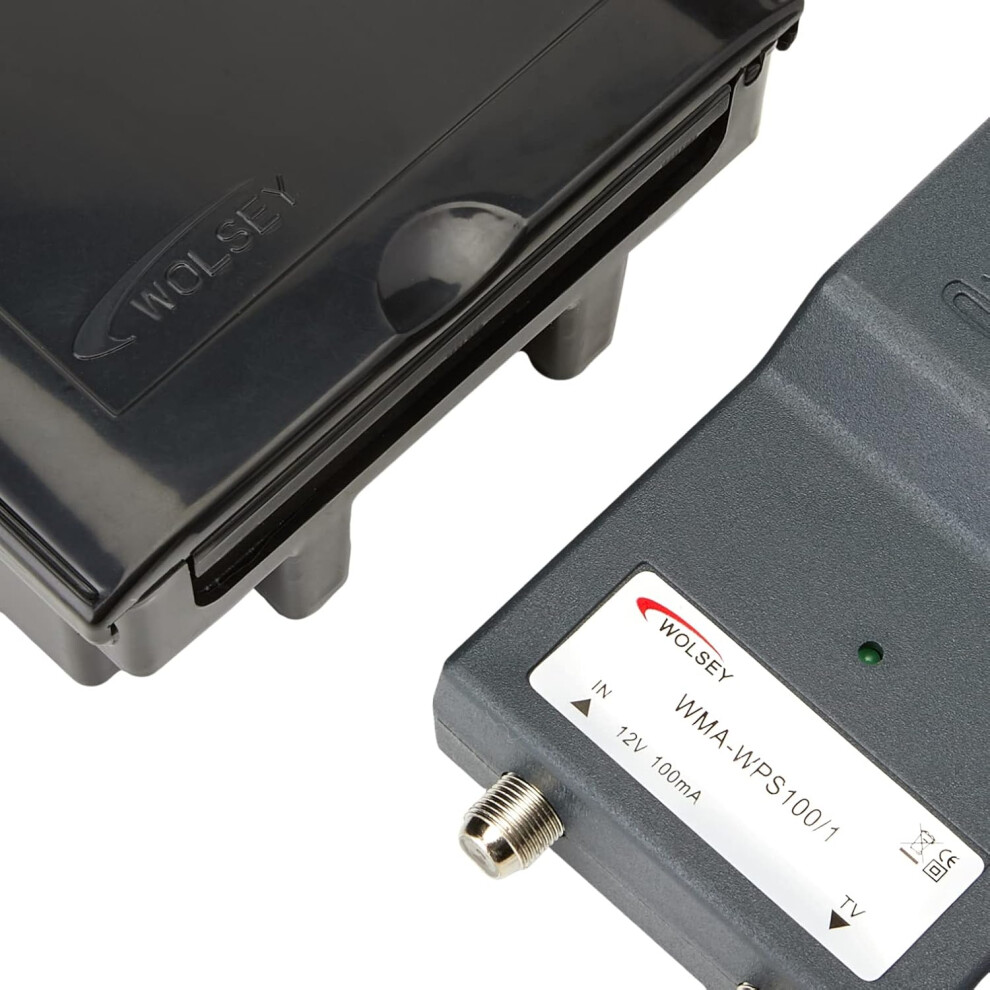

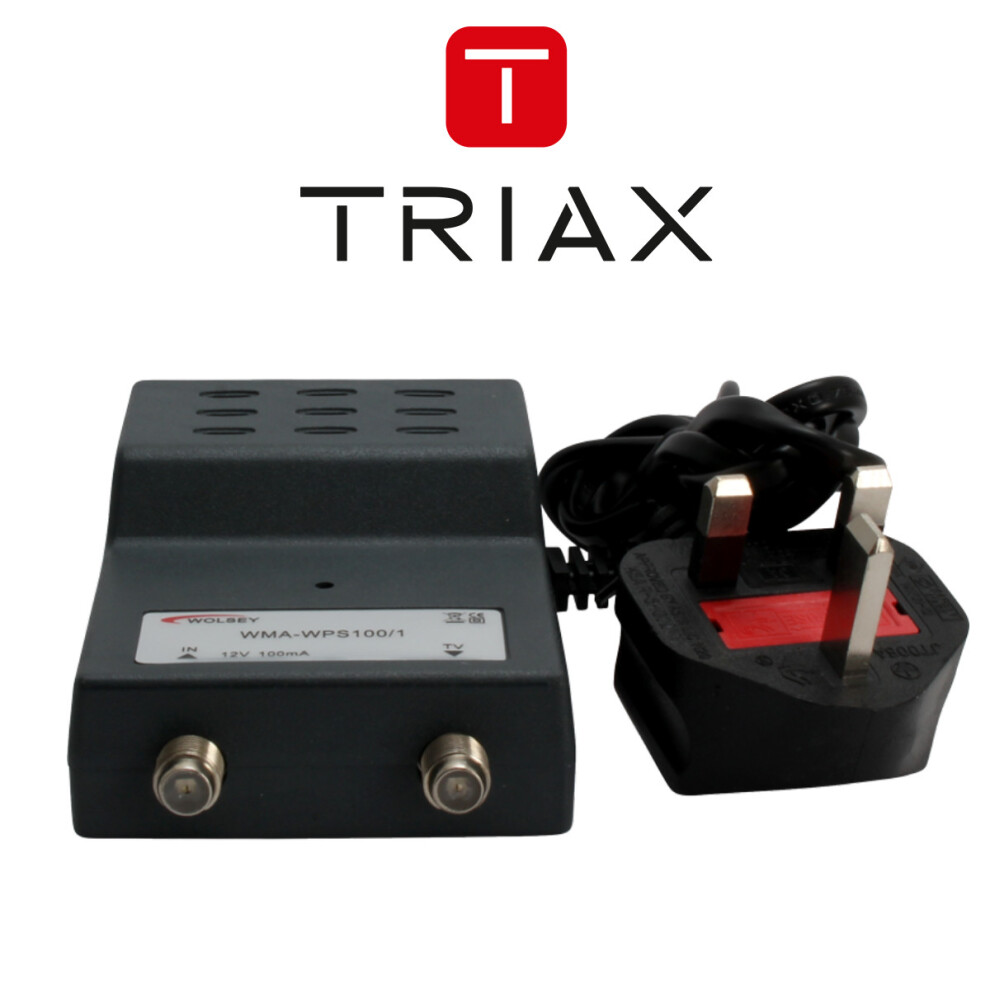

• Model: WPS100/1 Power Unit
• Connector Type: F-type
• Output Voltage: 12 V
• Maximum Current: 100 mA
• Output Ports: 1
• Indoor use only

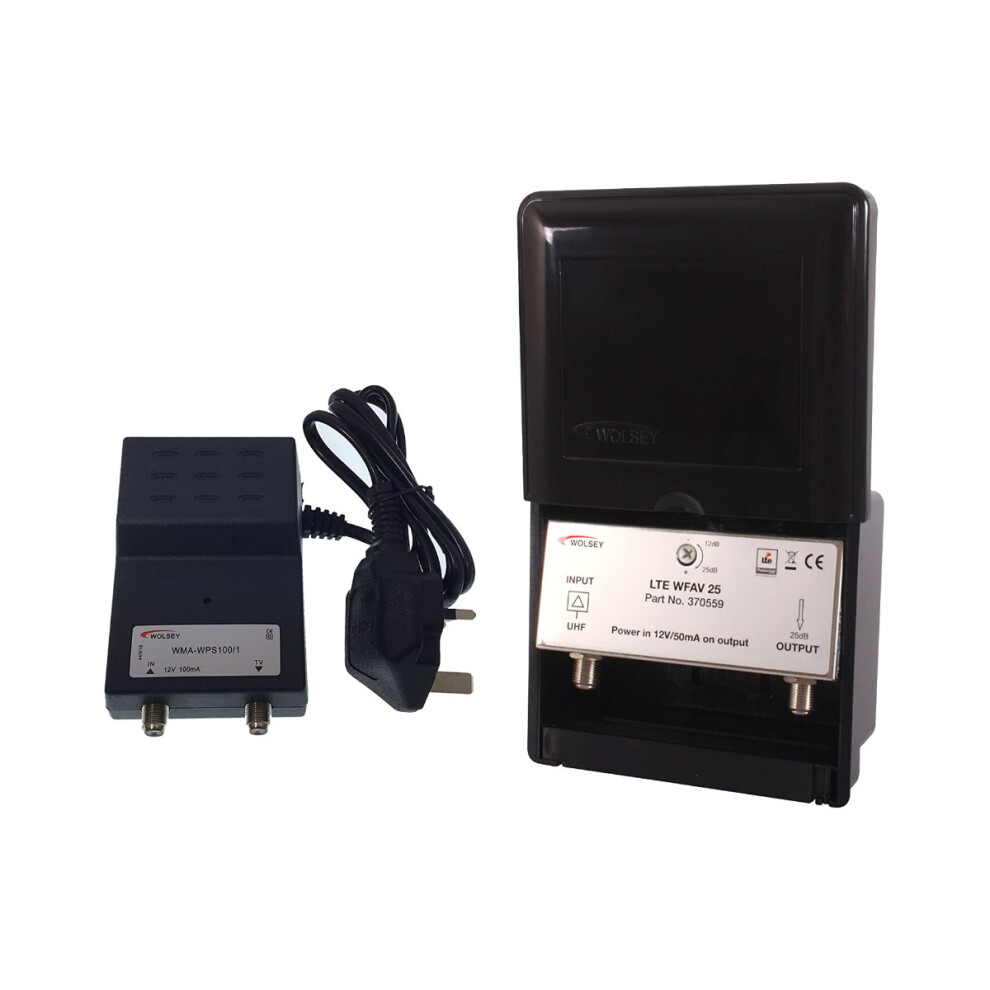

• 1 × Wolsey WFAV 25 LTE700 Masthead Amplifier
• 1 × WPS100/1 12 V Power Supply Unit
• 1 × Tie-wrap

Note: Coaxial cable, aerial and TV equipment are not included.
