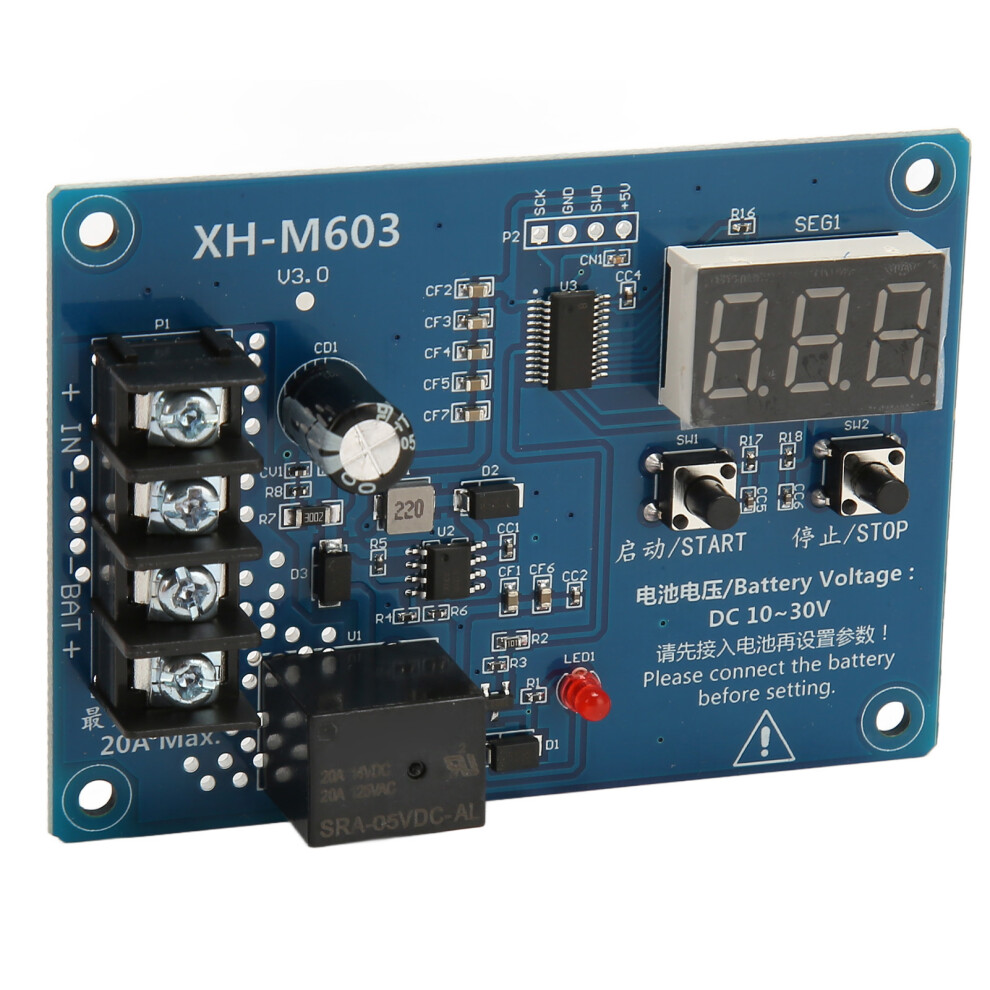

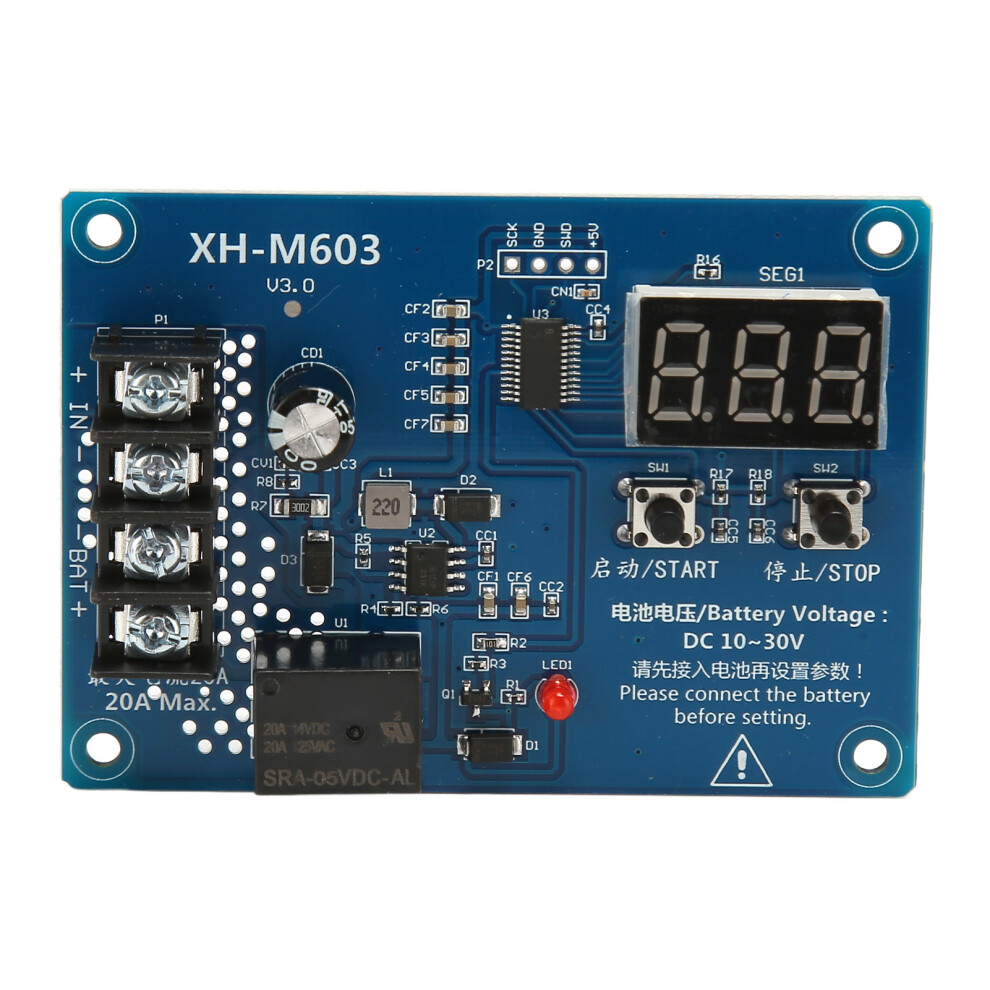

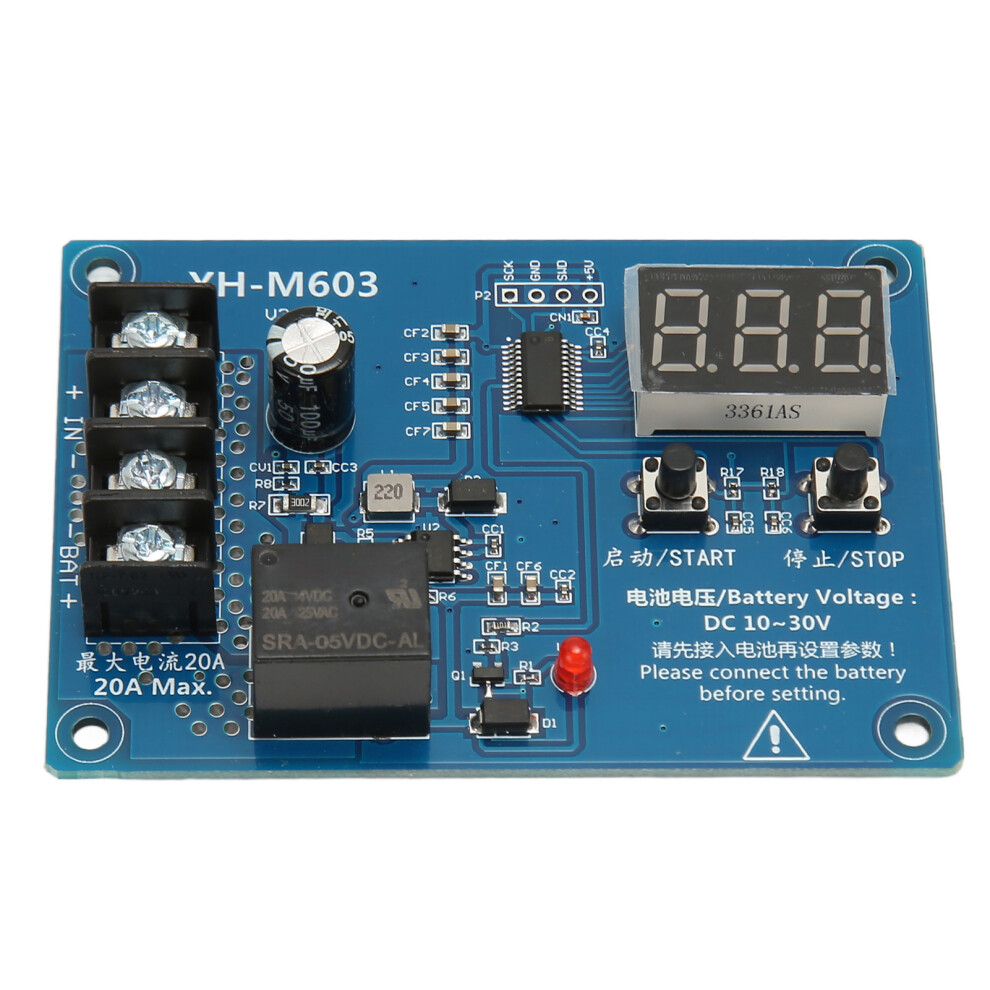

XH M603 12-24V Lithium Battery Switch Protection Board LED Display

XH M603 12-24V Lithium Battery Switch Protection Board LED Display Description

1、Parameter: XH M603 charging control module, input voltage is DC 10‑30V, output type is direct output, applied to 12‑24V battery. 2、Setting Start Voltage: Under normal display voltage state, pressing the button will display the start charging voltage; long press for 3 seconds the digital tube will blink; you can set the start charging voltage value by start or stop button. 3、Setting Stop Voltage: Under normal display voltage state, pressing the button will show the stop charging voltage; long press the button for 3 seconds and the digital tube will flash; you can set the stop charging voltage value by starting or stopping the button. 4、Restore Factory Setting: XH M603 12‑24V charge control module press the start or stop button at the same time under power on state, the digital tube will display 888, which means restoring the factory setting. 5、Durable Material: 12‑24V lithium battery switch protection board is made of premium PCB material, stable performance, high temperature resistance and long service life. Item Type: XH M603 Charging Control Module Material: PCB Model: XH M603 Display Accuracy: 0.1V Control Accuracy: 0.1V Output Type: Direct Output Application Areas: 12-24V Battery 1 x XH M603 Charging Control Module
