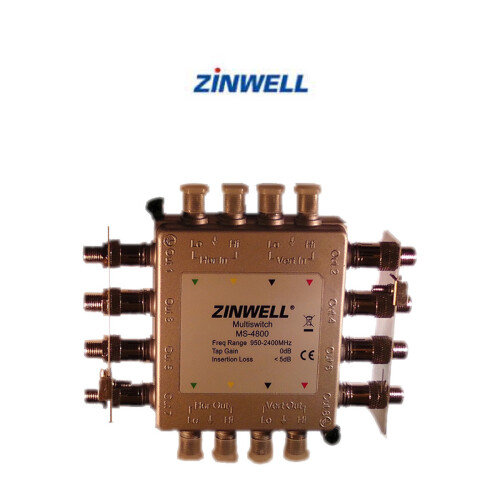

Zinwell MS-4800 Multiswitch 4 input 8 output 0dB Gain

Zinwell MS-4800 Multiswitch 4 input 8 output 0dB Gain Description

Zinwell MS-4800 Multiswitch 4 input 8 output 0dB Gain

Zinwell MS-4800 for SKY. Line powered 8-way satellite switch. Small size. High performance for long cable lengths. Entirely receiver powered. No landlord supply required. 4 inputs with 4 loop through outputs to next switch and 8 outputs for receivers. Pre-installed earth bars for compliance with UK regulations. Up to 8 switches can be cascaded together, totalling maximum 32 receiver powered points per system.

Features

• Receiver powered to multiswitch and quattro LNB
• Designed for small to medium sixed systems with up to 64 points without the need for satellite preamplifiers
• Low insertion loss
• Quick and easy installation

Specification

Input Frequency Range 950-2150 Mhz
Tap Gain 0dB
Gain Slope 950-2150Mhz -4 – 2dB
Satellite Input Isolation 25dB min
Output Isolation 25Db min
Trunk Through Loss 10 dB min
Return loss 10dB min
Output power level IMDS = 35db 93dBuV max
Input Power Level IMDS = 35dB 93dBuv max
Bias Current 40mA maz
DC pass Rec to Trunk Input 0.5 A
DC pass to Trunk Input 1.0A
Operationg Temp -30c +60c
Earth-bonding bar Supplied on subscriber output – quick F-male
Weight 270g

Dimensions 141x112x39 mm
