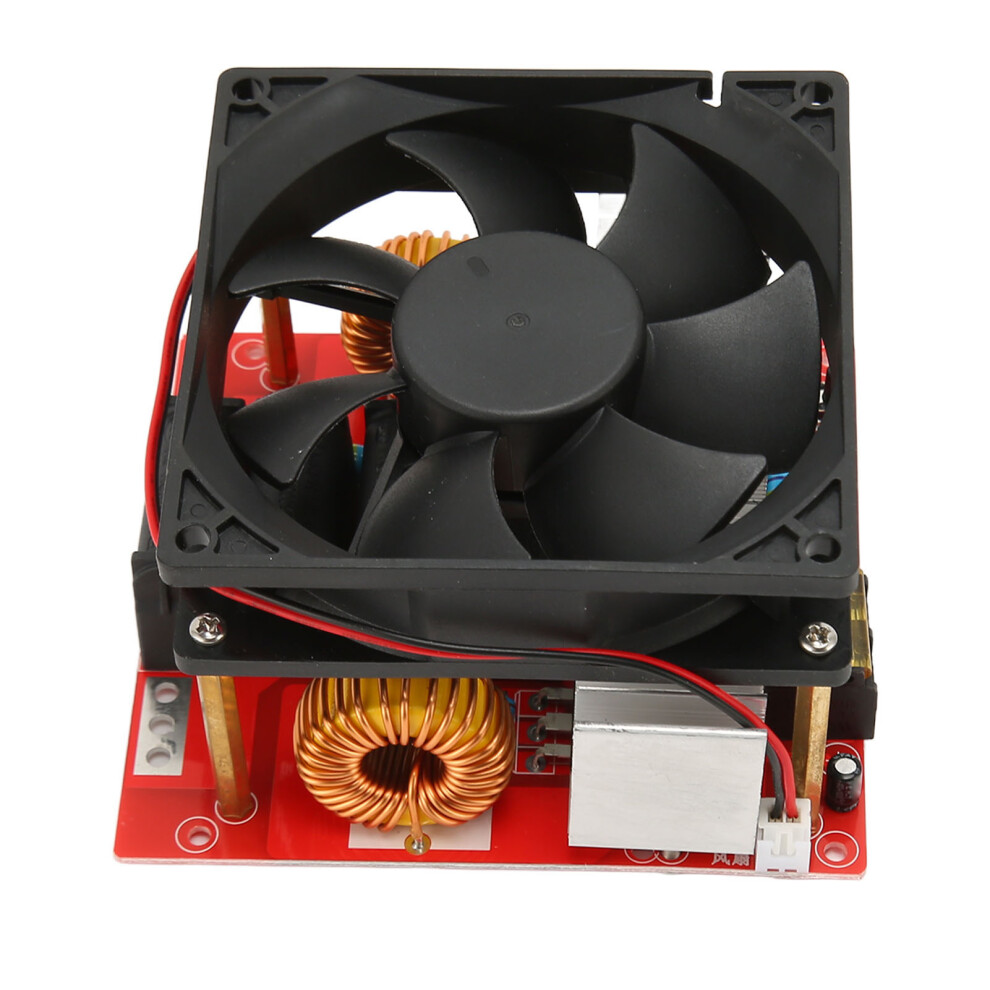

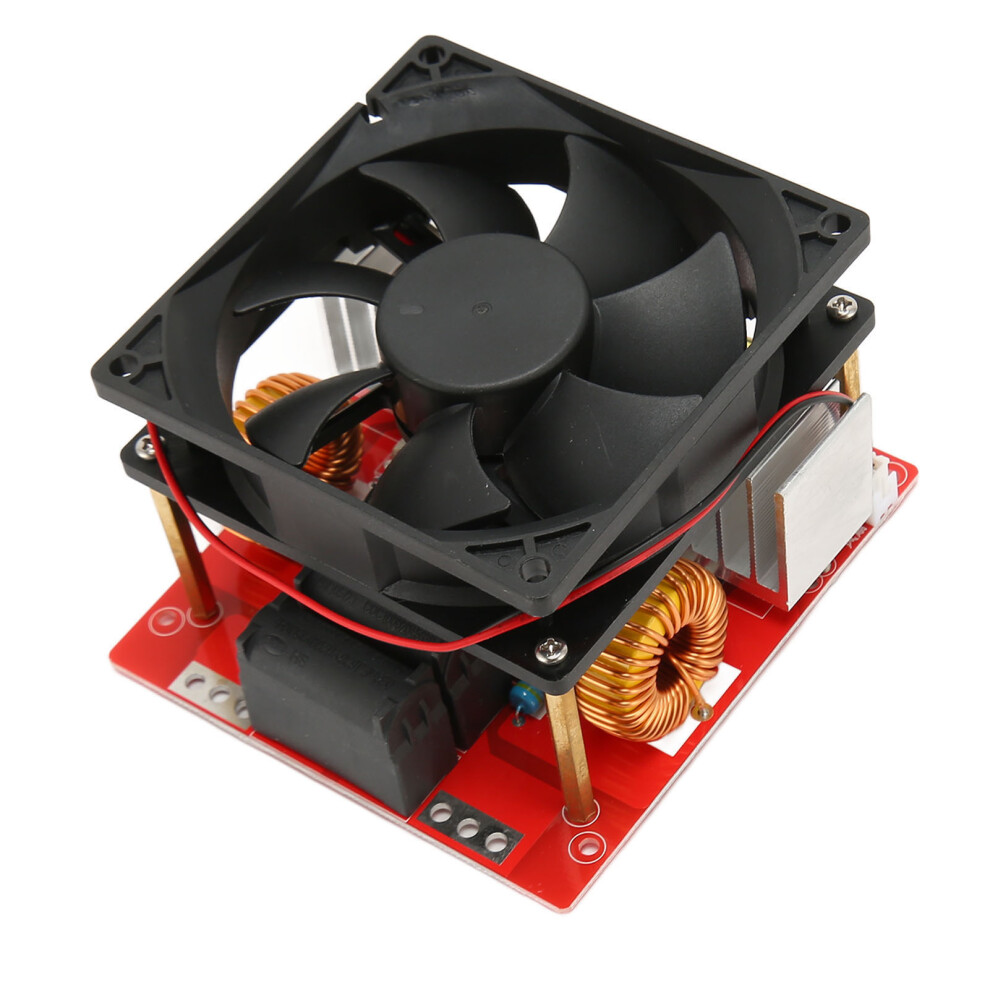

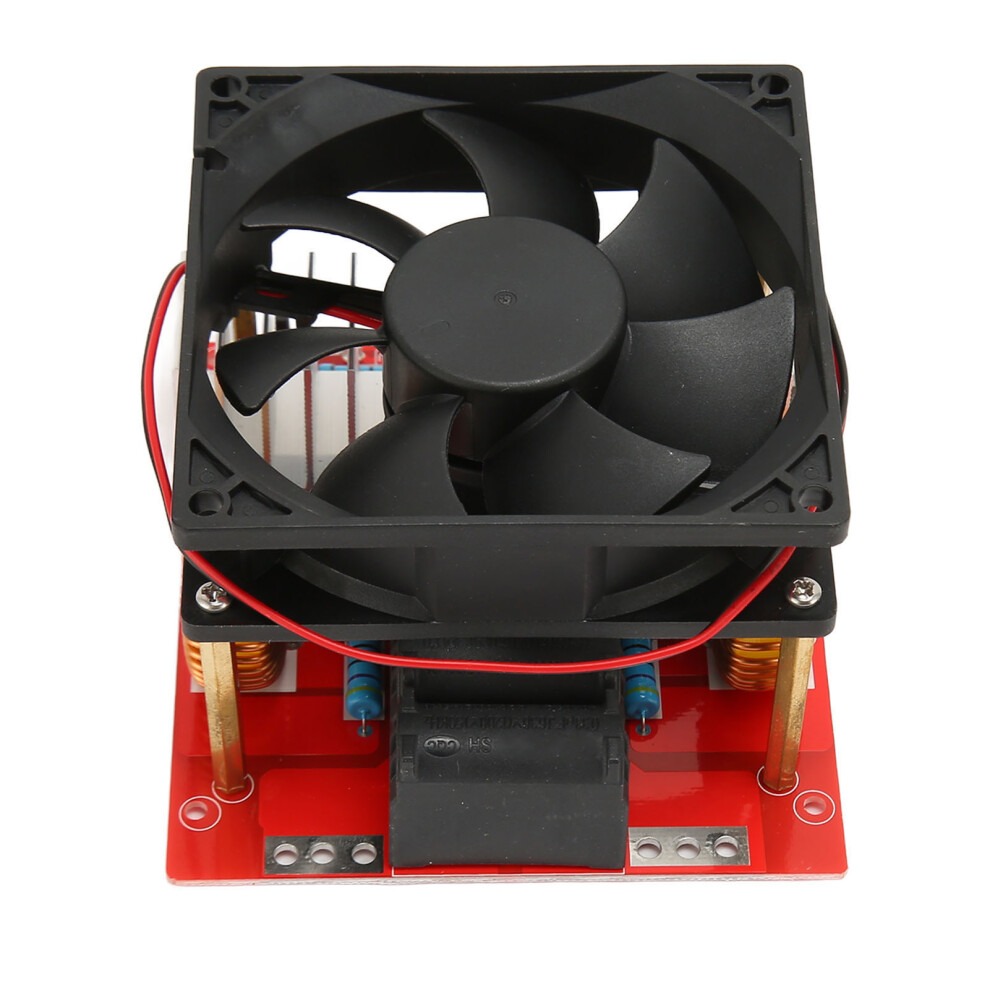

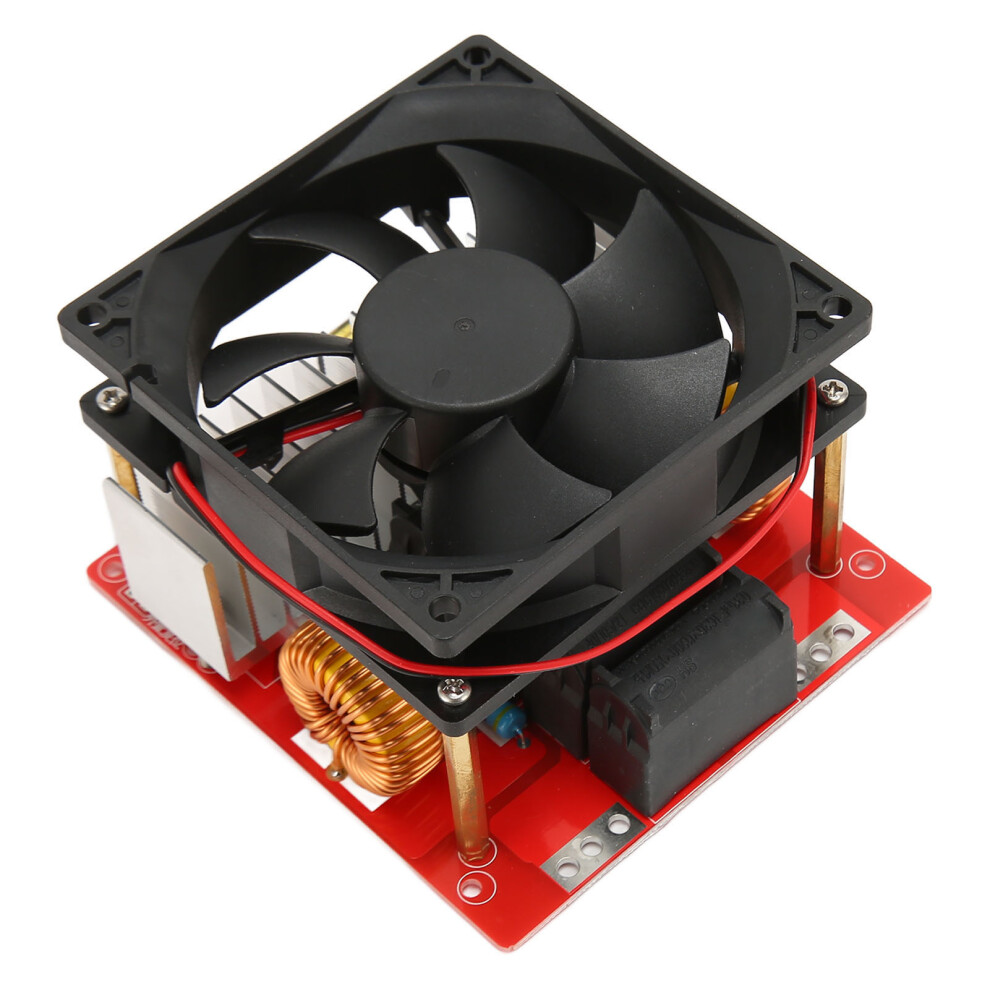

ZVS High Frequency Induction Heating Module with Brass Tube

ZVS High Frequency Induction Heating Module with Brass Tube Description

1、INPUT CURRENT 25A: Found with a 36V power supply completely into the new 30x30 graphite crucible input current of 25A. 2、ALUMINUM MELTING: Found molten aluminum power requirements, 24V 350W‑500W power supply (15A to 20A) (melting point: 660 ). 3、POWER REQUIREMENT: Found melting copper, gold, silver, power requirements, 36V 700W‑900W power supply (20A to 25A), respectively (melting point: 1083 , 1065 , 962 ). 4、USES: DIY small parts made of steel hardening, annealing below the melting point of 1100 metal smelting, DIY small cooker and so on. 5、NOTE: Without water circulating cooling are possible, but will burn into a black vortex brass, it will not be much affected.
Item Type: Induction Heating Module
Material: ABS, Brass
Operating Current: More Than 15A, Less Than 30A (Eg: 24V 350W Switching Power Supply)
Power Supply Tube: Original IRFP260N (50 A 200 V)
Heat Sink Temperature: Current Protection Status:
03530A
354527A
455525A
55 65 23A
657520A

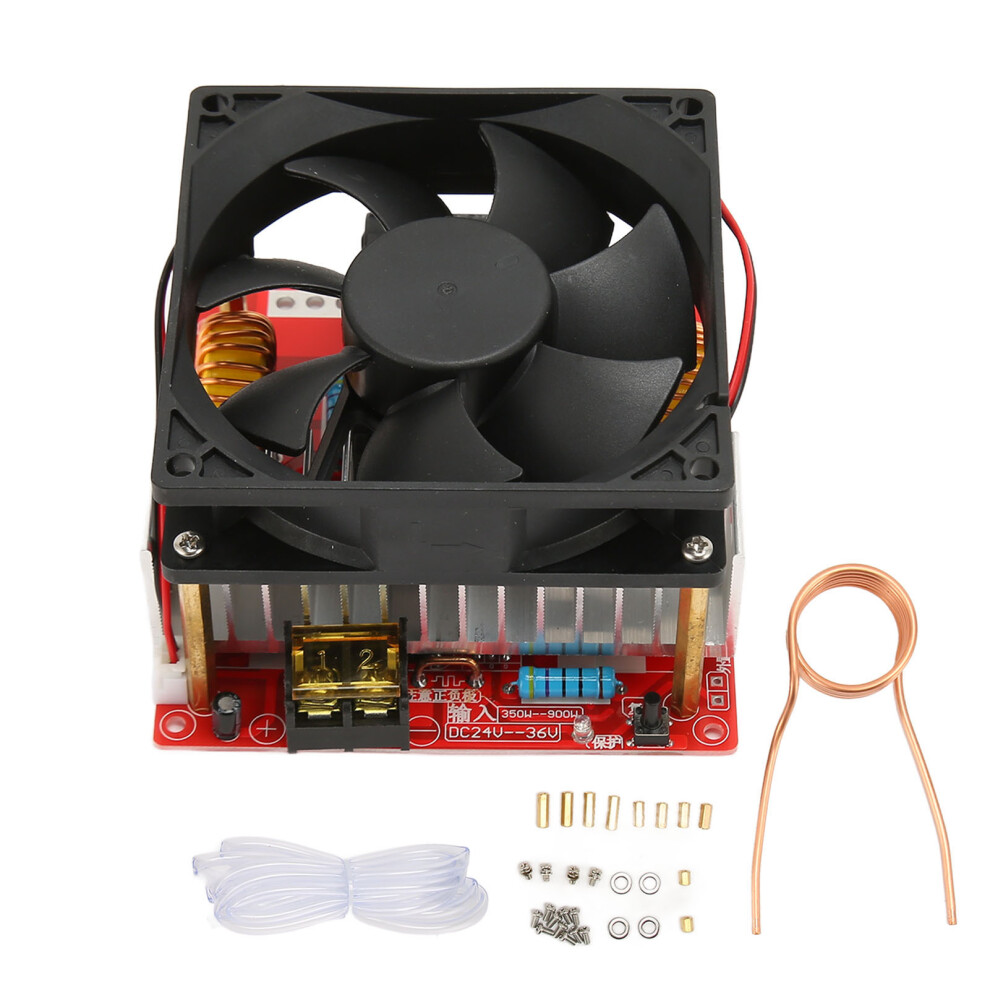

1 x
Induction Heating Module
1 x Screw Package
1 x Brass Tube
1 x Transparent Tube
