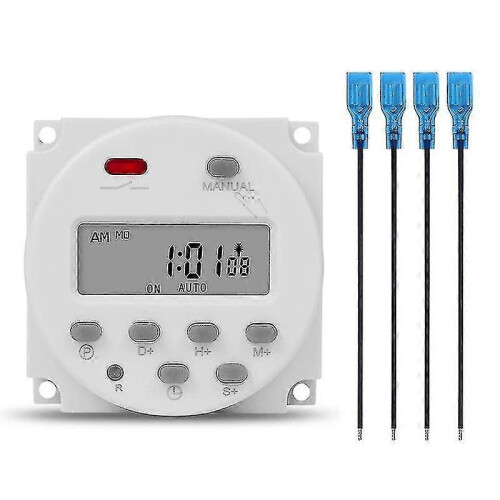

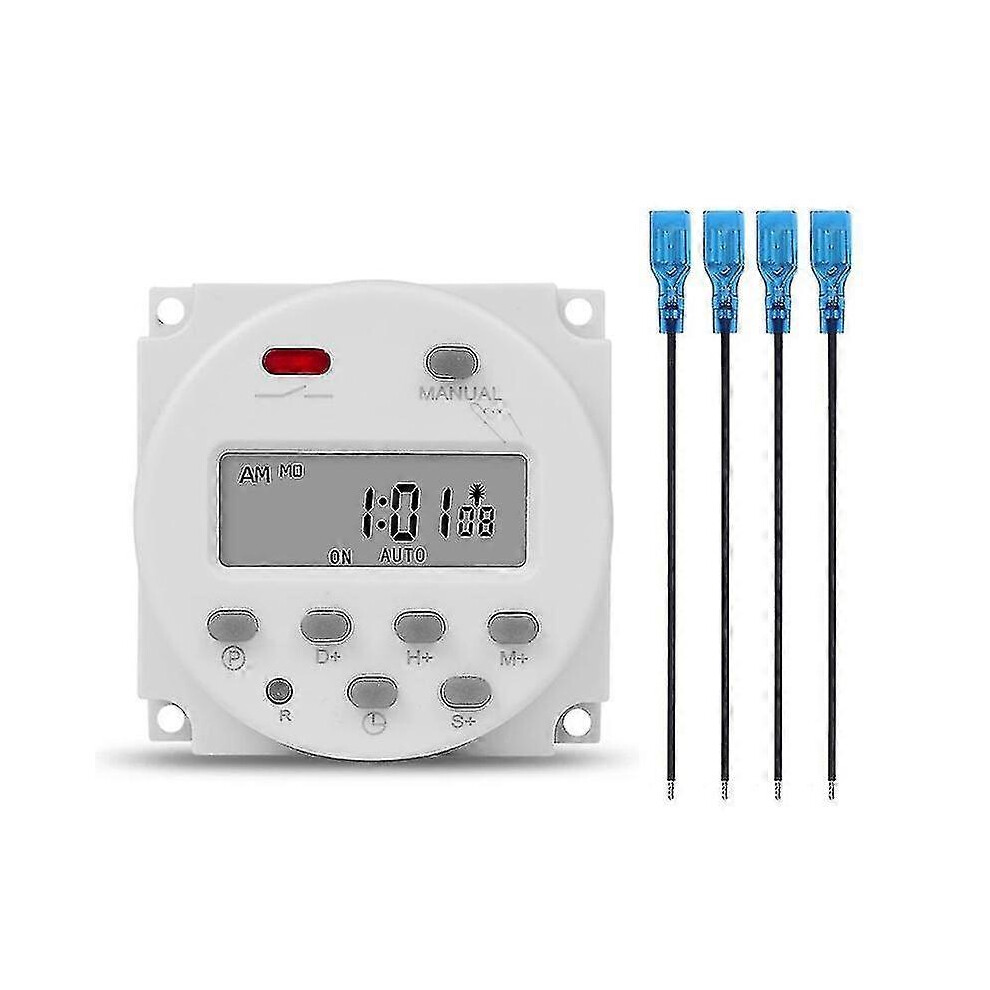

1 Second Interval 12V Digital LCD Timer Switch 7 Weekly Programmable Time Relay Programmer CN101S-C12

1 Second Interval 12V Digital LCD Timer Switch 7 Weekly Programmable Time Relay Programmer CN101S-C12 Description

Features:
1.Easy to read LCD display, LED indicators.
2.Mimimum 1 second interval.
3.8 ON/OFF programs per day, 15 combinations to a week.
4.24 hours / 7 a week programmable.
Countdown function. Max 24 hours countdown to OFF.
Built-in rechargeable battery for saving the memory when power failure.
Repeat programs with 8 on/off settings, and setting on/off manually.
perfect for household use in pannel mounted.
color: White
Material: ABS+electronic components
Parameter:
1.Model number : CN101S
2.Power supply:5V,12V,24V,110V,220V 50/60Hz
3.Max load:16A
4.Min interval:1 second
5.Timing range:1 second to 168 hours
6.Setting groups:8 ON/OFF per day
7.Programs:15 Groups
8.Black-out:60
9.Average error:Less than 2 sec/day
10.Battery type:1.2V,inside,rechargeable
11.Installation:Pannel/wall mounted
Package Contents:
1 x Timer switch
4 x terminal
1 x User Manual
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
