100W 18V Monocrystalline Solar power Panel for 12V Battery Charger

100W 18V Monocrystalline Solar power Panel for 12V Battery Charger Description

Description :

Solar Cell Monocrystalline 125× 125 mm (5 inches)

No. of Cells 36 (4 × 9)

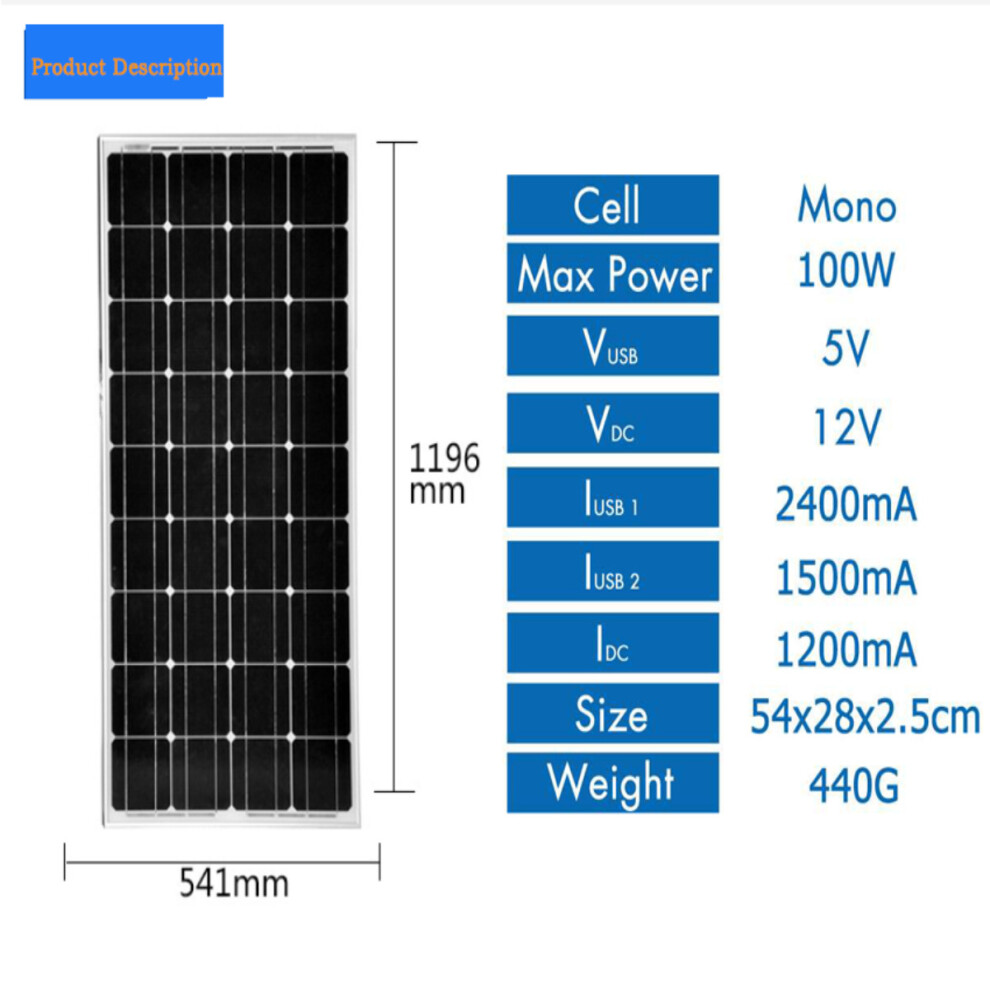

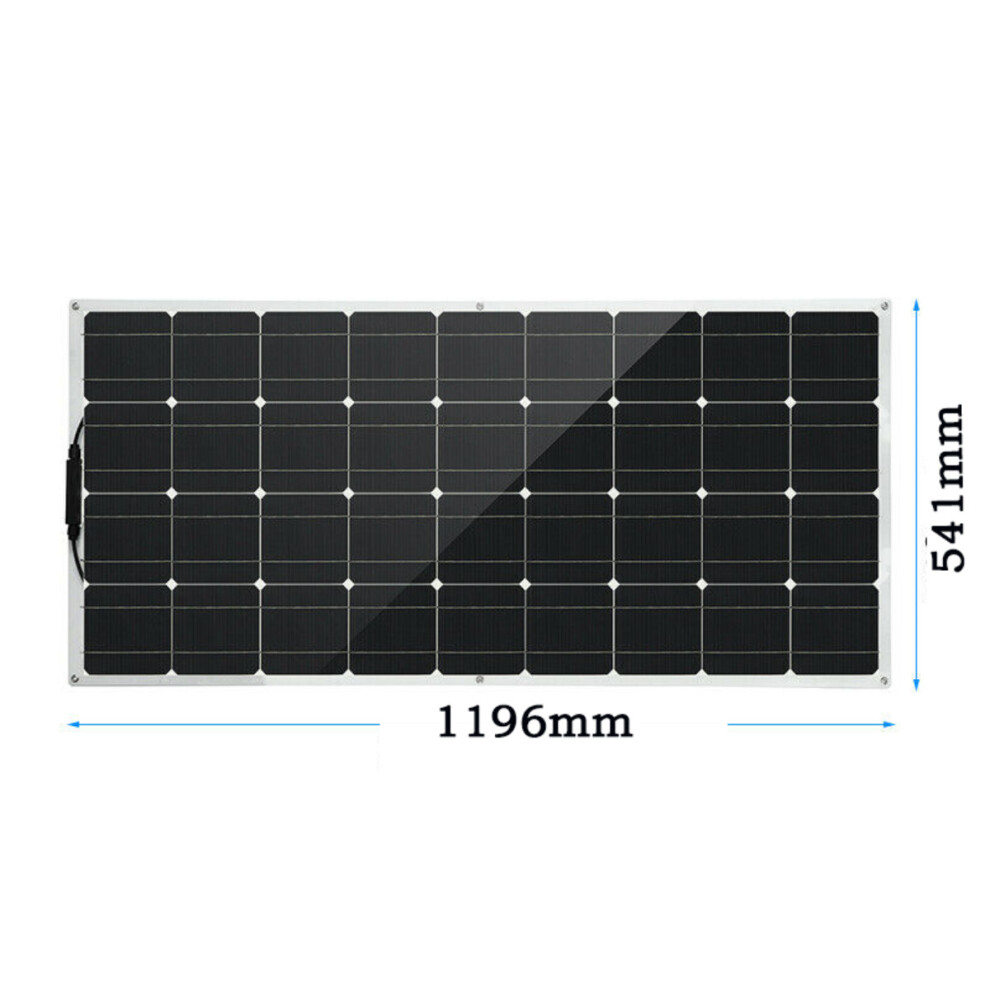

Dimensions 1196 × 541 × 30 mm

Weight 8 Kgs

Front Glass 3.2 mm (0.13 inches) tempered glass

Frame

Anodized aluminum alloy

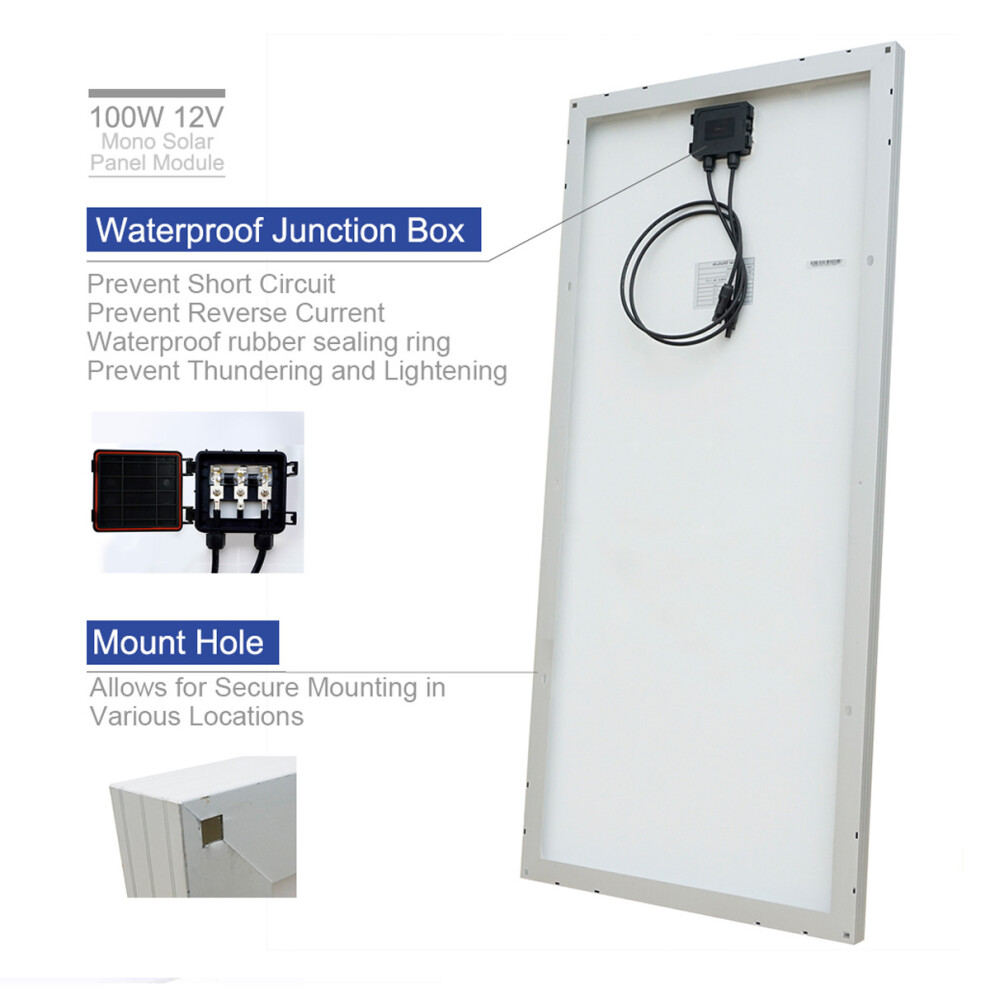

Junction Box IP65 rated

Connectors

RADOX® SOLAR integrated twist locking connectors

Electrical characteristics

Model SFM100W-36 /

Maximum power at STC (Pmax) 100 W

The best working voltage (Vmp) 18.17 V

Open circuit voltage (Voc) 21.5 V

The best working current (Imp) 5.50 A

Short circuit current (Isc) 6.05 A

Operating module temperature -40 ° C to + 85 ° C

Maximum system voltage 1000 V DC (IEC) / 600 V DC (UL)

Diode 2 passes

Power tolerance -3 / + 3%

STC: Irradiance 1000 W / m2, module temperature 25 ° C, AM = 1.5; power measurement tolerance: ± 3%

Product quality assurance: Singfo Solar modules will last at least 25 years

Features:

◆ High efficiency battery

◆ Sturdy aluminum frame

◆ Standard tolerance (guarantee standard tolerance between -3 ~ + 3% to ensure the reliability of power output)

◆ Excellent low light performance

Performs well in low light conditions (morning, evening and cloudy)

◆ Withstand high wind and snow loads

The entire module is certified to withstand high wind loads (2400 Pascals) and snow loads (5400 Pascals)

Application

Solar panels are widely used

1. Any large or small grid-connected or off-grid solar power station.

2. Commercial and industrial building roof systems.

3. Residential roof system.

4. Any commercial or industrial floor installation system.

5. Other industrial or commercial applications

Package Includes:

1pcs X 100W Monocrystalline Silicon Solar Panel
