200w Singular Panel Kit 5 15B - Victron MPPT - With Brackets

200w Singular Panel Kit 5 15B - Victron MPPT - With Brackets Description

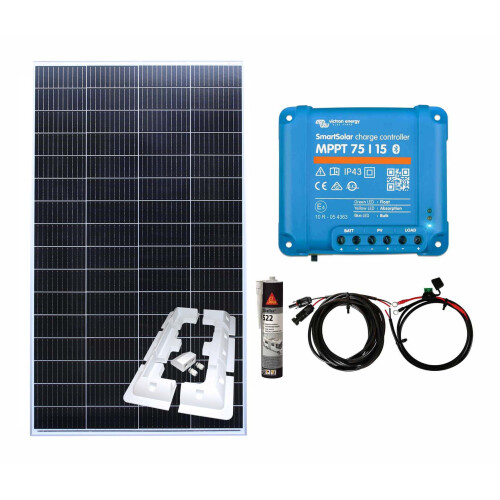

Solar Kit Contents

• 200 Watt Monocrystalline Solar Panel with 1M cable & solar connection plugs attached
• 75/15 Victron Energy MPPT Solar Charge Controller
• 5M, 4mm2, single Core with solar plug connectors
• 1.5m Battery Line Fused 2.5mm2

Half - cut solar cells

 Solar Panels with half - cut solar cells and 9 to 12 buzz bars connecting the cells are 8-10% Smaller than typical square cell panels

• Solar Panels with half - cut solar cells and 9 to 12 buzz bars connecting the cells are 3% higher effiiency than typical square cell panels

Full silicone solar cells used to be square, sometimes with the corners cut off, but now the mainstream trend with all the big solar manufacturers is for half cut, small rectangular silicone cells, due to their higher efficiency.

 Solar panel technology has moved on considerably in the last few years with the introduction of half cut solar cells which can provide 2 to 3% more efficiency and higher watts per square metre. This means that the same power solar panels used in the past can now be 8-10% smaller. Alternatively you can have bigger solar panels with higher power output, but don't take up as much space.

This works by doubling the number of solar cells and increasing the number of ribbons, (BB's / buzz bars) which connect the silicone solar cells together within the panel. This helps to lower resistance in the panel, which in turn reduces tiny voltage drops in the many panel connections. Overall this provides more power output. The smaller cells are also less likely to have microfracture issues and with improved cloudy day performance.

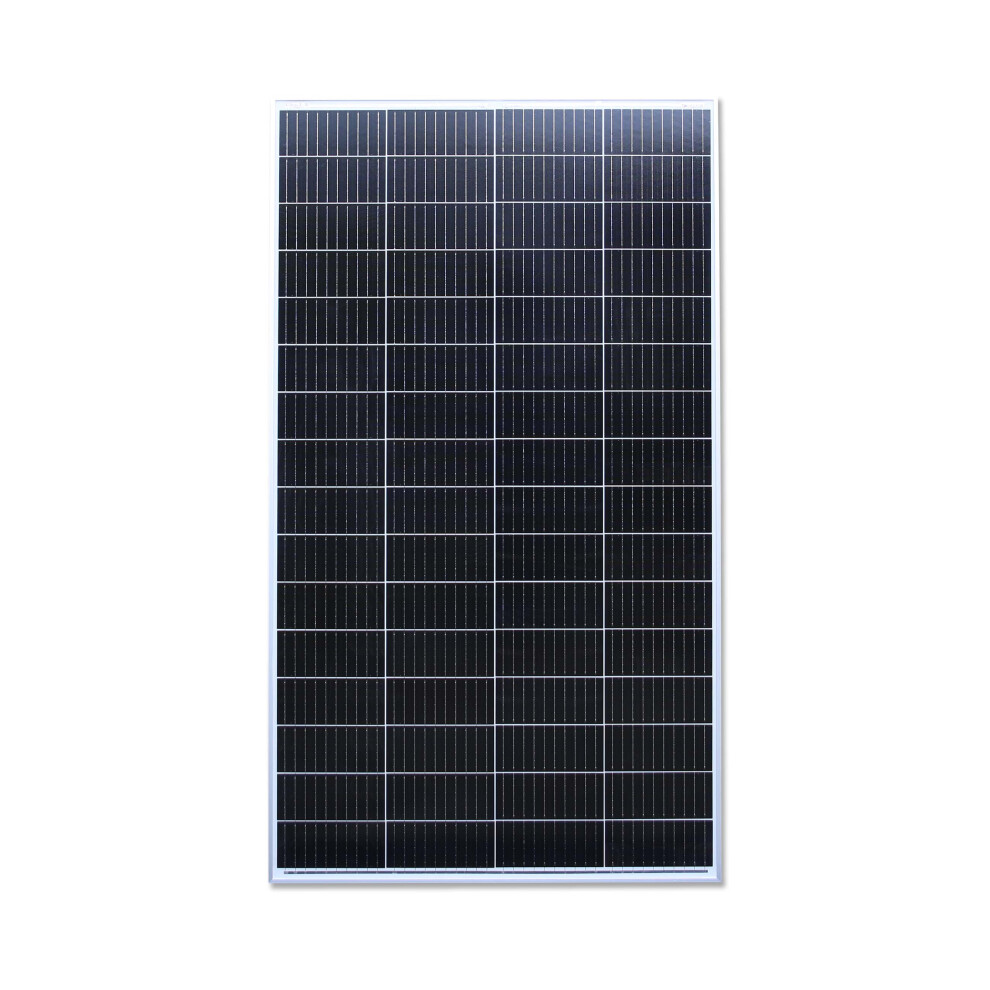

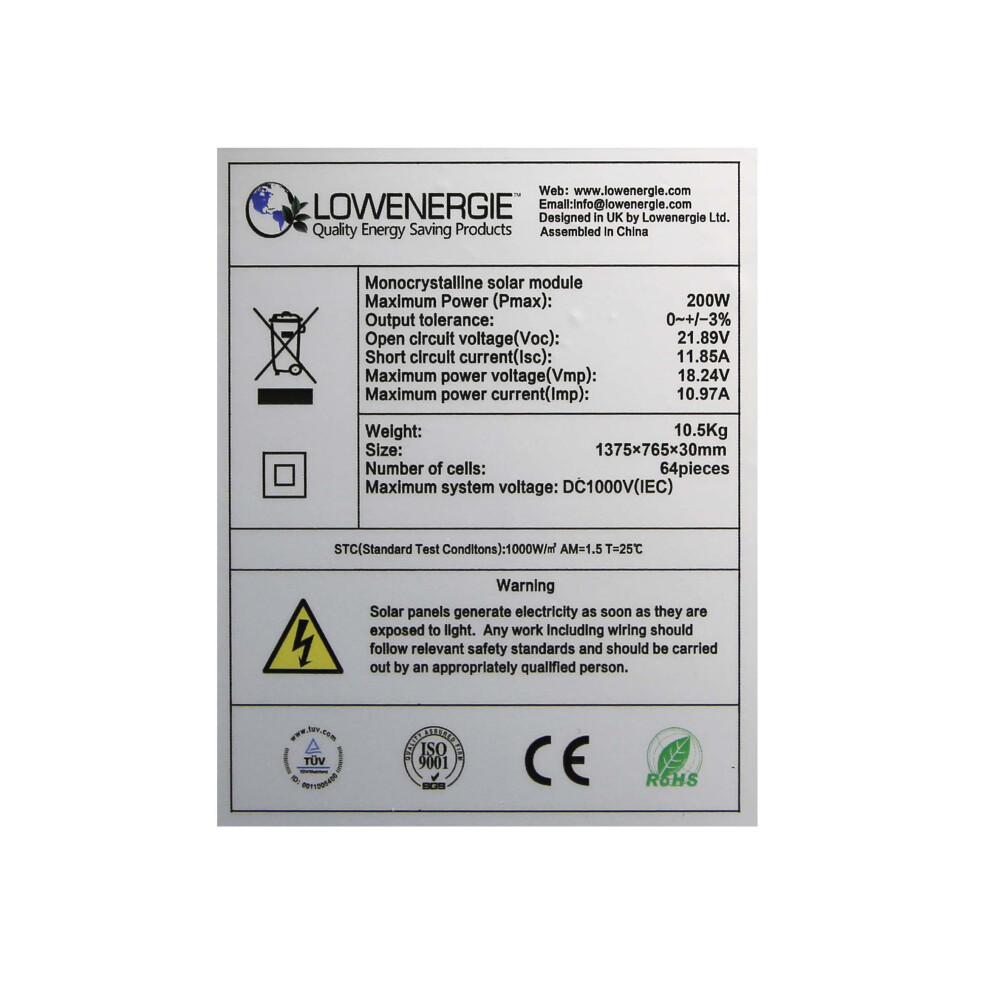

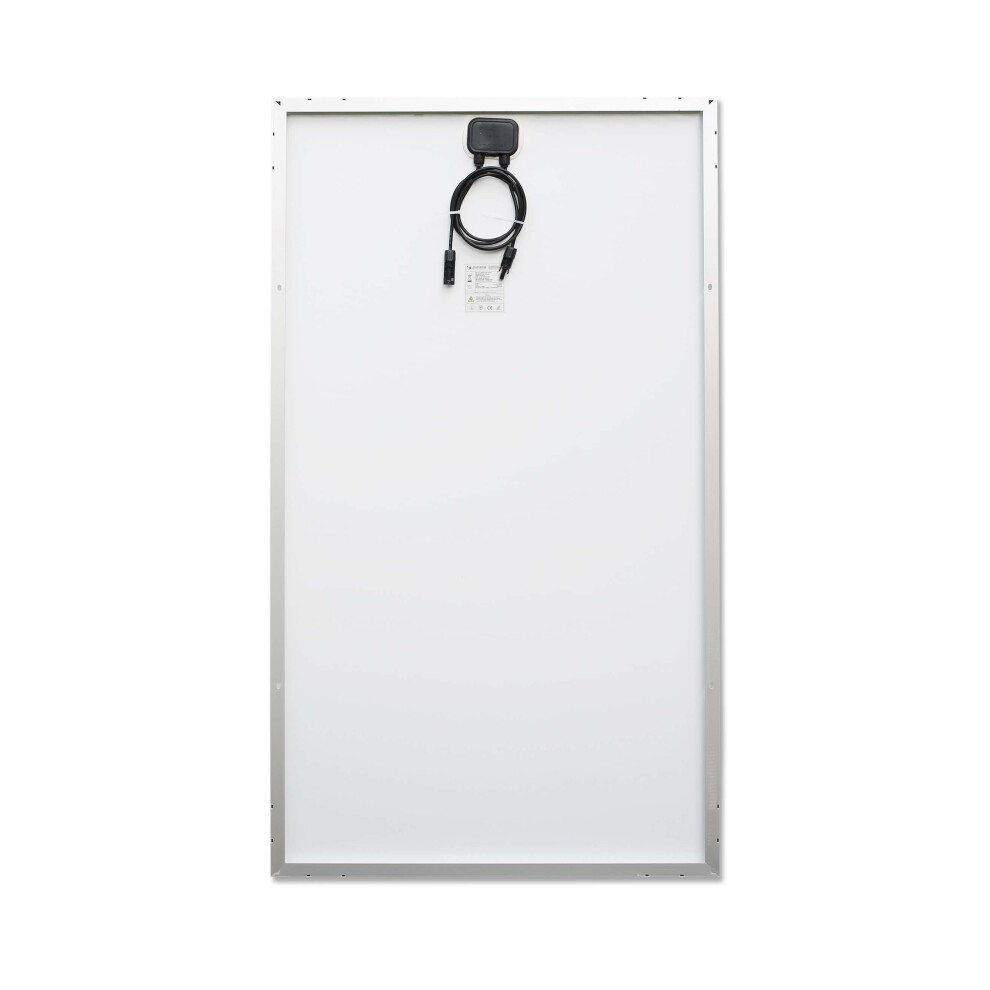

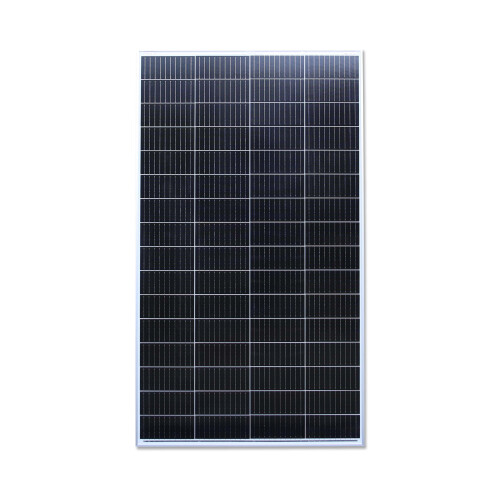

200 Watt Solar Panel - (with 1m Cable & solar connection plugs)

• Max Power: 200w
• Max Power Voltage (Vmp): 18.24V
• Max Current (Imp): 10.97A
• Open Circuit Voltage (Voc): 21.89V
• Short Circuit Curren (Isc): 11.85A
• Weight: 10.5Kg
• Size: 1375 x 765 x 30
• Number of cells: 64
• Power Tolerance: ±3%
• Maximum System Voltage: DC1000v  (IEC)

In the event that the solar panel is in shade for a prolonged period, our solar panels has two built-in bypass diodes which will enable the panel to continue generating.

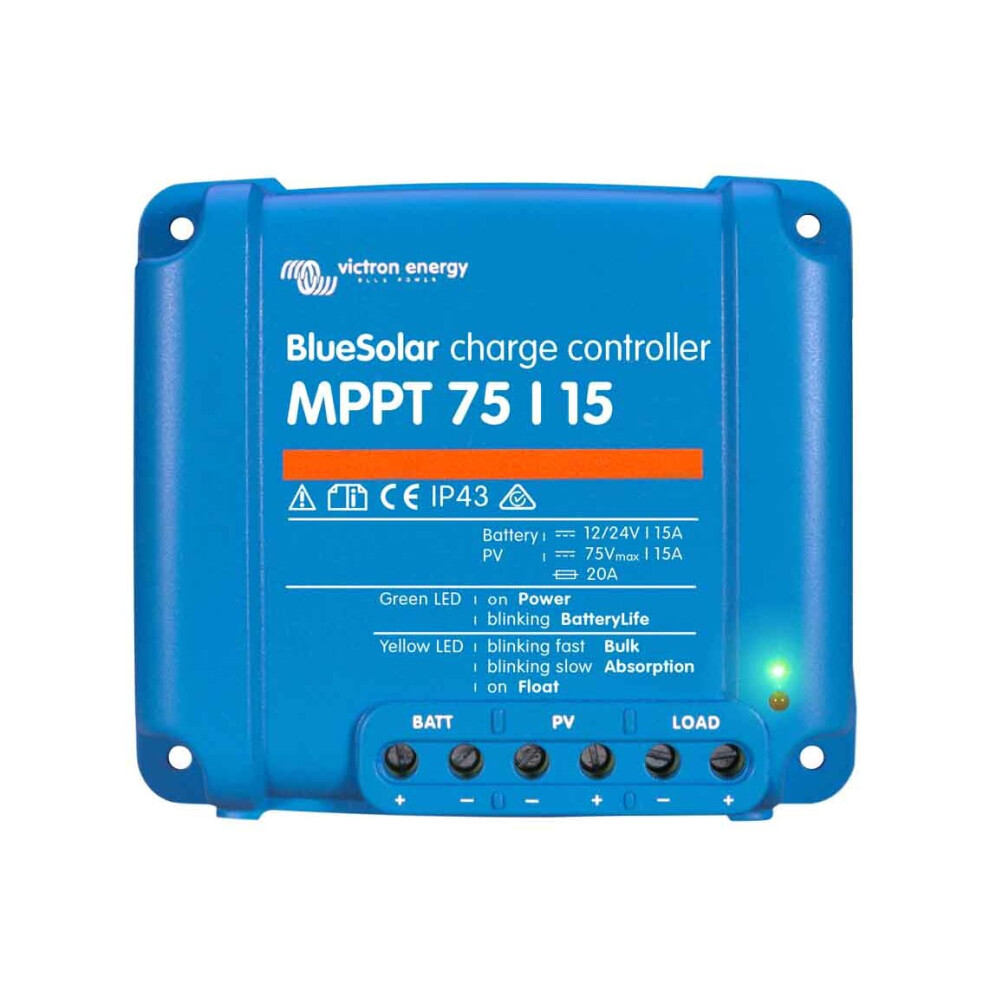

SmartSolar Charge Controller MPPT 75/15

• Battery voltage (auto select) 12/24V
• Rated charge current 15A
• Nominal PV power, 12V 1a,b) 220W
• Nominal PV power, 24V 1a,b)  440W
• Max. PV short circuit current 2) 15A
• Automatic load disconnect Yes
• Max. PV open circuit voltage 75V
• Peak efficiency 98%
• Self-consumption – load on 12V: 19 mA 24V: 16 mA
• Self-consumption – load off 12V: 10 mA 24V: 8 mA
• Charge voltage ‘absorption' 14,4V / 28,8V (adjustable)
• Charge voltage ‘float' 13,8V / 27,6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Max. continuous load current 15A
• Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
• Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
• Protection Output short circuit / Over temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Data communication port VE.Direct (see the data communication white paper on VE website)

ENCLOSURE

• Colour Blue (RAL 5012)
• Power terminals 6 mm² / AWG10
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 0,5 kg
• Dimensions (h x w x d) 100 x 113 x 40 mm

STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1V
2) A PV array with a higher short circuit current may damage the controller

Product Warranties

• Lowenergie™ Solar Panels have a 10 Year Warranty for materials and workmanship.
• Power Output Warranty is at least 90% maximum power for first 10 years of use and;
• Power Output Warranty of at least 80% maximum power output for up to 25 years use.
• Charge Controller Warranty – 5 Year manufacturer warranty
• Cables – 1 Year
