Victron 200w Mono Solar Panel Kit charging MPPT Smart Controller Battery Z-Mount

Victron 200w Mono Solar Panel Kit charging MPPT Smart Controller Battery Z-Mount Description

Lightweight design with rigid anodised aluminium alloy frame and toughened glass

Designed in the UK. CE, TUV, ISO 9001 quality assurance.

Why Go Solar?

Beat energy inflation, energy security, remote location power sources (save a fortune on armored cabling), mobile power sources, fast payback periods over conventional fuel sources such as diesel generation and hook-ups, keep batteries fully charged at all time as deep discharge shortens life, environmentally friendly power which reduces carbon emissions to slow global warming and climate change.

Applications

Sheds, Stables, Boats, Caravans, Motorhomes, electric fencing, road/ path/ driveway illuminated signage, campsites, yurts, multi-panel off grid power source for small buildings, remote telecomms, mobile food outlets, and many more...

Independent Off-Grid Solar Power Source

One or more solar panels can be connected a battery bank and power inverter using a solar charge controller. You can therefore have a 240v power supply anywhere in the world without grid supply.

Solar Panels do still generate power during cloudy and rainy weather

We have a rough guide below to solar panel power output relative to weather conditions:-

• 100% power output - clear sky midday sun with the panel fully tilted toward the sun's position in the sky.
• 75-85% output - clear sky midday sun but with the panel laid flat
• 50-65% output - thin cloud, or intermittent small clouds
• 10-20% output - midday overcast sky or rainy conditions

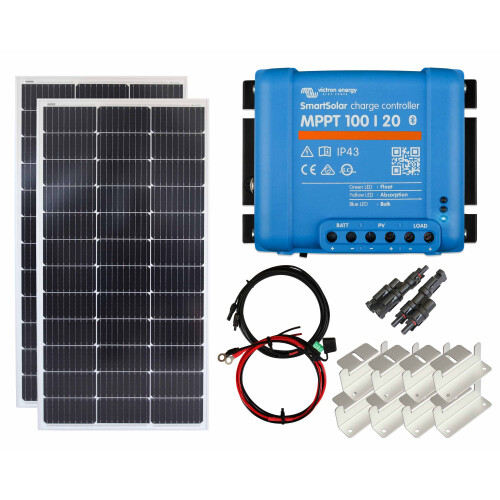

Solar Kit Contents

• 2 x 100 Watt monocrystalline Solar Panel with 1M cable & MC4 Plugs attached
• Victron Energy Smart MPPT 100/20

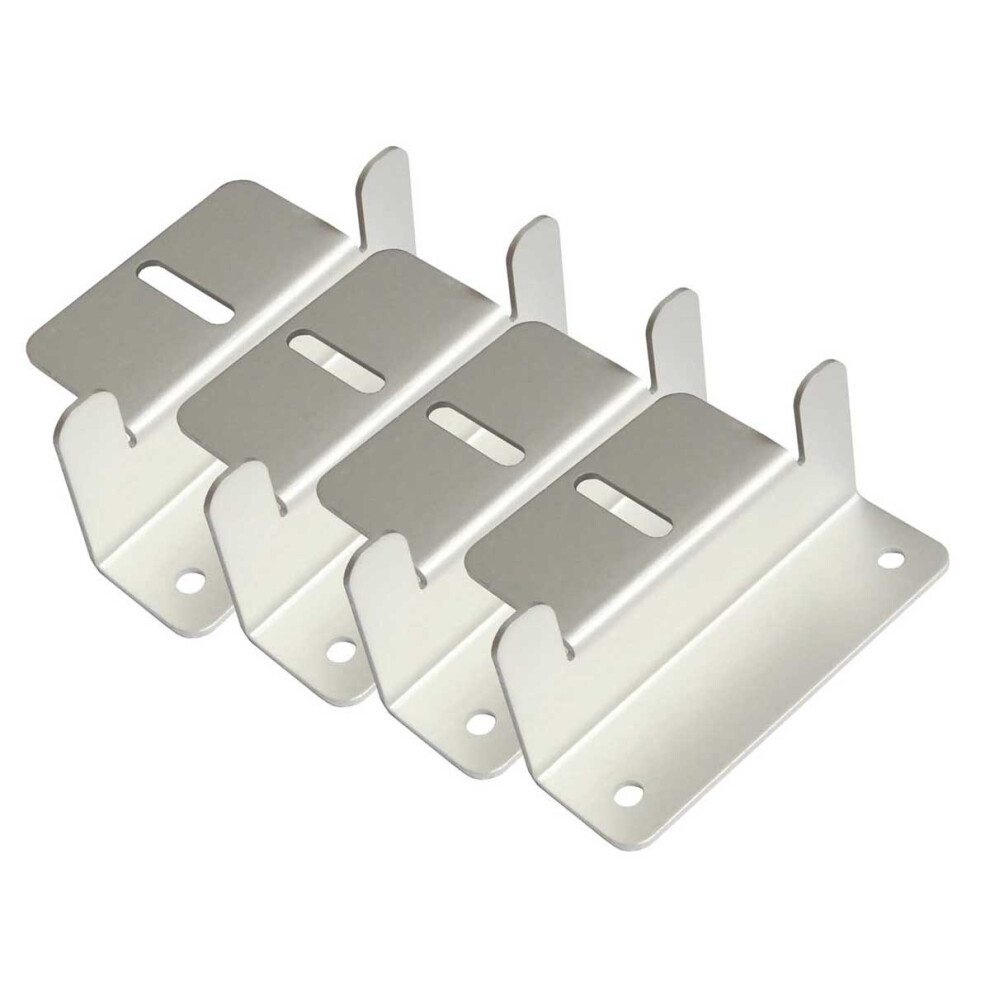

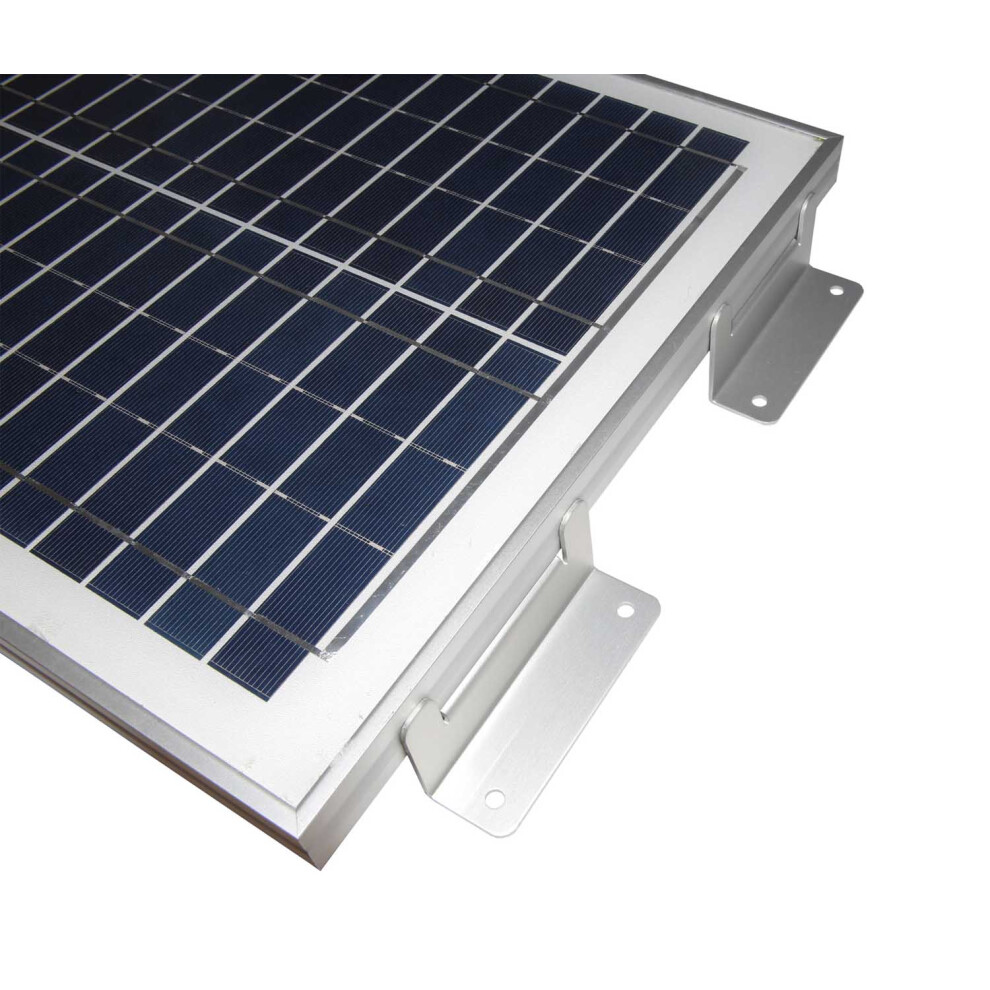

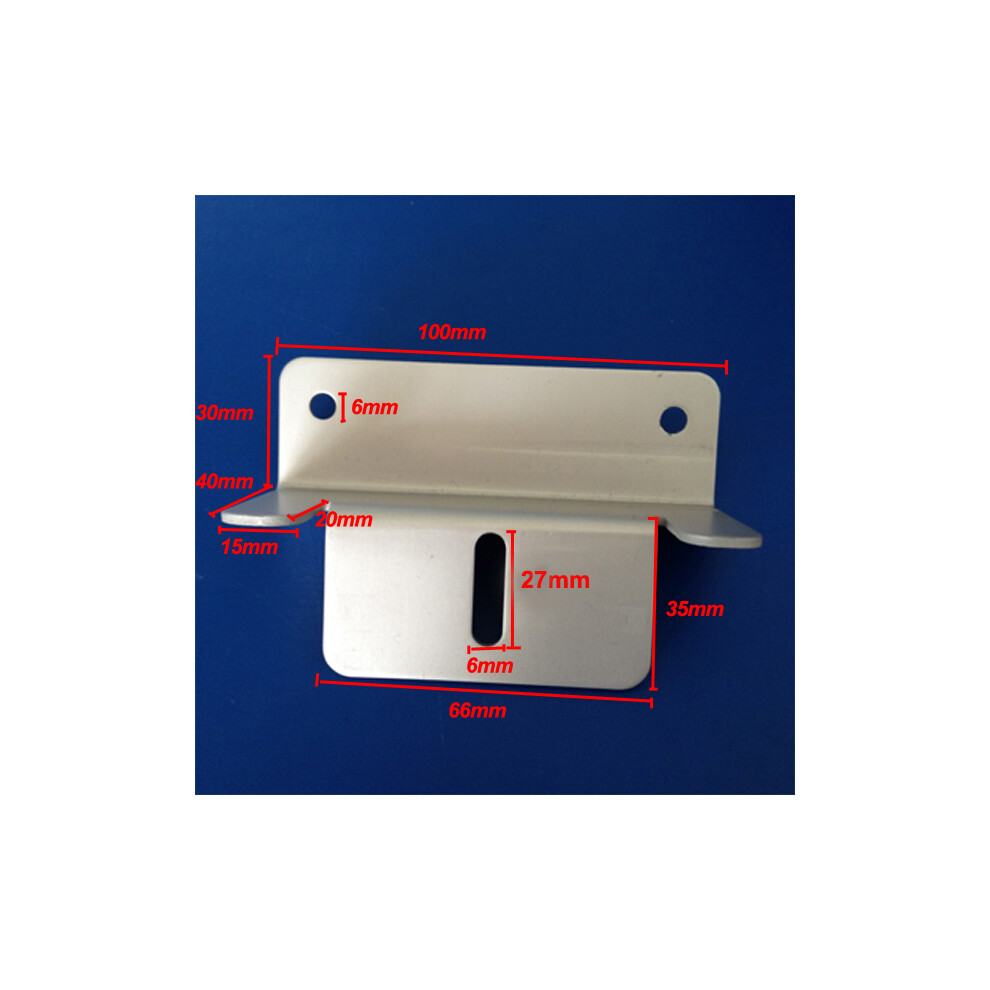

• 8 x Aluminium mounting brackets
• 5 Metre 4mm2 solar cable with MC4 connectors
• 2 x 1.5m 4mm2 Battery to solar controller cable - fused with M8 ring terminals
• T Branch

Warning: The Connection Order Below must be followed

1. Battery Cable
2. Load Cable
3. Solar Panel Cable

4. Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

   These charge controllers can be used with one or more 12V batteries where additional storage capacity may be needed.

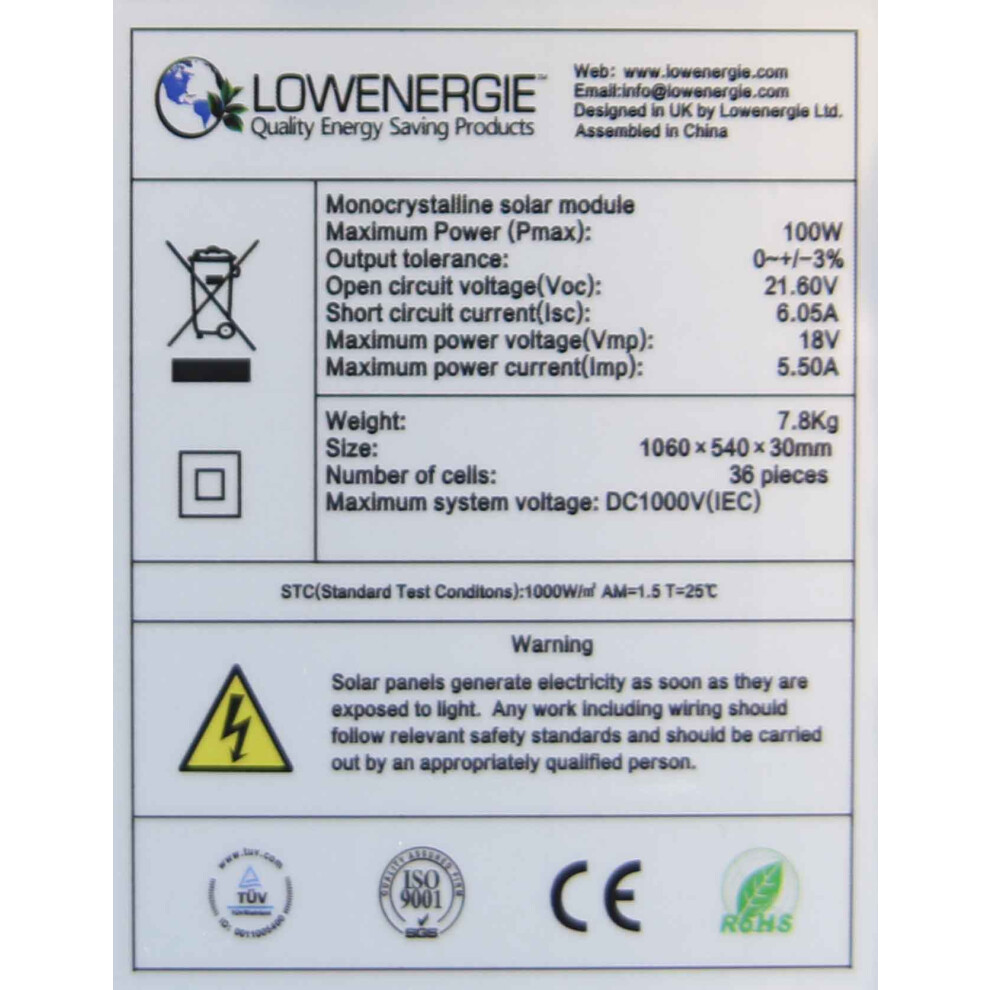

   Technical Specifications - 100w Solar Panel

   • Maximum Power (Pmax): 100W
   • Maximum Power Voltage (VMP): 18V
   • Maximum Power Current (IMP): 5.50A
   • Open Circuit Voltage (VOC): 21.60V
   • Short Circuit Current (ISC): 6.05A
   • Weight: 7.8KG
   • Size: 1060 x 540 x 30mm
   • Cells: 36
   • Power Tolerance: +/-3%
   • Maximum System Voltage: DC1000V

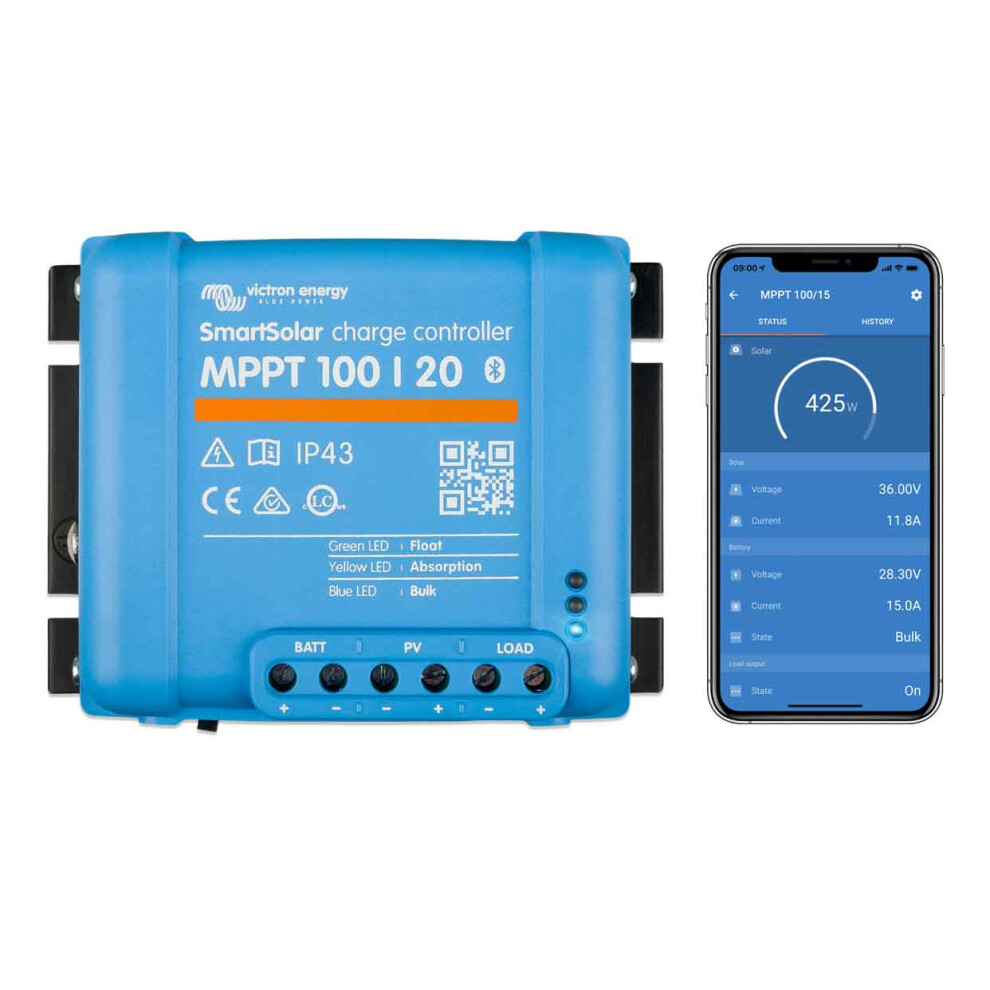

   SmartSolar Charge Controller  MPPT 100/20

   • Battery voltage (auto select) 12/24V
   • Rated charge current 20A
   • Nominal PV power, 12V 1a,b)290W
   • Nominal PV power, 24V 1a,b) 580W
   • Max. PV short circuit current 2) 20A
   • Automatic load disconnect Yes
   • Max. PV open circuit voltage 100V
   • Peak efficiency 98%
   • Self-consumption 12V: 25 mA 24V: 15 mA
   • Charge voltage 'absorption' 14,4V / 28,8V (adjustable)
   • Charge voltage 'float' 13,8V / 27,6V (adjustable)
   • Charge algorithm multi-stage adaptive
   • Temperature compensation -16 mV / °C resp. -32 mV / °C
   • Max. continuous load current  20A
   • Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
   • Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
   • Protection Output short circuit / Over temperature
   • Operating temperature -30 to +60°C (full rated output up to 40°C)
   • Humidity 95%, non-condensing
   • Data communication port VE.Direct

   • Enclosure

     • Colour Blue (RAL 5012)
     • Power terminals 6 mm² / AWG10
     • Protection category IP43 (electronic components), IP22 (connection area)
     • Weight 0,65 kg
     • Dimensions (h x w x d)  100 x 113 x 60 mm

     Standards

     • Safety EN/IEC 62109-1, UL 1741, CSA C22.2

     1a) If more PV power is connected, the controller will limit input power.

     1b) The PV voltage must exceed Vbat + 5V for the controller to start.

     Thereafter the minimum PV voltage is Vbat + 1V

     2) A PV array with a higher short circuit current may damage the controller.
