Mono 200W Solar Panel Kit 4 MPPT Charge Controller

Mono 200W Solar Panel Kit 4 MPPT Charge Controller Description

Our new 9BB 100w Monocrystalline Solar Panels.  These are our highest efficiency yet which now allows these panels to be slightly smaller and still generate the same power!  9BB means 9 silver conductor strips connect each row of silicone cells, which means higher efficiency in pulling every bit of power from all of the cells.  The overall panel efficiency is now up from 18% to 21.2%.

Solar Kit Contents:

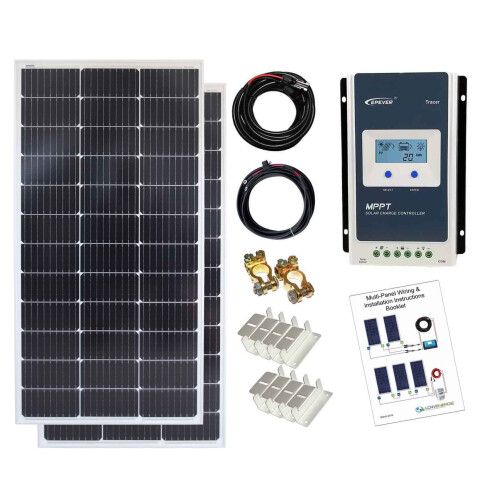

• 2 x 100w Mono solar panel
• 20A MPPT Charge Controller
• Solar power to controller cable with MC4 connectors – 2 core 5M 2.5mm2 cable
• 1.5 Metre Controller to Battery Cable, 4mm2 single core cable, with 30A inline fuse and 8mm ring connectors
• Battery Terminals (pair)
• 8 aluminium mounting brackets

Technical Specifications

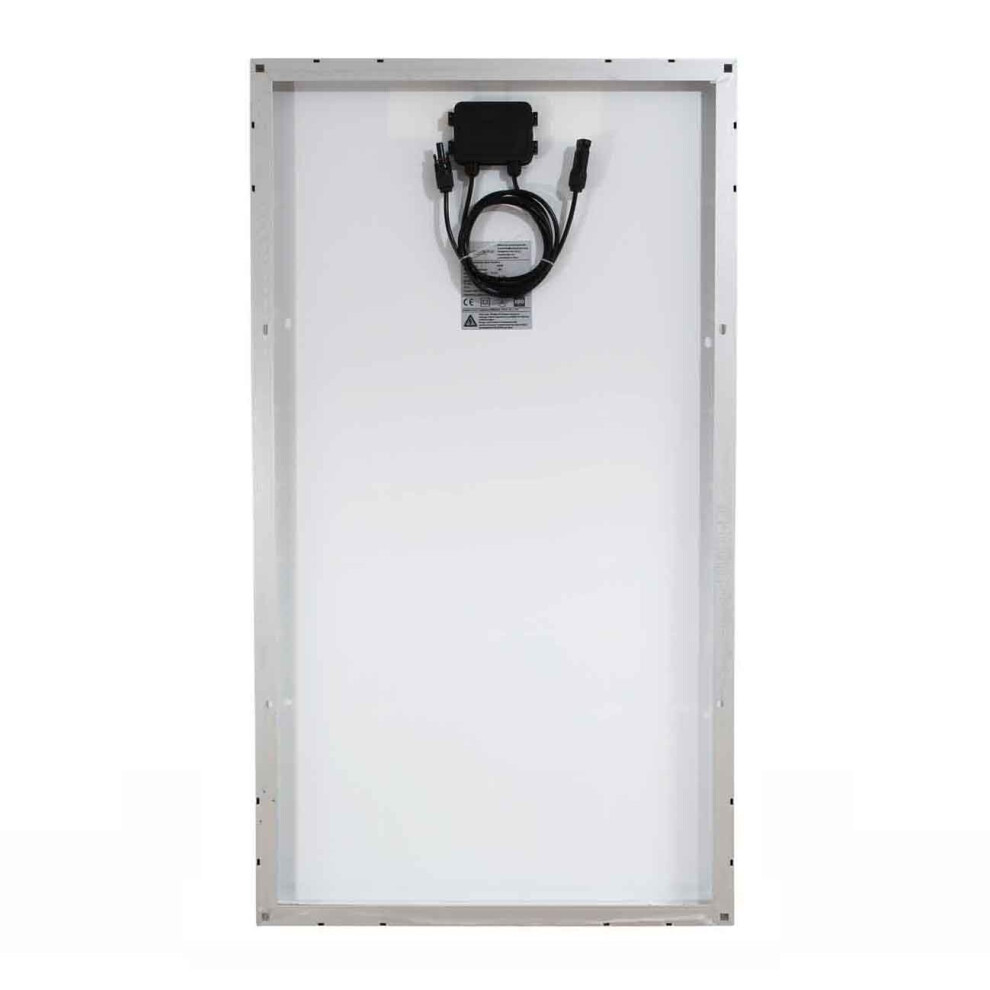

100 Watt Solar Panel – (with 1m Cable & MC4 Connector Plugs)

Max Power: 100w

Max Power Voltage: 18.0v

Max Current: 5.50A

Open Circuit Voltage: 21.60v

Short Circuit Current: 6.05A

Weight: 7.8kg

Size: 1060 x 540 x 30mm

Power Tolerance: ±3%

Maximum System Voltage: DC1000v

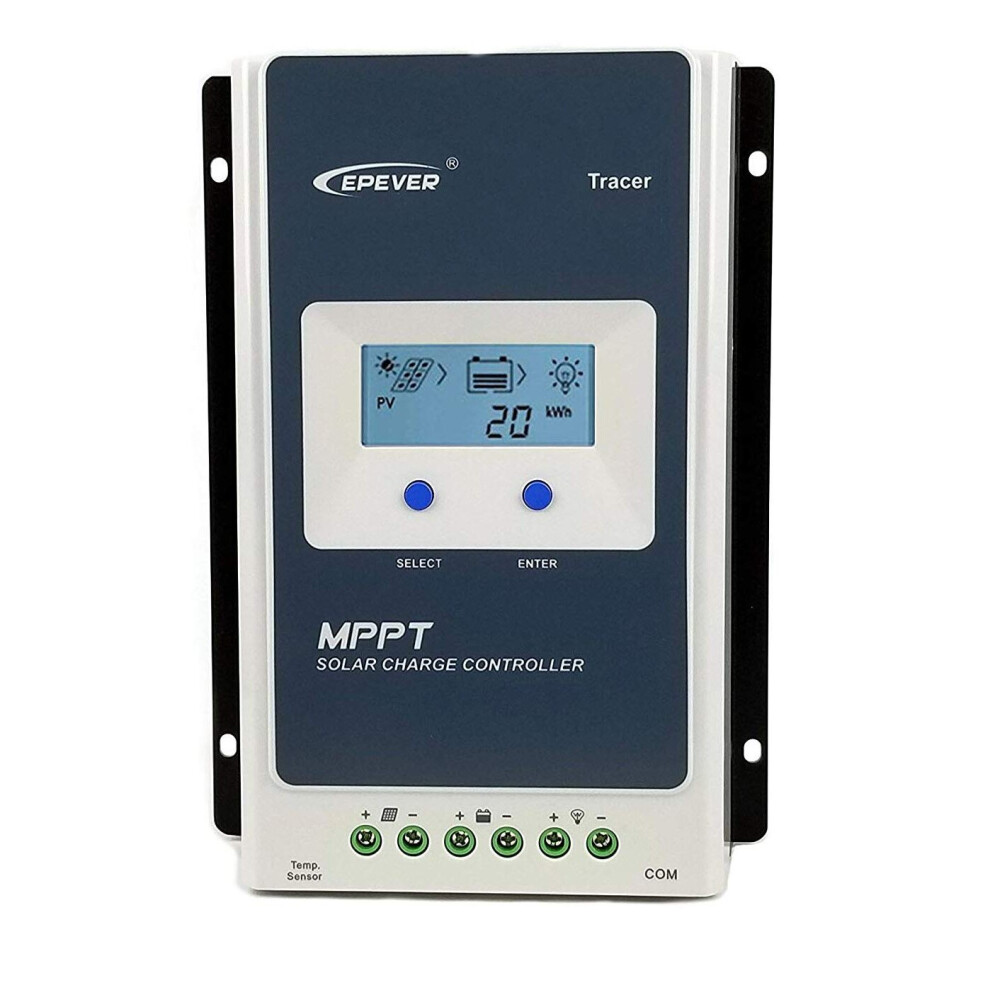

Technical – Tracer AN Series 2206AN

• Nominal System Voltage 12 or 24V battery banks, auto recognition
• Battery Input Voltage Range 8V ~ 32VMax Charge/ Discharge Current 20A Max Charge/ Discharge Current
• Max. PV Open Circuit Voltage 60V (At minimum operating environment temperature)
• Max. PV Open Circuit Voltage 46V (At 25 Deg C operating environment temperature)
• MPPT Voltage Range +2V ~ 36V
• Max Rated Charging Power (20A), 260W (12V), 520W (24V)
• Max. PV Array Input Power 390W (12V), 780W (24V)
• Wiring Connections, Solar +/-, Battery +/-, Power Output +/-, Temp Sensor, COM RJ45
• Working Environment Temperature Range – 25 to +45 Deg C
• Humidity Range <95%
• Enclosure IP30
• Dimensions 220mm x 154mm x 52mm
• Power Terminals 6AWH (12mm sq)
• Weight 1.1Kg

Solar Panels to Controller Cable

• 2-core 2.5mm2, 5M long cable

Solar controller to Battery Cable

• 2 X 1.5m single core 4mm2 solar PV Cable, with 30A inline fuse and 8mm ring terminals TUV Approved.

• All cabling carefully designed to minimise voltage drops and maintain maximum system efficiency

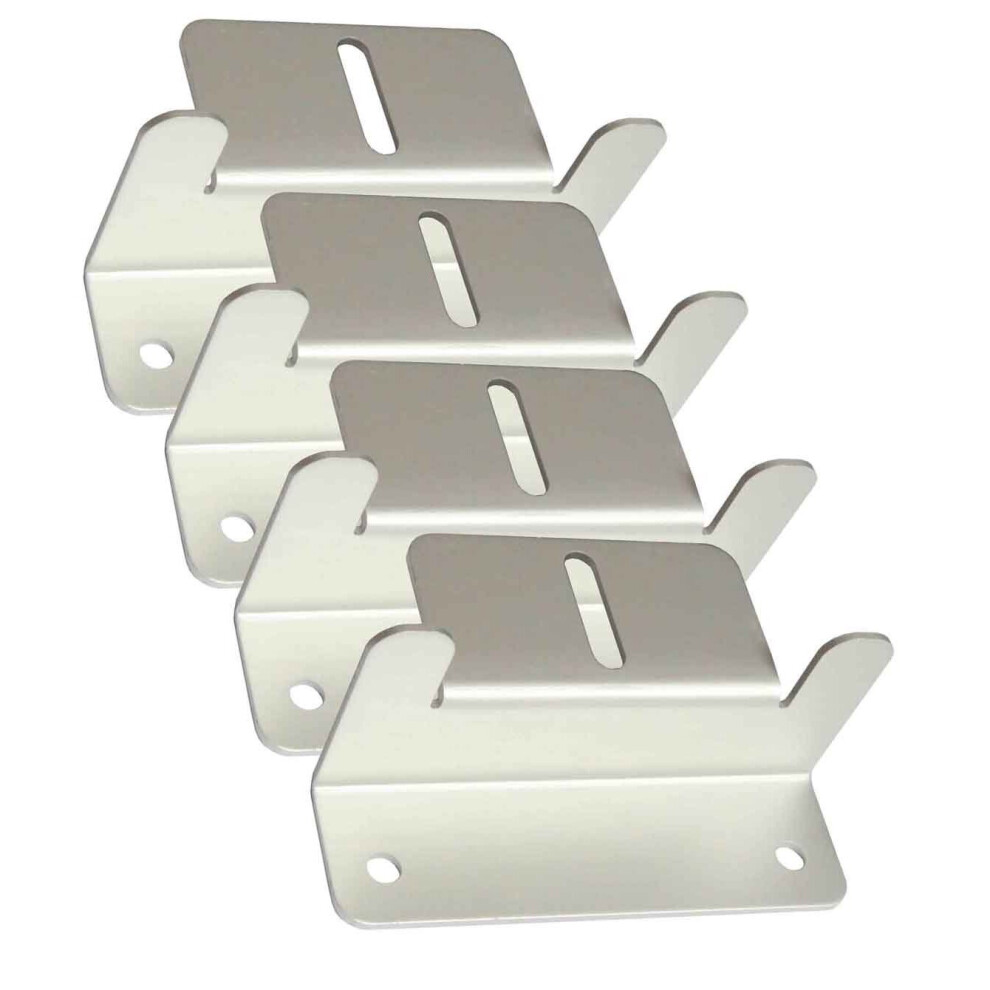

Solar Brackets:

• Aluminium
• Light weight
• 100mm long
• Supplied as 4 brackets per panel

Important information regarding Charge Controllers – MPPT

Warning: The Connection Order Below must be followed

1, Battery Cable, 2 Load Cable, 3, Solar Panel Cable

Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

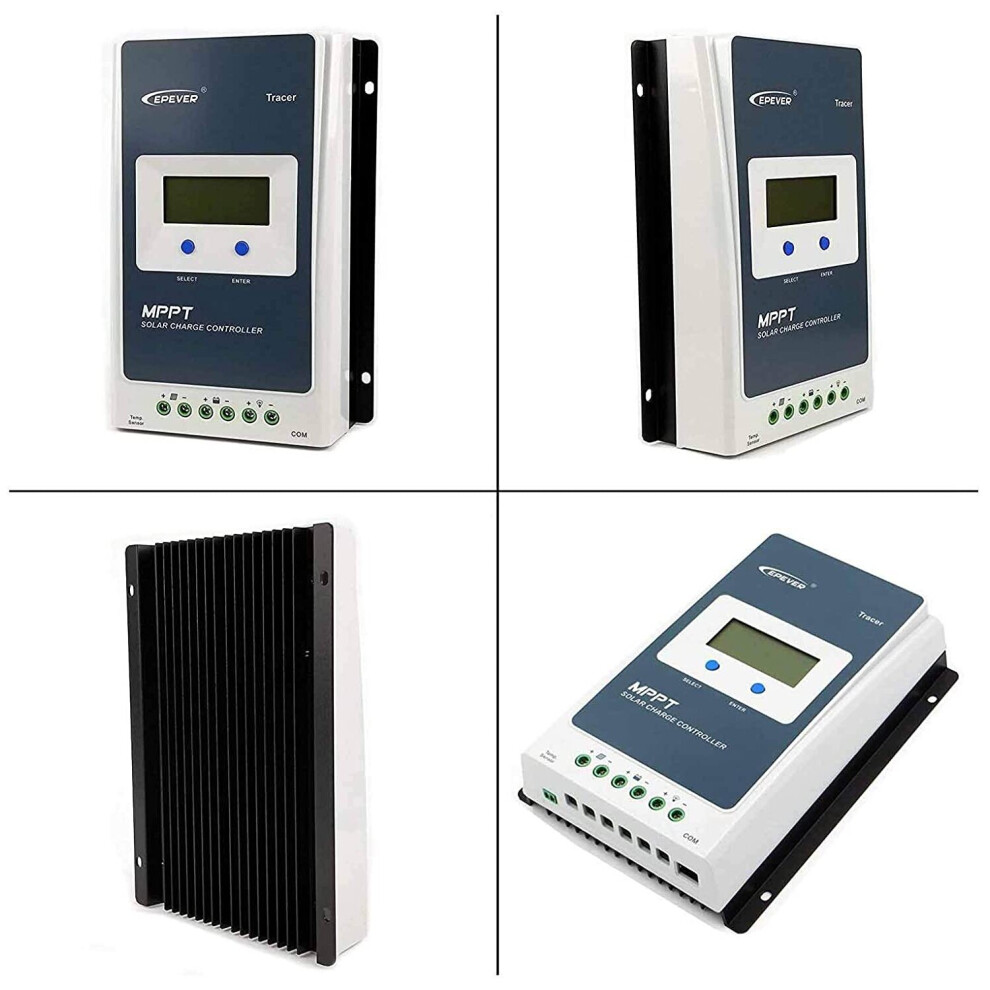

Tracer AN Series – product features:

• Advanced maximum Power point tracking (MPPT) technology, with efficiency no less than 99.5% with 10-30% more power to the battery than cheaper PWM controllers.
• High quality components with maximum conversion efficiency of 98%
• Ultra fast tracking speed and guaranteed tracking efficiency
• Reliable automatic limit function of maximum PV input power, ensuring no overload risk.
• Wide maximum PowerPoint operating voltage range
• 12/24V DC automatic battery detection
• LCD panel display providing operating data and working conditions
• Supports 3 pre-programmed charging options, sealed, gel and flooded batteries
• Battery temperature compensation function
• Includes RS-485 communication bus interface and mod bus communication protocol
• RS-485 plug socket port can be used for PC monitoring via USB connection, this socket can also be used for connecting the MT50 external display unit to show real-time data and parameter settings.
• Remote temperature sensor connection port, to remotely detect battery temperature allowing and MPPT technology to adjust parameters.
• The controller has a three stage battery charging algorithm (bulk charging, constant charging and flow charging) for rapid, efficient and safe battery charging.

Product Warranties

Solar Panel = 10 Year Warranty for materials and workmanship.

All other components have a 12 month warranty.

Power Output Warranty is at least 90% maximum power for first 10 years of use and;

Power Output Warranty of at least 80% maximum power output for up to 25 years use.
