Sorry, this item is temporarily out of stock.

10S 36V 30A Battery Protection Board Edition 0915

New

£12.27

Similar Products we think you'll like

Circuit Boards

150Pcs DRG-01 PCB for DIN 35 Rail Mount Mounting Support Adapter Circuit Board Bracket Holder Carrier Clips Connectors£36.83FREE Delivery

MEGA 2560 R3 Microcontroller With Prototype Board + L293D Motor Driver Shield£45.56FREE Delivery

UNO R3 Atmega328P CH340G Development Board with USB Cable Pinheader£7.50FREE Delivery

Muscle Signal Sensor Emg Sensor For Arduino£19.52FREE Delivery

Arduino Uno A000066 Board R3£54.85FREE Delivery

Ideal Classic 173799 Printed Circuit Board 25E£90.00FREE Delivery

3Pcs BL1830 Li-Ion Battery PCB Charging Protection Circuit Board for Makita 18V 1.5Ah 3Ah 6Ah 9Ah BL1815 BL1845 BL1860£13.10FREE Delivery

2X T-Dongle-S3 ESP32-S3 Dongle with LCD Display for Nerdminer Bitcoin Nerd Miner BTC USB£37.80FREE Delivery

2Inch IPS LCD Display for ,65K RGB Color£11.75FREE Delivery

CJMCU-1220 ADS1220 ADC 24 Bit A/D Converter Module I2C Low Power£12.47FREE Delivery

MAX7219 Dot Matrix Module LED Display 5V 4-in-1 A£7.41FREE Delivery

AC 220V/230V Coil Voltage PCB Power Relay 8 Pins DPDT 2NO 2NC MK2P-1£3.07FREE Delivery

Hammond 1590A Diecast Enclosure Natural (92.5 x 38.5 x 31mm)£10.07FREE Delivery

30cm x 20cm One Sided DIY Copper Clad Plate Laminate PCB Circuit Board£7.44FREE Delivery

Dual-Channel VI Curve Tester Circuit Board Online Detection Tester Dual-Channel VI Curve Tester£38.62FREE Delivery

14S 45A 52V Lithium Li-Ion Battery Bms Protection Board Pcb£19.31FREE Delivery

WT32-SC01 Plus ESP32-S3 3.5Inch Smart Display ESP32 Development Board£35.06FREE Delivery

Wall Clock Accessory For Pendulum Driver Units Circuit Board Card£4.91FREE Delivery

3.5Inch 480X320 SPI TFT LCD Serial Module Display Screen with Touch Panel Driver IC ILI9488 Digital Spare Parts£16.21FREE Delivery

LVDS to Board to LVDS Supports Multiple Resolutions 720PLVDS Conversion Board 1920X1080£23.20FREE Delivery

Vaillant 130438 Printed Circuit Board Genuine Part£200.00FREE Delivery

Would you like us to let you know when it's back?

Add to Basket

Description & Details

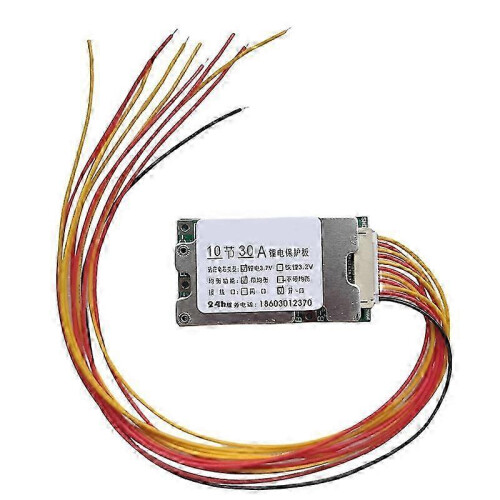

10S 36V 30A Battery Protection Board Edition 0915 Description

Usage Tips:. The protection board is for 10 series cell Li-ion batteries, it can be used for 3.7V ternary batteries, manganese acid batteries and cobalt acid batteries. Support overcharge protection, over-discharge protection and short circuit protection. It is suitable for electric car, electric power assistant car, skateboard car, inverter, etc. With temperature control protection function, safe and reliable. Applicable voltage: 36V Applicable power: Less than 1000w Max. working current: 30A Continuous maximum current: 20A Overdischarge protection voltage: 2.6v Overcharge protection voltage: 4.25v Charging current: max. 20A High temperature discharge: 75 Low temperature charge: - 7 Weight: about 60g Size: 64mm x 35mm x 9mm Colour:As shown Material:PC+Metal Package Contents: 1 x Protection Board 1 x Cable(Due to different product batches, the appearance may be different, but the function is the same) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Details
