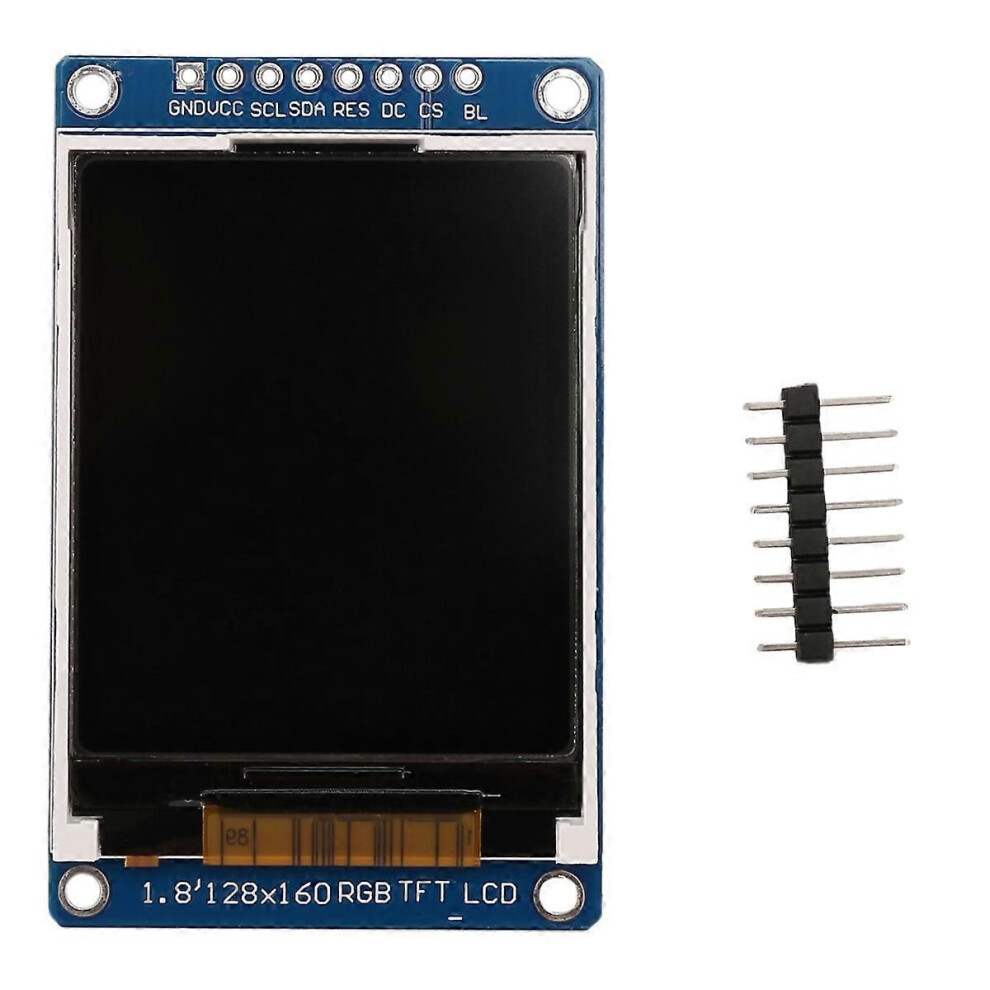

1.8 Inch LCD Display Module Full Color 128x160 Display Module

1.8 Inch LCD Display Module Full Color 128x160 Display Module Description

1.8 Inch LCD Display Module Full Color 128x160 Display Module
Condition: New
Type: Voltage Regulator
Display mode -TFT
The input data SPI interface
Drive IC ST7735S
Resolution 128RGB * 160 points
Active area LCD 28.03 (W) * 35.04 (H)
Pixel size 0.219 (W) * 0.219 (H)
Display direction At 12 o'clock
Operating temperature -20 70 Celsius
Pin descriptions:
PIN No Symbol Description
1 GND Soil
2 Power 3.3 V
3 SCL Series watch pin
4 SDA Data Entry Series
5 RES LCM Reset pin
This pin is resetting the signal input. When the pin is low, the initialization of the chip is
Executed! Keep this bolt high during normal operation.
6 DC Data / Control
7 Chip, select
8 Control pin background
colour:blue
Material:PCB
size:35*56MM
screen size:1.8 inch
Package Contents:
1*LCD Display Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
