1.8 Inch TFT LCD Screen Display Module 128x160 Full Color

1.8 Inch TFT LCD Screen Display Module 128x160 Full Color Description

1.8inch TFT 128 x 160 Color LCD Screen Display Controller Module
Features:

1. 1.8inch full color TFT LCD display screen with 128X160 resolution will provide you good display effect.

2. Horizontal or vertical screen can be adjusted.

3. Equipped with ST7735 controller chip and support 3.3V power supply.

4. The display has high contrast, extremely wide viewing angle.

5. No backlight needed, the display unit can emit light.


Specifications:

Controller Chip: ST7735

Interface Type: Serial Peripheral Interface

Display Color: Full-color

Screen Size: 1.8inch

Resolution: 128 * 160

Pin Number: 8pin

Voltage: 3.3V

Pixel Size: 0.219 * 0.219mm

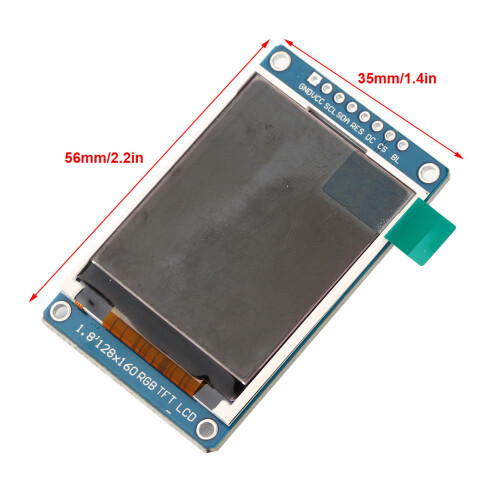

Dimension: Approx. 35 * 56mm / 1.4 * 2.2inch

Display Area Size: Approx. 28 * 35mm / 1.1 * 1.4inch

Working Temperature: -20-70

Weight: Approx. 19g


Package Include:

1 x 1.8inch Screen Display Module
