192KHz Converter Digital Optical Coaxial Toslink t

192KHz Converter Digital Optical Coaxial Toslink t Description

Features: An optical fiber and a coaxial input interface. Connect to DVD, HD player and other devices, an output interface, and connect to the power amplifier system
One channel 3.5mm audio output connector, connected to headphones.
Eliminate noise without input signal and automatically mute non audio signal when input.
It supports 192Khz 24bit sampling rate. Support volume adjustment, Support bass adjustment, Metal shell, anti-interference.

Specifications:
Supported audio formats PCM
Resolution (1kHz) 94DB
Response frequency 20Hz-20KHz-0.2db
Signal to noise ratio ()- 100DB
Total harmonic distortion ( + n) 10Hz-20KHz 0.25 -0.065%
Blocking time 0.57Fs
Sampling rate 32-192 kHz
Bit rate 16-24 bits
Output electrical level 7V
Headphone output power (RL-322)30mW
Output impedance 47 ohms
Operating voltage+ 5V. Maximum voltage: 6V
Maximum power consumption 100mA
Operating temperature range 10-70
Storage temperature range- 60-150
Operating humidity range 10% - 80% RH (no condensation)
Storage humidity range 5-90% RH (no condensation)
Material: aluminum alloy
colour: black

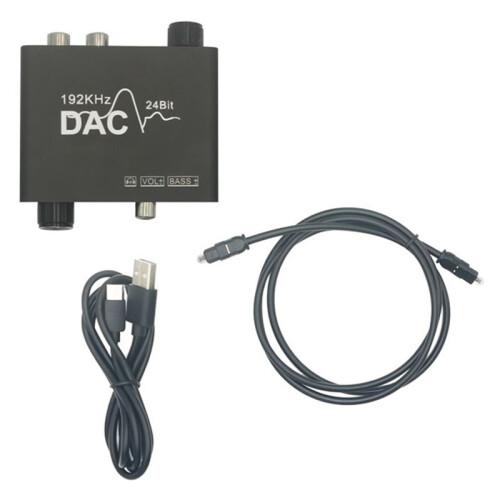

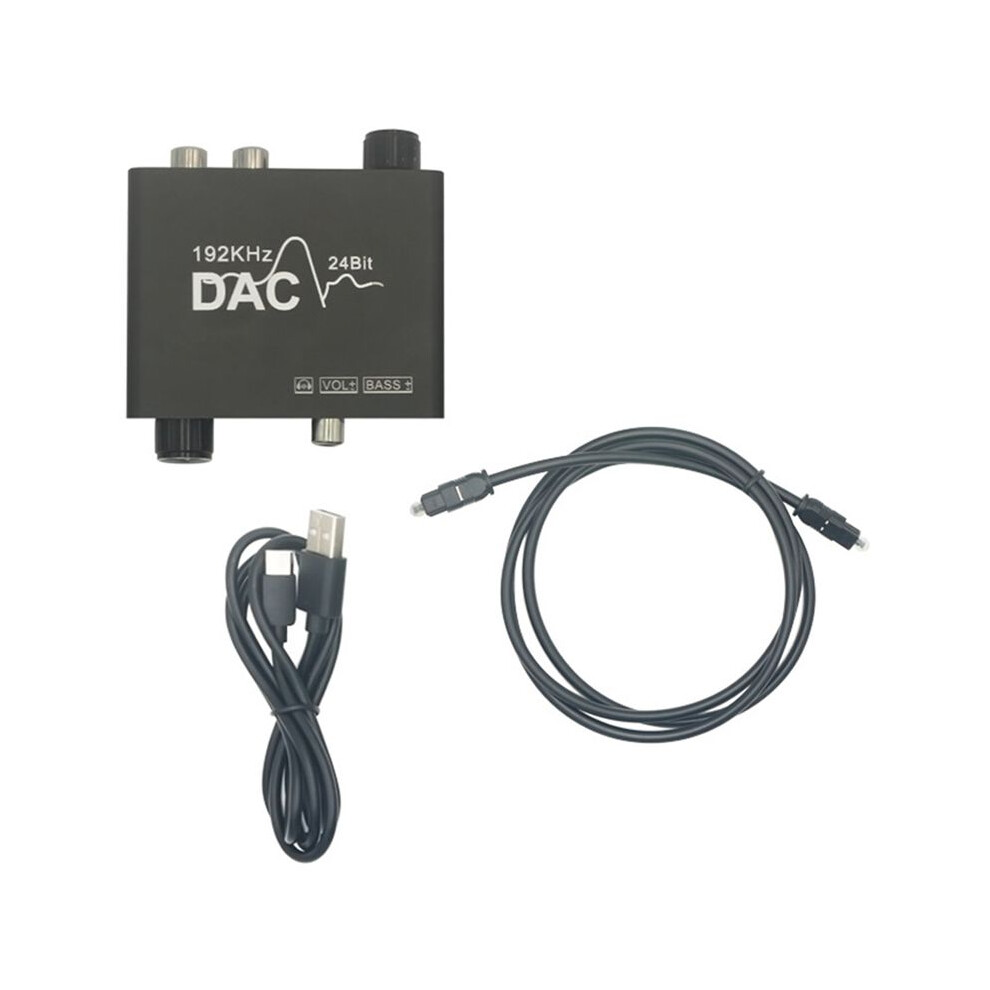

Package Contents:
1 x 192KHz Converter
1 x Optical Cable
1 x USB Power Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
