Description & Details

Summary

  • Turn on the power relay to pull in and off at a fixed cycle of 1-10s. Specifically: after the relay is supplied with 12v power, the relay will not immediately sink. The state of the relay output is: normally open and common conduction, normally closed an
  • Delay time is adjustable, (0~10 seconds)
  • Increase the potentiometer to increase the delay time
  • Increase the capacitance C1 to increase the delay time
  • With input power indicator

2 Pcs NE555 Adjustable 0-10s Delay Relay Module 5V AC/DC Control Description

2 Pcs NE555 Relay Module Adjustable 0-10 Second Time Delay Relay Module 5V
Features:

1. Turn on the power relay to pull in and off at a fixed cycle of 1-10s. Specifically: after the relay is supplied with 12v power, the relay will not immediately sink. The state of the relay output is: normally open and common conduction, normally closed and public disconnected; wait until the delay is 1-10s (can be adjusted), the relay Released, at this time, the state of the relay output is: normally open and common open, normally closed and common conduction; as long as the module is continuously powered, this state will remain closed and released at a fixed cycle of 1-10s.

2. Delay time is adjustable, (0~10 seconds).

3. Increase the potentiometer to increase the delay time.

4. Increase the capacitance C1 to increase the delay time.

5. With input power indicator.

6. With relay pull-in indicator.

7. Can control AC 220V/10A equipment. (Maximum control device 2000W).

8. With relay freewheeling protection.

9. Delay time formula: T = 1.1RC. For example: Capacitance 100uf resistance 100K T = 1.1 * 100000 * 0.0001 = 11 seconds.


Specification:

Main chip: NE555

Working voltage: DC 5 volts

Size: approx. 6 * 1.7cm / 2.4 * 0.7in

Weight: approx. 34g


Package list:

2 * Relay Module

Details

OPC PSWWMJ6
Codes 4081392494819 (EAN)

Product Images

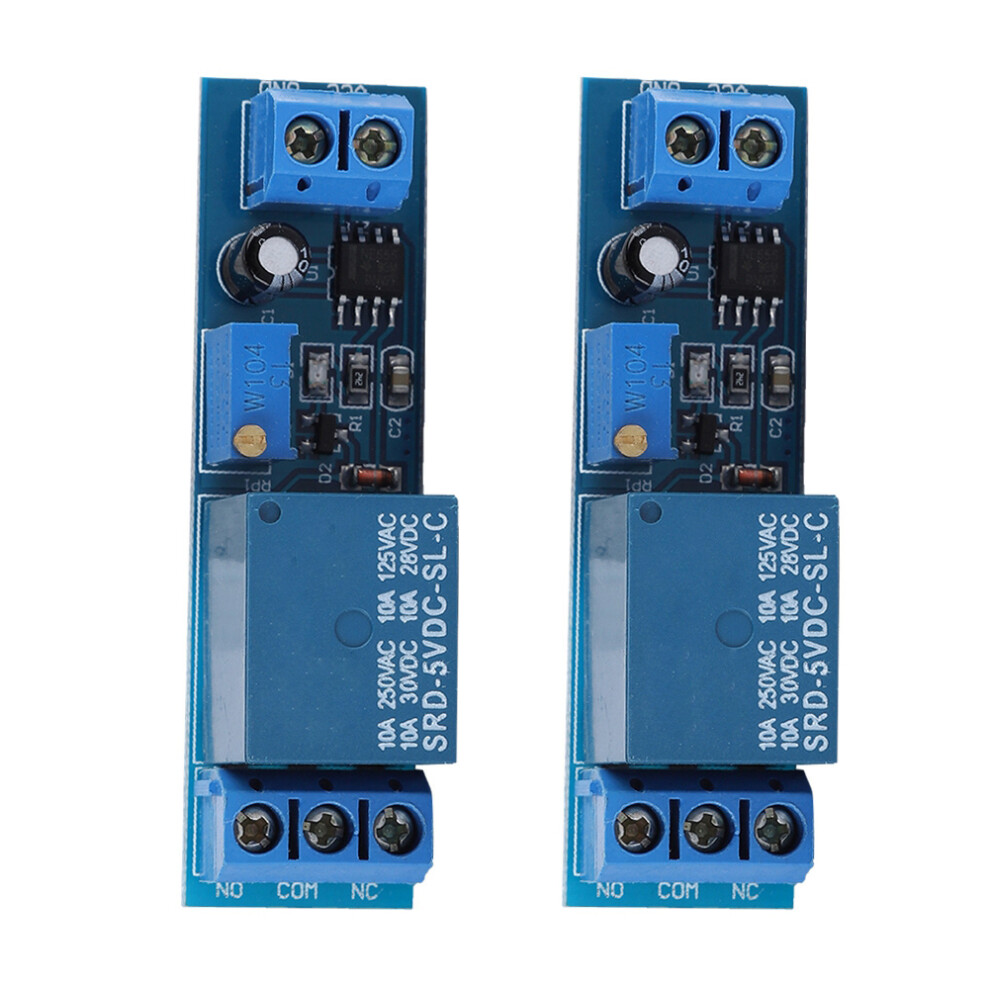

2 Pcs NE555 Adjustable 0-10s Delay Relay Module 5V AC/DC Control 1

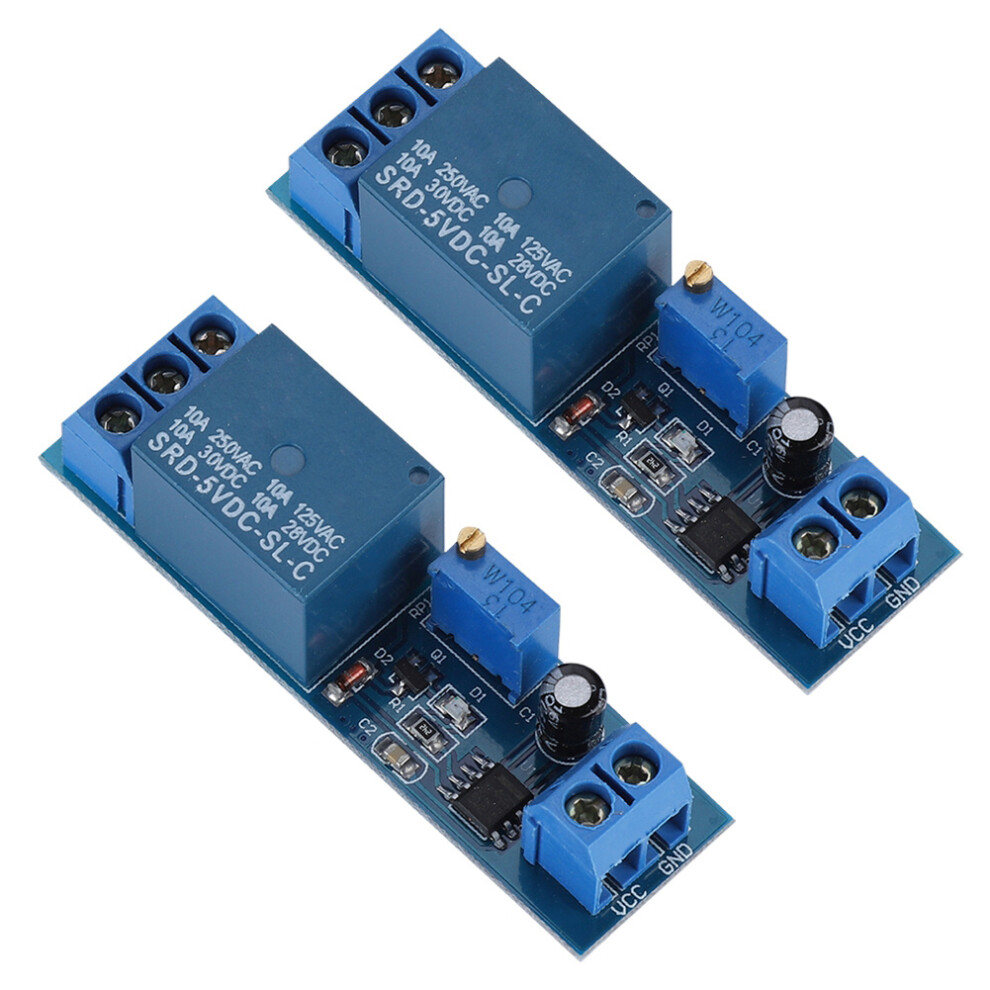

2 Pcs NE555 Adjustable 0-10s Delay Relay Module 5V AC/DC Control 2

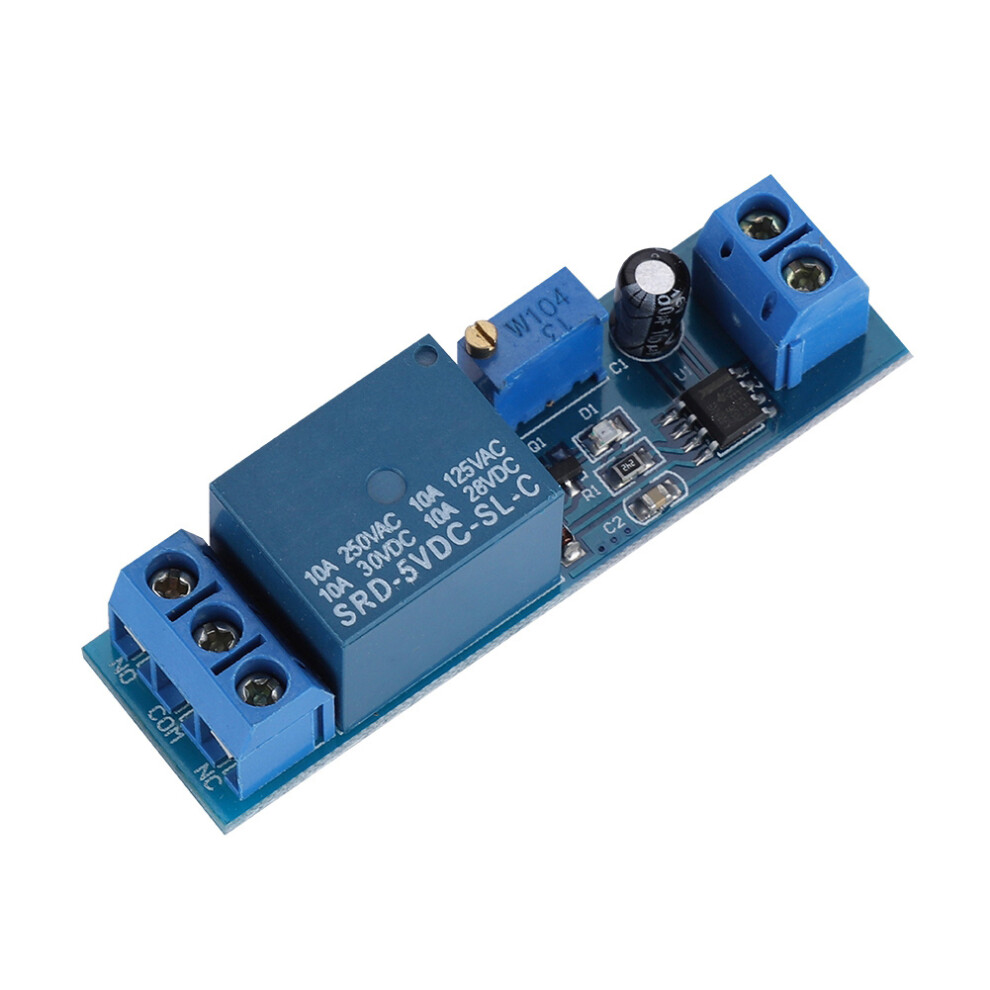

2 Pcs NE555 Adjustable 0-10s Delay Relay Module 5V AC/DC Control
