2.0 Inch TFT LCD Display for ESP32 DIY Projects

2.0 Inch TFT LCD Display for ESP32 DIY Projects Description

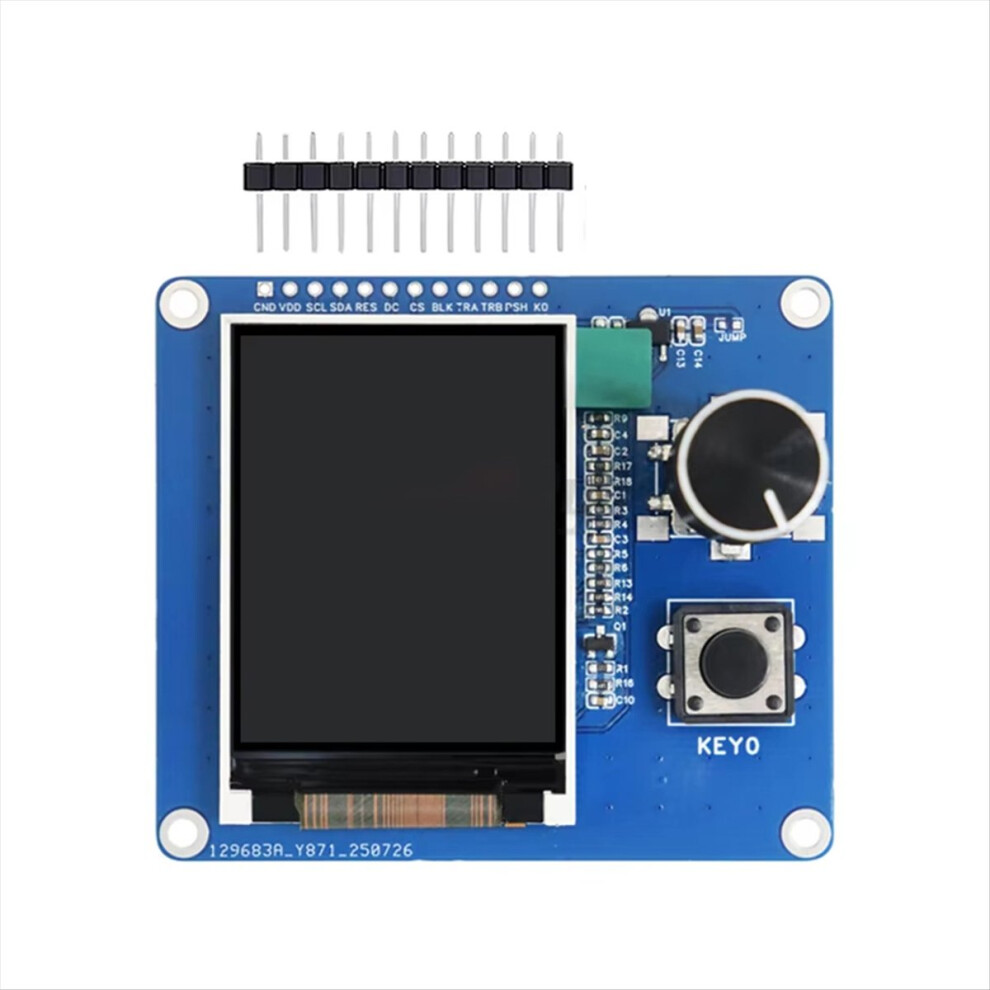

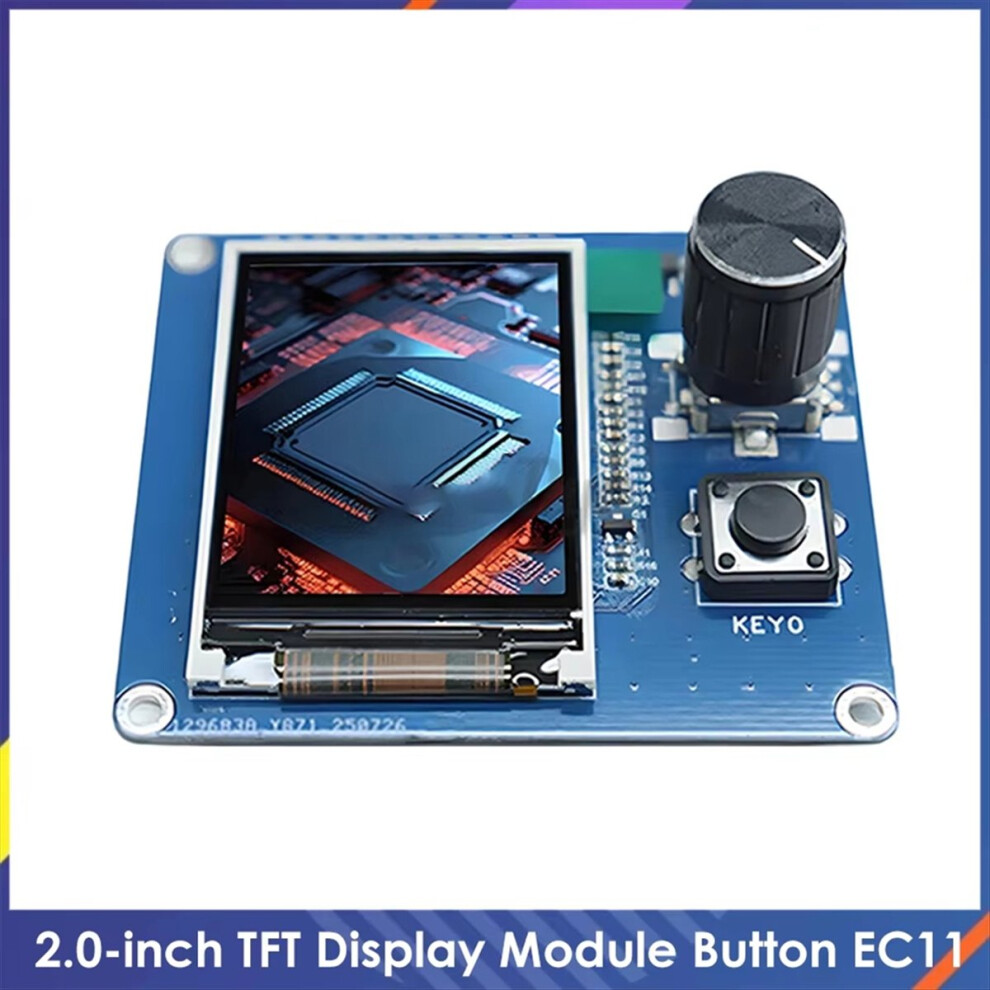

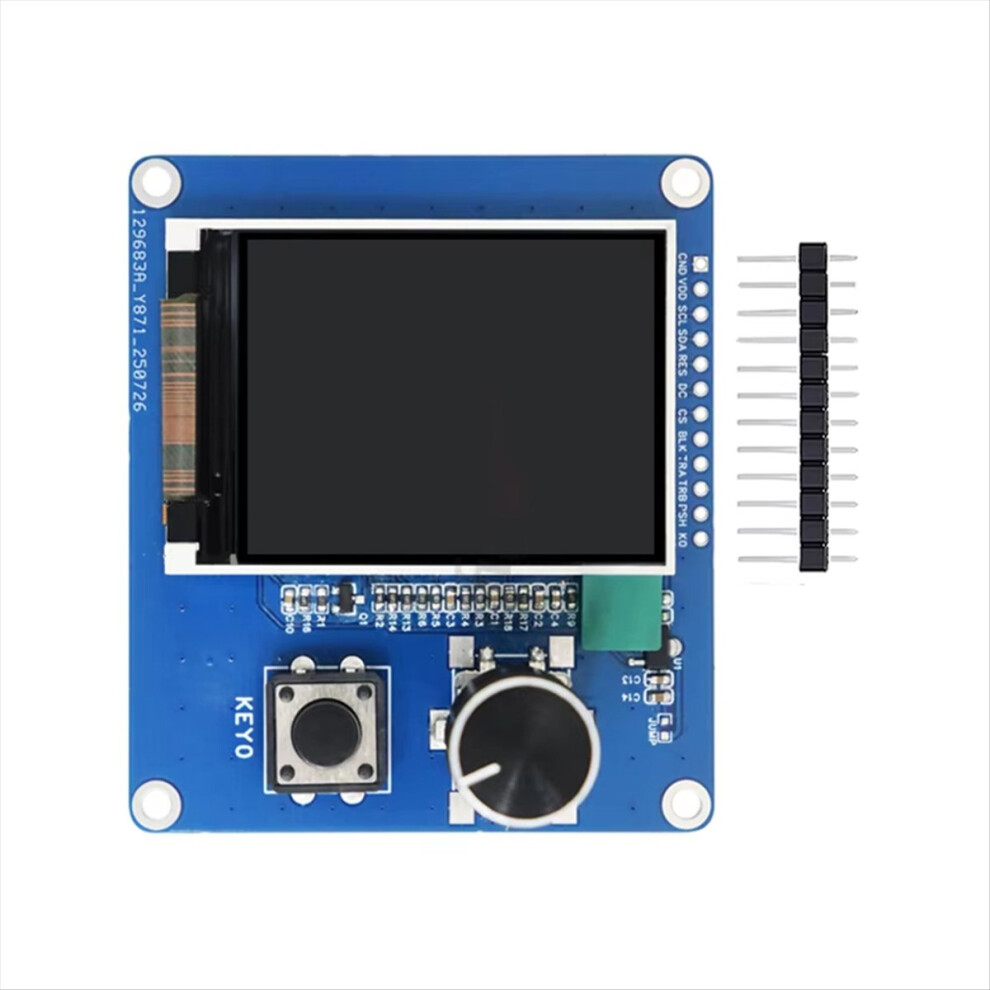

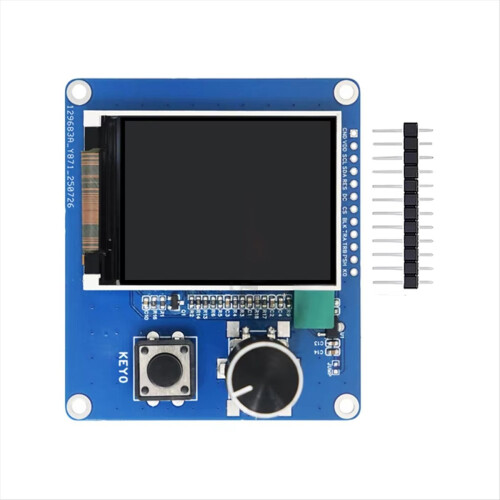

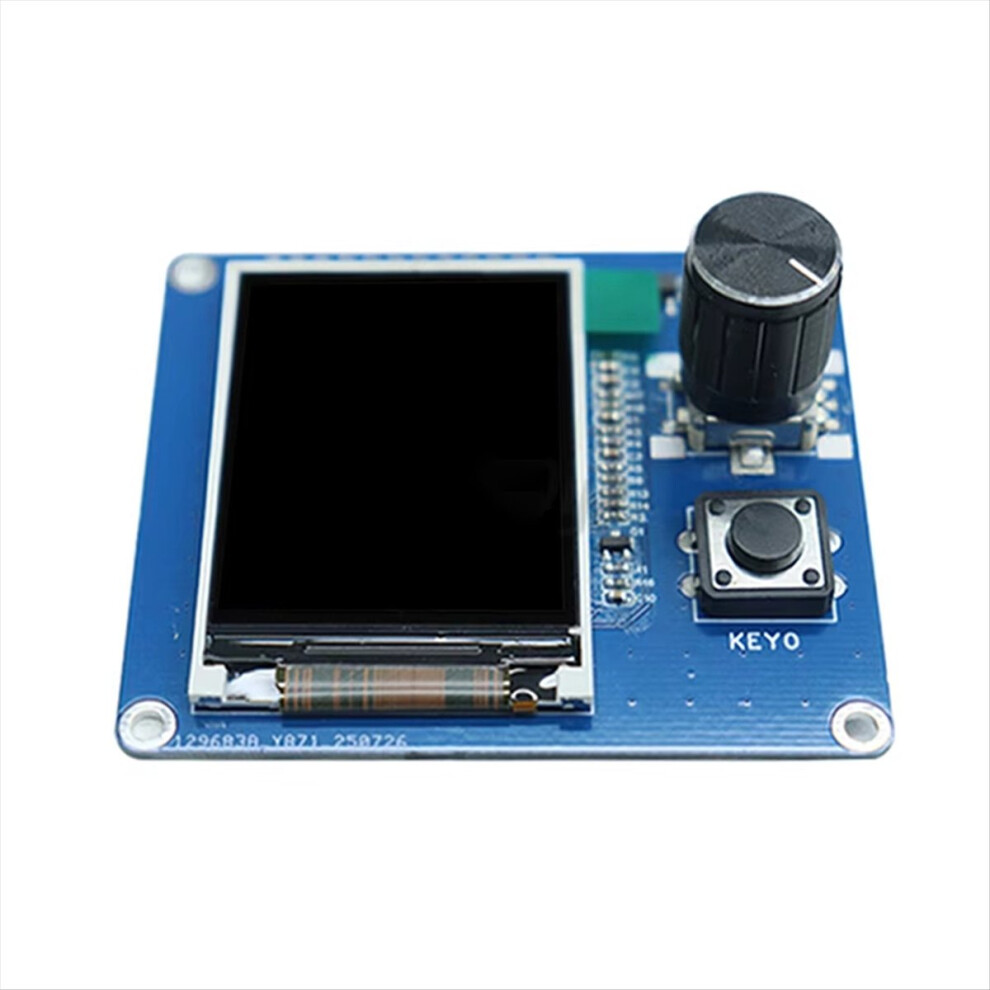

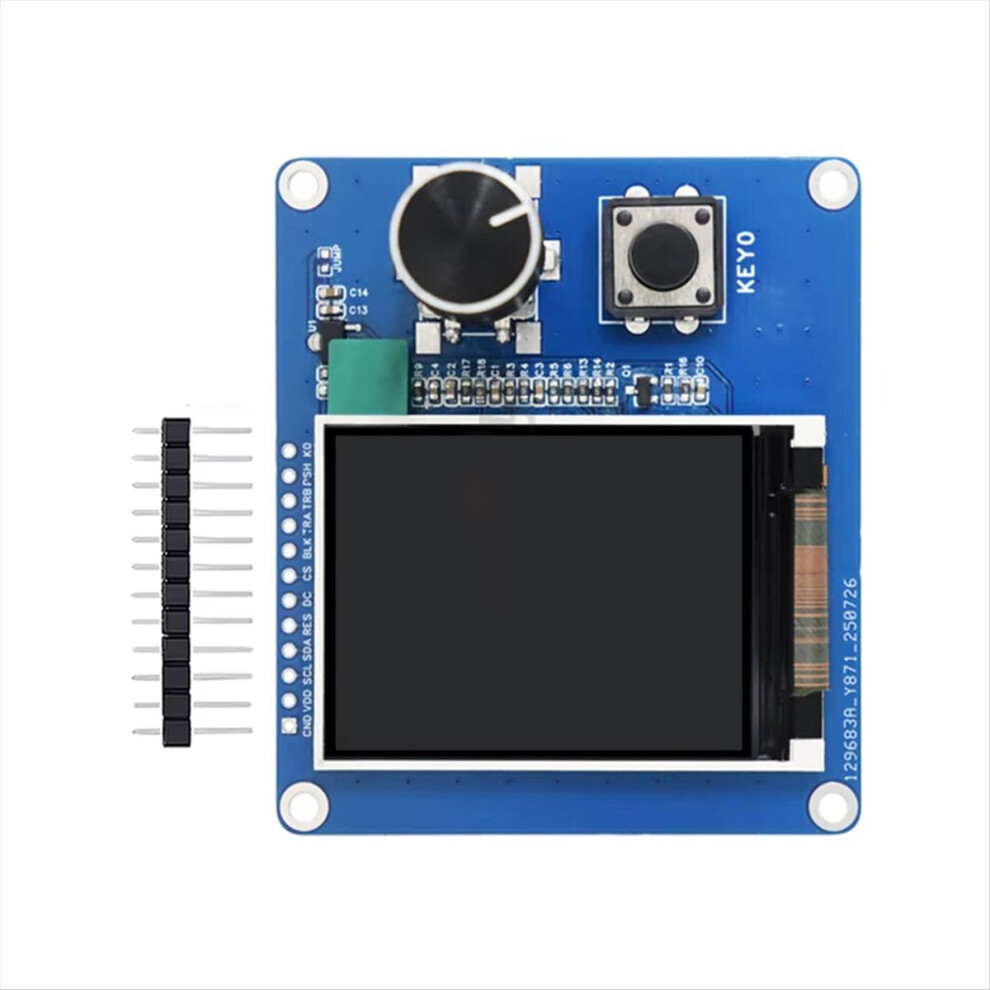

This module consists of a 2.0-inch display module with an SPl interface and an EC11 rotary encoder. They are not connected but simply integrated on a single circuit board, forming an integrated module.
This design is more compact and aesthetically pleasing, making it easier to operate.

GND: Power Ground
VCC: 3.3V power supply positive
SCL: Clock interface for SPl communication of the TFT screen
SDA: Data interface for SPl communication of the TFT screen
RES: Reset pin
DC:Data Selection
: Chip Select Signal, effective with low voltage
: TFT Backlight Adjustment, default is fully on, can be left unconnected
KO: Can be used as the menu return button or confirmation button
PUSH: Key interface of EC11 A, B: Phase A and Phase B of EC1
Color: As Shown
Material: PCB

Package Contents:
1 x 2.0-inch TFT display with EC11 rotary encoder combination module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
