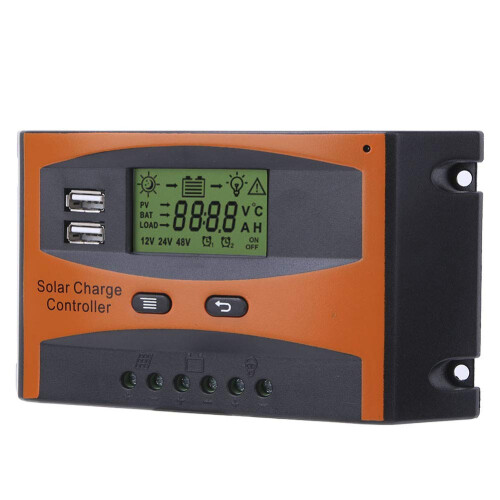

20A PWM Solar Charge Controller, Auto 12V/24V, Overcharge Protection Solar Panel Regulator

20A PWM Solar Charge Controller, Auto 12V/24V, Overcharge Protection Solar Panel Regulator Description

20A PWM Solar Charge Controller, Automatic 12V/24V Identification Overview A reliable PWM solar charge controller designed to regulate power from a solar panel to a 12V or 24V battery system. Automatic system voltage identification simplifies setup and helps protect batteries from common charging issues. Key Benefits Easy setup: Automatically detects 12V or 24V system voltage, reducing configuration steps. Battery protection: Helps prevent overcharge and overdischarge to extend battery service life. Stable performance: PWM charging supports consistent, efficient power regulation for everyday solar use. Clear status monitoring: Indicator lights display charging and battery status for quick checks. Versatile compatibility: Works with most 12V or 24V leadacid battery systems and compatible solar panels within a 20A current rating. Functions Automatic 12V/24V system identification PWM charging and float maintenance Overcharge and overdischarge protection Shortcircuit and reverseconnection protection (fuse or circuit dependent) LED indicators for charging and battery status Load output control for DC devices within rated limits Compatibility Solar panels matched to 12V or 24V battery systems, up to 20A charging current (ensure panel and battery specifications match the controller rating) Typical battery types: 12V or 24V leadacid (sealed, gel, flooded) where supported by the controller DC loads within the controller's rated load output Size and Material Compact housing suitable for wall or surface mounting Durable plastic enclosure designed for indoor or sheltered installations Performance Rated charge current: 20A System voltage: 12V/24V automatic detection Charge method: PWM Intended use: Small to medium offgrid solar setups within the 20A limit Use Scenarios RV and camper solar setups: Regulate a roofmounted panel to maintain a 12V battery system for lights, fans, and small DC devices. Cabin or shed power: Manage a 24V battery bank charged by a groundmounted solar array for lighting and tools within rated limits. Marine or small boat systems: Maintain house batteries from a solar panel to power navigation lights or pumps as applicable. Installation and Use Tips Confirm solar panel opencircuit voltage and battery type are compatible with the controller's specifications. Connect battery first, then solar panel, then load; disconnect in reverse. Mount in a dry, ventilated location away from direct moisture and heat sources. Use appropriately sized cables and fuses according to current rating and system voltage. Regularly check connections and battery status indicators to maintain operation.
