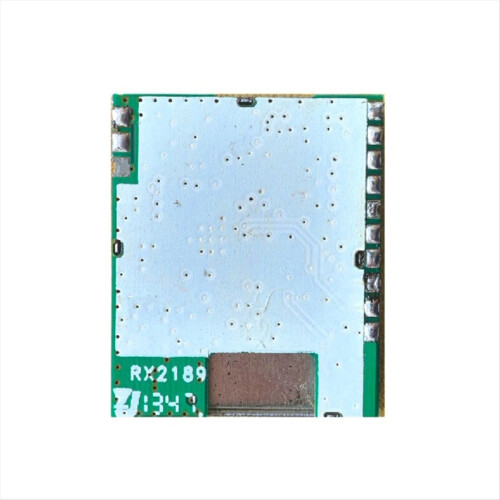

2.4G Analog Video Receiver Module Wireless Image Transmission Receiver Module RX2189 17dBm 2400-2480MHz

2.4G Analog Video Receiver Module Wireless Image Transmission Receiver Module RX2189 17dBm 2400-2480MHz Description

The RX2189 wireless video receiver module is an FM audio and video receiver and demodulator operating in the 2400-2480MHz ISM band.
It utilizes a single-chip integrated circuit design, integrating a VCO, PLL, and wideband FM video demodulation, resulting in a compact size, low power consumption, and high sensitivity.

2.4GHz wideband FM reception
Low power consumption: 5V 130mA
High receiver sensitivity: -85dBm
Built-in phase-locked loop for high stability
Direct video signal output
Eight channel reception
Applications:1. Wireless VCD/DVD/DVB video transmission;
2. Baby monitoring;
3. Real-time on-site image monitoring;
4. Security transmission systems;
5. Wireless video backup
Color: As Shown
Material: PCB

Package Contents:
1 x 2.4G Analog Video Receiver Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
