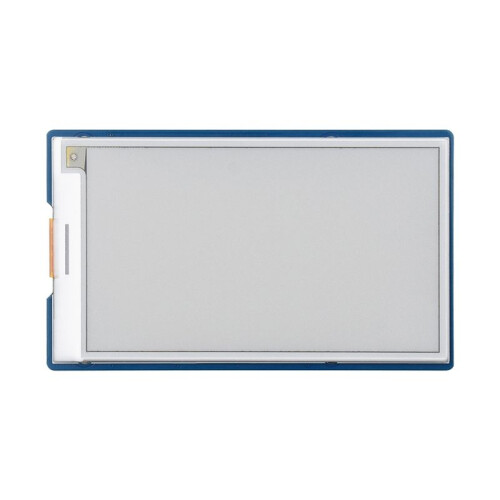

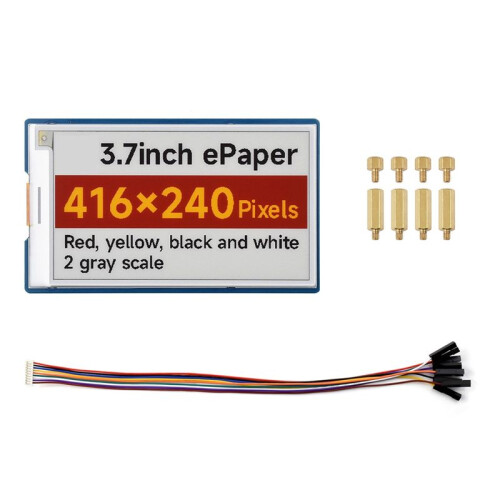

3.7inch E-Paper Display Module 416x240 Red-Yellow-Black-White for Raspberry Pi ESP32 STM32 Module Version

3.7inch E-Paper Display Module 416x240 Red-Yellow-Black-White for Raspberry Pi ESP32 STM32 Module Version Description

1.It features a vibrant four-color palette (red, yellow, black, and white) that brings visuals to life with clarity and contrast
2.No backlight is required, and the last screen display content can be kept for a long when the power is turned off
3.The power consumption is very low, and basically only consumes power when refreshing

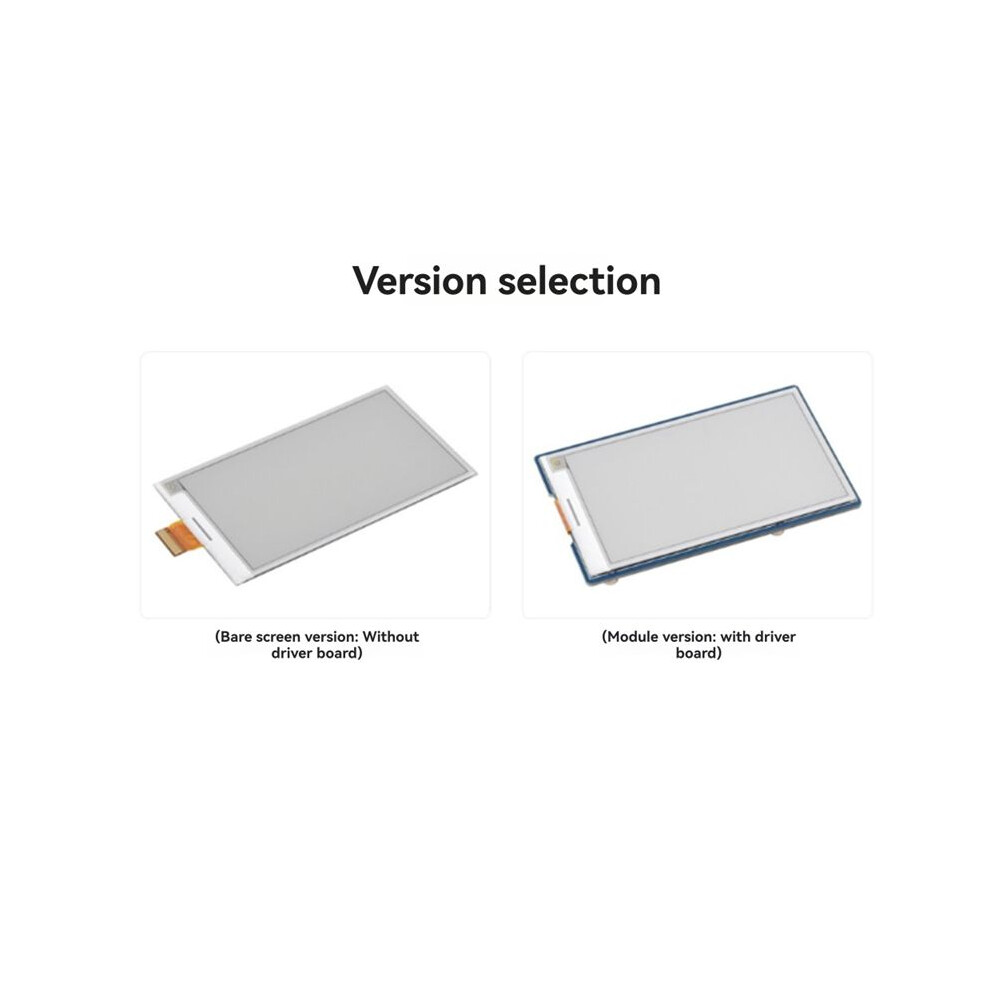

Specification:B:Module Version:The following is only applicable to the module version

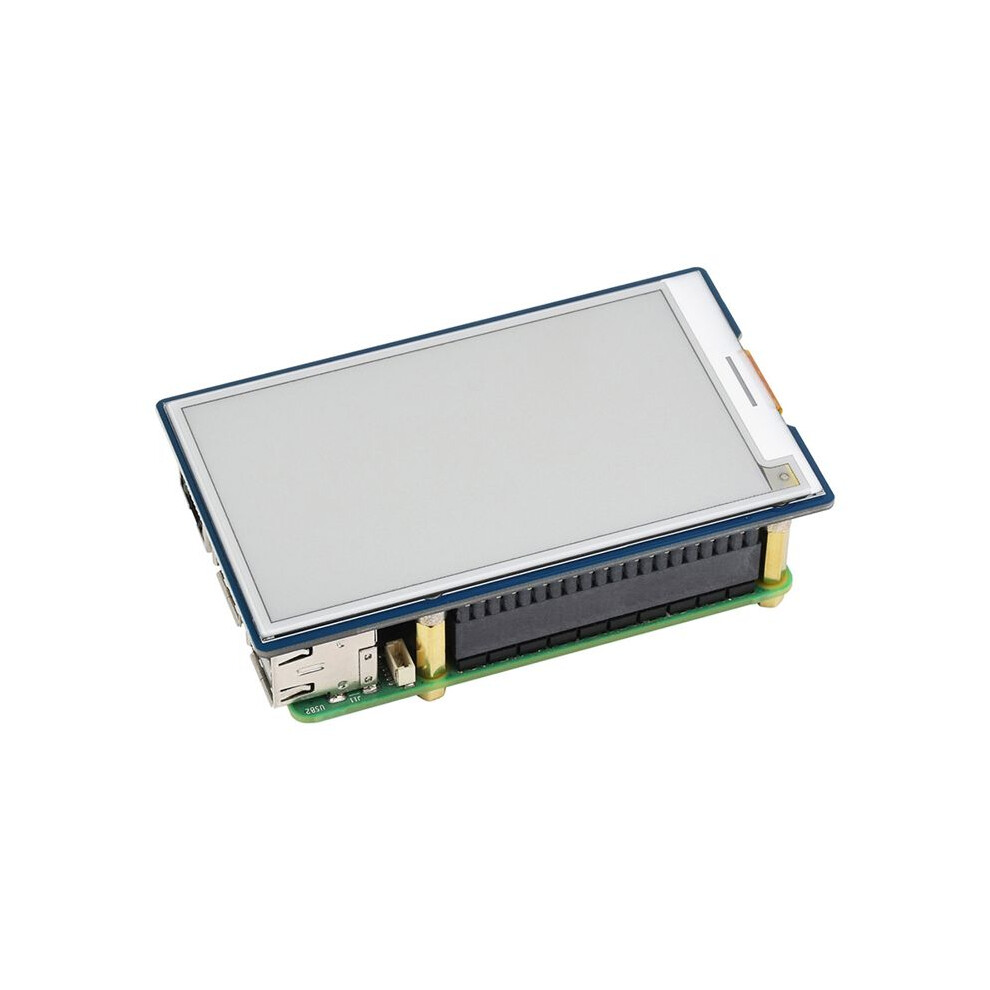

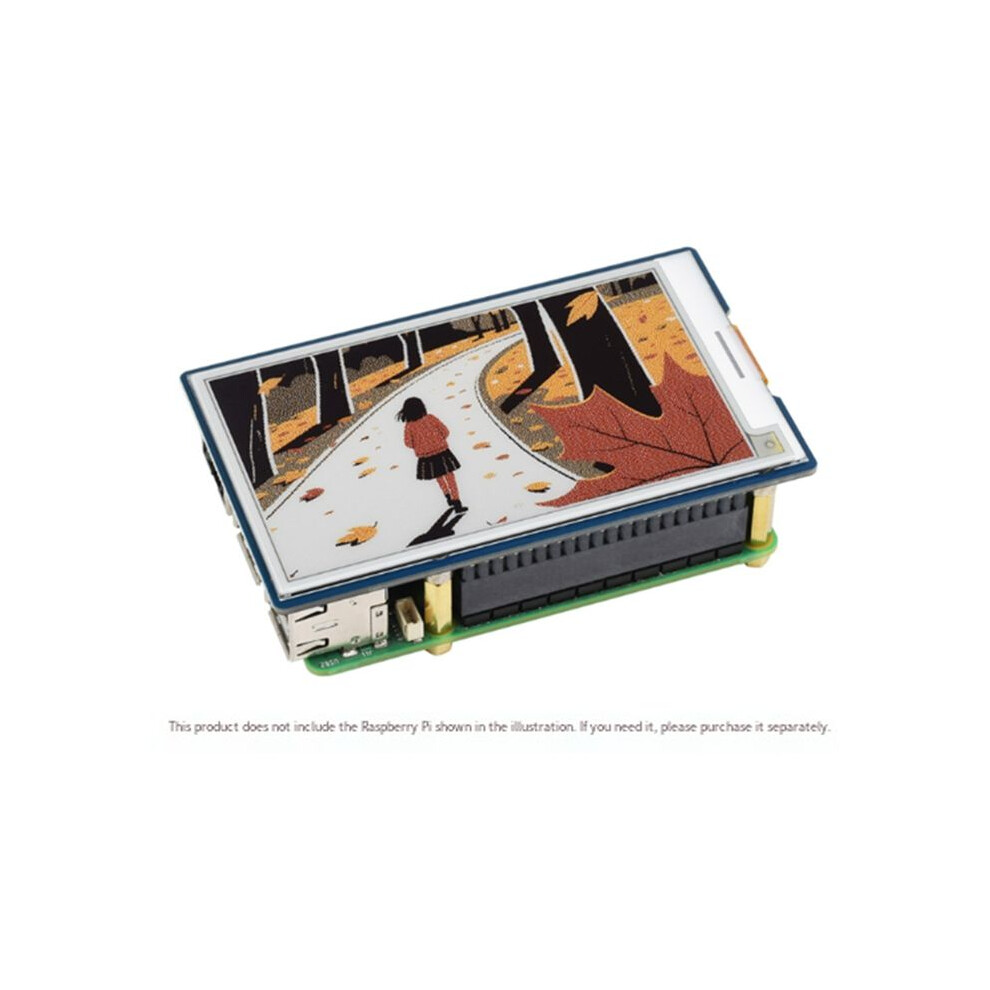

Based the FOR Raspberry Pi 40PIN GPIO interface design, suitable for Raspberry Pi, Jetson
Adopting the Raspberry Pi HAT+ standard, it improves the interoperability of the expansion board, helps developers to design and develop faster, and use various external devices more easily to expand the functions and performance of the for Raspberry Pi

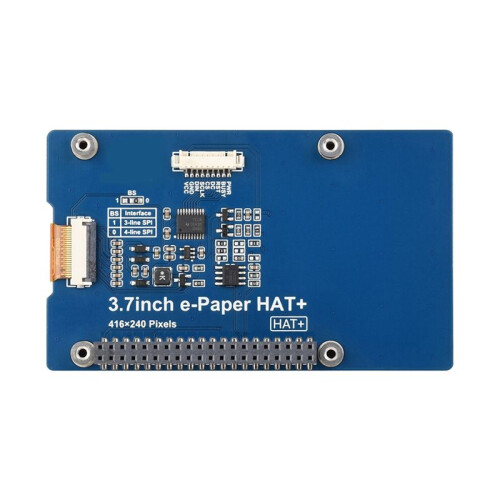

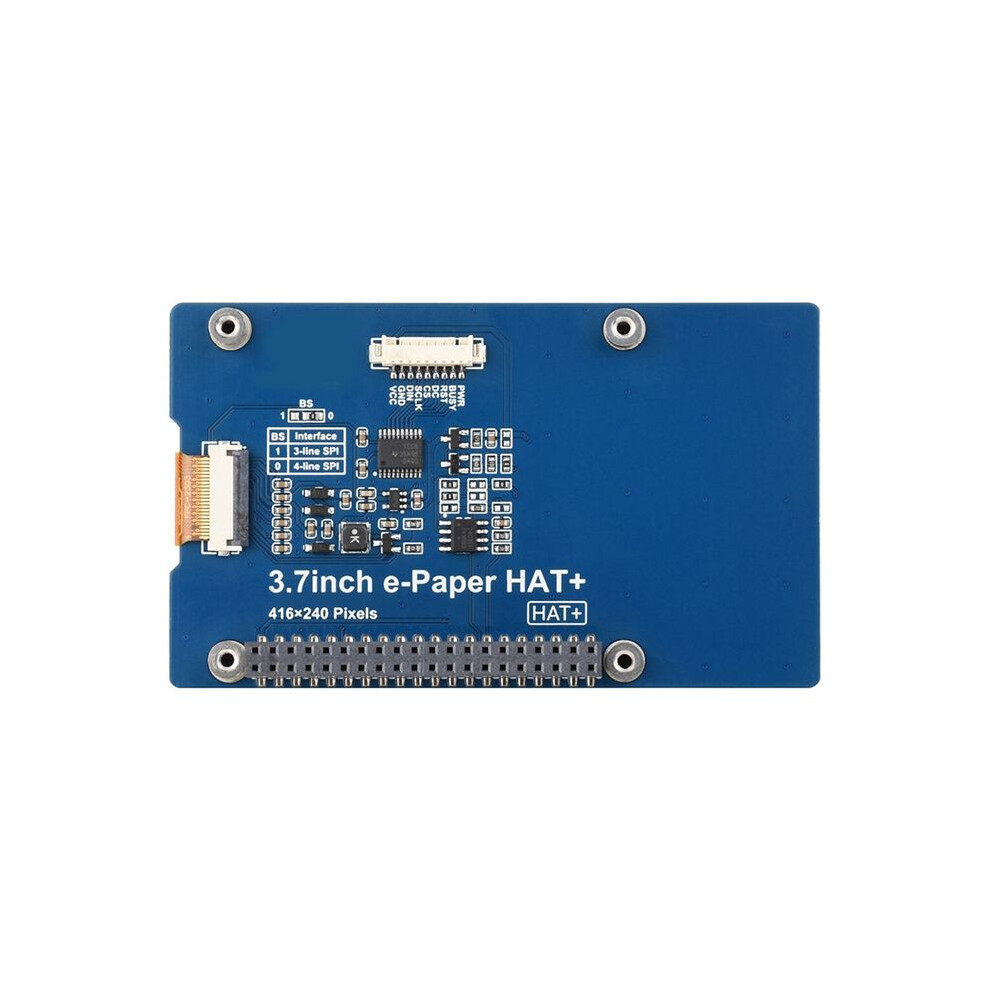

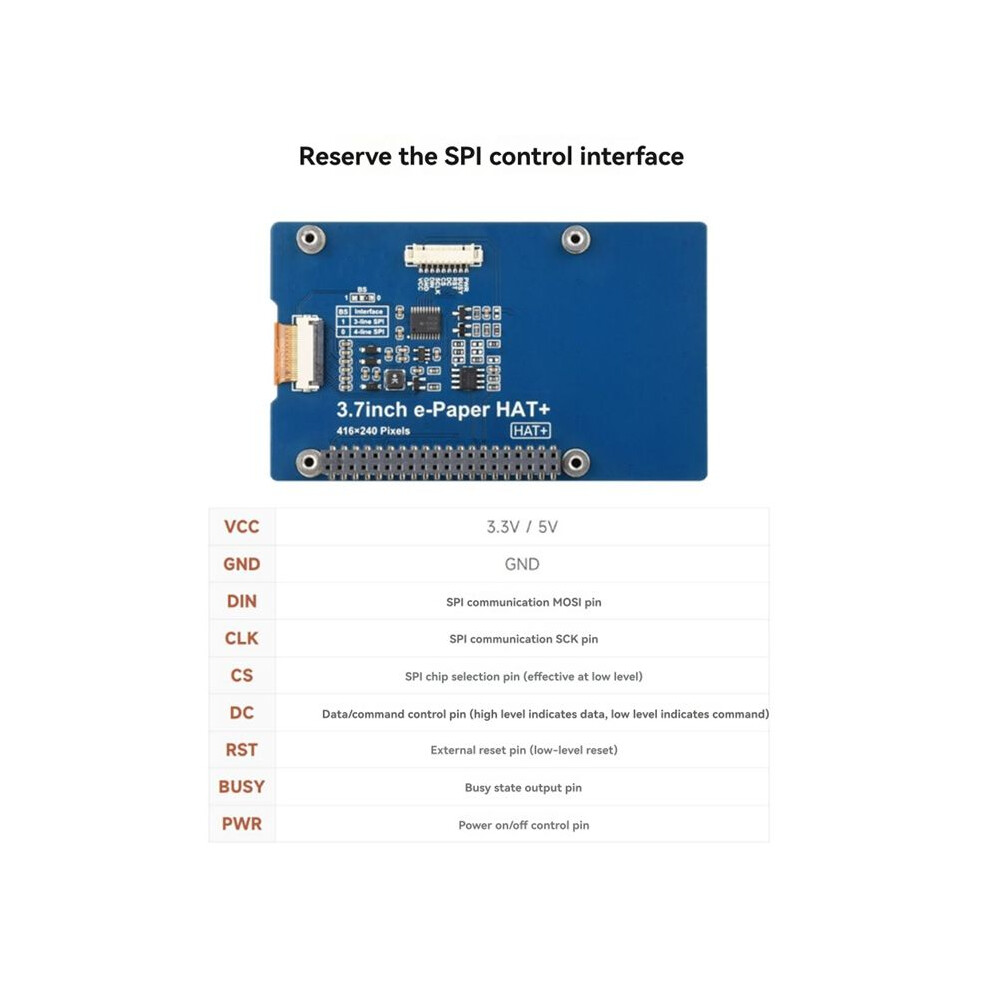

Reserved SPI communication interface for easy access to for Raspberry Pi / for / STM32 / ESP32 and other main control boards
Onboard level conversion chip, compatible with 3.3V and 5V level interfaces.
Working voltage: Module version: 3.3V/5V
Communication interface: 4-wire SPI
Module version: 94.00 x 47.50 (mm)
Global refresh: 20s
Display size: 96.00 x 57.00 (mm)
Dot pitch: 0.196x 0.196 (mm)
Resolution: 416 x 240 pixels
Refresh power consumption: Less than 30mW
Sleep current: Less than 0.01uA (close to 0)
Viewing angle: Greater than 170
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use
Color: As Shown
Material: LCD

Package Contents:

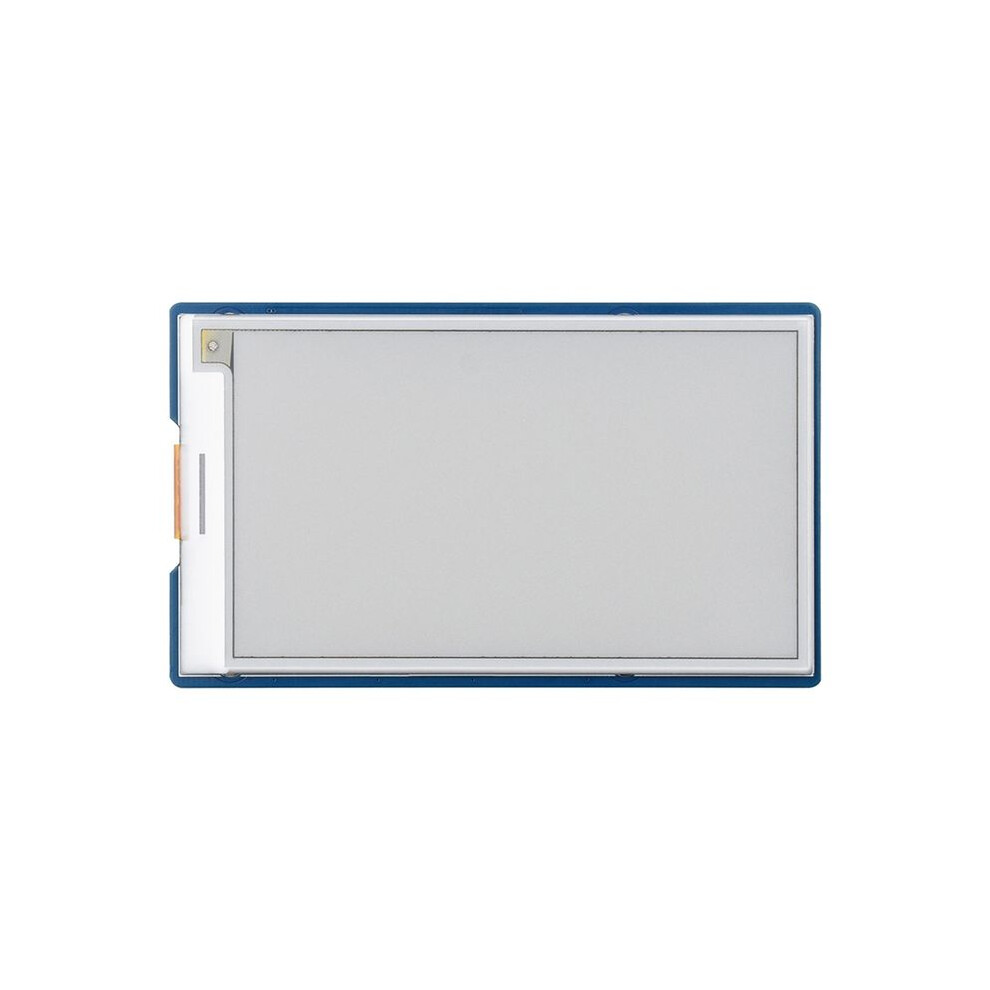

1 x e-Paper Display Module
