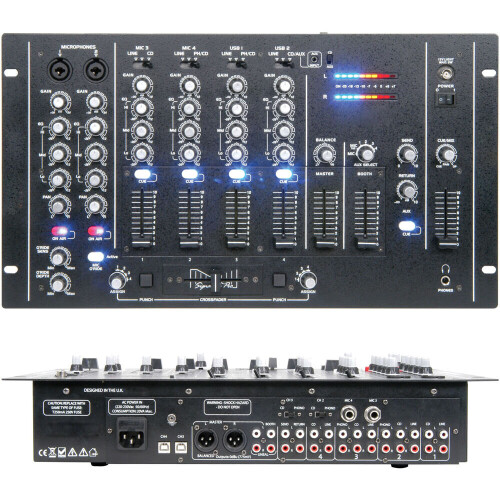

4 Channel 17 input PA DJ Mixer USB/VCA Crossfader Microphone Override Rack AUX Description
4 Channel, 17 input Professional Quality DJ Mixer
Overview â" Our range of professional DJ mixers are filled with features as standard such as USB and AUX connectivity, multiple microphone & RCA inputs, gain/volume/fade/hotswap control and much more. They are compact, durable and built to an excellent standard. A full list of features can be found below.
Key Features:
Ground screw grounding point for turntables
CD/PHONO switches switch between CD and PHONO level for CH.2 & 3 PHONO inputs
MIC 4 input 6.35mm jack microphone input for CH.4
MIC 3 input 6.35mm jack microphone input for CH.3
Mains inlet IEC connection and fuse holder
CH.4 & CH.3 USB type B connectors to PC/Mac
Balanced outputs left & right XLR master outputs
Unbalanced outputs left & right RCA master outputs
BOOTH outputs unbalanced left & right RCA booth outputs
SEND outputs Aux loop send outputs (L+R RCA)
RETURN inputs Aux loop return inputs (L+R RCA)
CD input CH.4 CD input for CH.4 (L+R RCA)
LINE input CH.4 line input for CH.4 (L+R RCA)
PHONO input CH.3 PHONO or CD input for CH.3 (L+R RCA)
CD input CH.3 CD input for CH.3 (L+R RCA)
LINE input CH.3 line input for CH.3 (L+R RCA)
PHONO input CH.2 PHONO or CD input for CH.2 (L+R RCA)
CD input CH.2 CD input for CH.2 (L+R RCA)
LINE input CH.2 line input for CH.2 (L+R RCA)
CD input CH.1 CD input for CH.1 (L+R RCA)
LINE input CH.1 line input for CH.1 (L+R RCA)
Technical Specification:
Power Supply â" 230Vac, 50Hz (included)
Fuse Rating â" T250mA (240V) / T500mA (110V)
Cutout Required â" 400mm x 250mm
Equaliser : Bass - +12dB, -26dB @ 100Hz
Equaliser : Midrange - +12dB, -26dB @ 800Hz
Equaliser : Treble - +12dB, -26dB @ 9kHz
Headphone output - 112mV @ 32 Ohms
Input : Line - 195mV, 50k Ohms
Input : Mic - 1.5mV, 2k Ohms
Input : Phono - 4mV, 47k Ohms
Signal to noise ratio : Line - >87dB
Signal to noise ratio : Mic - 63dB
Signal to noise ratio : Phono - 73dB
Dimensions â" 483mm x 266mm x 80mm (6U)
Weight â" 5KG
If you require any advice or just want to have a chat about this product, or any in our range, please feel free to get in touch.
