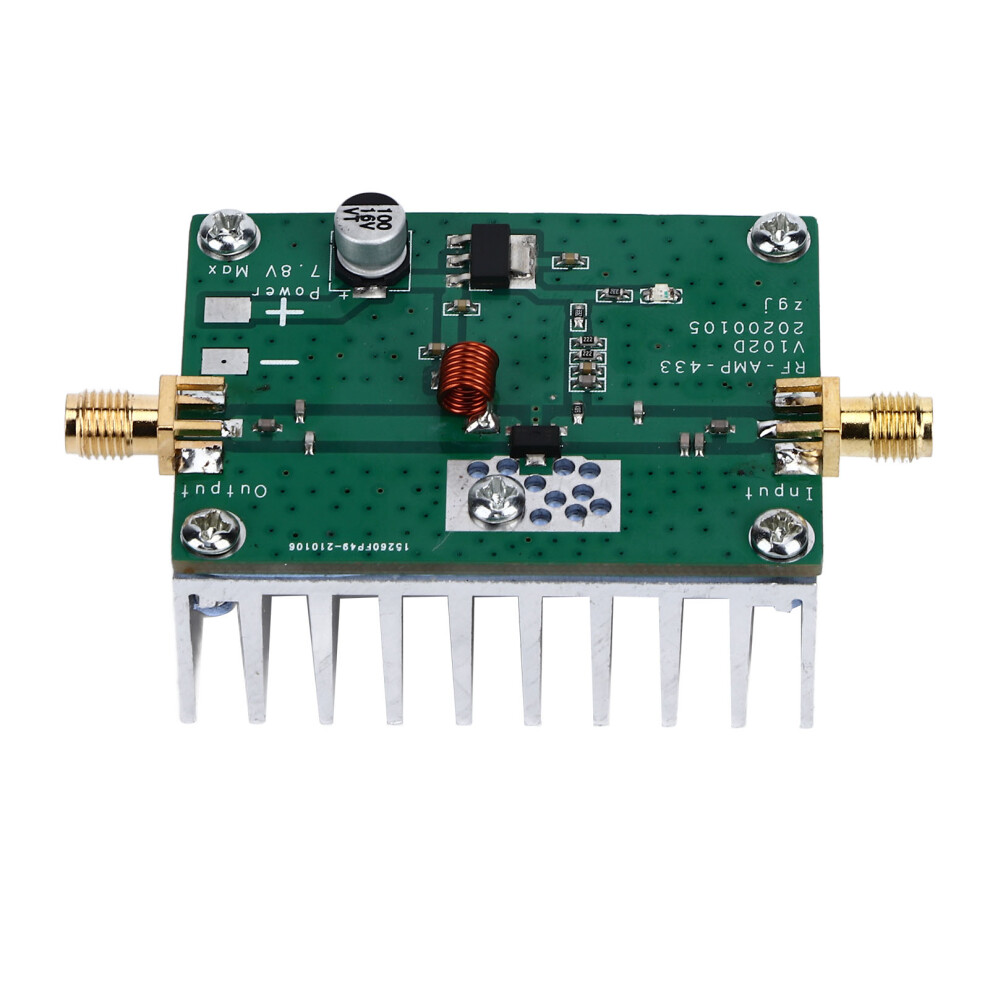

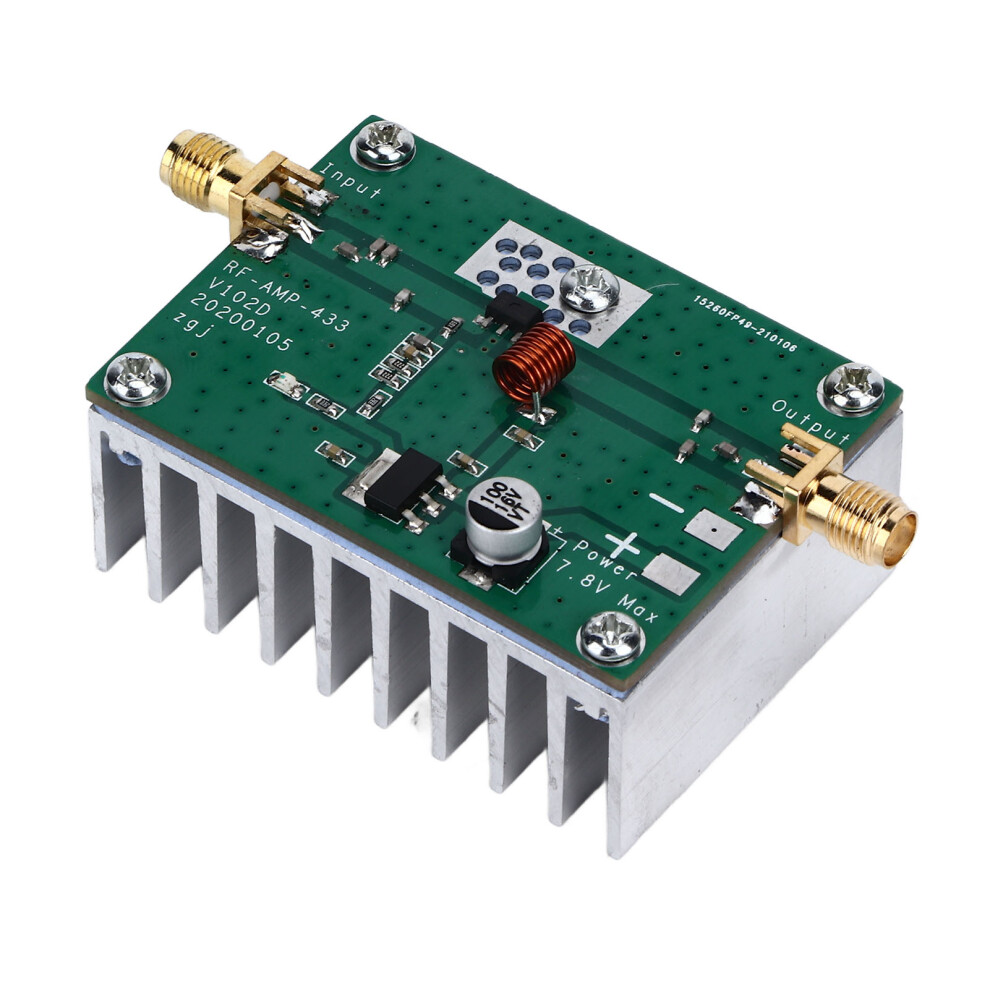

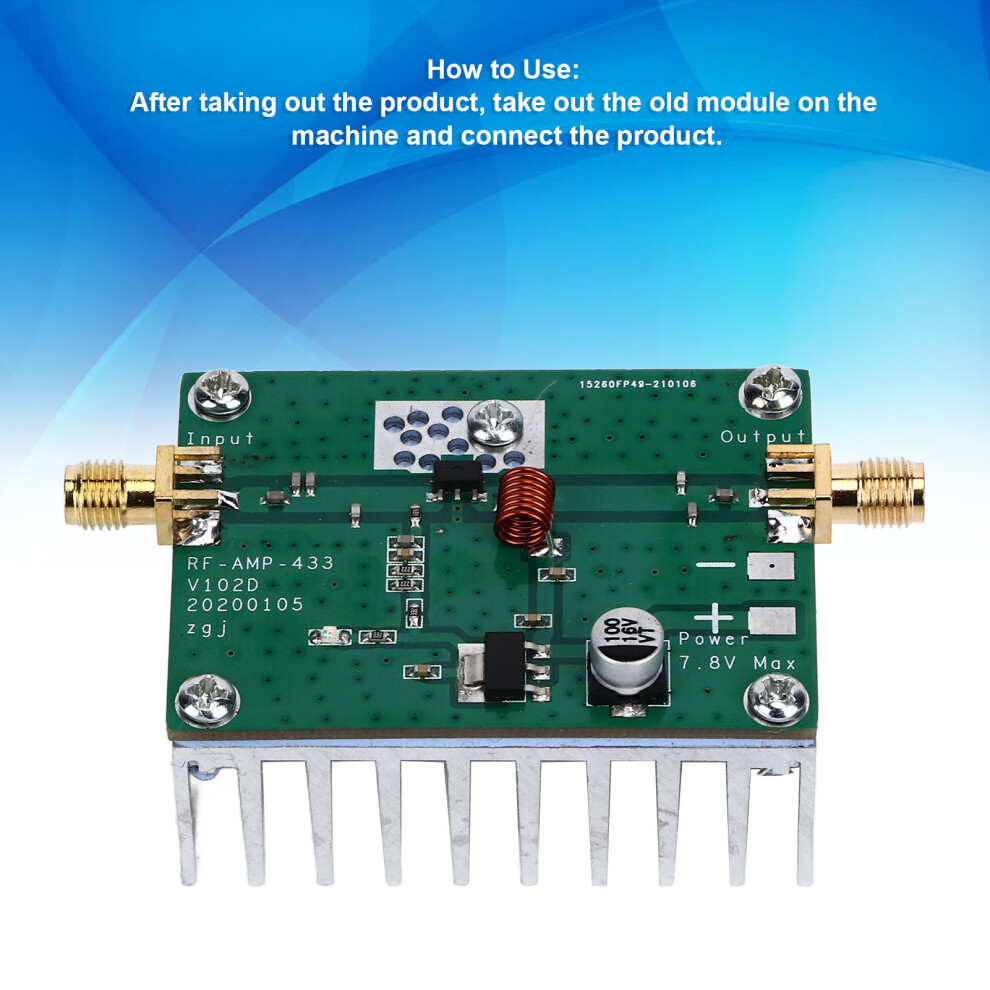

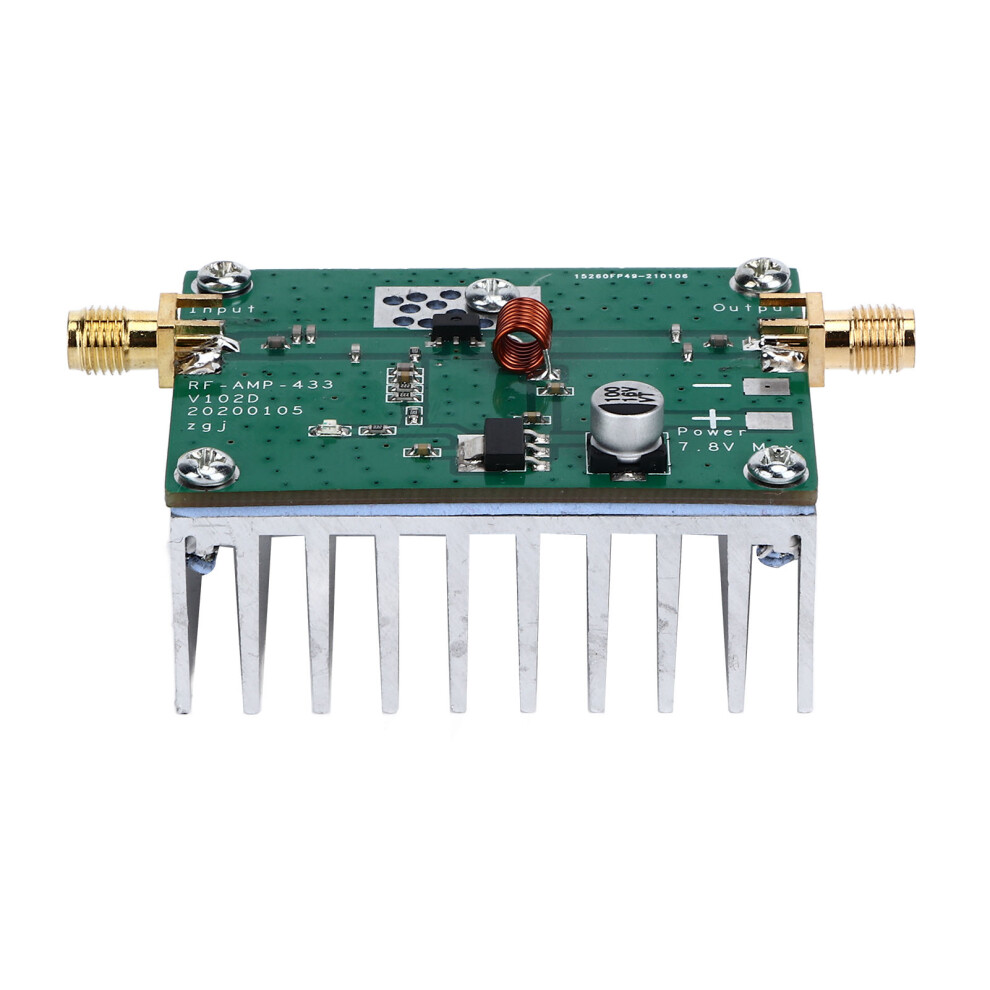

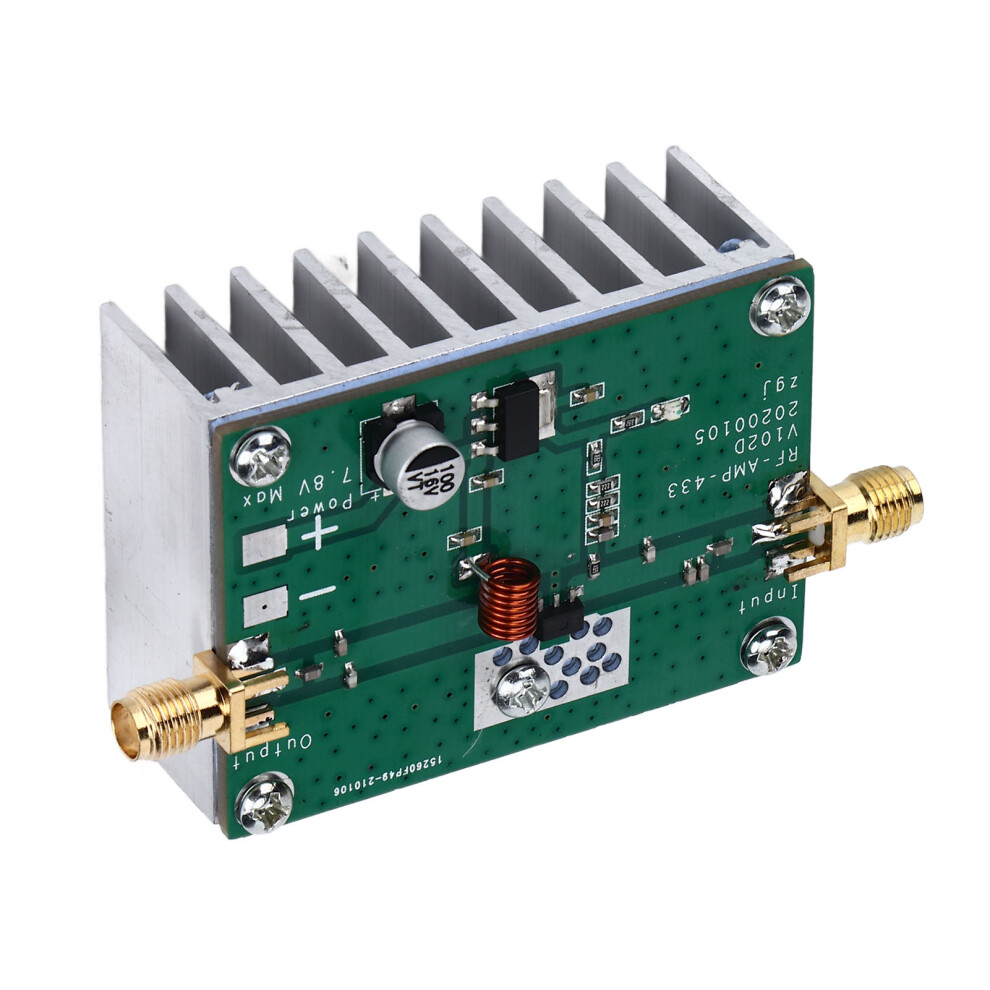

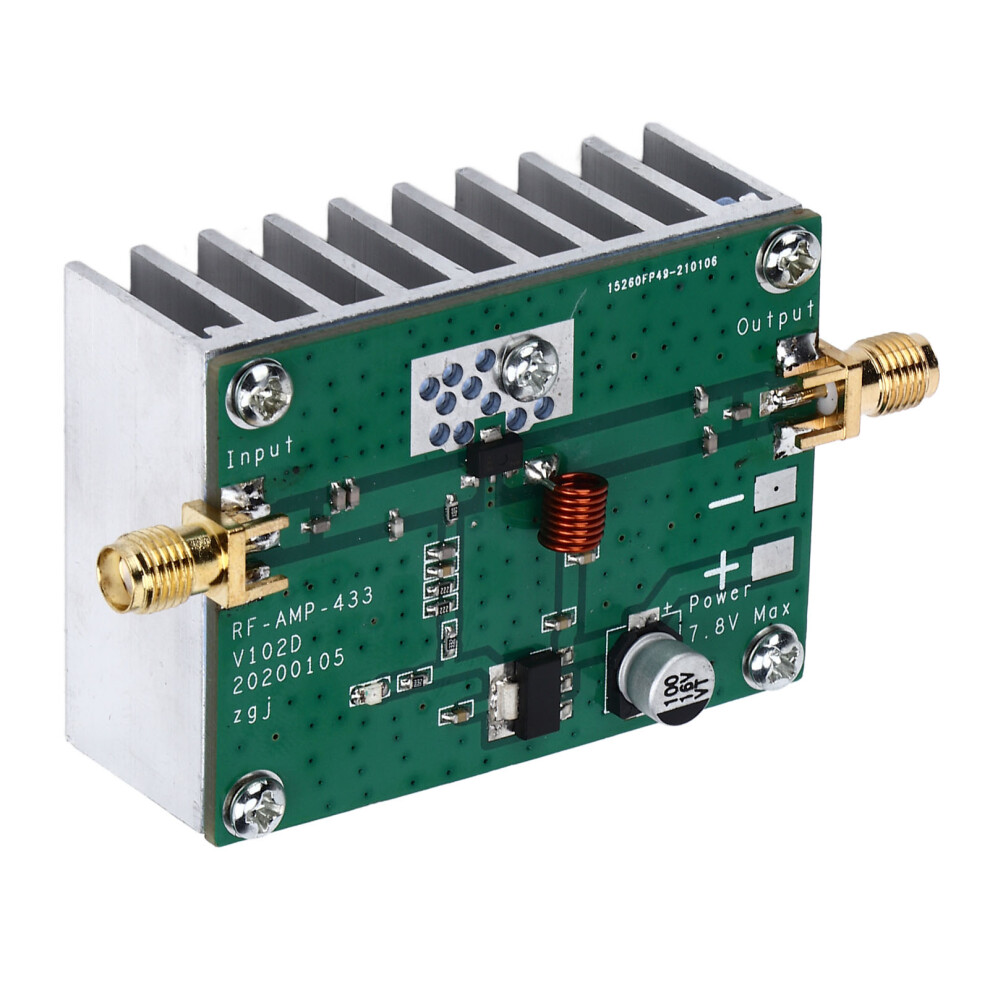

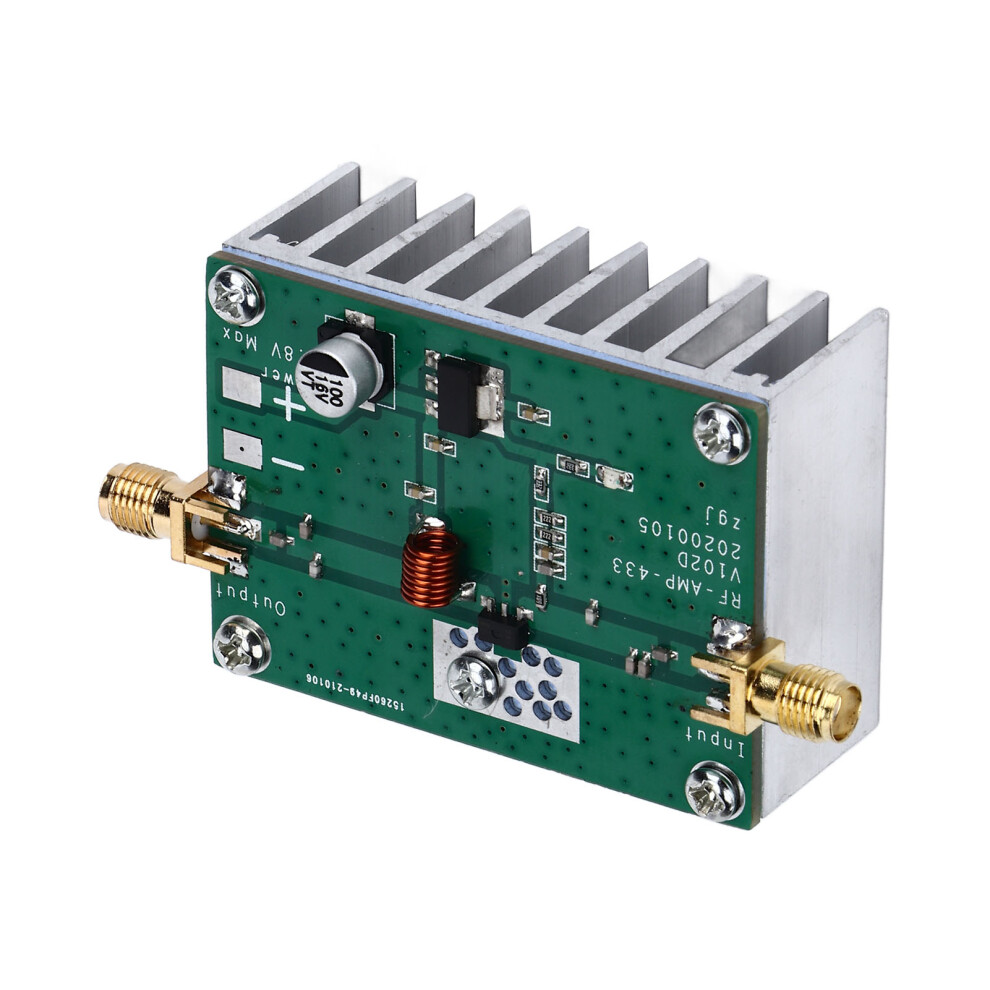

433MHz RF Power Amplifier 8W High Efficiency Board Easy to Install
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£25.80
£43.00
40% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Mon 20th - Wed 22nd Jul
Returns: 30 days
180-day payment protection
Most Popular in Radio Power Supplies
Description & Details
Summary
- Reliable Work: Can also work below 0.1W, and the output will increase with input increase, and finally get to the maximum power point.
- Greater Power: Powered by 2pcs lithium battery, the maximum output can get to 39.2dBm 8.31W at 433MHz under 8V volt with 1.56A current.
- Broad Utility: Allows for extensive application on digital transmission, extended range, remote control, power amplification and so on.
- Better Design: Suits perfectly for high frequency such as RF, UHF, etc., the power amplifier board enables a higher working efficiency.
- Easy to Install: Designed to have 4 x 5.5cm compact size and a light weight as well as SMA K female head, very convenient to install.
433MHz RF Power Amplifier 8W High Efficiency Board Easy to Install Description
Power Amplifier Board High Frequency RF 433MHz 8W Digital Module Electronic Component
Item Type: Power Amplifier Board
Model: XR-109
Material: PCBA
Operating Frequency: 400-460MHz
Maximum Output Power (P1dB):
8.32W, 39.2dBm at 8V 1.56A, efficiency 66.6%.
6.76W, 38.3dBm at 7V 1.43A, efficiency 67.5%.
5.12W, 37.1dBm at 6V 1.26A, efficiency 67.7%.
Input Power: 20~23dBm, 0.1~0.2W, it can work below 0.1W, the output power will increase with input power increase, and finally get to the maximum power point.
Working Voltage: 5-8.4V (typical lithium battery supply voltage).
Working Current: 1.6A, maximum.
Input Impedance: 50 ohms
Output Impedance: 50 ohms
Input and Output Terminals: SMA k female head.
Module Size: Approx. 4 x 5.5cm / 1.57 x 2.17in (excluding protrusions)
Power: 8V power supply, output 39.2dBm, 8.3W, efficiency 66.6%.
