4ch 5V Flip-Flop Latch Relay Module Bistable Self-locking Electronic Switch Low pulse trigger Board Button MCU IO Control

4ch 5V Flip-Flop Latch Relay Module Bistable Self-locking Electronic Switch Low pulse trigger Board Button MCU IO Control Description

Description:

Working voltage: DC 5V
Working current: 1 relay 70MA;2  relay  140MA; 3  relay  210MA; 4  relay  280MA
Standby current: 4UA
Load current: AC 250V / 10A, DC 30V / 10A
Trigger mode: Low pulse trigger
Size: 65mm * 42mm  * 19mm (L * W * H),  Small size
Weight: 52 g

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)

Module interface:
1. 5V: positive power supply (VCC)
2. G:  negative power supply (GND)
3. T1  : Trigger port 1
4. T2  : Trigger port 2
5. T3  : Trigger port 3
6. T4  : Trigger port 4

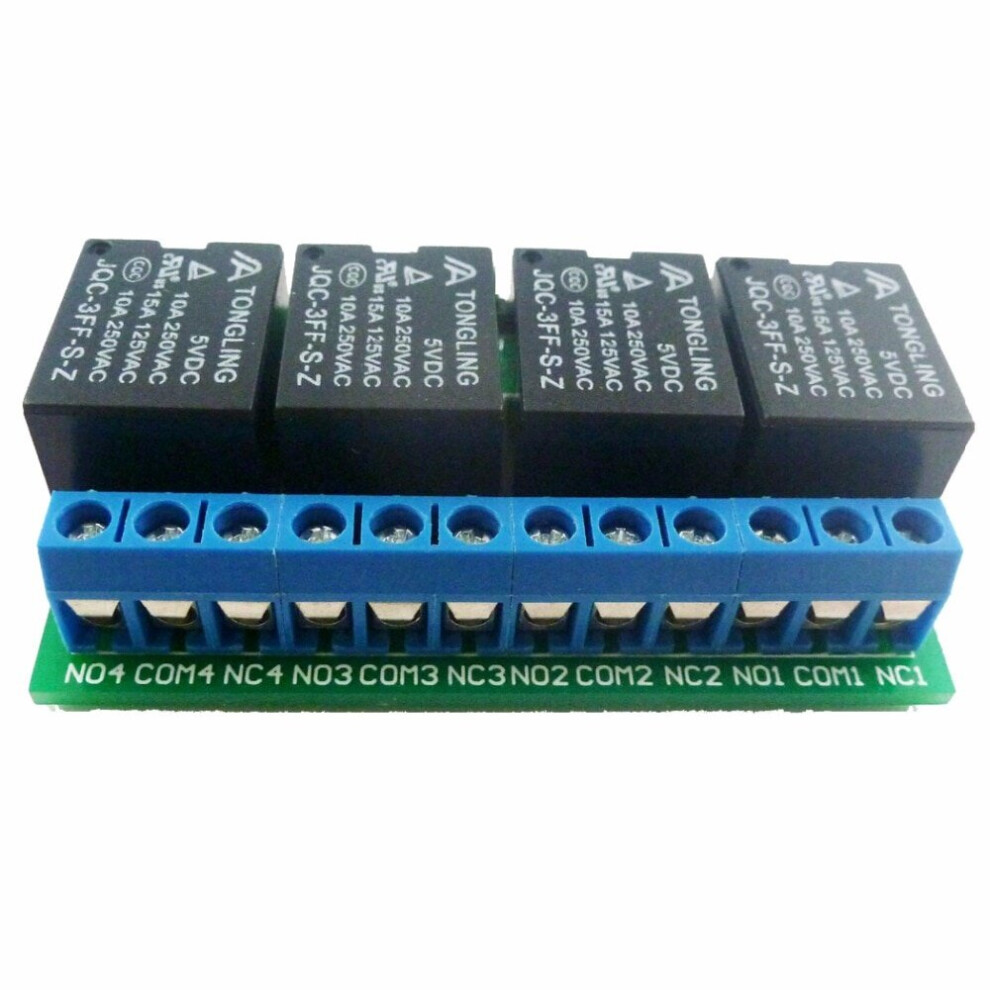

Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface

USE 1:

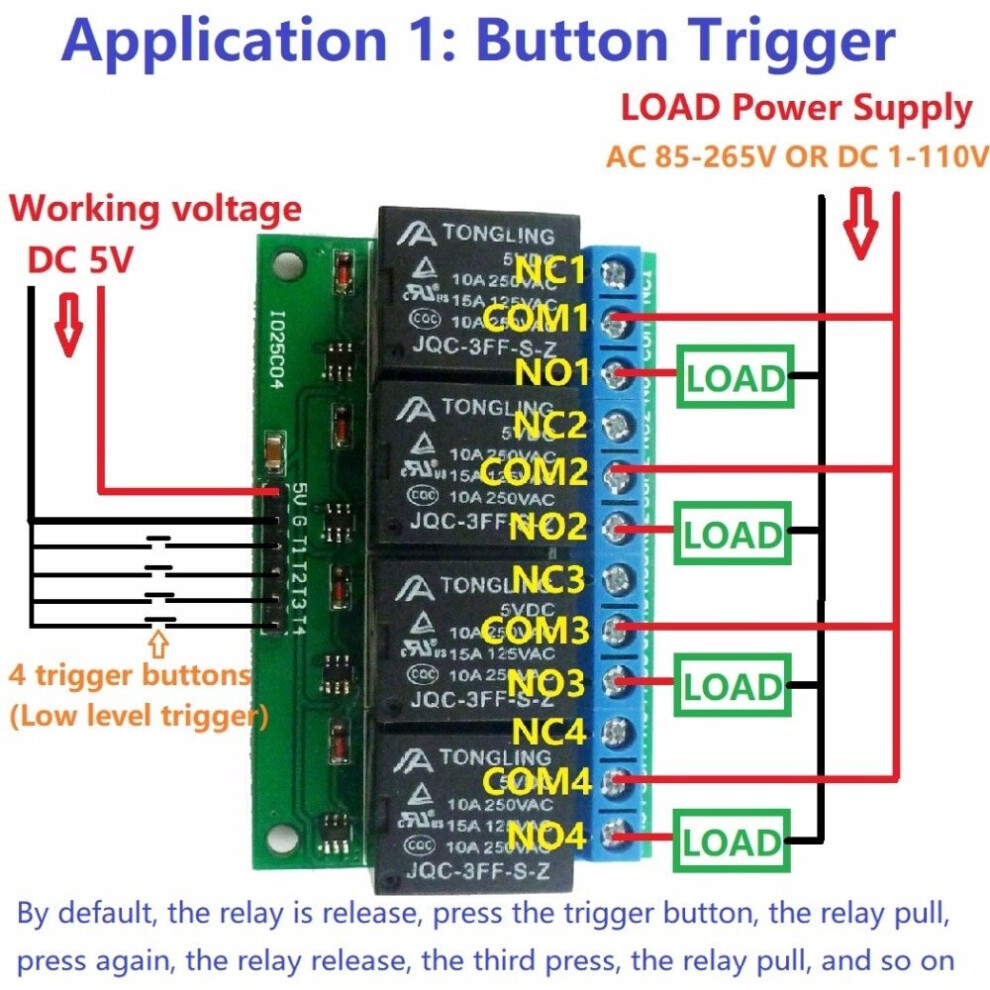

By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.

USE 2:

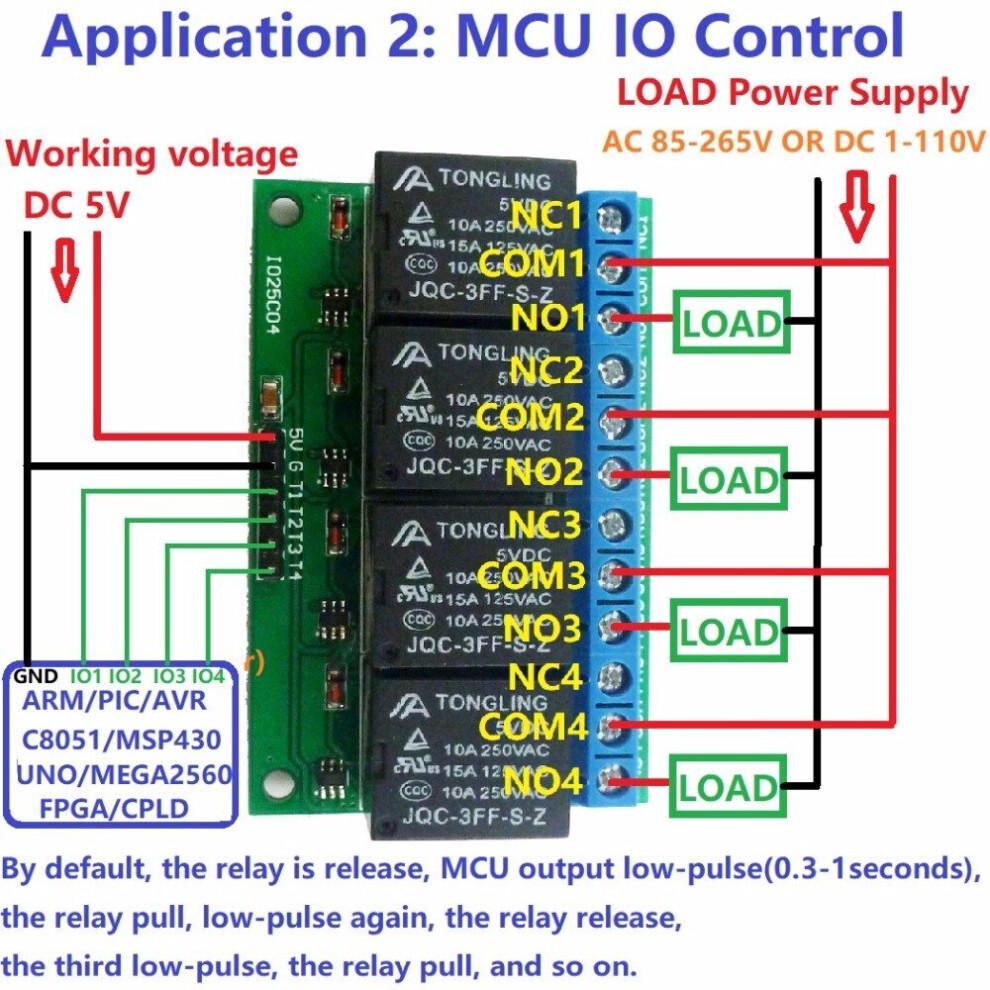

By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the  third low-pulse, the relay pull, and so on.

Typical applications:

Automotive electronics
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car

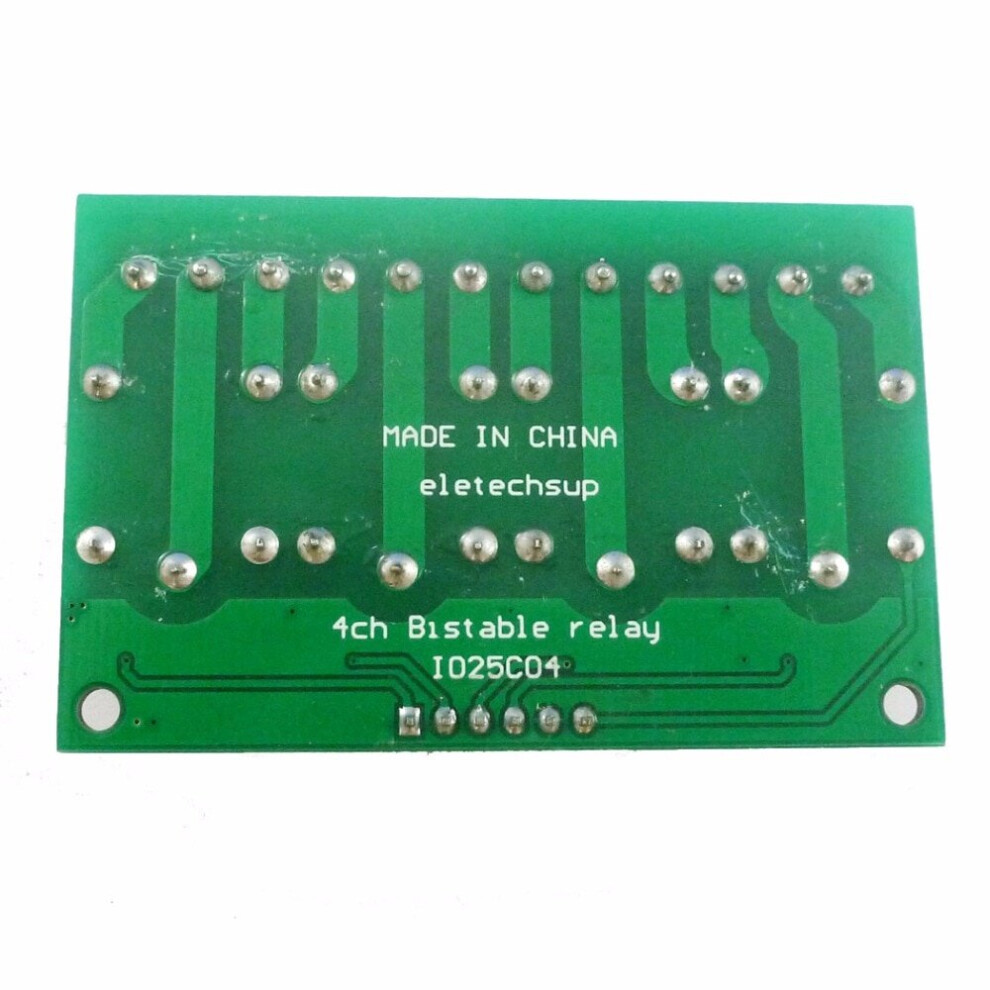

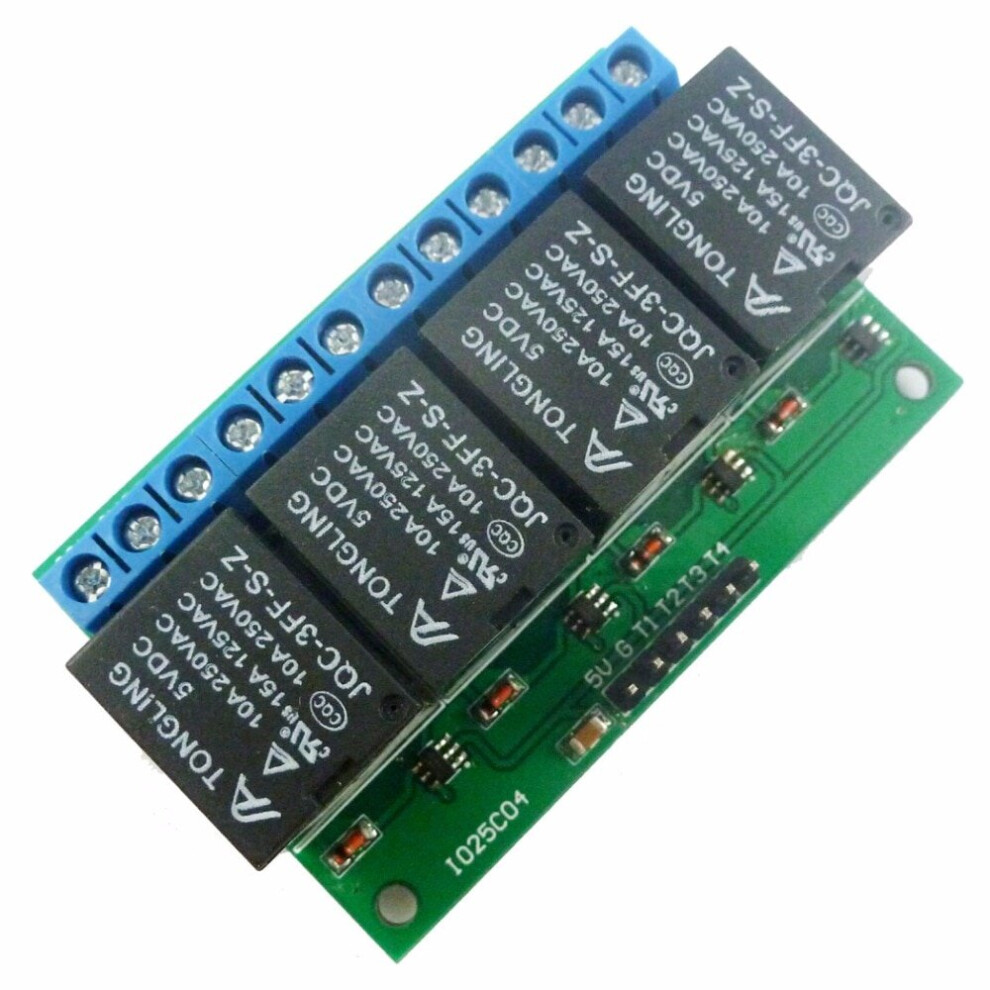

Packing list:1 pcs   4 Channel DC 5V  Self-locking  Relay Module
