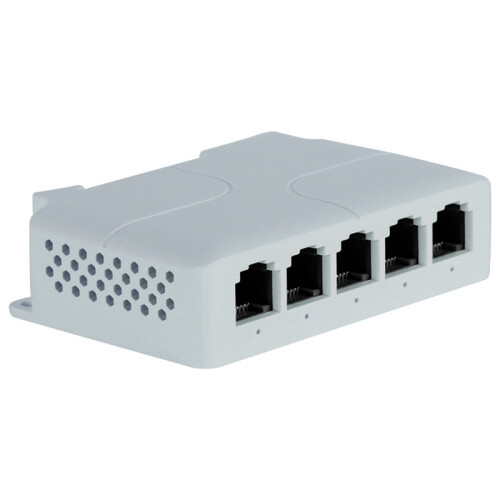

5 Port 10/100Mbps POE Extender 3Pcs

5 Port 10/100Mbps POE Extender 3Pcs Description

Comply with IEEE 802.af Power over Ethernet (10/100M Supported) Extender the range of PoE an additional 100 meters/
Automatically detects and protects PoE equipment from being damaged by incorrect installation. Plug-and Play no configuration required.
PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.
5-Port PoE Extender has 5 10/100M Lan ports, among them, one for power input, the other four for power output. Comply with 10/100/1000 BASE-TX,IEEE 802.3 af-PoE.
Used with AP, IP camera, IP telephone and the other network equipment in the situation of the lack of power line or far away from the power outlets.

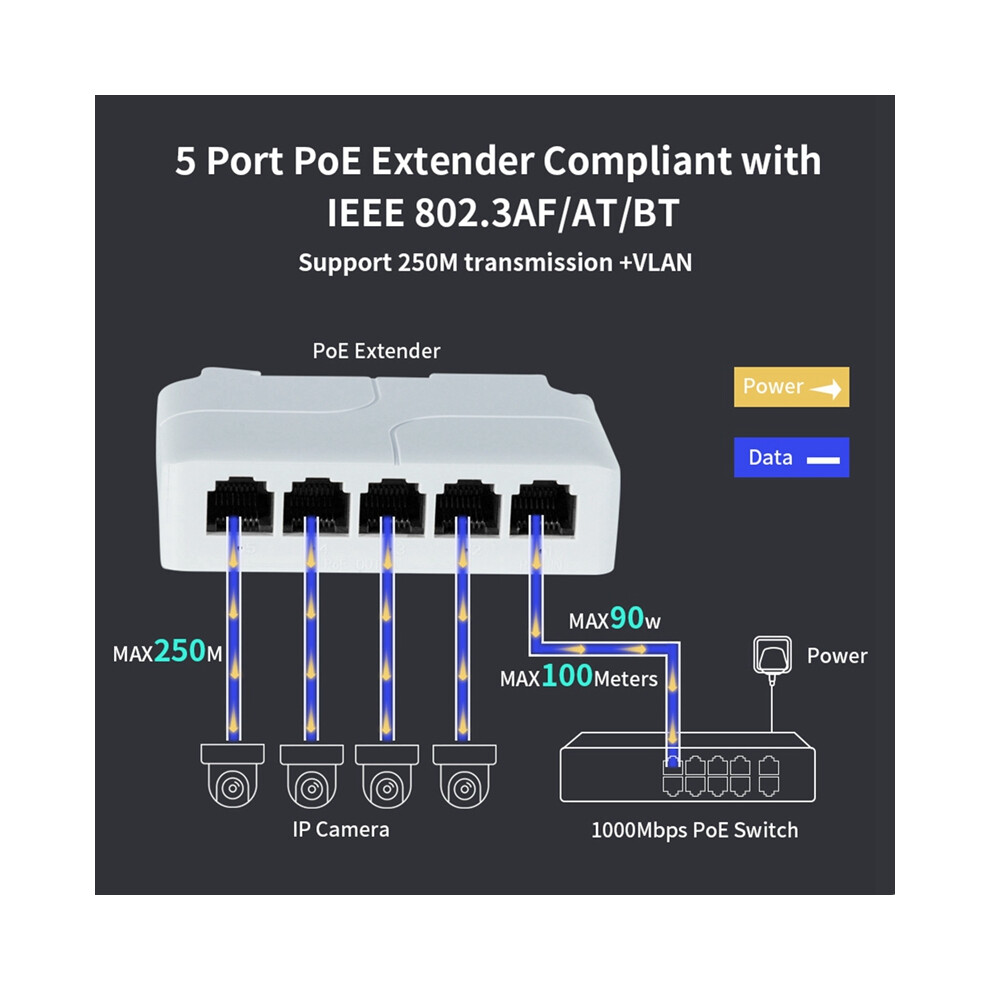

VLAN and Extend Mode: When the extension mode is on, the extender be extended from 100M distance to 250M at the speed of 10Mbps.More convenient for your using.(Better to use CAT5 cable or more).Out Ports 2 - 5 support VLAN isolation, lessen network traffic, and increase network security.
Specification:
Network standard: IEEE802.3, IEEE802.3u, IEEE802.3x
PoE connection standard: IEEE 802.3af/at
PoE port input power: input maximum 90W
PoE port output power: 2-5 output maximum 30W,Single port maximum 24W
PoE power receiving input transmission core: 1/2+, 3/6-, 4/5+, 7/8-
PoE power output transmission core: 1/2+, 3/6-
POE power supply transmission distance: less than equal 100 meters
Power supply transmission medium: 10/100/1000BASE-TX: Category 5 and above non-screen shielded twisted pair
Address Table: 2K
Packet Buffer Memory: 48 Byte
Switching Capacity: 1.0Gbps
Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
Working temperature: -10c to 55c
Working Humidity: 10%~90%, No Condensation;
Colour:White
Material:ABS
The actual product may have slight color difference or difference, which not affect the use

Package Contents:
3 * POE Extender

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
