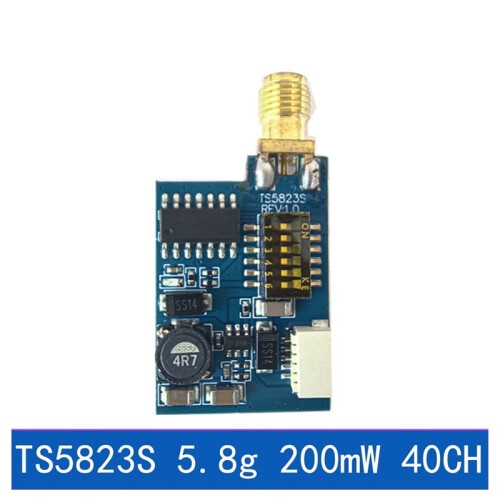

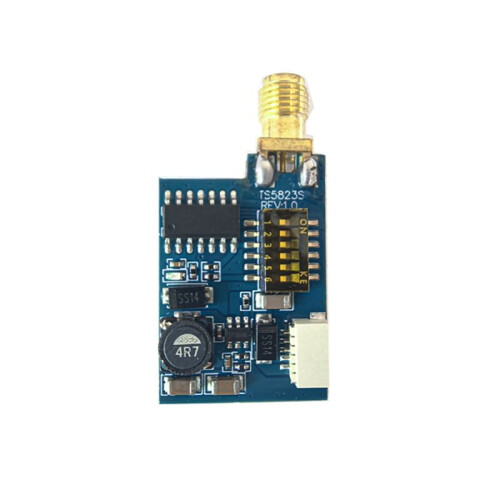

5823S 48CH 5.8GHz 200MW FPV Transmitter for FPV Drone, TS5823S

5823S 48CH 5.8GHz 200MW FPV Transmitter for FPV Drone, TS5823S Description

Color: As shown
Material: Plastic + Metal

TS5823S 200MW FPV Video Transmitter packs an ultra clean 5.8GHz power in a micro sized package! A must for those looking for longer range and locked in video where weight is a factor. The TS5823S transmits a full range of 40 channels and covers 6 bands with digital display. It's perfect for a wide range of aircraft! You get a micro USB connector so you can connect straight to a for and it comes with normal cables, so you can connect to any camera you want.

Operating Voltage: 7.0V-24V

Audio Carrier Frequency : 6.5 MHz

Supply Current : 190mA ,Video Format: NTSC/PAL

40 channels Cover a, b, E, F,R L,bands with digital display
Specification:
Output Impedance: 50 Ohm
Video Format: NTSC/PAL
Output Power: 23-24 dBm
Operating Voltage: 7V-24V
Supply Current: 190mA
Operating Temperature: -10-85
Video Band Width: 0-8.0 MHz
Audio Carrier Frequency: 6.5 MHz
Video Input Level: 0.8-1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5-2.0 Vp-p
Audio Input Impedance: 10K Ohm
Antenna Connector: RP-SMA Connector
Color: As Shown
Material: Plastic+Metal

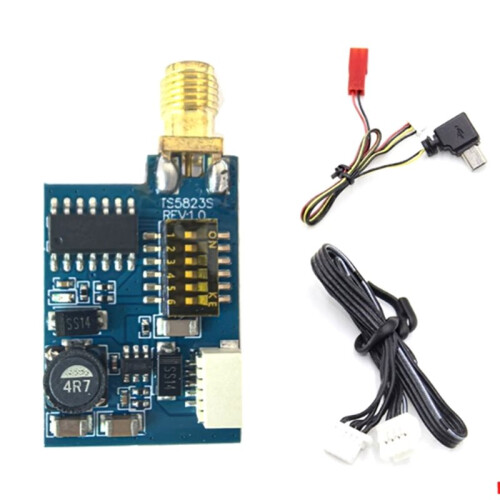

Package Contents:
1 x TS5823S Video Transmitter
1 x Antenna
2 x Connect Cable
