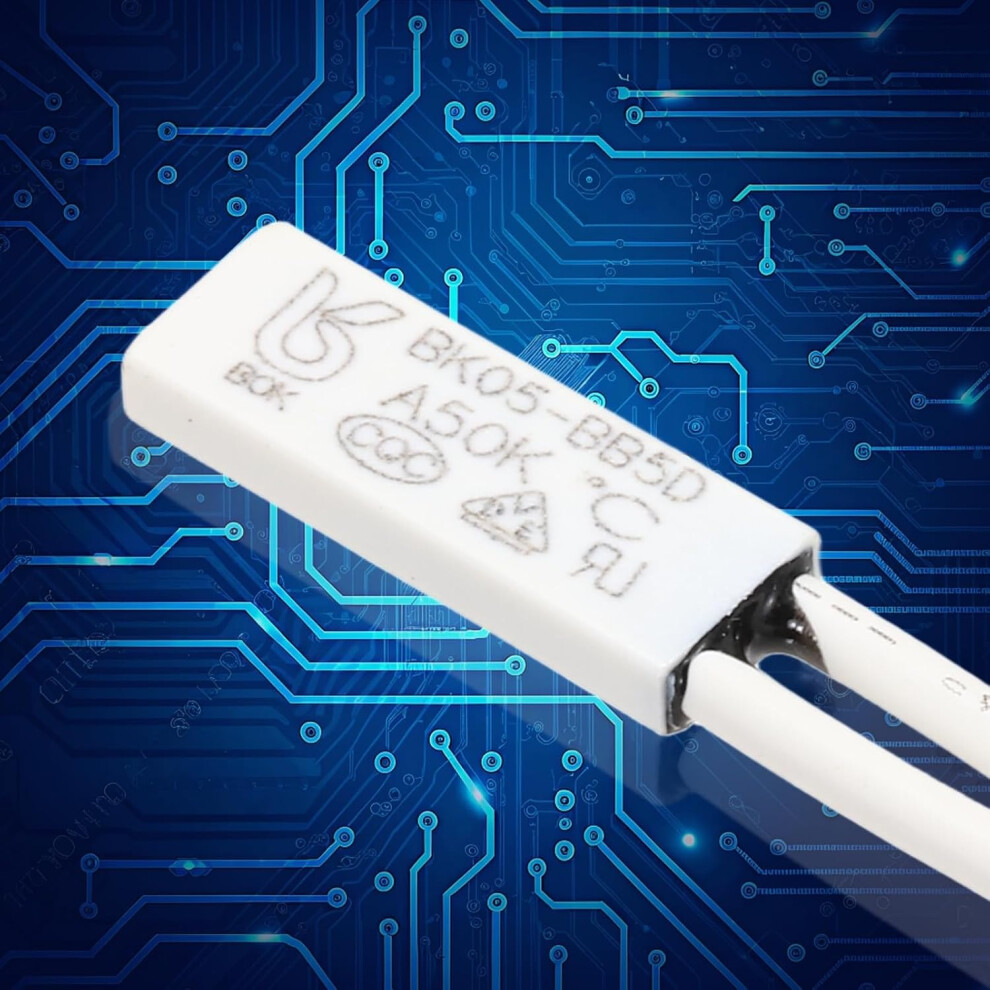

5Pcs KSD9700 Thermostat, NO Temperature Control Switch 50C N.O 2A Plastic Bimetal Normally Open Thermal Protector Thermal Switch

5Pcs KSD9700 Thermostat, NO Temperature Control Switch 50C N.O 2A Plastic Bimetal Normally Open Thermal Protector Thermal Switch Description

Key Features

• Product Name Thermostat;Action Temperature 50;Action Type N.O (Normal Open);Power 250V 2A;Pin Type 2 Wires;Total Length 85mm/3.35 inch;Shell Dimension 15x5.4x2.4/ 0.59x0.21x0.09 inch;Main Body Material Plastic;In the package of 5pcs thermostat switch
• KSD9700 temperature control switch is applicable to all kinds of home appliances and electronics products, Such as low-power fractional horsepower motors, computer communications, fans, air conditioners, electric heaters, motors, etc.
• Temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life. KSD9700 temperature control switch is light and compact, with high accuracy of disconnection and reset, and reliable operation.
• KSD9700 uses a square bimetal as a temperature-sensing body. When the temperature rises to a certain value, the square piece jumps, the transmission contact moves quickly, and the circuit is disconnected. When the temperature drops to a certain value, the bimetal resets and the contact Also to the original state, to achieve the purpose of making the circuit.
• The original state of temperature control switch contact is open, and close when the temperature sensing exceeds the rated temperature.

Product Description Description

1.KSD9700 temperature control switch is applicable to all kinds of home appliances and electronics products, Such as low-power fractional horsepower motors, computer communications, fans, air conditioners, electric heaters, motors, etc.2.Temperature controller has the characteristics of small size, quick action, accurate temperature control, large current control and long service life. KSD9700 temperature control switch is light and compact, with high accuracy of disconnection and reset, and reliable operation.3.KSD9700 uses a square bimetal as a temperature-sensing body. When the temperature rises to a certain value, the square piece jumps, the transmission contact moves quickly, and the circuit is disconnected. When the temperature drops to a certain value, the bimetal resets and the contact Also to the original state, to achieve the purpose of making the circuit.4.The original state of temperature control switch contact is open, and close when the temperature sensing exceeds the rated temperature.Specification:Product Name: ThermostatAction Temperature: 50Action Type: N.O (Normal Open)Power: 250V 2APin Type: 2 WiresTotal Length: 85mm/3.35 inchShell Dimension: 15x5.4x2.4/ 0.59x0.21x0.09 inchMain Body Material: Plastic

Package Content

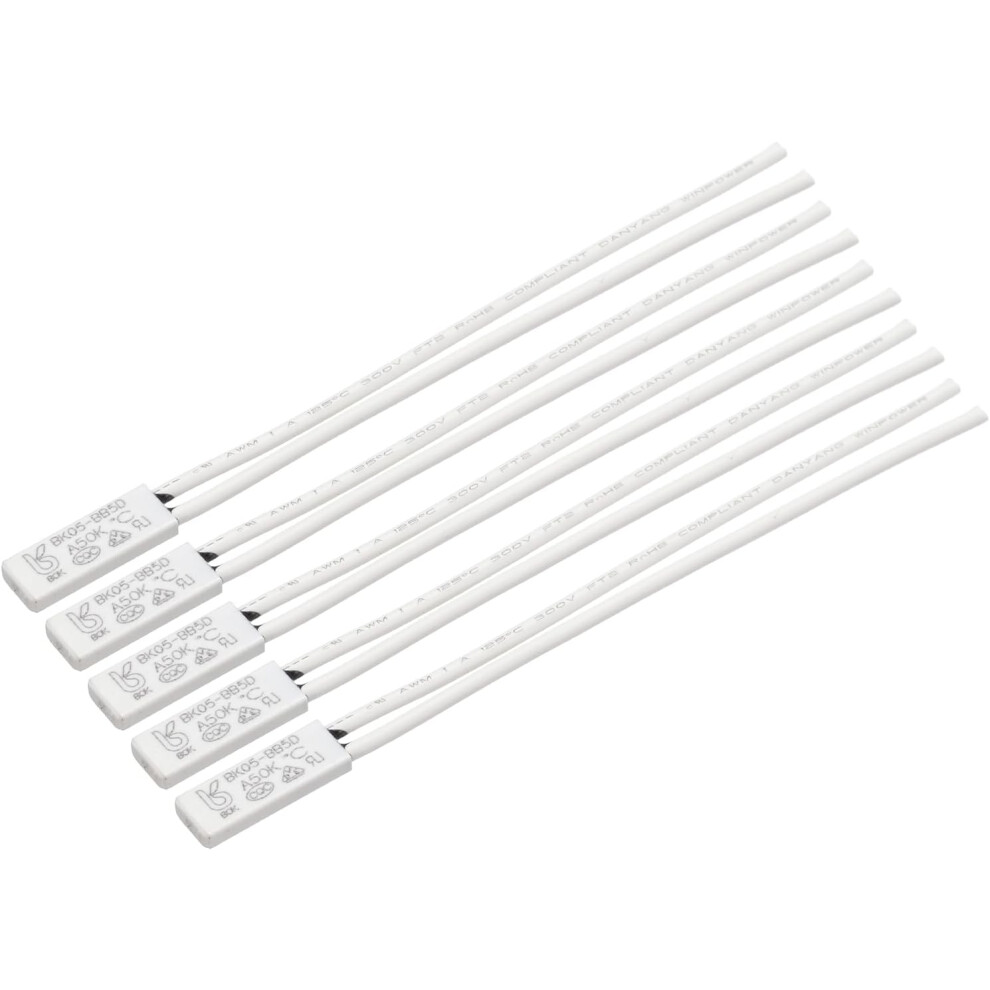

5 x thermostat switch.
