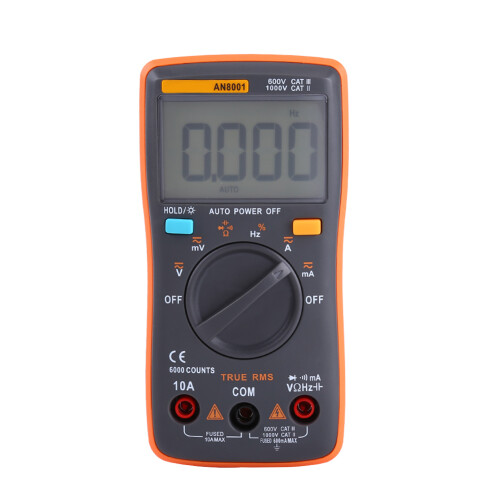

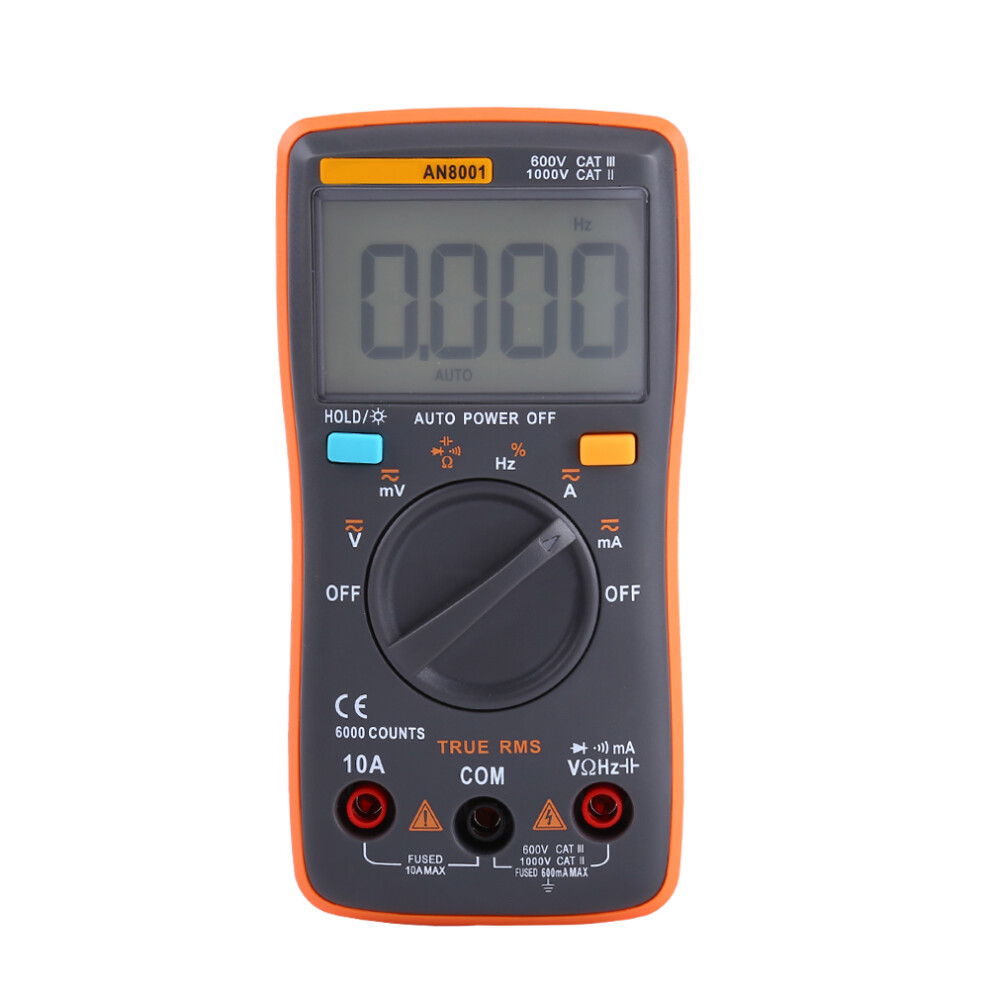

6000 Count Portable Digital Multimeter AC/DC Voltmeter Resistance Tester

6000 Count Portable Digital Multimeter AC/DC Voltmeter Resistance Tester Description

Portable Digital Multimeter AC/DC Ammeter Voltmeter Ohm Meter 6000 Counts Backlight

Description:


The
digital multimeter is a powerful, dependable tool that safely measures
voltage, resistance and current, whether you are working around the
house or for some automotive maintenance. Safely tackle many electrical
problems around your home with this powerful multimeter, and you don't
have to be an electrician e this automotive multimeter.






Features:




Designed to safely and accurately troubleshoot a variety of automotive and household electrical problems.

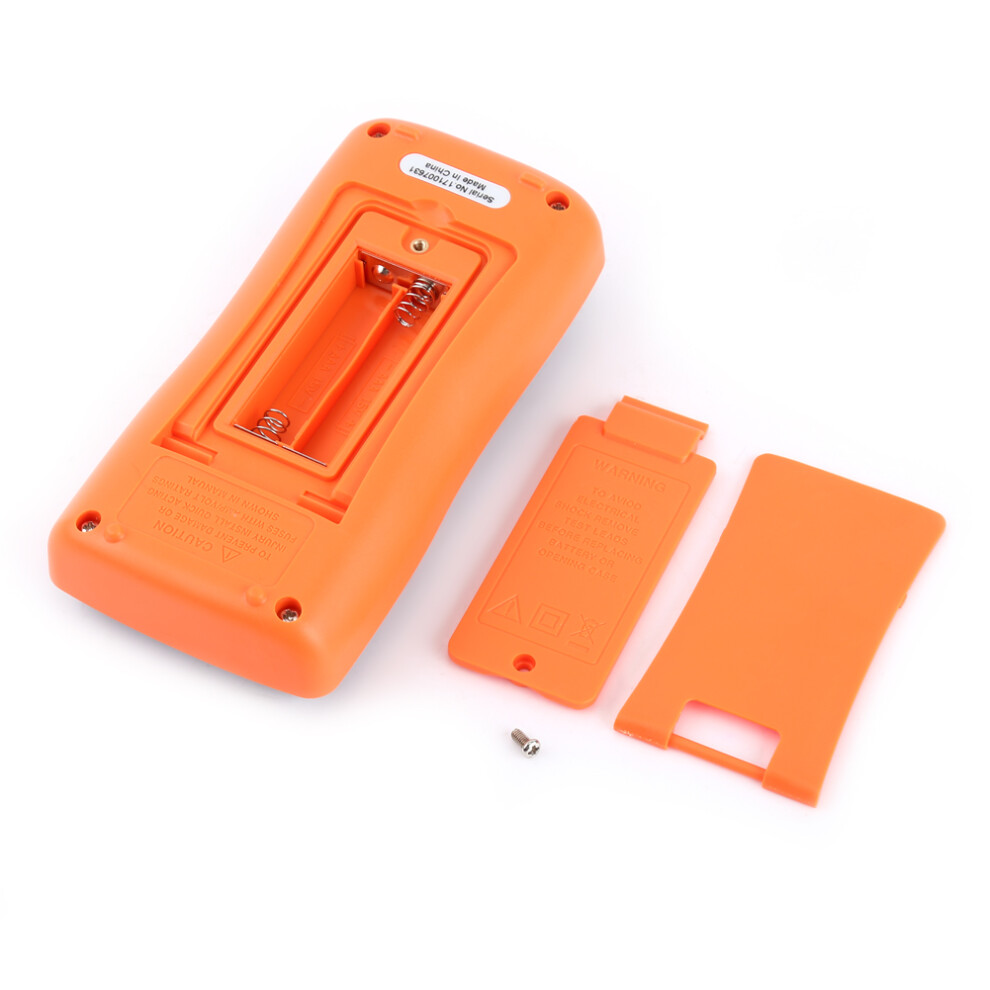

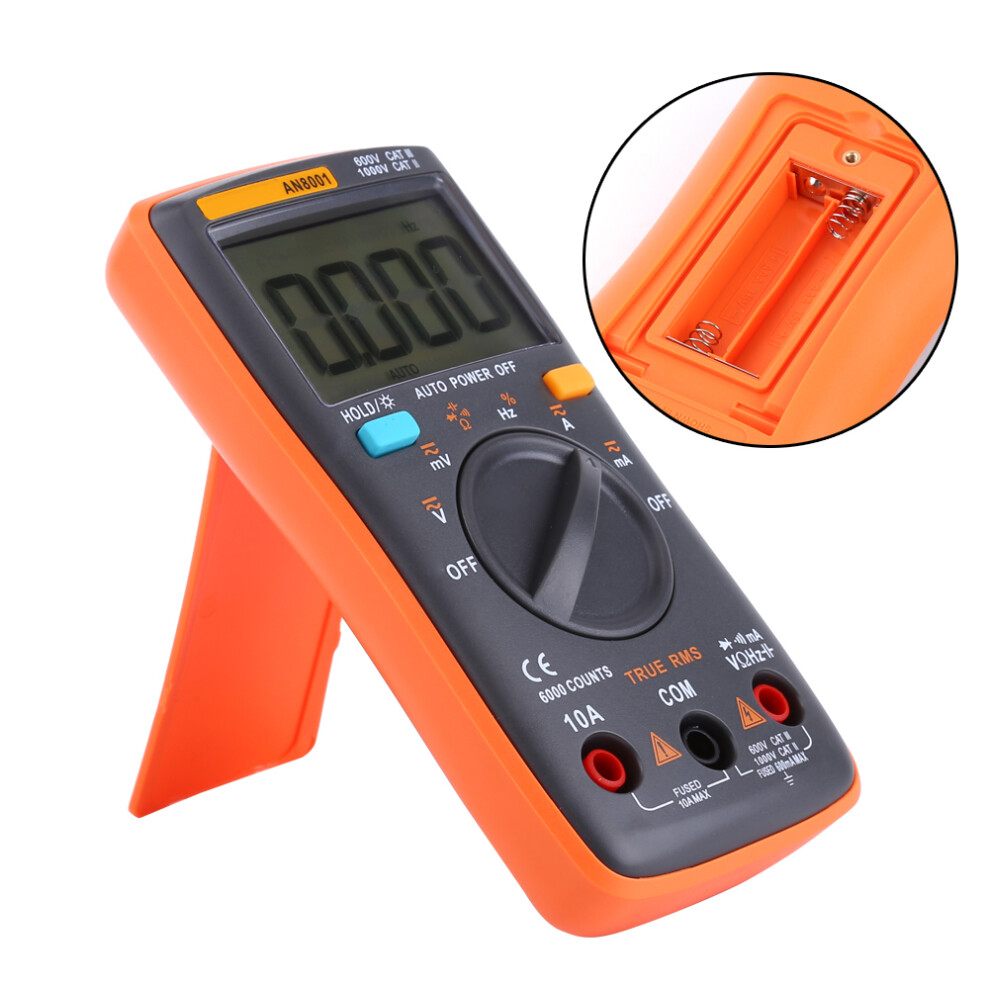

The multimeter uses 2 pieces 1.5V AAA batteries(not included)as power supply and support auto power off function to save power.




Its

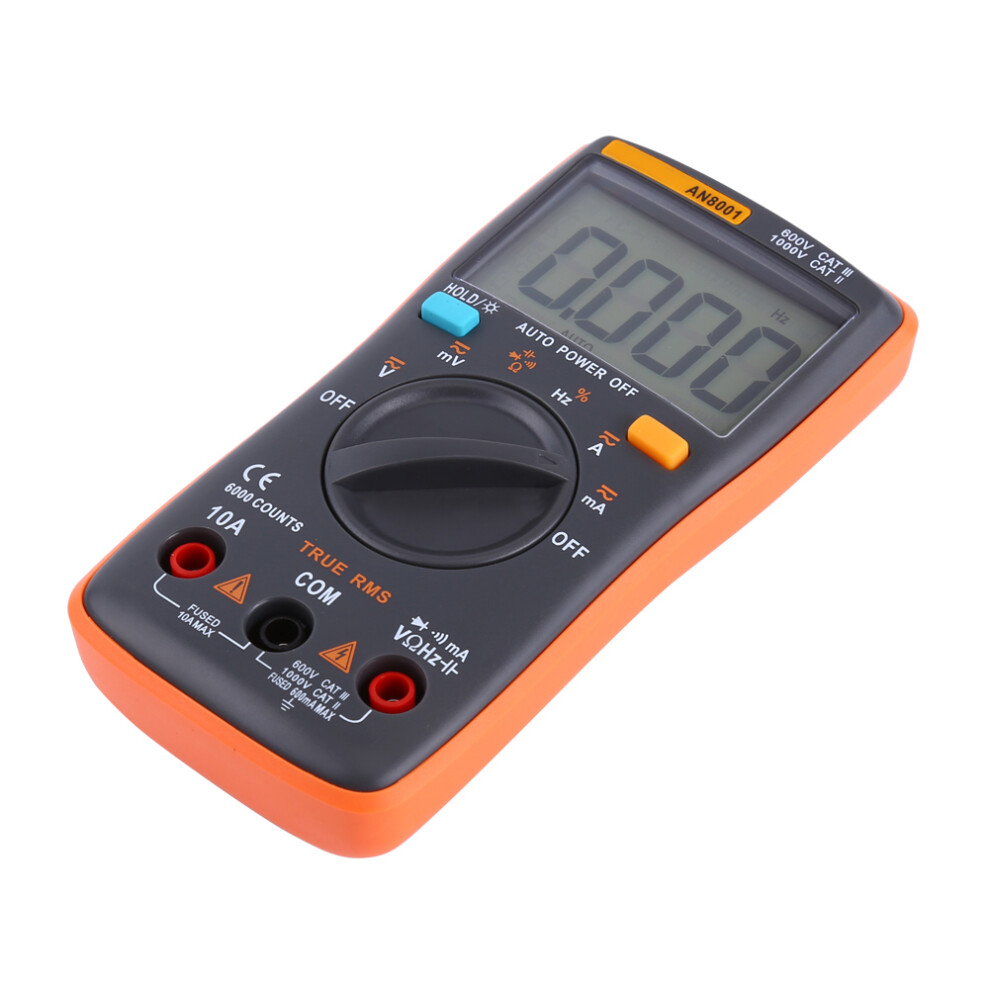

large 4 digit(6,000) display provides accurate, easy-to-read
results that enable you to complete your work quickly and efficiently.




Voltage testing function can test both AC and DC voltage and there is also low voltage indication function.




Supports continuity testing, resistance testing, diode testingand550V protection in resistance, capacitance and frequency ranges.





Specifications:







Capacitance




10nF(5.0+20),100nF/1uF/10uF/100uF(2.0%+5),1000uF/10000uF(5.0%+5)






DC Volts




600mV(1.0%+10), 6V/60V/600V/1000V(0.5%+3)






AC Volts




600mV(3.0%+3), 6V/60V/600V/750V(1.0%+3)






DC Current




600uA/6000uA(1.5%+3), 60mA/600mA(1.5%+3), 10A(1.5%+3)






AC Current




600uA/6000uA(1.5%+3), 60mA/600mA(1.5%+3), 10A(1.5%+3)






Resistance




600Ω(0.5%+3), 6K/60K/600K/6M(0.5%+2), 60MΩ(1.5%+3)






Frequency




5/50/500/5k/50k/500k/5M/10M (0.1+3)






Duty Cycle




1% to 99%(1%)






Measurement Mode




Double-integral style A/D transform






Over Range Indication




OL






Operating Environment




0~40, relative humidity < 80%






Auto Ranges




Yes






True RMS




Yes






Sample Rate




3 times per second






Backlight




Yes






Data Hold




Yes






Polarity Identification




Yes






Low Voltage Indication




Yes






Auto Power Off




Yes






Power Supply




 2pcs
1.5V AAA batteries (Not included)






Size




 130
x 65 x 30mm / 5.12 x 2.56 x 1.18"

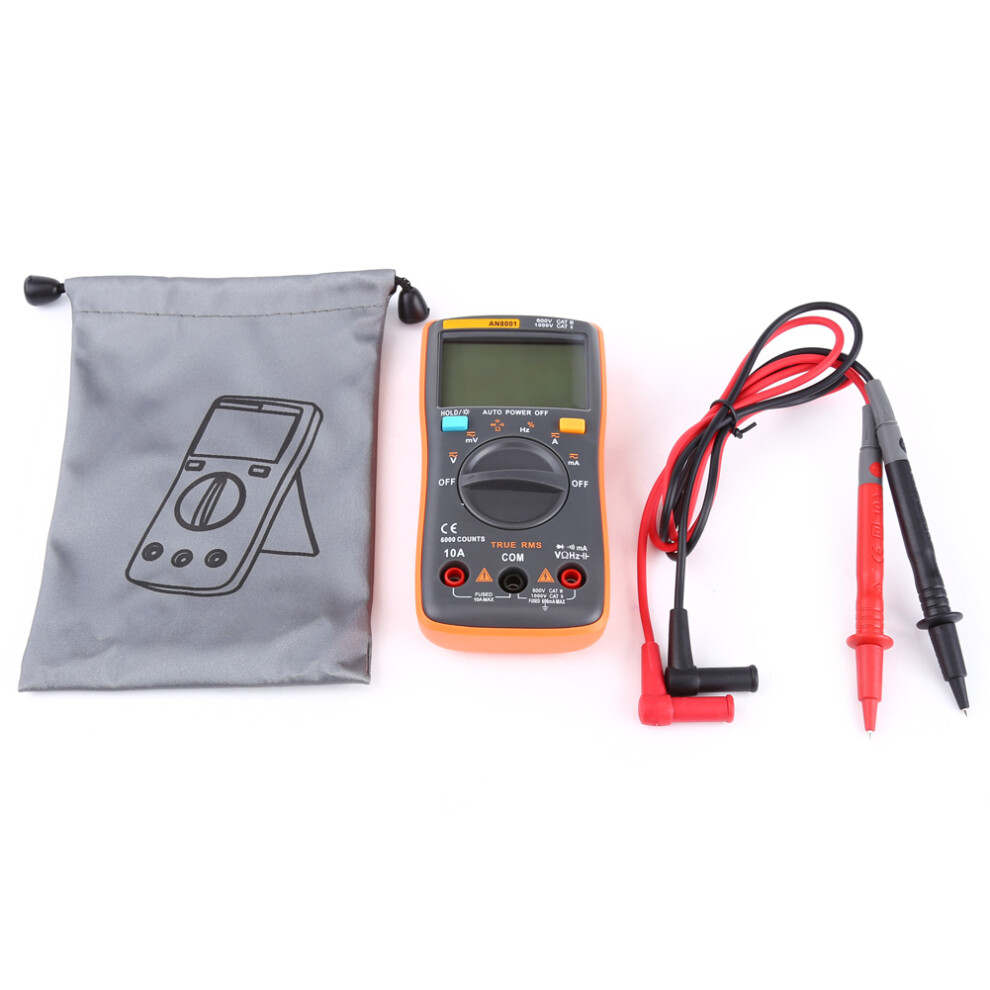

Package Includes:

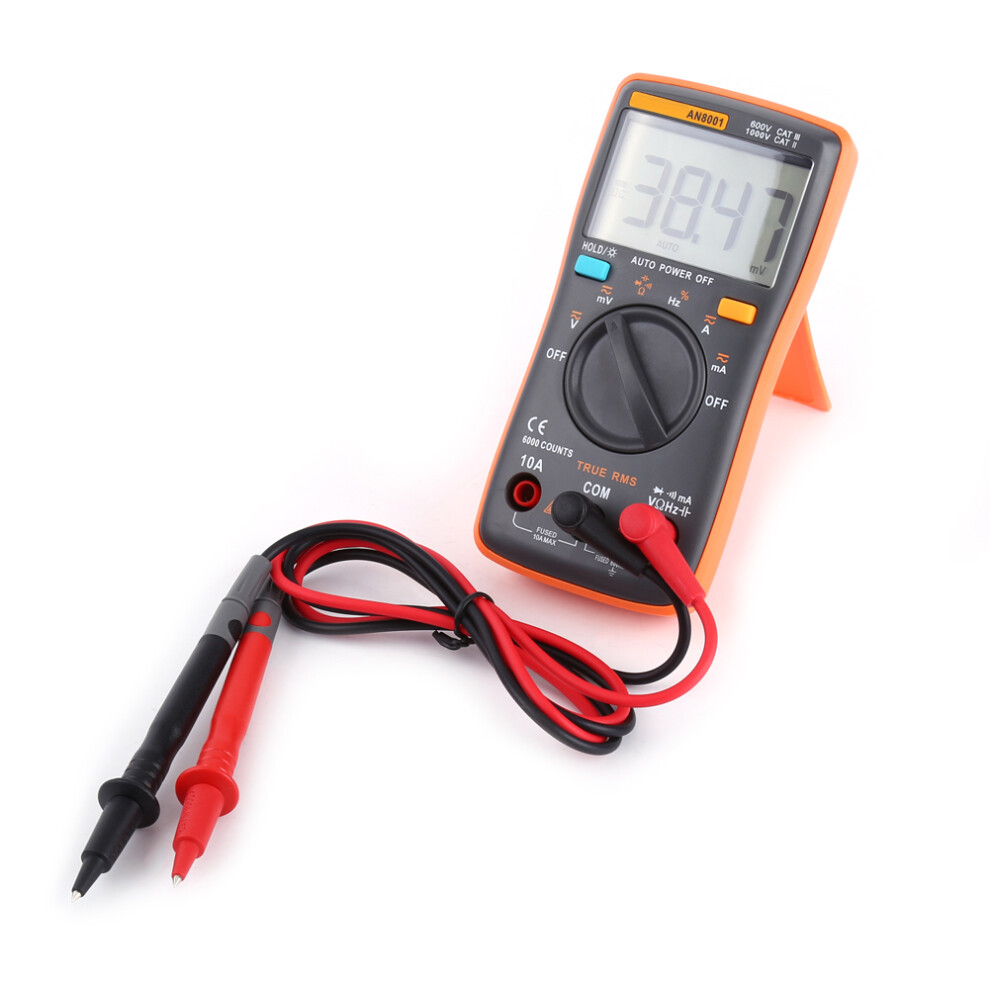

1 x Multimeter

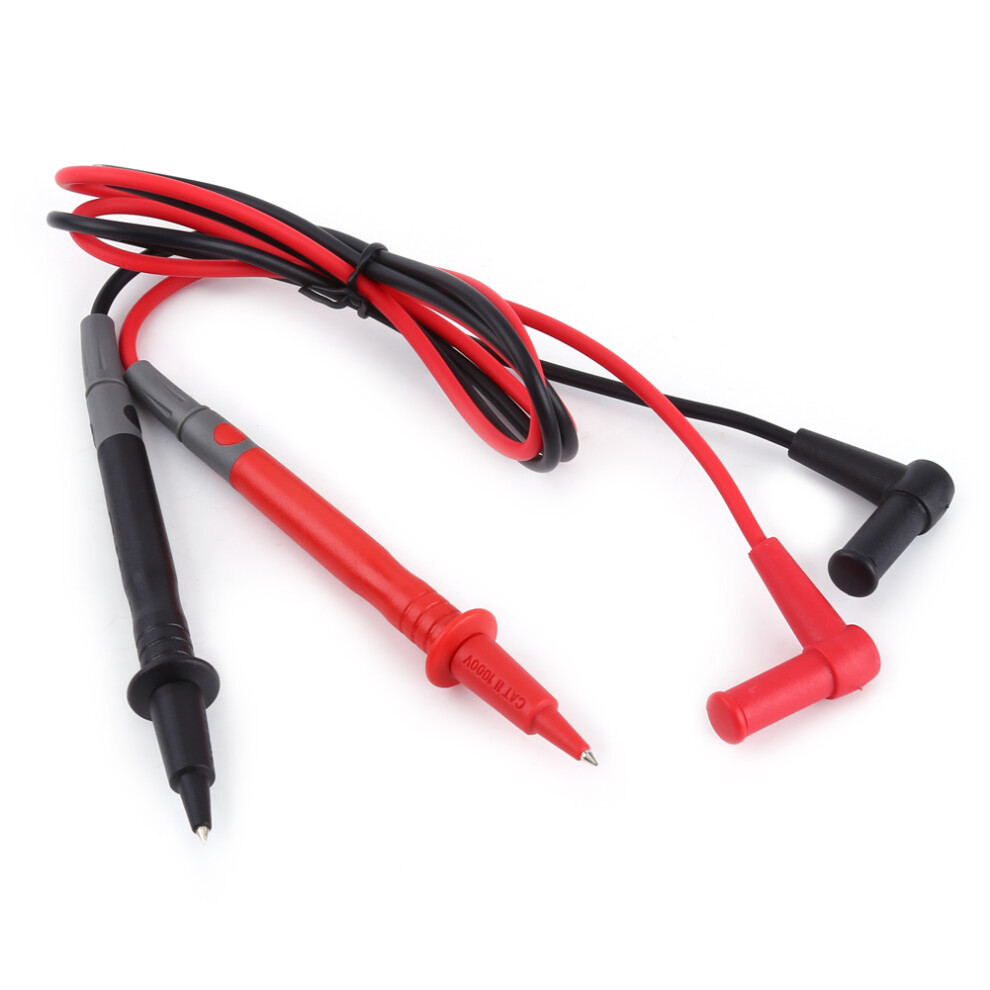

2 x Test Leads

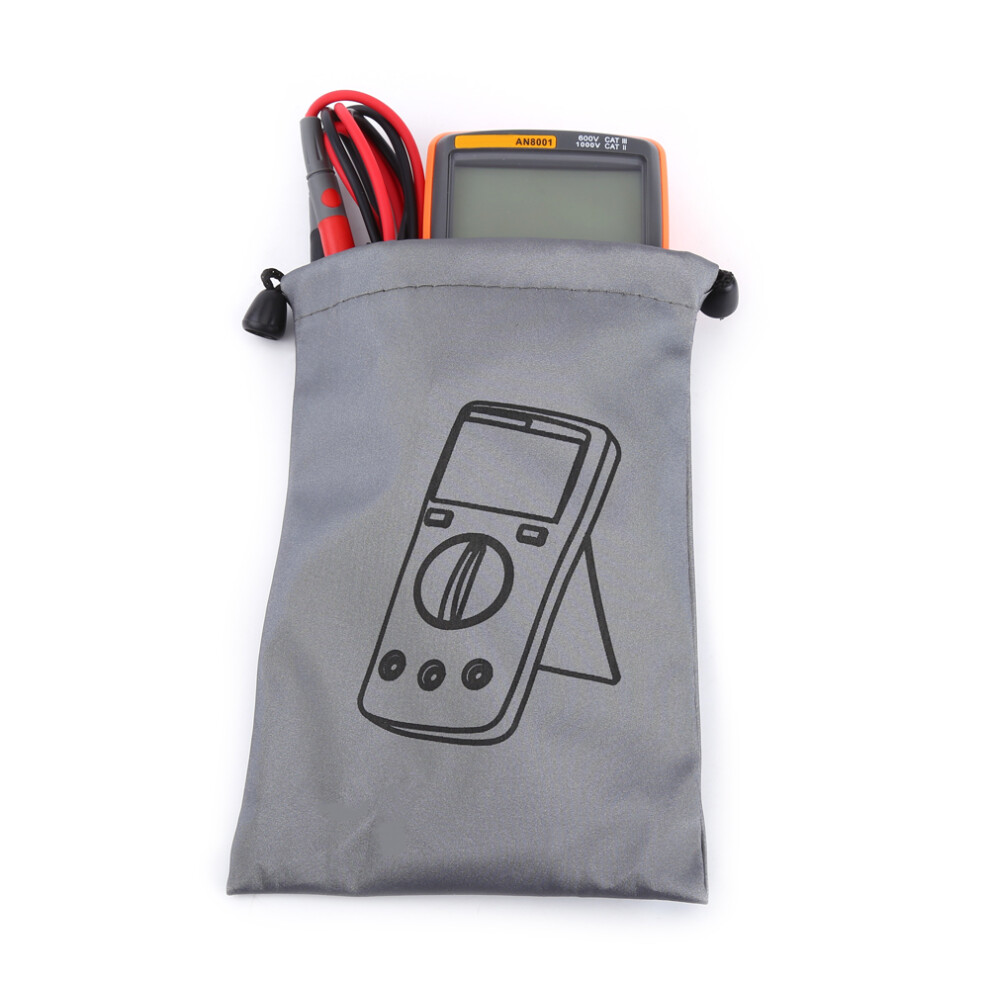

1 x Bag
