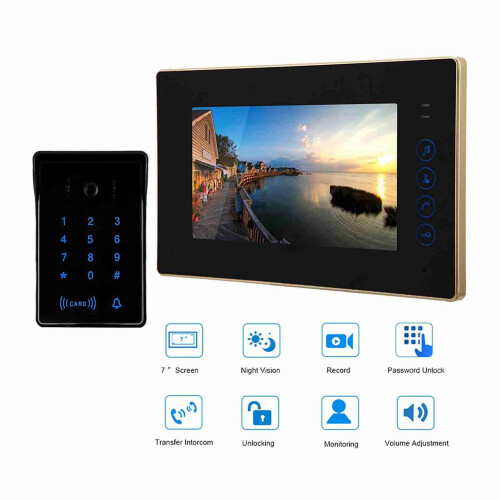

7" Wired Touch Keypad Video Door Phone with Electric Lock

7" Wired Touch Keypad Video Door Phone with Electric Lock Description

1、7 inch color LCD display screen, without radiation, low power consumption, high definition 2、Ultra‑slim design of indoor unit, mirror panel, plating button, nice and luxurious. 3、Beautiful and durable outdoor unit, digital luminous keyboard, tamper alarm, wall mounted. 4、24 kinds of different melodies for your choices.Volume, brightness and contrast are adjustable. 5、Combines many functions in one: two‑way intercom, surveillance, unlock, hands free call and talk, etc.
A. The visitor taps the outdoor unit call button, the indoor unit will automatically turns on the image, and at the same time, the preset ringtone is sounded. Press the indoor unit intercom button to talk to the visitor. If the visitor needs to press the unlock button, the electronic lock is automatically activated. Open (this product contains an electric lock), no more running to the door gate to open the door.
B. If you want to view the outdoor scene, press the monitor button; you need to do not disturb during the break time, press and hold the indoor unit intercom button for 2 seconds to start the function. At this time, if the visitor presses the outdoor unit call button, only the image will not ring, press any button on the indoor unit to exit the function.
Features:
7 inch color LCD display screen, without radiation, low power consumption, high definition
24 kinds of different melodies for your choices.Volume, brightness and contrast are adjustable.
Ultra-slim design of indoor unit, mirror panel, plating button, nice and luxurious.
Beautiful and durable outdoor unit, digital luminous keyboard, tamper alarm, wall mounted.
Outdoor camera with clear IR night vision can monitor and capture images in low-illumination environment.
Combines many functions in one: two-way intercom, surveillance, unlock, hands free call and talk, etc.
Support card and wireless remote control unlocking, practical and convenient to use.
Can be widely used in single-family houses, villas, offices, hotels and so on.
Specification:
Condition: Brand New
Material: Metal + PMMA + ABS
Color: As picture shown
Indoor Unit Size: approx. 225*146*20mm/8.8*5.7*0.8in (W*H*D)
Outdoor Unit Size: approx. 95*145*50mm/3.7*5.7*1.9in (W*H*D)
Display resolution: 800*RGB*480
Current: less than 800mA
Call delay time: 120S 10%
Monitoring delay time: 40S 10%
Camera sensor: HD color CMOS or CCD up to 700 lines
Outdoor infrared night vision function: low open 10LUX infrared
Indoor unit installation: wall-mounted
Outdoor unit installation: wall-mounted
Card reading distance: 1-3CM
Connection cable: 5-core connection cable + 2-core terminal cable (connected to electric lock)
Electric Lock:
Current: Less than 100mA
Working temperature: -35C ~ +60C
Relative humidity: 10%-95%
Durable report: more than 300,000 times under normal use
Size: approx. 148*105*39mm/5.8*4.1*1.5in (W*H*D)

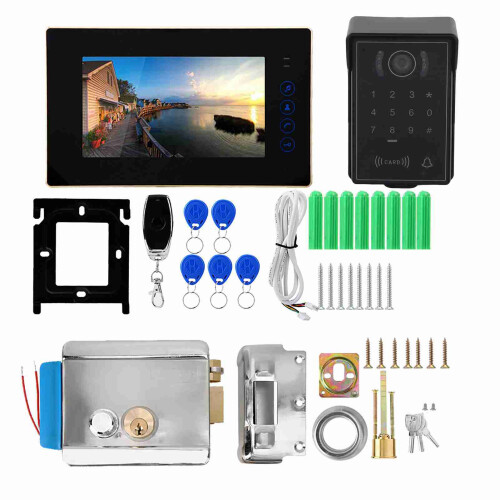

Package List:
1 * Outdoor Unit
1 * Indoor Unit
1 * Hanging Board for Indoor Unit
1 * User Manual
1 * 5-core Connecting Line
1 * Power Adapter
1 * Pack of Screw
5 * User Card
1 * Remote Control (With Battery)
1 * Electric Lock (With 1 * User Manual, 1 * Pack of Screw, 1 * Lock Cylinder, 3 * Keys)
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
