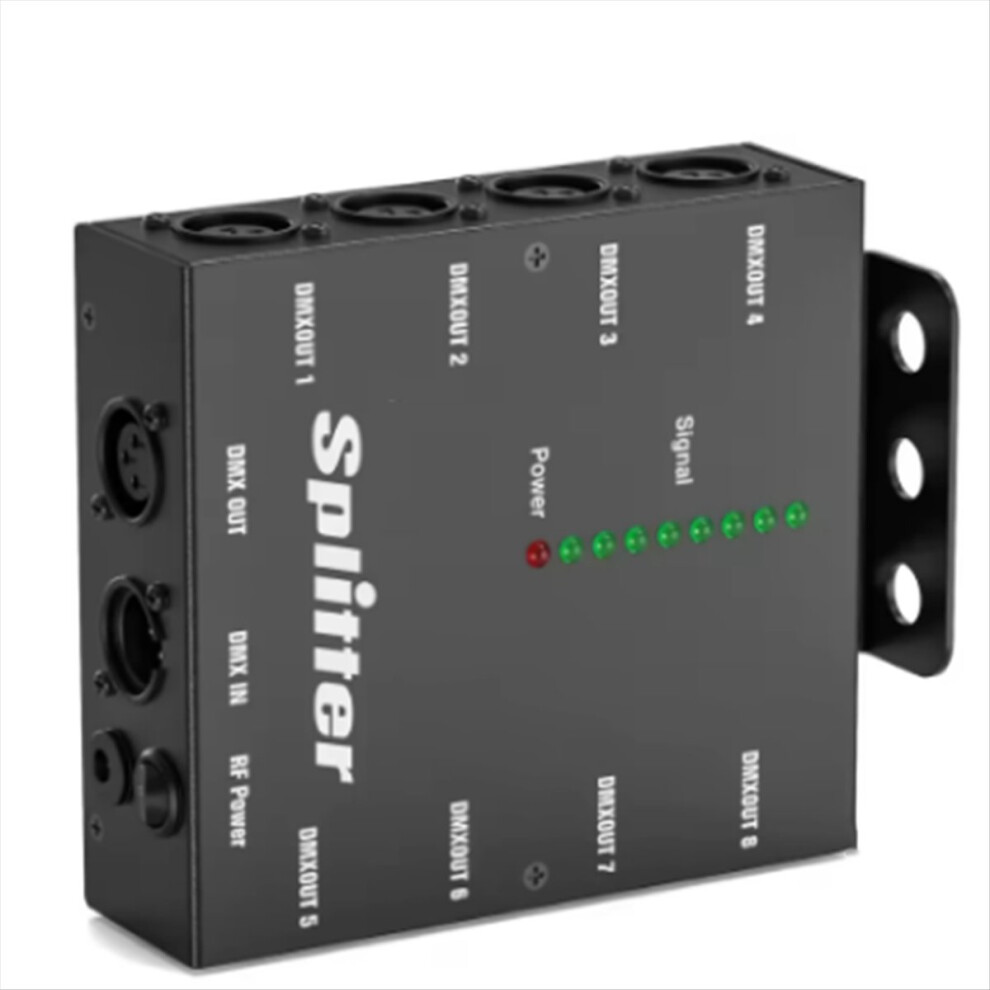

8-Channel DMX512 Signal Amplifier Splitter LED Lighting Controller for

8-Channel DMX512 Signal Amplifier Splitter LED Lighting Controller for Description

Input voltage: DC 9v 1000MA min
DMX512-1990 compatible
3 pin XLR input and output
LED indicators show power and output
1 input, 1 output directly, 8 outputs

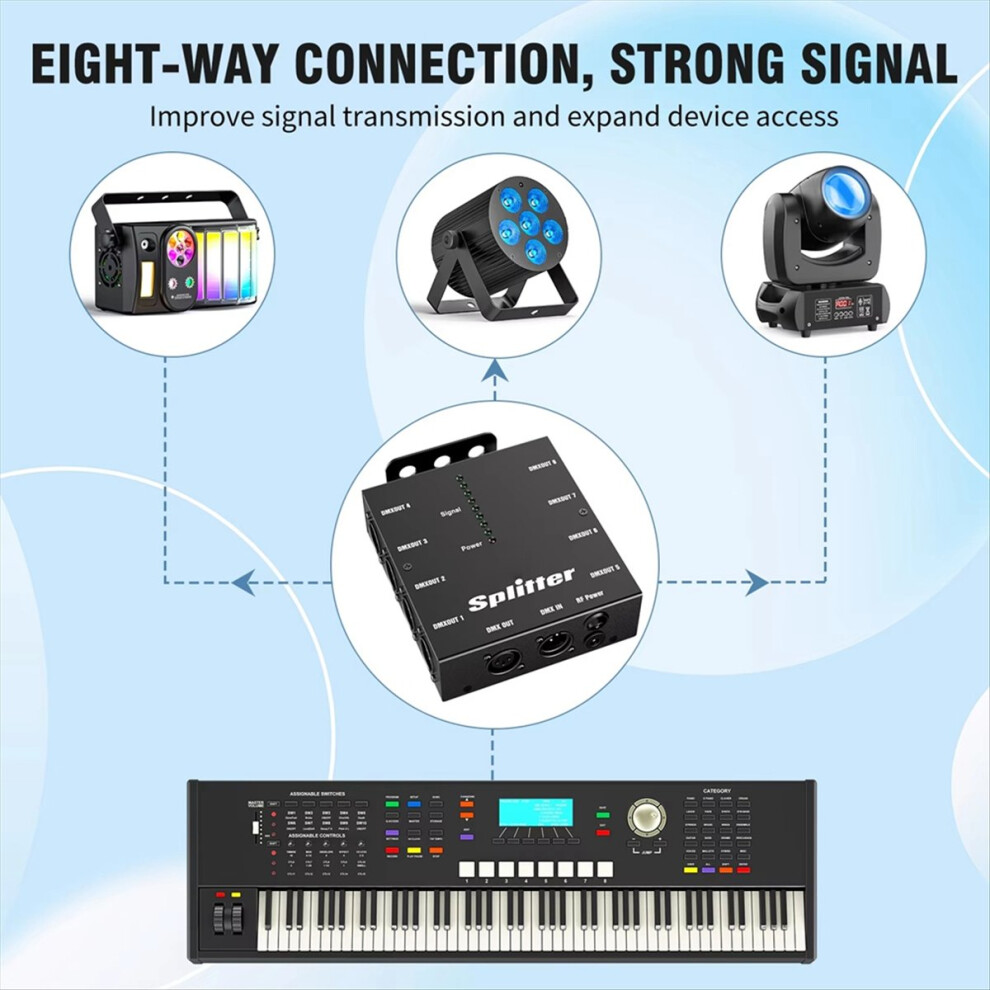

Each output is electrically and optically isolated from the input, and from every other output by optical couplers. It makes running cable to lighting fixtures easier and more efficient. It features one input, 8 Outputs and 1 thru. The right out of . There is no assembly required.
Electrical isolation between input and output
Control up to 512 channels

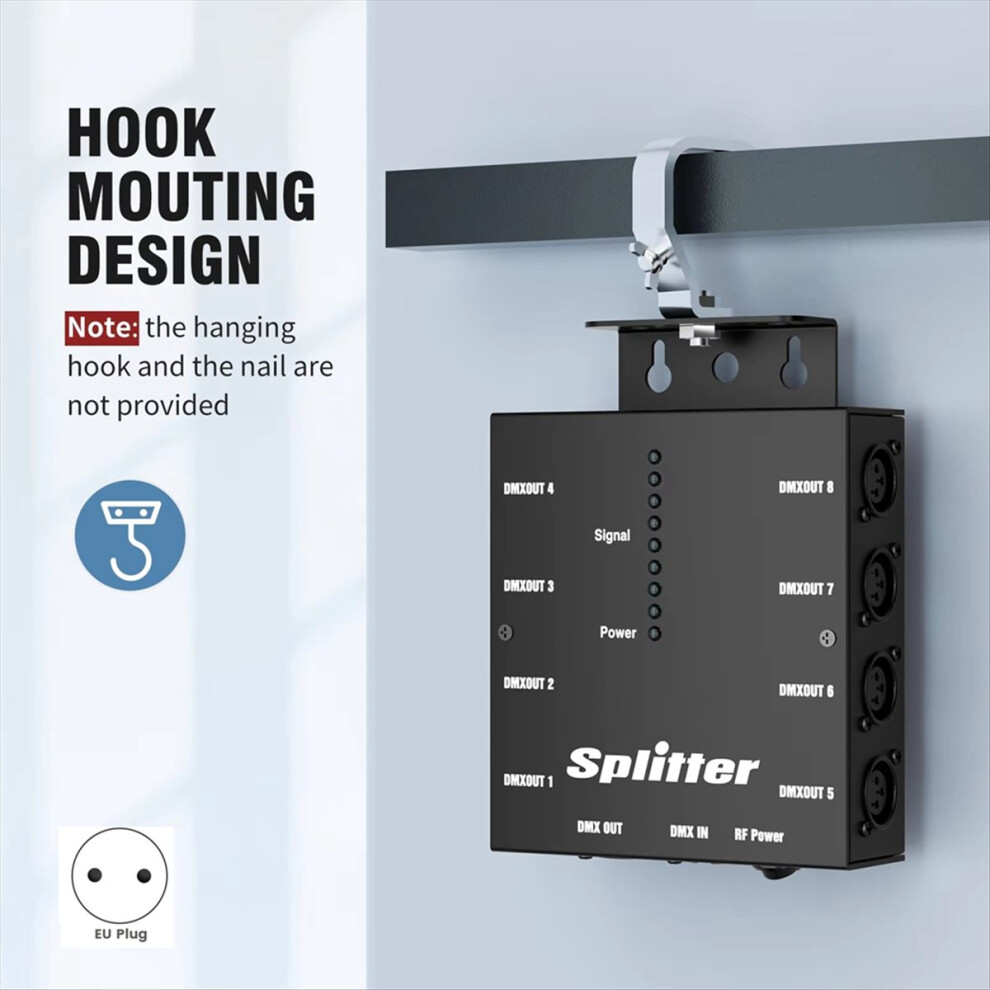

Hook mounting design
Item size:12.8x4.3x17.2cm
FUNCTIONAL SPECS: 1000V isolation between input and output , and between any individual output , Each interface also has over-current protection , so all of these maximize the protection of your console and lighting.
Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Voltage:AC220V
Color:Black
Material:Iron

Package Contents:
1 * DMX512 Signal Amplifier(without wireless)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
