A3008 Digital Multimeter 6000 Counts LCD Backlight Compact 50g

A3008 Digital Multimeter 6000 Counts LCD Backlight Compact 50g Description

ANENG A3008 Pen Multimeter 6000 Counts Digital Multimeter Meter Tester with LCD Display Backlight Flashlight NCV Auto-off Multiple Accessories for Voltage Current Resistance Capacitance Diode Continuity Test (Color Screen & Phase Sequence Measurement)

A3008 is a pocket type 3 5/6 digits pen-type smart multimeter, with true RMS. It will automatically identify DC voltage/AC voltage/resistance and measure, with no need to turn the dial to switch, easy to operate. Also, it features with stable performance, high precision, auto-off after 5min non-operation for energy saving, capacitance/diode/more test, overload conservation, continuity test, non-contact voltage measurement(NCV), zero live line measurement, phase sequence measurement, etc. A perfect tool for professional, factory, school, enthusiast or family use.
Features:
VERSATILE PEN MULTIMETER:This multimeter features test of voltage/resistance/capacitance/diode/frequency/temperature, continuity, zero line & non-contact phase sequence detection, etc.
FAST RESPONSE & HIGH ACCURACY:ANENG A3008, 6000 counts digital pen type multimeter, has a sampling speed of 3 times per second and high precision measurement.

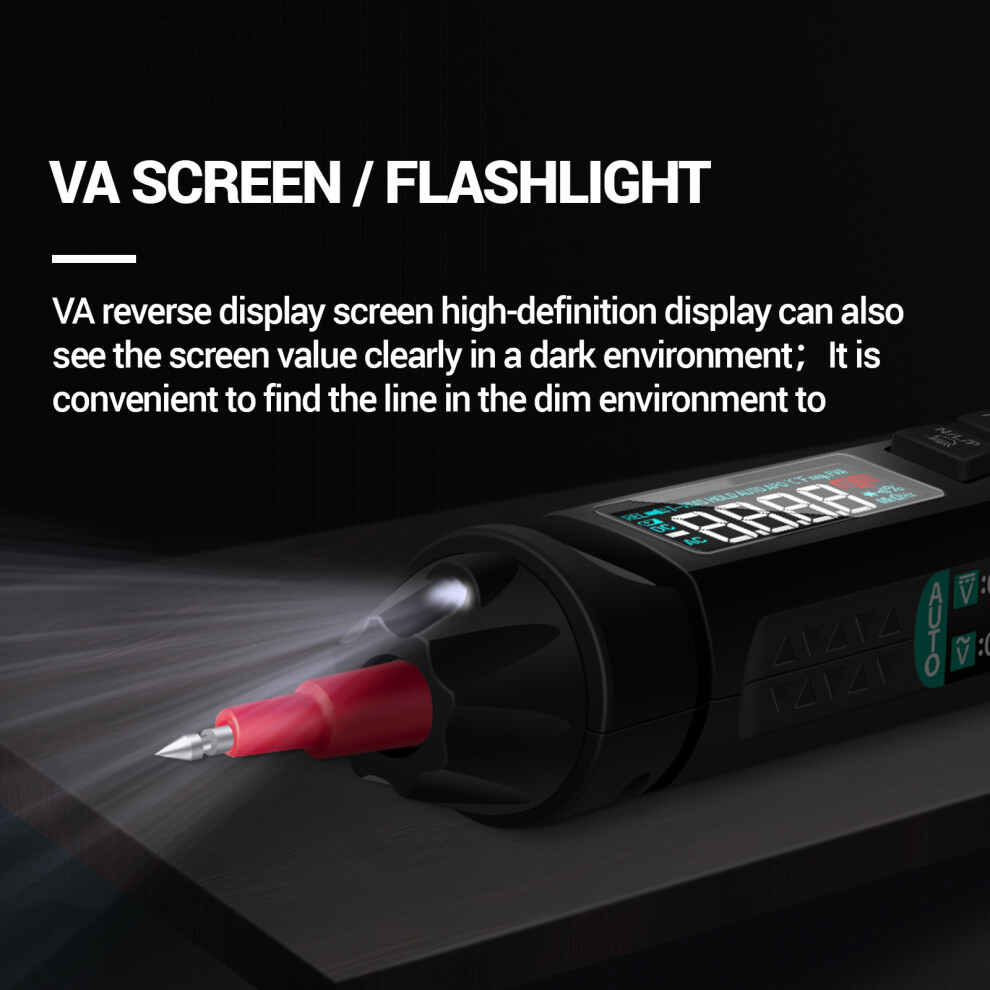

EASY OPERATION:It has LCD clear screen, easy to read the measured values, flashlight available for darkness, data retention function convenient to query data, alarm beep when in use.
MATERIAL & PORTABLE SIZE:The meter, made from selected electronic components and sturdy plastic housing, is designed with light weight and easy-to-carry pocket size, comfort to grip.
WIDE APPLICATION:The digital multimeter--a handy instrument and assistant, for testing, diagnosing and solving a variety of automotive and daily household electrical problems safely and accurately.
MULTIPLE ACCESSORIES:1 U-shaped insert, 1 alligator clip, 2 gilded extra tip, 1 nickel-plated copper needle, 1 tapered needle, 1 extended nickel-plated copper needle, 1 banana tip are included.
Measurement Range & Accuracy:
DC Voltage: DC6V/DC60V/DC600V (0.5%+4); DC1000V (0.8%+10)
AC Voltage: AC6V/AC60V/AC600V (0.5%+4); AC700V (0.8%+10)
Resistance: 600Ω (0.8%+5); 6kΩ/60kΩ/600kΩ/6MΩ (0.8%+3); 60MΩ (2.5%+3)
Capacitance: 10nF/100nF/1uF/10uF/100uF/1mF/10mF (3.5%+20); 60mF (5%+3)
Temperature: -20~50,(1.0%+5)50; 0~122,(0.75%+5)122
Specifications:
Brand: ANENG
Model: A3008
Material: ABS
Test Line Material: Brass / PVC
Main Color: Black
Screen: LCD display
Maximum Display: 5999 (3 5/6) automatic polarity display
Measurement Method: Double integral A/D conversion
Sampling Time: About 3 times / second
Over-range Indication: "OL" is displayed on the highest position
DC Voltage Test: Yes
AC Voltage Test: Yes
Resistance Test: Yes
Capacitance Test: Yes
Diode Test: Yes
Continuity Test: Yes
Non-contact Phase Sequence Test: Yes
Color Screen: Yes
NCV: Yes
Neutral / Fire Test: Yes
Full Unit Symbol: Yes
Backlight: Yes
Auto Power Off: Yes
True RMS: Yes
Data Hold: Yes
Temperature (/): Yes
Hz: Yes
Flashlight: Yes
Working Condition: 040 temperature, <80% relative humidity
Power Supply: 1* 1.5V AAA battery (NOT included)
Test Lead Length: 117.4mm / 4.62in
Product Size: 170*24*21mm / 6.69*0.94*0.82in
Product Weight: About 50g / 1.76oz
Package Size: 190*80*35mm / 7.48*3.14*1.37in
Package Weight: 192g / 6.77oz
Note:
Multimeter kit only, other accessories in the pictures are not included.
Please read the user manual carefully for more information before use.
Due to manual measurement, there may be deviation, please in kind prevail.
Due to lighting or other reasons, the picture and material object may slightly differ.
Packing List:
1 * Multimeter
1 * Test Lead
1 * User Manual
1 * U-shaped Insert
1 * Alligator Clip
2 * Gilded Extra Tip
1 * Nickel-plated Copper Needle
1 * Tapered Needle
1 * Extended Nickel-plated Copper Needle
1 * Banana Tip
