AC/DC Clamp Meter BSIDE ACM92 6000 Counts True RMS Portable Multi-Function Testing Tool

AC/DC Clamp Meter BSIDE ACM92 6000 Counts True RMS Portable Multi-Function Testing Tool Description

BSIDE ACM92 LCD Digital Clamp Meter 6000 Counts True RMS AC/DC Multimeter Auto Range Mini Handheld Universal Meter Measure and Test AC/DC Voltage/Current Frequency Resistance Continuity Fire Wire V-alert
The pocket size digital AC/DC clamp meter features of high reliability, high precision, easy to carry, including several functions of the measuring AC/DC voltage, AC/DC current, frequency, resistance, continuity, fire wire test, and V-alert test, etc., and the function is all ready, really an excellent tool for professionals or doing the electrical equipment testing and maintenance in the factories, families, offices.
Features:

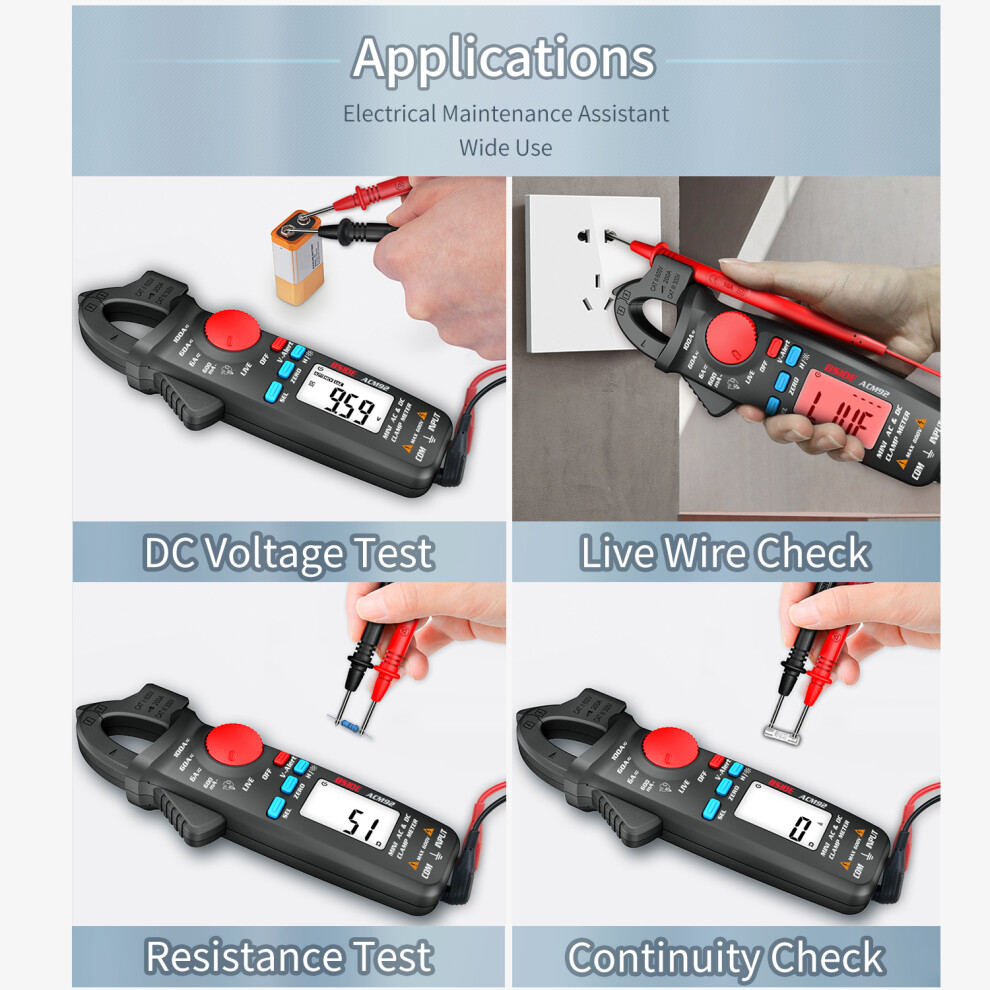

Basic Functions: accurately measuring AC/DC voltage, AC/DC current, frequency, resistance, continuity, fire wire test, and V-alert test.
Fire Wire Identification: audio and visual dual alarm when test the fire wire.
Safety Operation: meets the safety requirements for electronic measuring instruments, over-voltage standard is CATIII 300V, CATII 600V, shows "OL" on the LCD if over range.

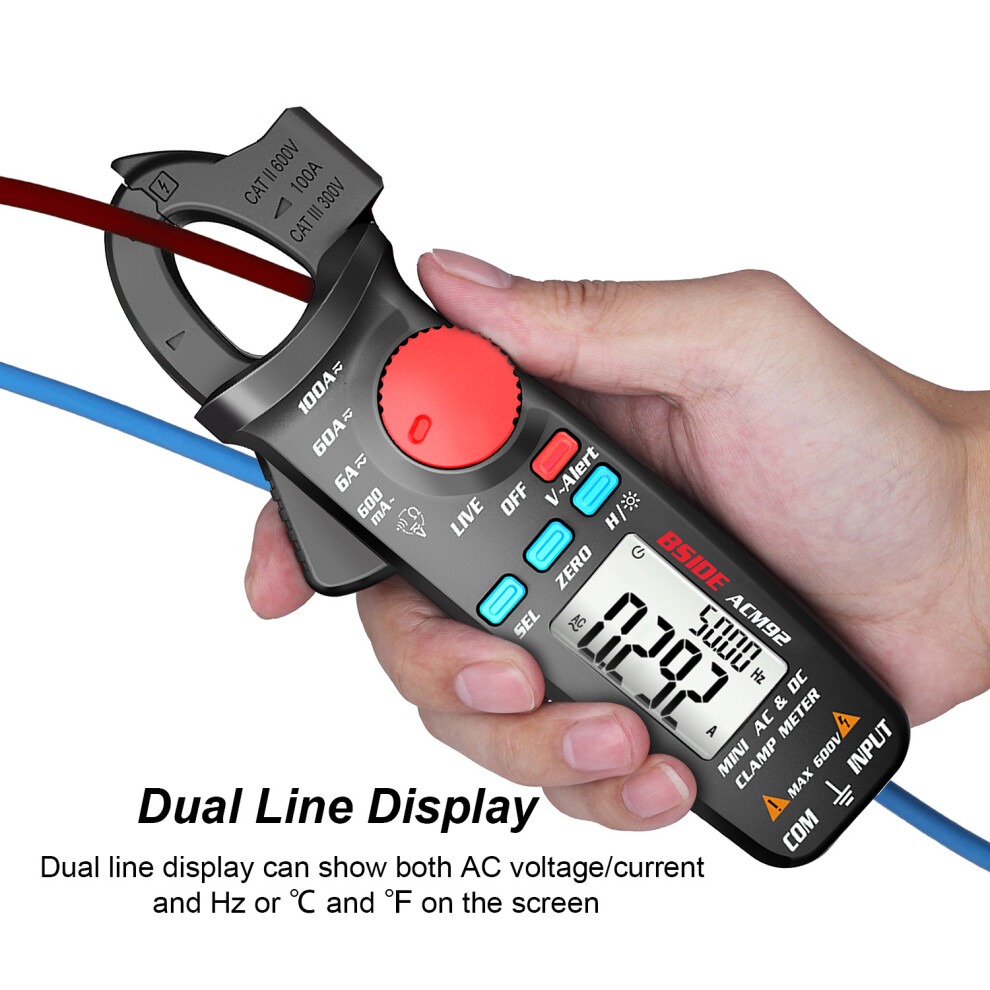

Clearly HD LCD Display: 6000 counts maximum display value, data hold and backlight function for easily reading in a dim environment.
Low Power Consumption: just powered by 2pcs 1.5V AAA batteries(NOT included), and the meter will automatic shutdown within 20 minutes of no operation.
Compact and Portable: ergonomic design for easily one-handed operation, with clip on the back for conveniently taking it with you.
Specifications:
Material: ABS
Safety Level: CAT.III 300V, CAT.II 600V
Max. Display: 6,000 counts LCD display
Working Altitude: 0~2000m
Sampling Time: 3 times/second
Jaw Opening: 20mm
DC Current: 6A/60A/100A±(2.5%+10)
DC Current Resolution: 0.001A/0.01A/0.1A
AC Current: 600mA±(3.0%+10), 6A/60A/100A±(2.5%+10)
AC Current Resolution: 0.1mA/0.001A/0.01A/0.1A
Frequency: 60Hz/1000Hz±(1.5%+5)
Frequency Resolution: 0.1Hz/1Hz
Frequency (ACA Mode): 60Hz/1000Hz±(1.0%+5)
Frequency Resolution (ACA Mode): 0.1Hz/1Hz
DC Voltage: 600V±(1%+5)
DC Voltage Resolution: 0.1V
AC Voltage: 600V±(1%+3)
AC Voltage Resolution: 0.1V
Resistance: 600Ω±(1.5%+5)
Resistance Resolution: 1Ω
Working Temperature: 0~40
Storage Temperature: -10~50
Relative Humidity: <75%
Over Range Indication: Display "OL"
Auto-off: 20 minutes
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 179 * 67 * 36mm / 7.05 * 2.64 * 1.42in
Item Weight: 137g / 4.83oz
Package Weight: 350g / 12.35oz
Package Size: 25 * 8.7 * 5.6cm / 9.84 * 3.43 * 2.20in

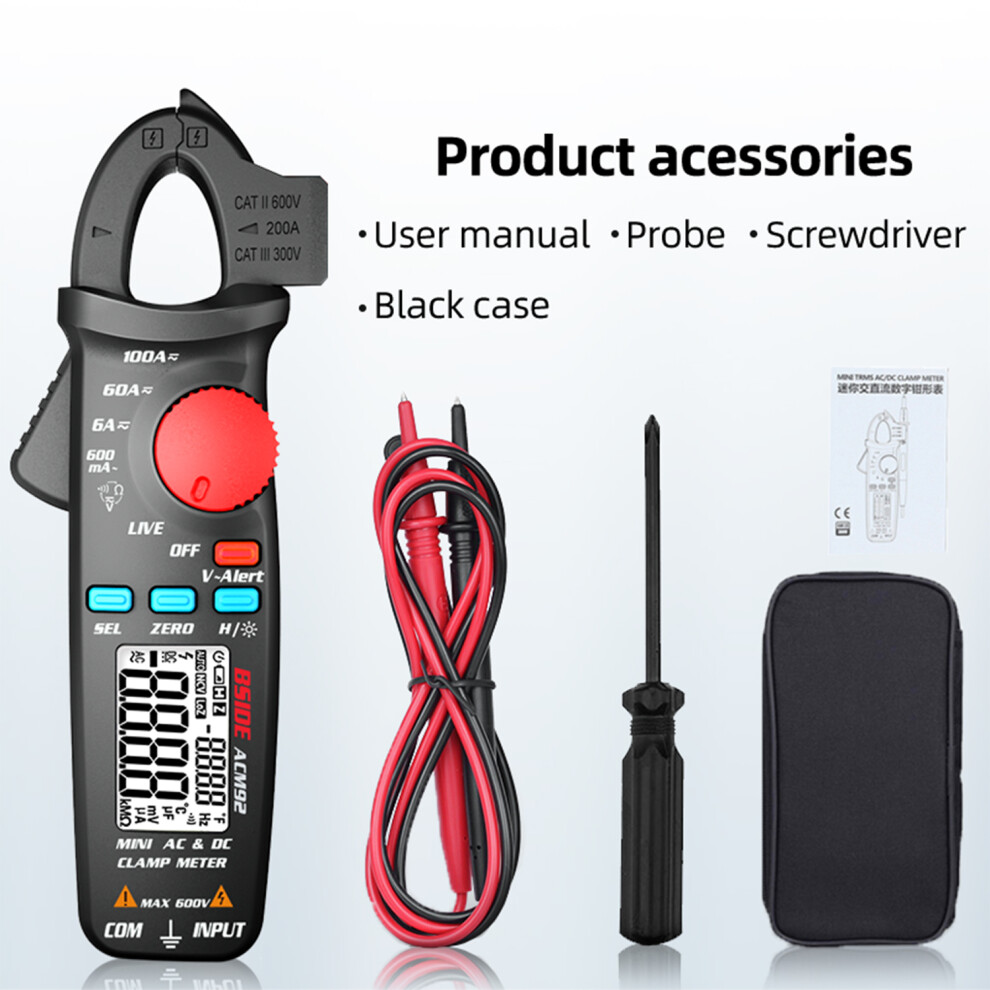

Packing List:
1 * Clamp Meter
1 * Probe
1 * Screwdriver
1 * Storage Pouch
1 * Manual (English)
