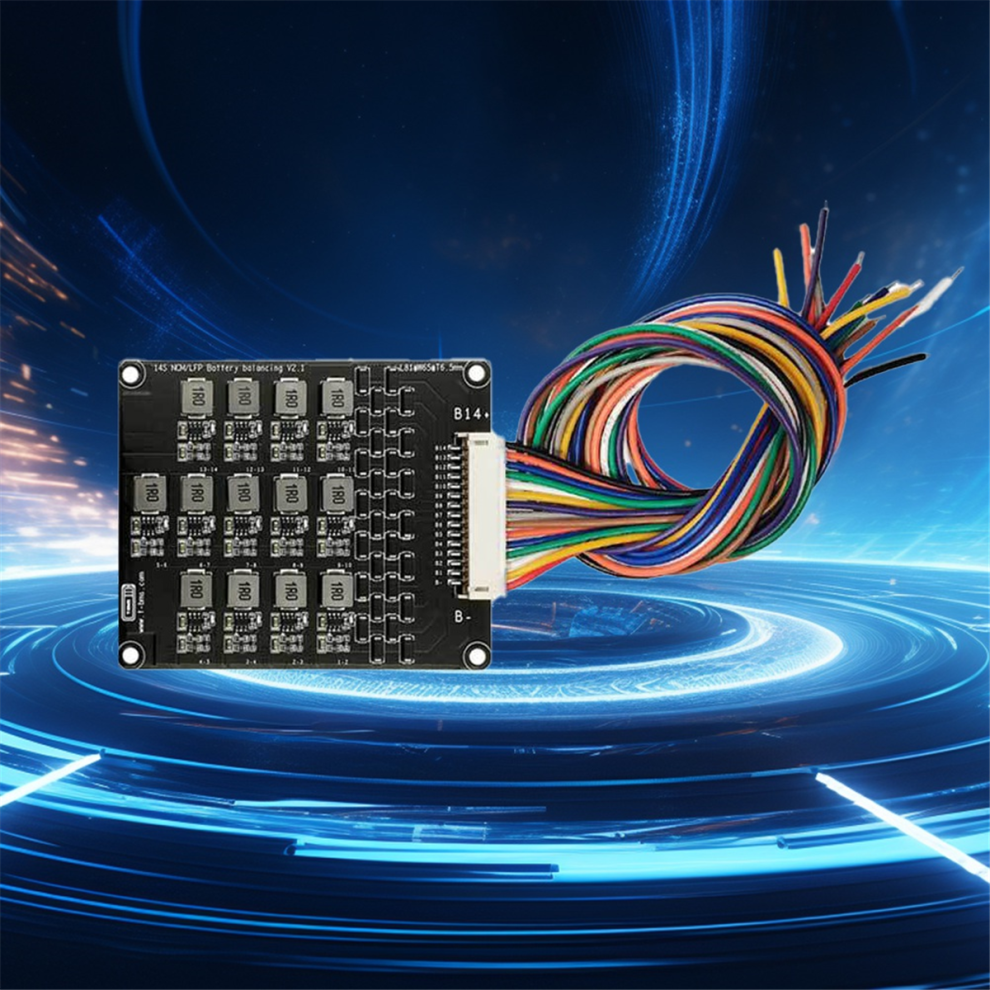

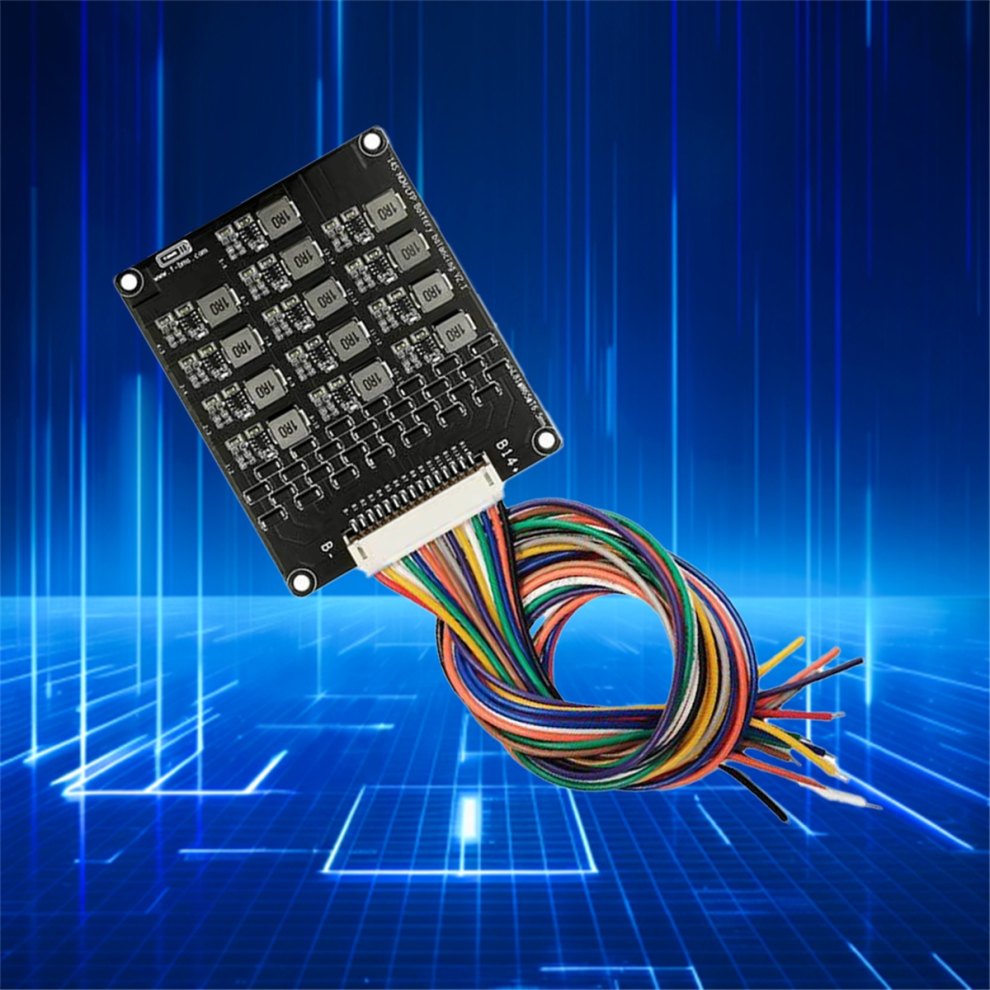

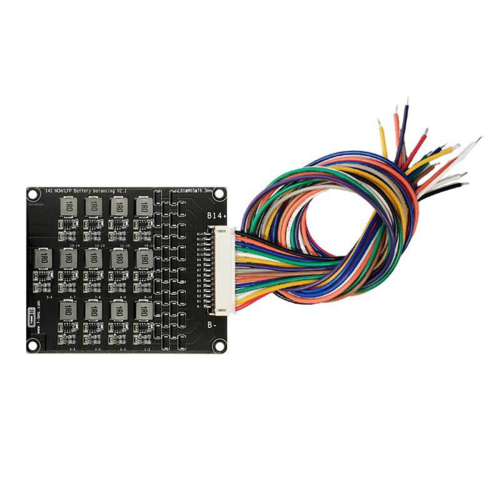

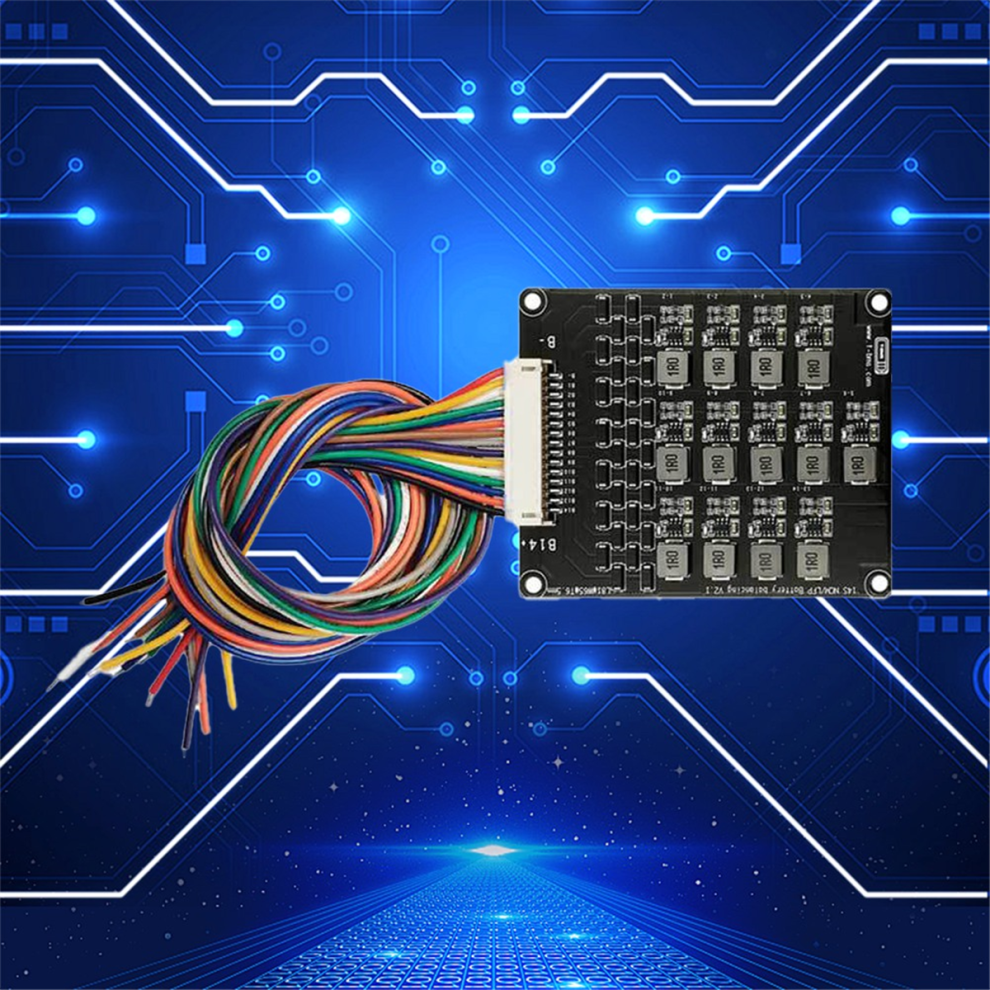

Active Balancer Equalizer Li-Ion Lifepo4 Energy Transfer Board 14S

Active Balancer Equalizer Li-Ion Lifepo4 Energy Transfer Board 14S Description

1.2A Active Balancer Inductive Active Balance 14S
only balance two nearby battery which voltage defference bigger than 0.2V
Functions of the board: A freewheeling diode is added. The freewheeling diode is often used together with the energy storage element to prevent sudden changes in voltage and current, provide access and protect the balance board. Another change is to use inductance with larger volume and power, which is conducive to heat dissipation.
Balance indication: 1. When the equalization light is on, the equalization work is turned on. 2. The equalization light goes out, the equalization circuit sleeps. 3. The equalization light flashes, indication is lost, or the circuit is faulty.
Principle of equilibrium: This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more.

The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V.
There is an adjacent differential pressure when charging and discharging on the battery pack.
Trigger equalization, the battery pack voltage error be pulled back to the ideal value, reducing battery maintenance costs.
Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is .
Equilibrium current:
Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);
Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);
The smaller the differential pressure, the smaller the equalization current.
Wiring definition:
B-, the total negative pole of the battery pack (the negative pole of the first battery)
B1, the positive electrode of the first battery
B2, the positive electrode of the second battery
B3....... and so on.
Note:13 or more string plugs need to be inserted obliquely, first touch the B-pins and insert them obliquely upwards, otherwise it may cause the board to burn out.
Connection:The four-string wiring diagram is as follows, and the other serial numbers are like that.
Color: As Shown
Material: Metal+Plastic

Package Contents:
1 * Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
