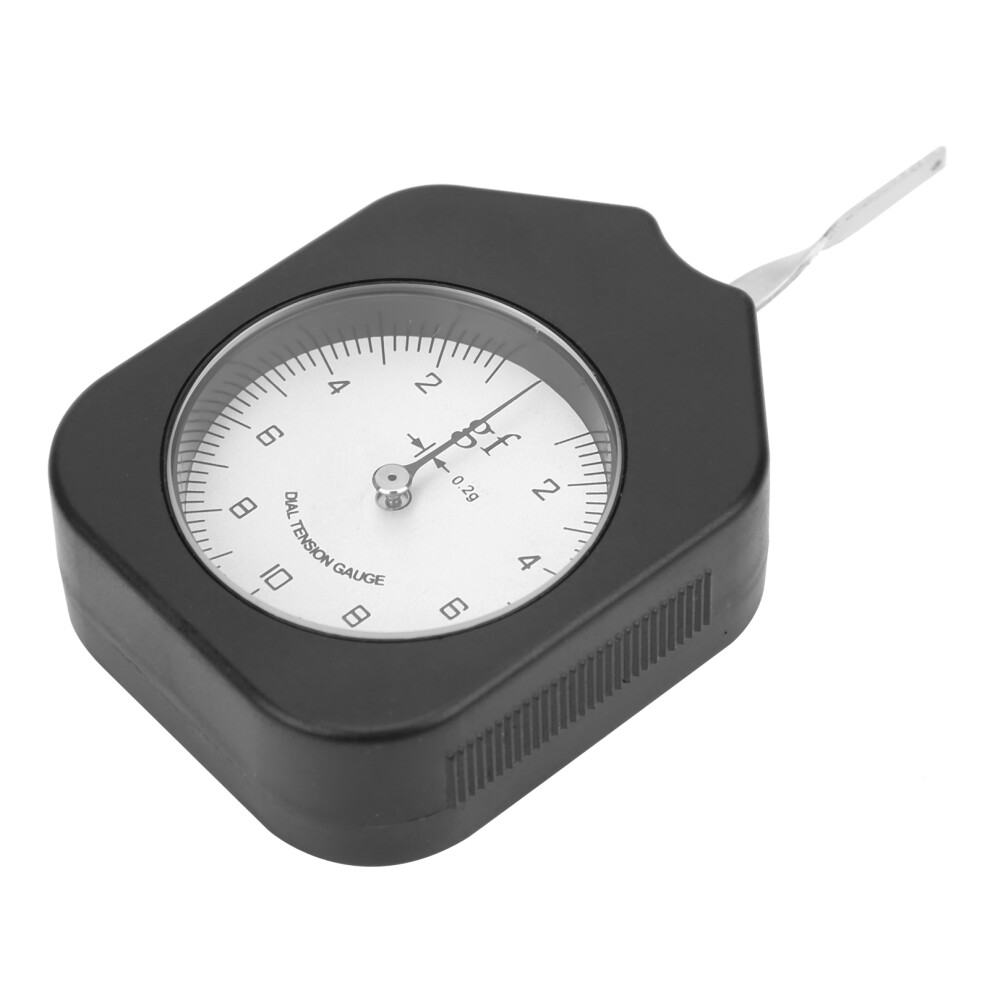

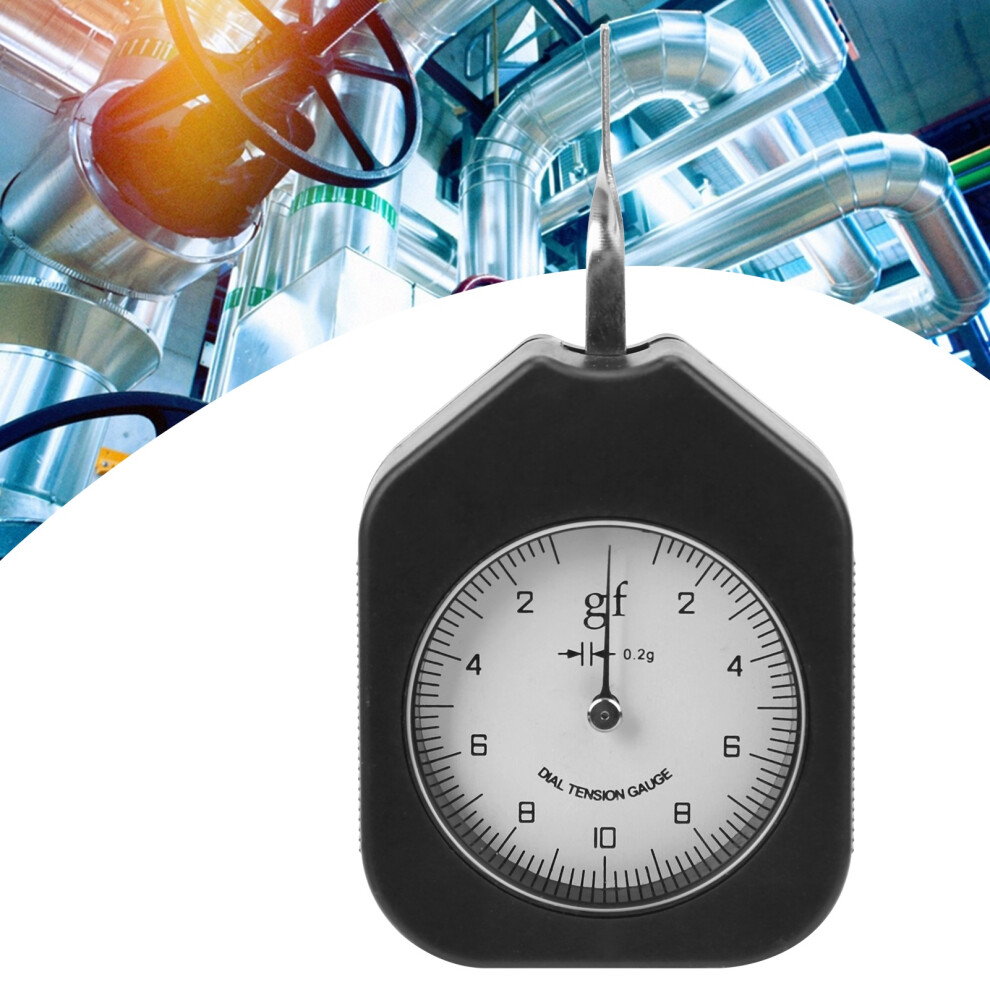

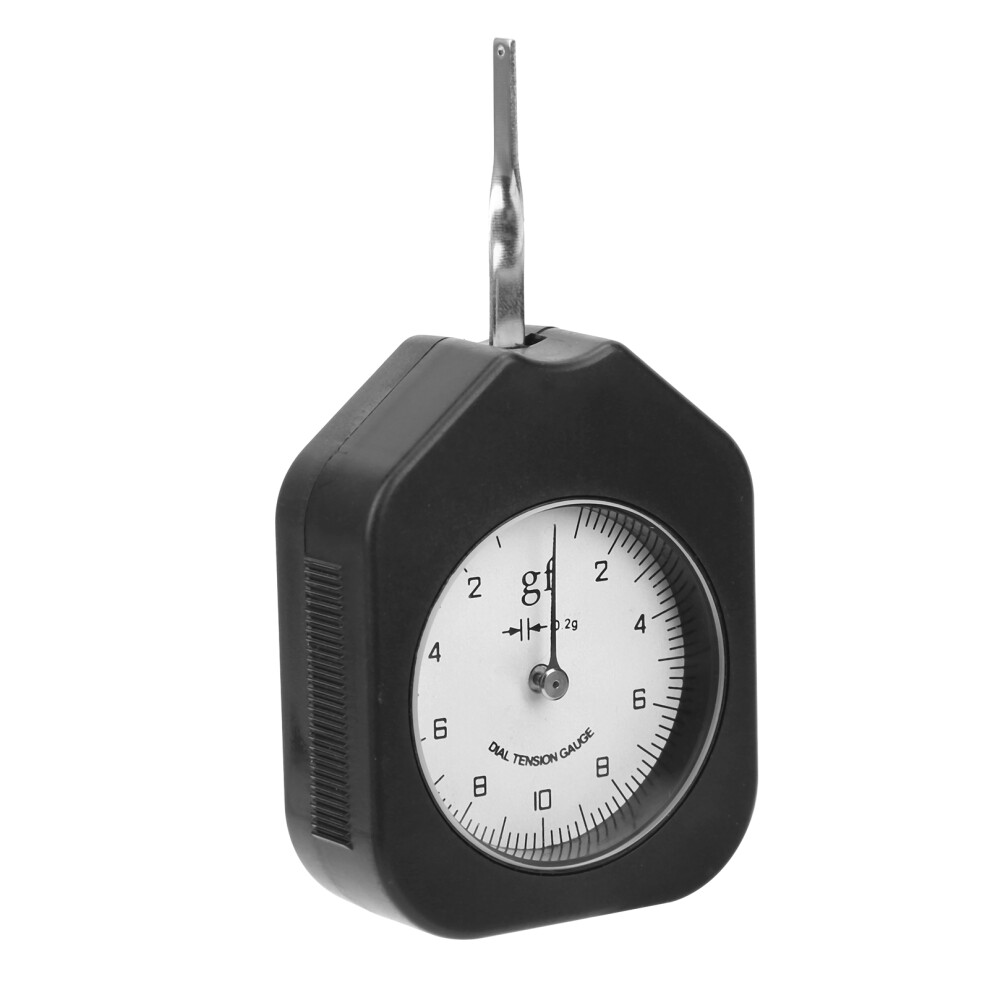

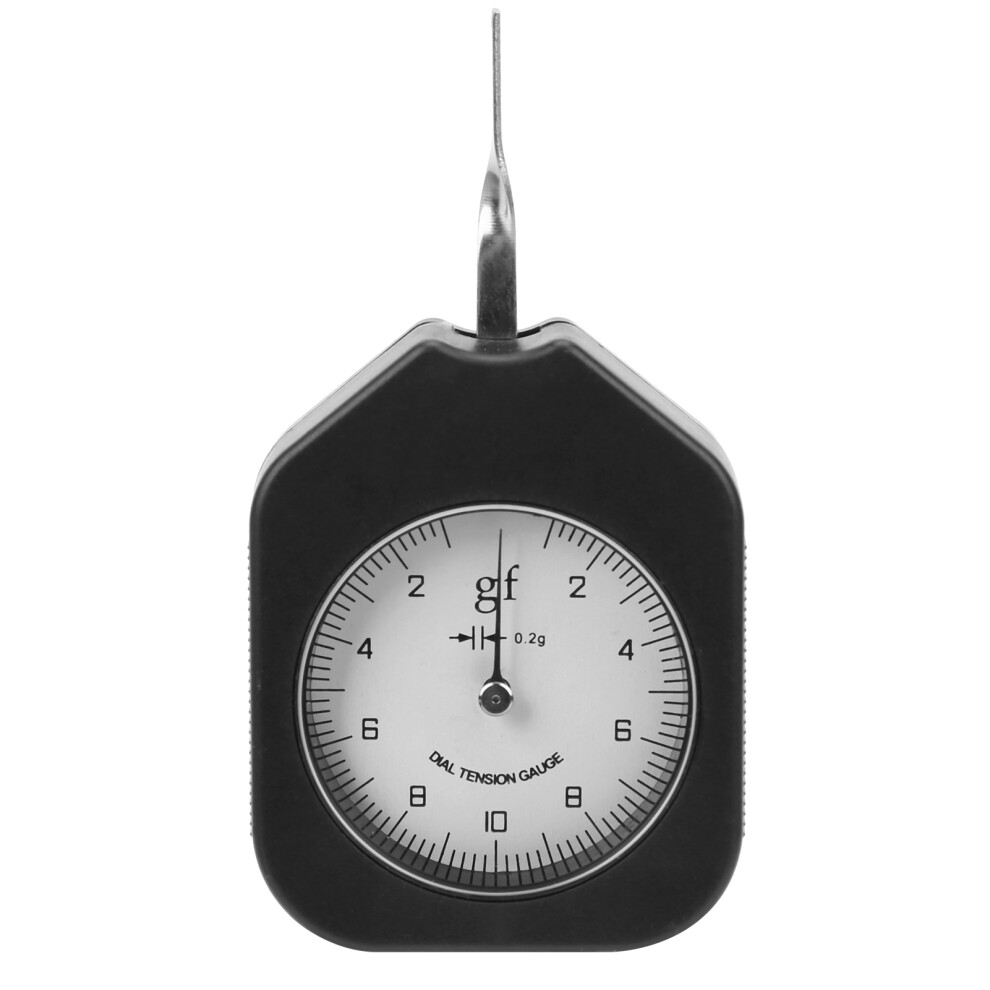

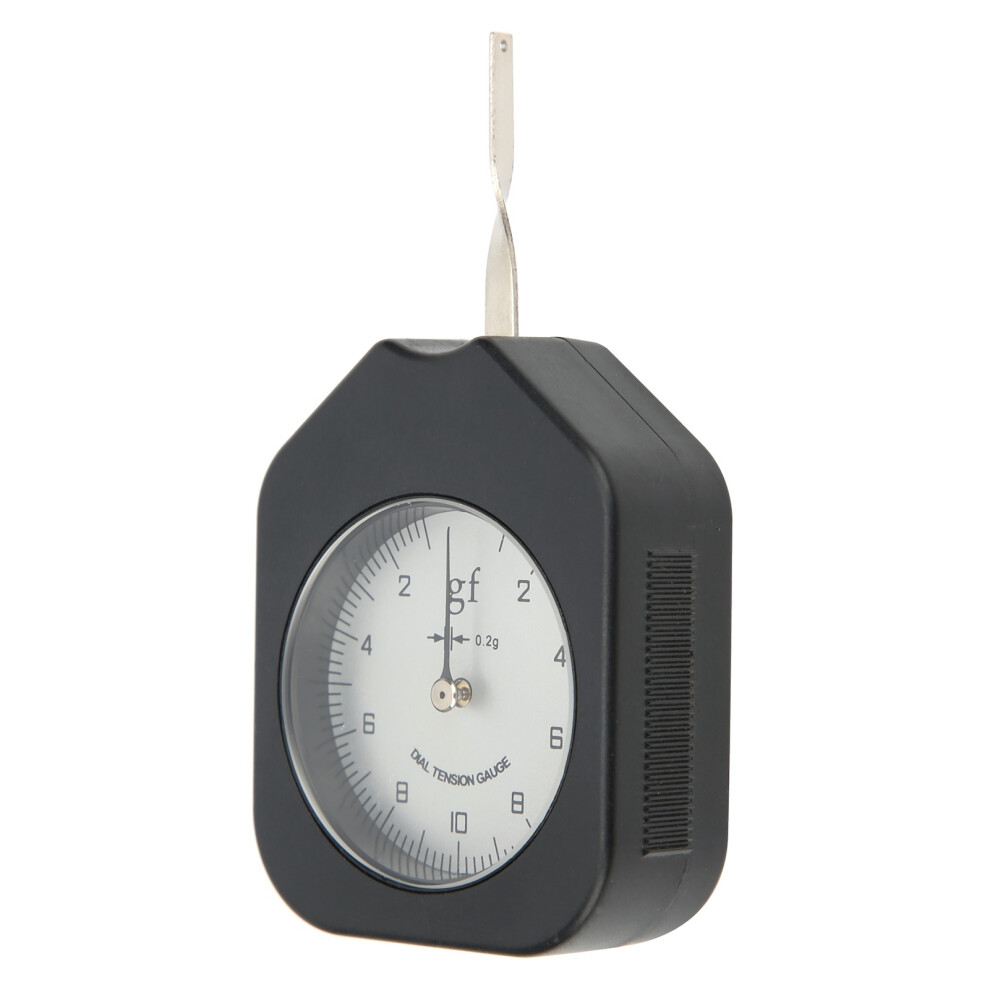

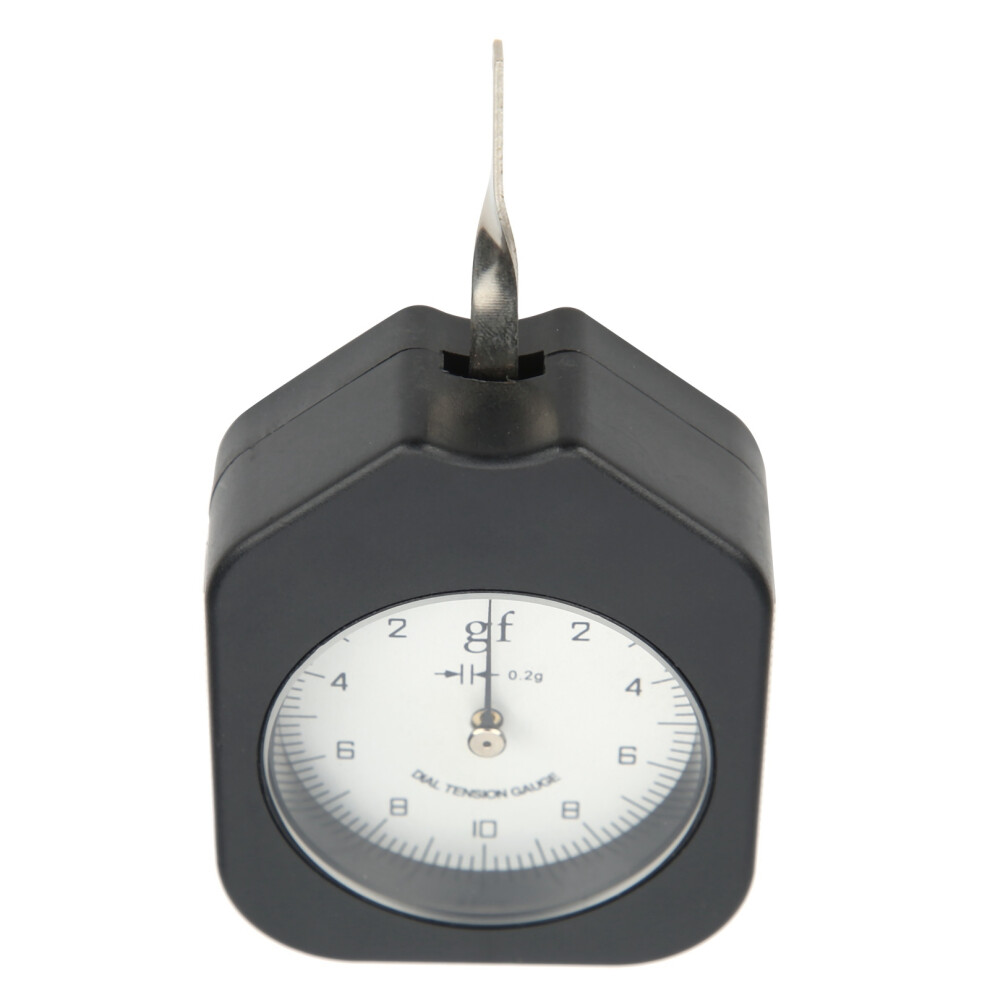

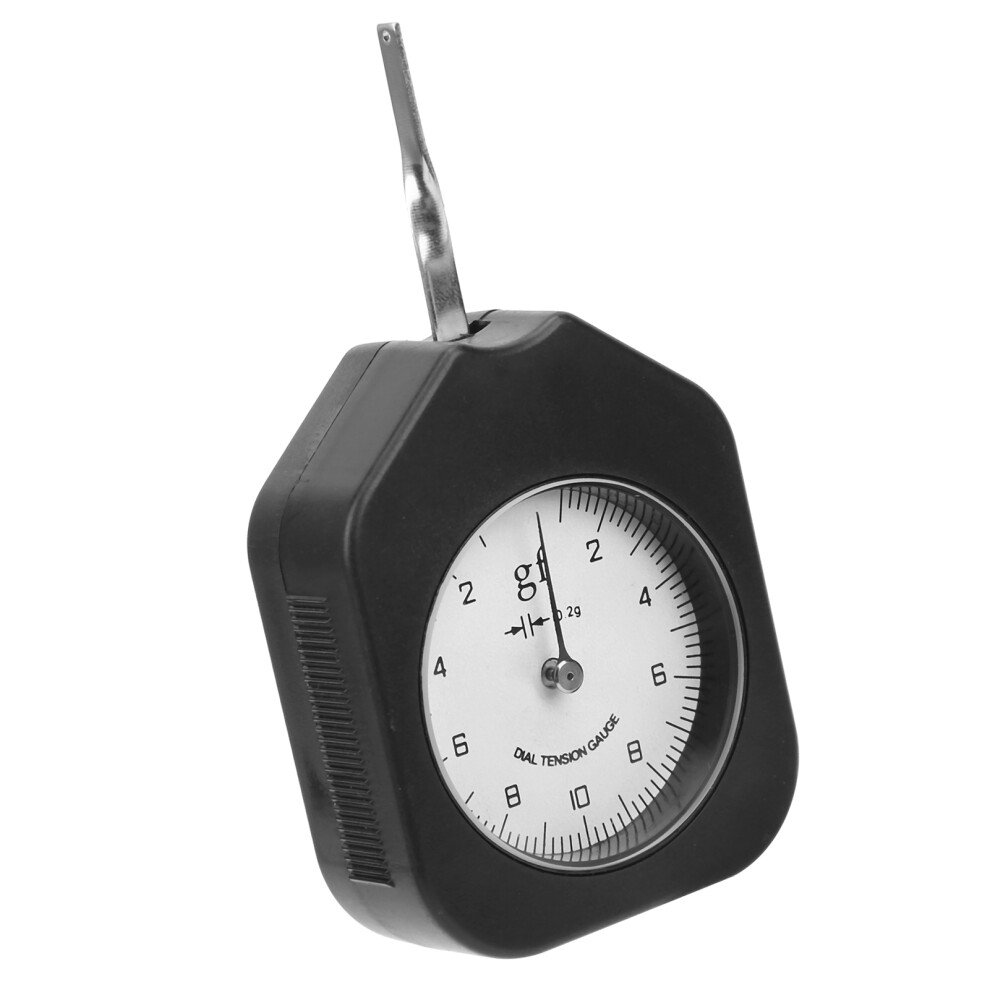

AU 10g Force Test Dial Tension Meter with Single Needle Precise & Reliable

AU 10g Force Test Dial Tension Meter with Single Needle Precise & Reliable Description

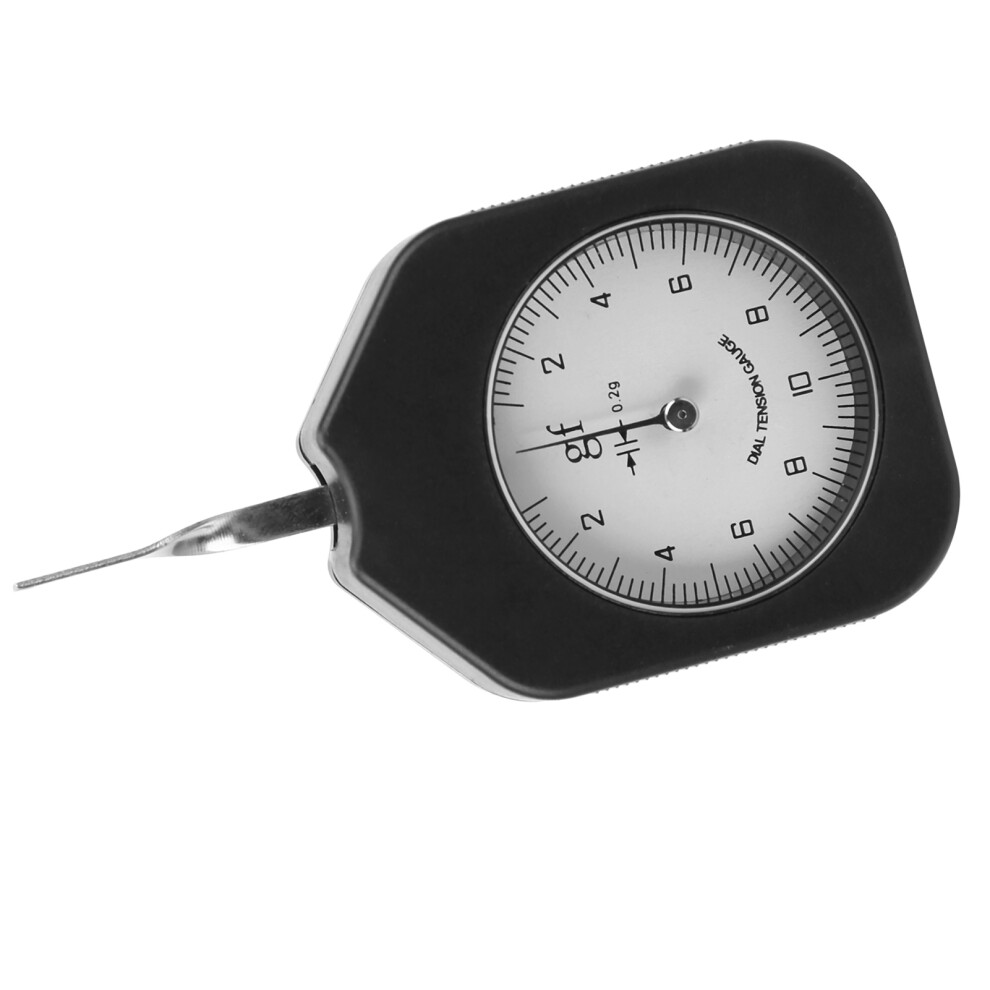

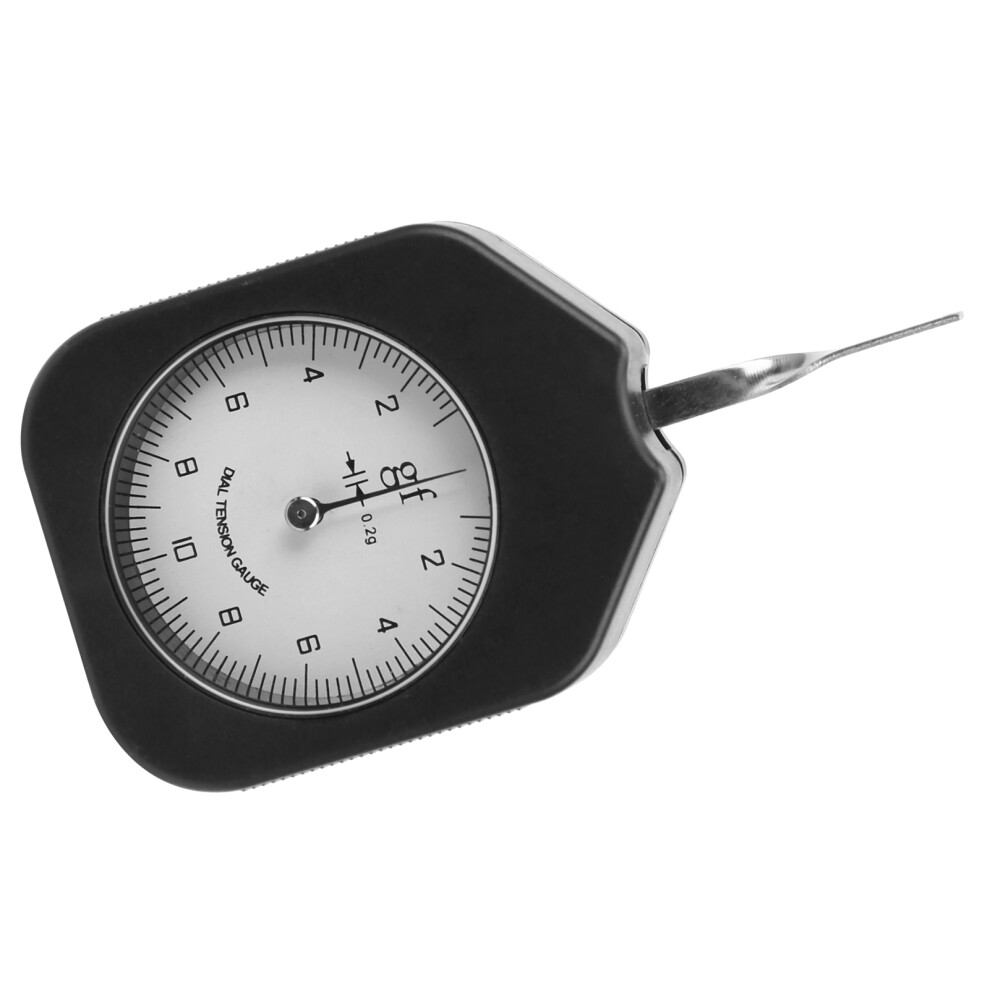

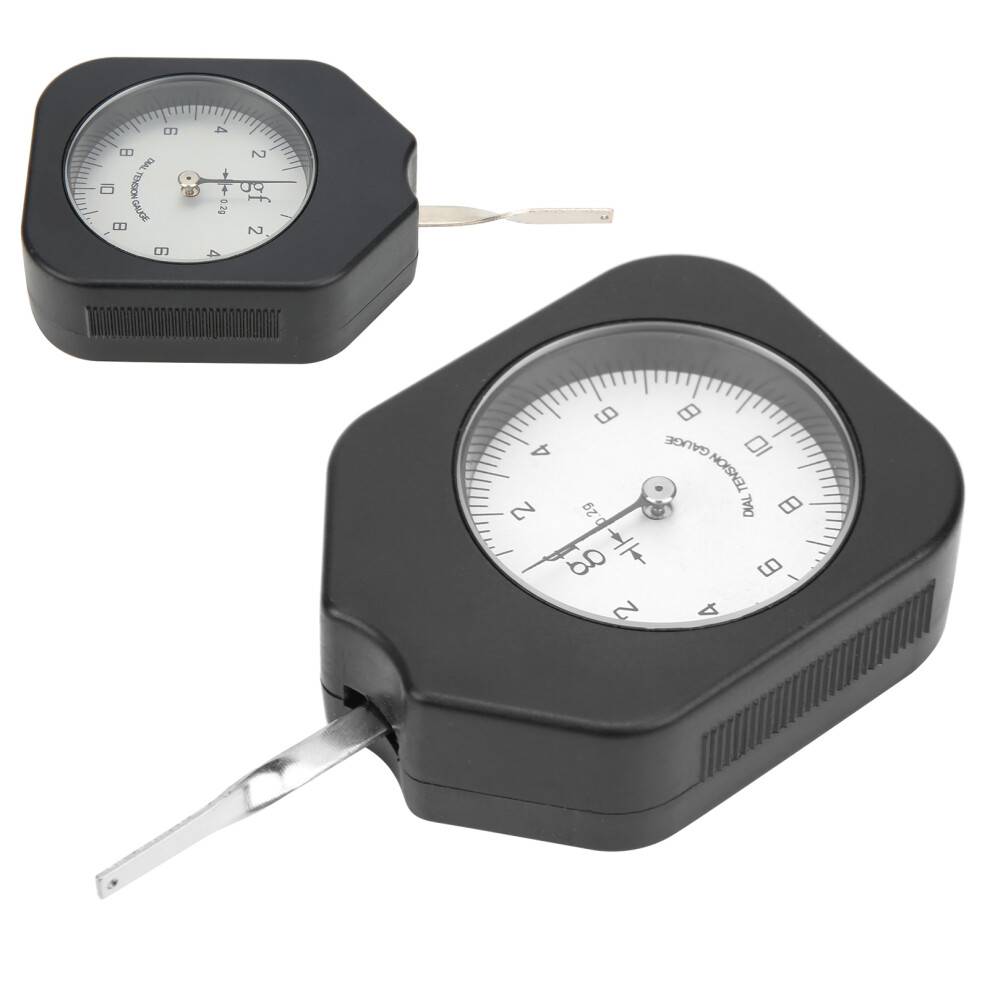

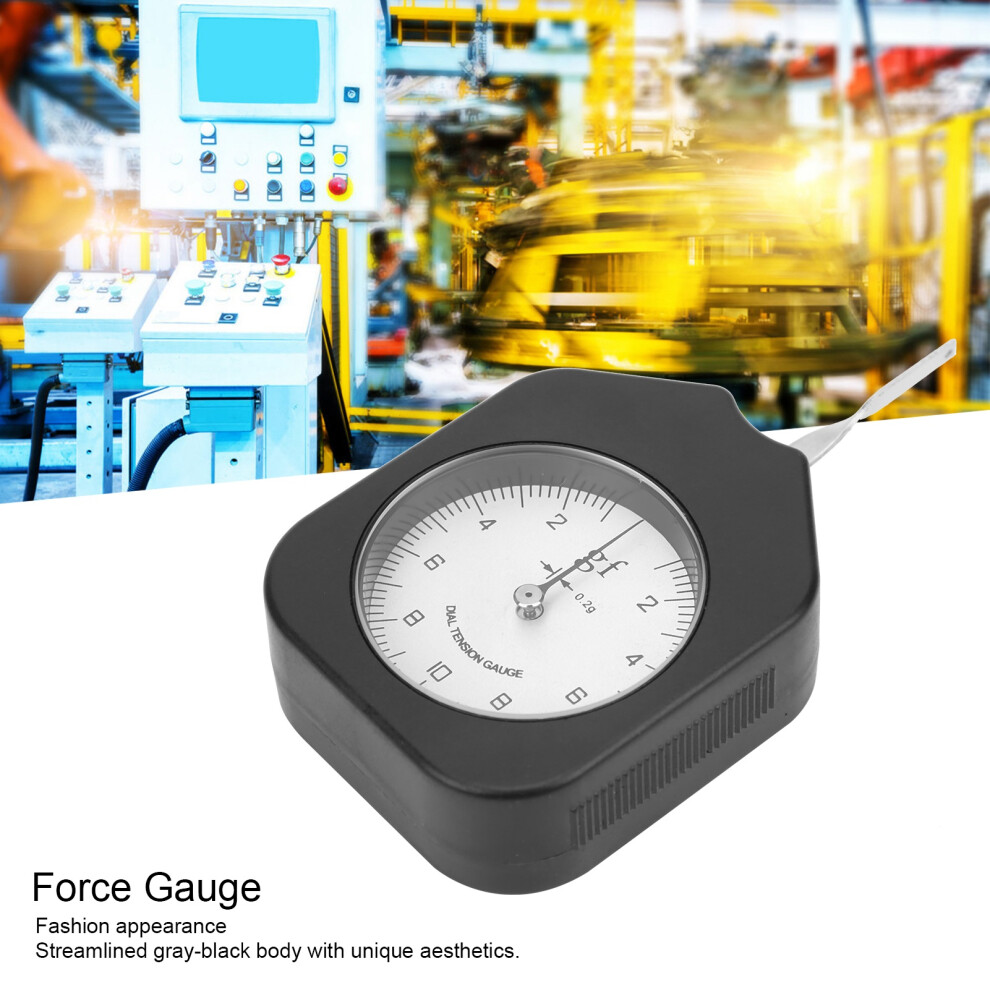

SEG‑10‑1 Dial Tension Meter Gauge Switch Force Gauge Single Needle 10g for Measuring
Item Type: Tensiometer
Material: ABS

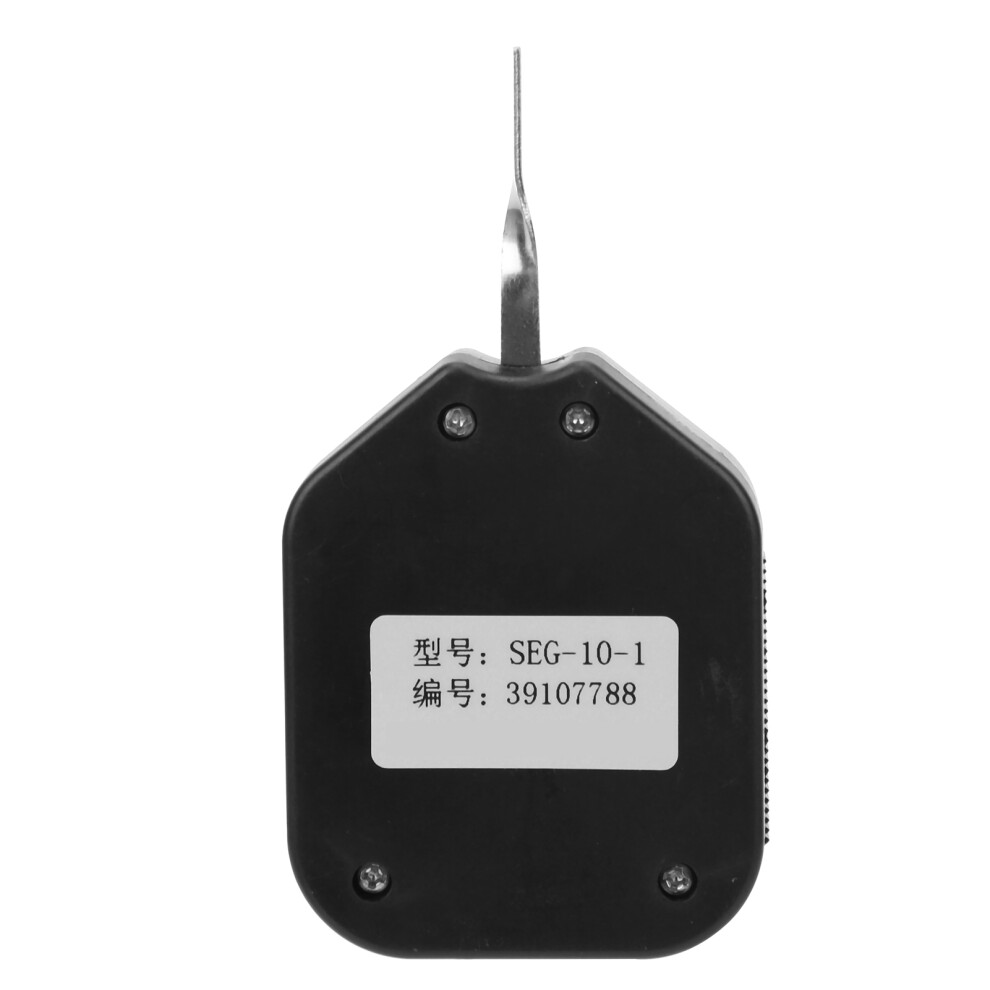

Model Specification: SEG-10-1
Pointer: Single Needle
Measurement Value: 10g
Graduation Value: 0.2g
Scale Style: 2-10-2
Accuracy: 0.5
Product Use: Tensiometer (in grams) is suitable for mechanical pressure such as relay contact pressure, electronic switch, micro switch, valve, spring tension, dial measuring instrument spindle pressure, automatic telephone equipment contact and armature pressure, tape recorder buffer Device pressure and other contact point pressure, and other precise pressure and tensile tests.
How e:
When testing, just pull the object to be tested with the stylus to move it from the static state to the required position. Tensiometers can be tested either clockwise or counterclockwise, but the stylus arm must always be perpendicular to the direction of the push-pull force; tensiometer is divided into single and double needles. The single-needle tensiometer measures and reads immediately. After the double-needle tensiometer measures the highest value, the slave needle stops moving, which is convenient for the tester to read the test value.
