Auto Range Uni-T UT18C Voltage Tester for AC/DC Up to 690V

Auto Range Uni-T UT18C Voltage Tester for AC/DC Up to 690V Description

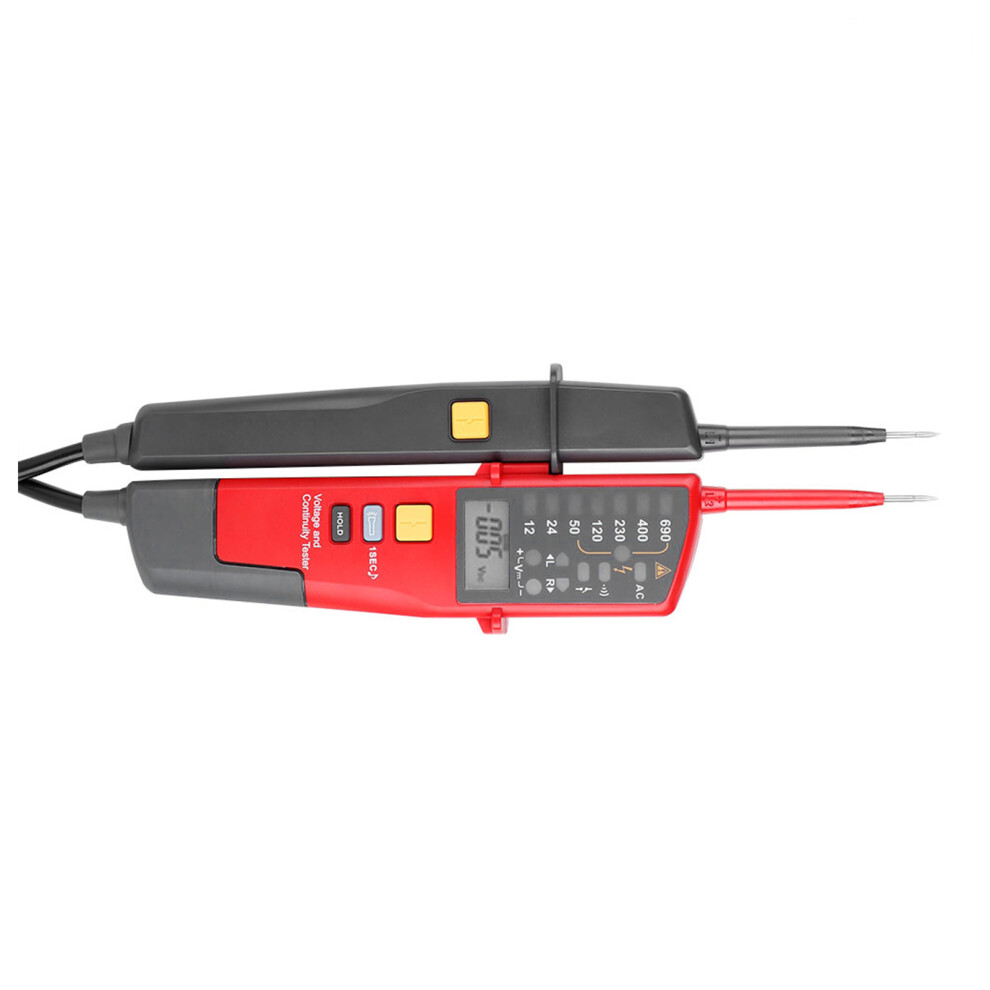

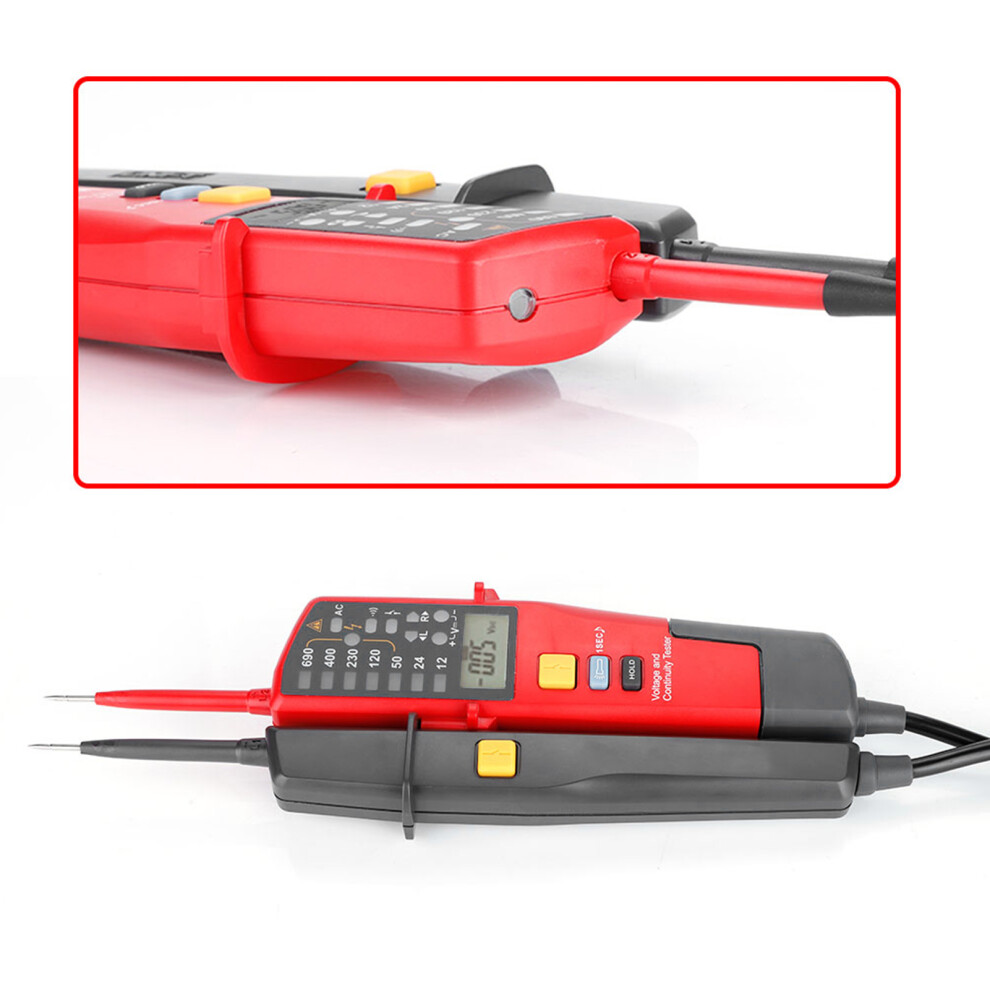

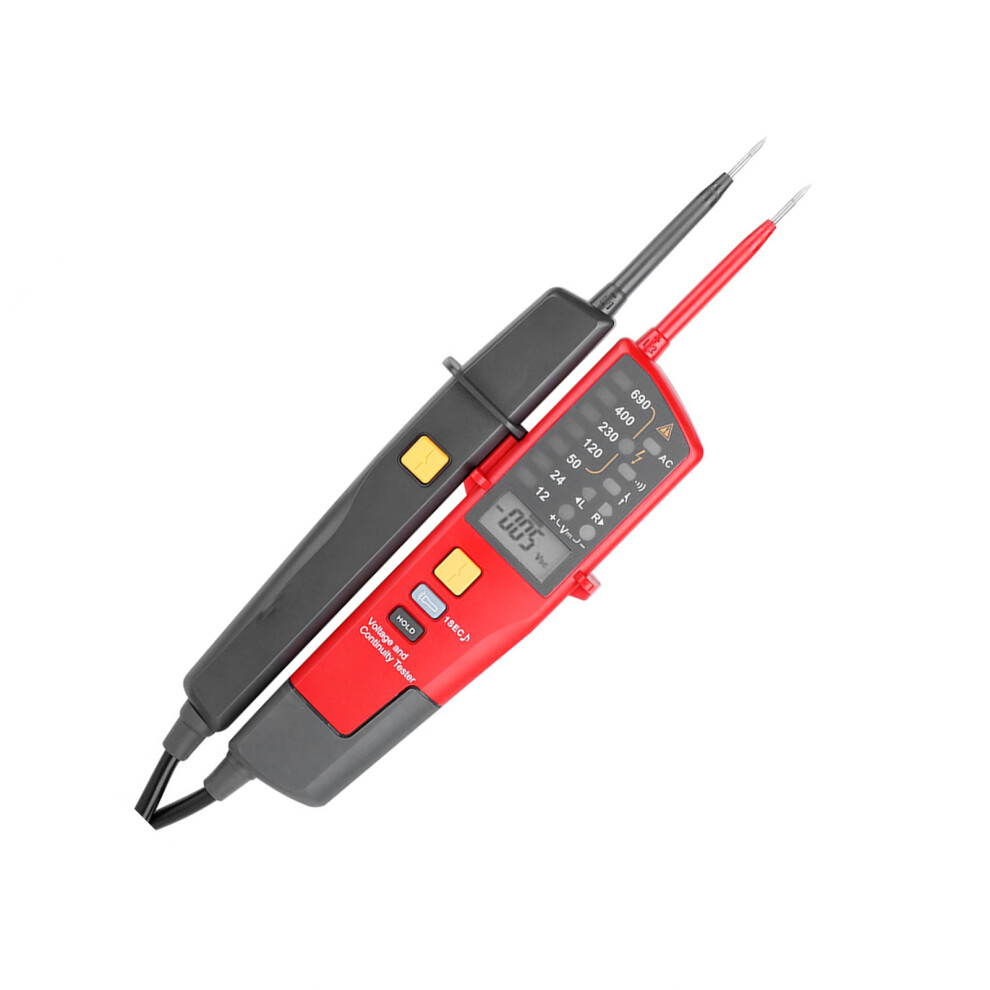

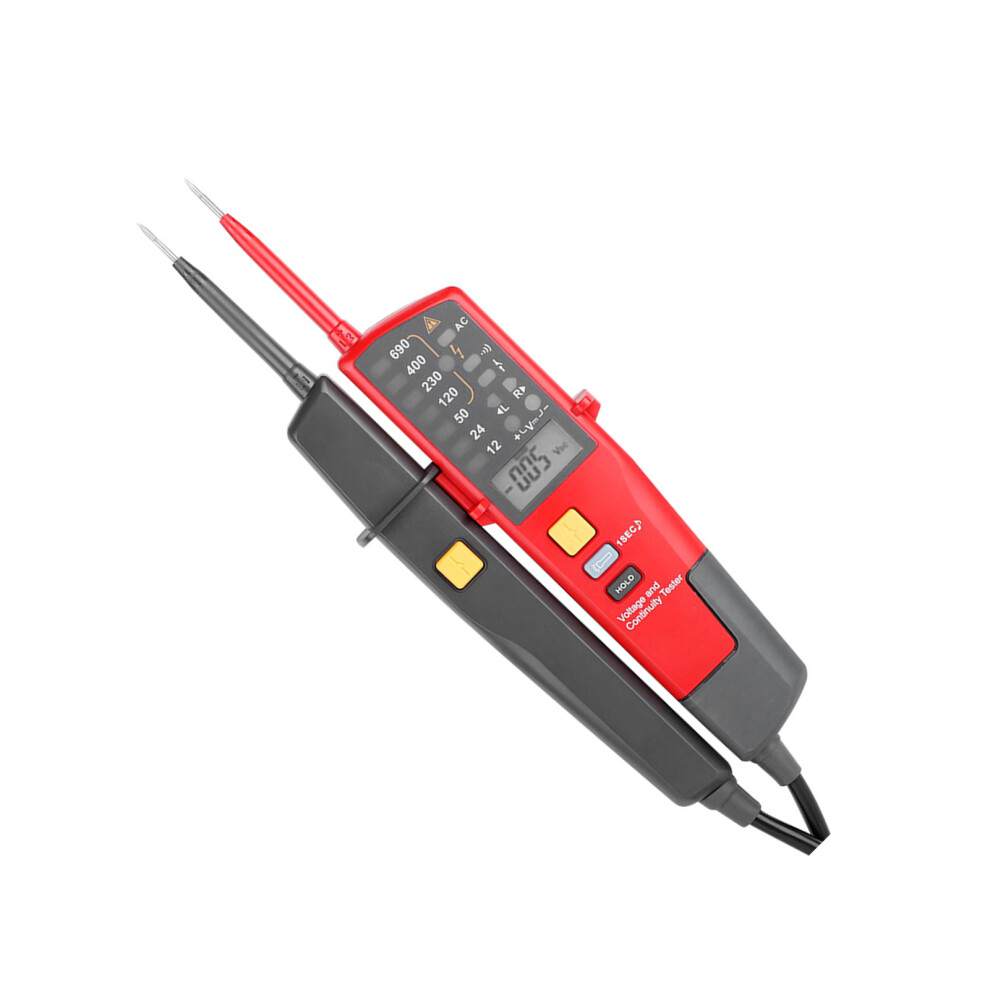

Uni T UT18C Voltage & Continuity Tester Auto Range Voltage Meter RCD Tester
This voltage continuity tester has such functions as AC/DC (including three-phase alternating current) voltage measurement, three-phase AC phase indication, frequency measurement, RCD test, continuity test, single test pen testing, etc.


Feature:



LCD voltage and frequency display.


AC/DC measured up to 690V.


To judge the zero or live wire by single test pen measurement.


Indicate the phase relationships among three-phase AC.


Low-battery voltage indication and measured voltage over range indication.

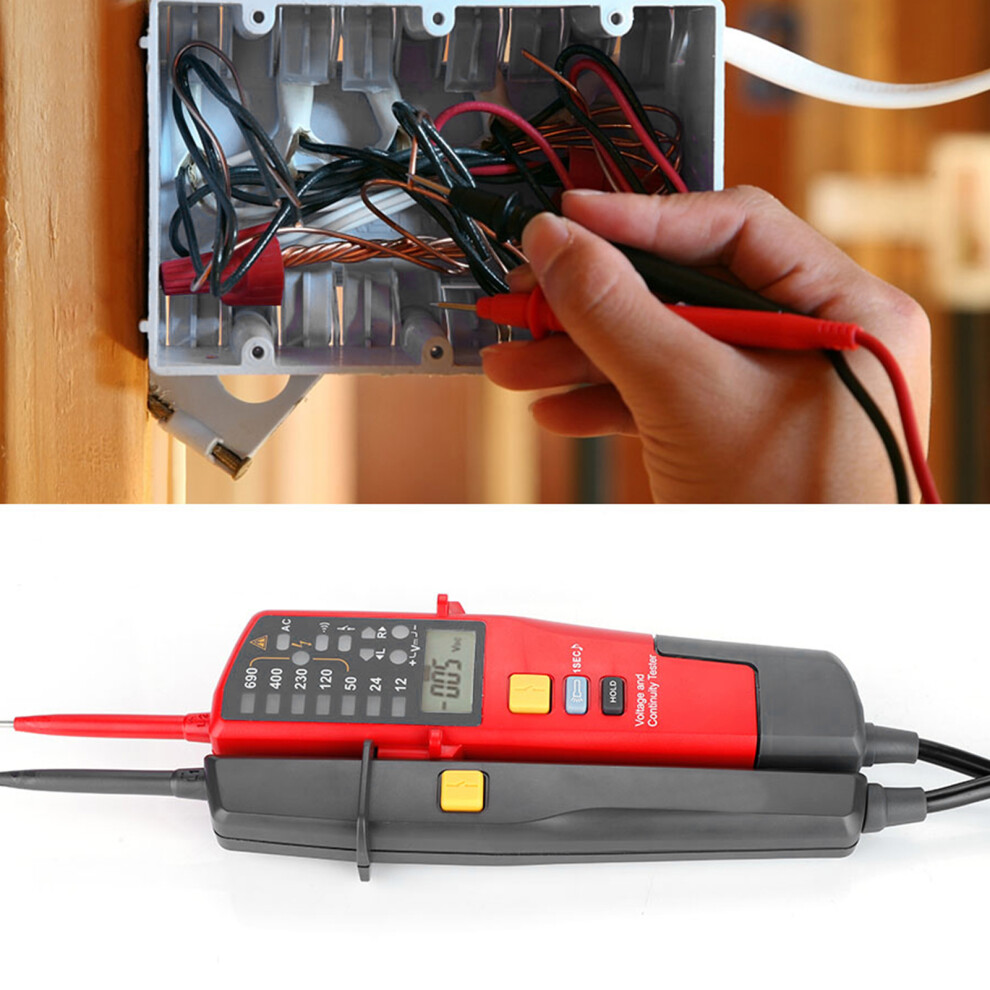

Suitable for household, factory, electric power department, etc.



Specification:

Brand: UNI-T

Model: UT18C

Auto Range: Yes

High Voltage Indication Range: 713~788V

Auto standby Current: <10uA

LCD Indication(Voltage): 6V~690V, (1.5%+5)

LCD Indication(Frequency): 40Hz~400Hz, (3%+5)

RCD Test: Voltage: 230V, Frequency: 50Hz~400Hz

Phase Rotation Test: 570~400VAC (3phase)

Single Lead (L2) Detection: Voltage:100V~690V, Frequency: 50Hz~400Hz

Self-inspection: LED, LCD

No Battery Detection: Voltage Range:50VAC/120VDC~690VDC/AC

Polarity Detection: Positive & Negative

Low Battery Indication: Voltage:23V~25V

Silent Mode: Yes

Work Light: Yes

Continuity Test: Resistance:0~100kohm

Battery: 2pcs * 1.5V AAA Battery (NOT Included)

LCD Size: Approx. 28 * 14mm

Color: Red + Grey

Product Size: Approx. 272*85*31mm/10.7*3.3*1.2inch

Weight: Approx. 404g / 14.3oz





Voltage
Indication




Range


Accuracy




6V








12V


8V1V




24V


18V2V




50V


38V4V




120V


94V8V




230V


180V14V




400V


325V15V




690V


562V24V





Package List:

1 x Voltage & Continuity Tester
