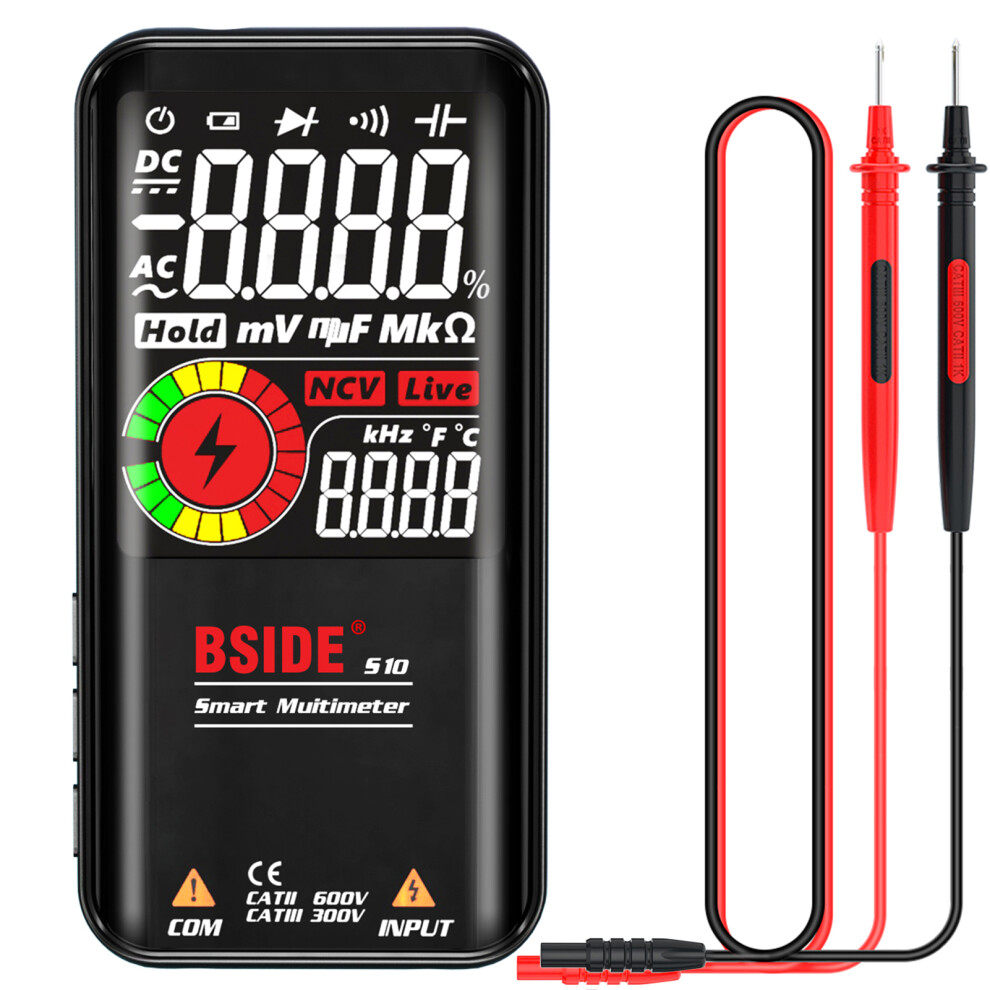

BSIDE S10 Digital Multimeter 9999 Counts LCD AC/DC Voltage Resistance Capacitance

BSIDE S10 Digital Multimeter 9999 Counts LCD AC/DC Voltage Resistance Capacitance Description

BSIDE S10 Intelligent 9999 Counts Multimeter Digital LCD Display AC/DC Voltmeter Ohmmeter Test Resistance Capacitance Frequency Diode Continuity NCV Live Line with Flash Light Data Hold

Features:
Multifunctional Multimeter with Wide Test Range: the digital multimeter can measure AC/DC voltage, resistance, capacitance, frequency, diode, continuity, NCV live line.
Smart Functions: measuring diodes within 3V. when the resistance is less than 50Ω, the buzzer will sound up when measuring resistance. The buzzer sounds when live voltage signal recognized

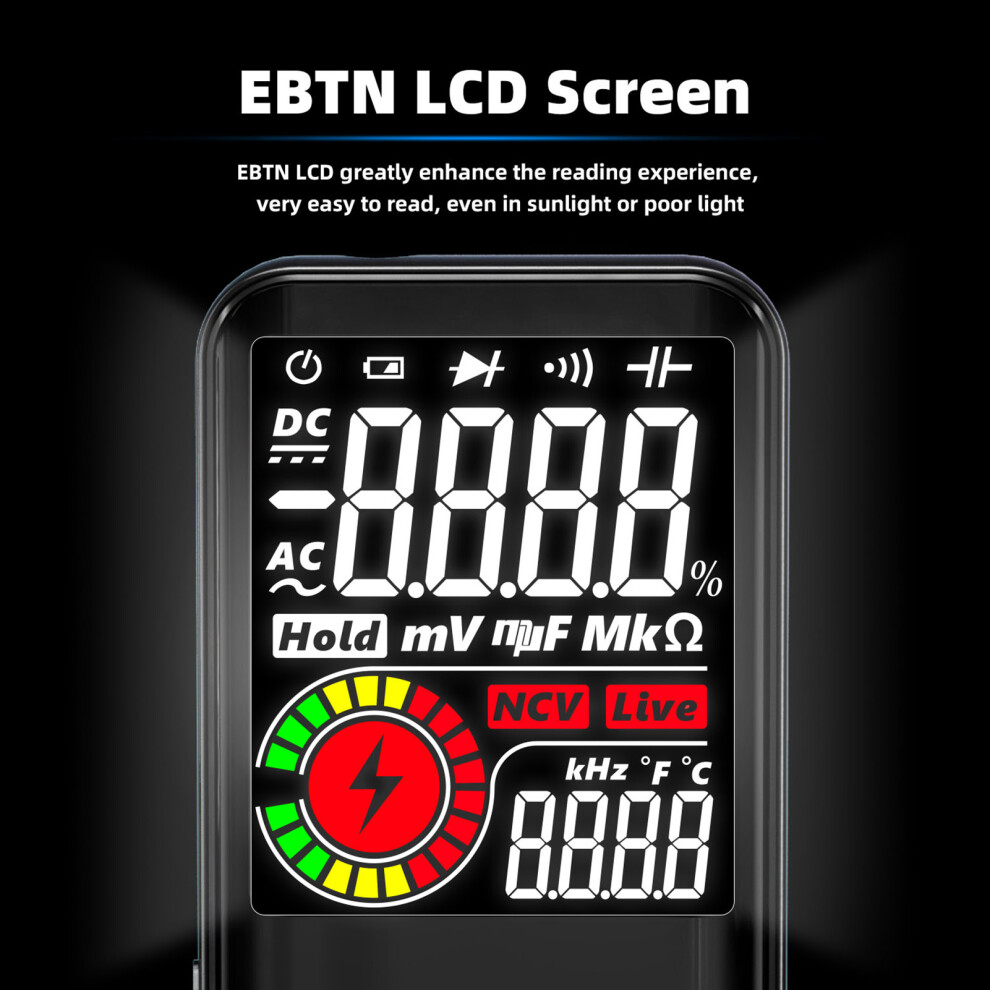

High Precision Display: the 3.5-inch large EBTN LCD greatly enhance the reading experience, the value is very easy to read even under the sunlight or poor light condition.
Reliable & Practical: NCV measurement, auto ranging 9999 counts smart multimeter with DATA hold function.
Safety Assurance: with full measuring range overload conservation, double insulation conservation, CAT.II 600V and CAT.III 300V safety level.

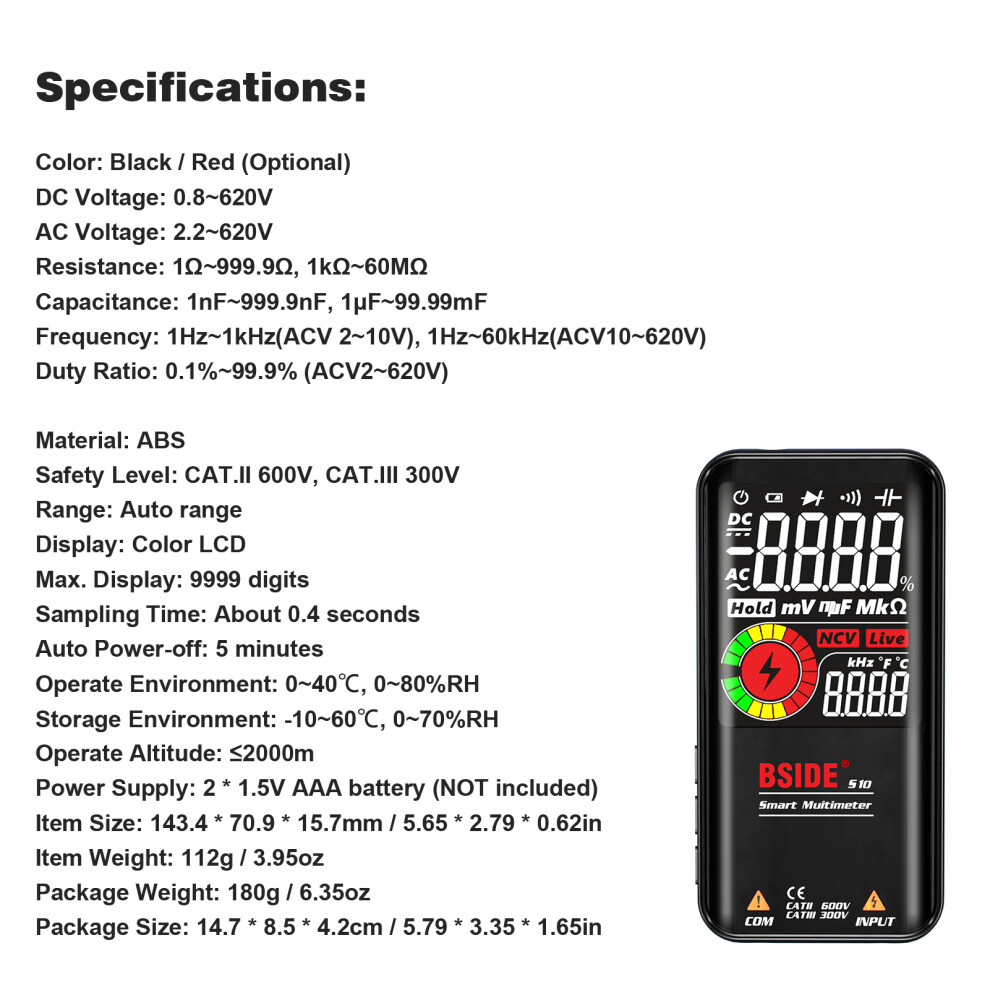

Specifications:
Color: Black / Red (Optional)
DC Voltage: 0.8~620V
AC Voltage: 2.2~620V
Resistance: 1Ω~999.9Ω, 1kΩ~60MΩ
Capacitance: 1nF~999.9nF, 1μF~99.99mF
Frequency: 1Hz~1kHz(ACV 2~10V), 1Hz~60kHz(ACV10~620V)
Duty Ratio: 0.1%~99.9% (ACV2~620V)
Material: ABS
Safety Level: CAT.II 600V, CAT.III 300V
Range: Auto range
Display: Color LCD
Max. Display: 9999 digits
Sampling Time: About 0.4 seconds
Auto Power-off: 5 minutes
Operate Environment: 0~40, 0~80%RH
Storage Environment: -10~60, 0~70%RH
Operate Altitude: 2000m
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 143.4 * 70.9 * 15.7mm / 5.65 * 2.79 * 0.62in
Item Weight: 112g / 3.95oz
Package Weight: 180g / 6.35oz
Package Size: 14.7 * 8.5 * 4.2cm / 5.79 * 3.35 * 1.65in

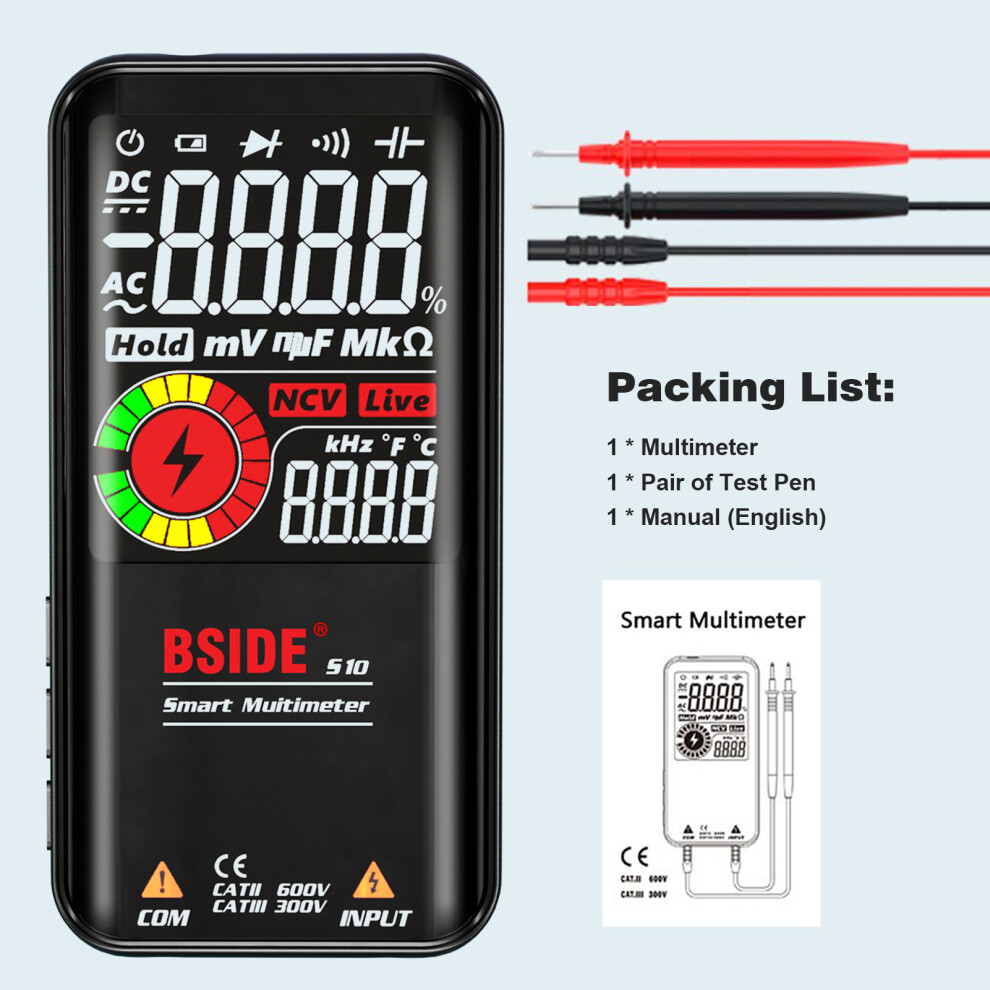

Packing List:
1 * Multimeter
1 * Pair of Test Pen
1 * Manual (English)
