BSIDE S6 Digital Multimeter Professional Voltage Resistance Frequency Capacitance Measurement Tester Digital Backlight Display Multitester

BSIDE S6 Digital Multimeter Professional Voltage Resistance Frequency Capacitance Measurement Tester Digital Backlight Display Multitester Description

BSIDE S6 Digital Multimeter Professional Voltage Resistance Frequency Capacitance Measurement Tester Digital Backlight Display Multitester NCV Voltage Detector True RMS Tester
This digital multimeter has a concise appearance, an LCD display with red and green backlighting, and a large screen to display readings at a glance. Applicable to various measurements under complex environments, greatly improves the reading experience. Auto-ranging, zero-line and fireline judgment, TRUE RMS, V-alert voltage alarm, breakpoint detection, automatic shutdown, AC/DC voltage, frequency, resistance, temperature measurement, on/off beep, NCV voltage detection. It can be widely used in electrical testing, automotive repairing, industrial electrical maintenance, etc.
Features:
【Concise Appearance】: Large screen multimeter with ergonomic body, compact and portable, comfortable operation, easy to carry, save backpack space.
【High Accuracy】: Intelligent controller chip, high precise, power on direct measurement, and with data retention function. One button to open intelligent identification, no need to shift, extremely fast measurement, say goodbye to the tedious.
【Digital LCD Display】: Digital LCD display with red and green backlight, large screen display readings at a glance. Applicable to various measurements under complex environments, greatly enhances the reading experience.

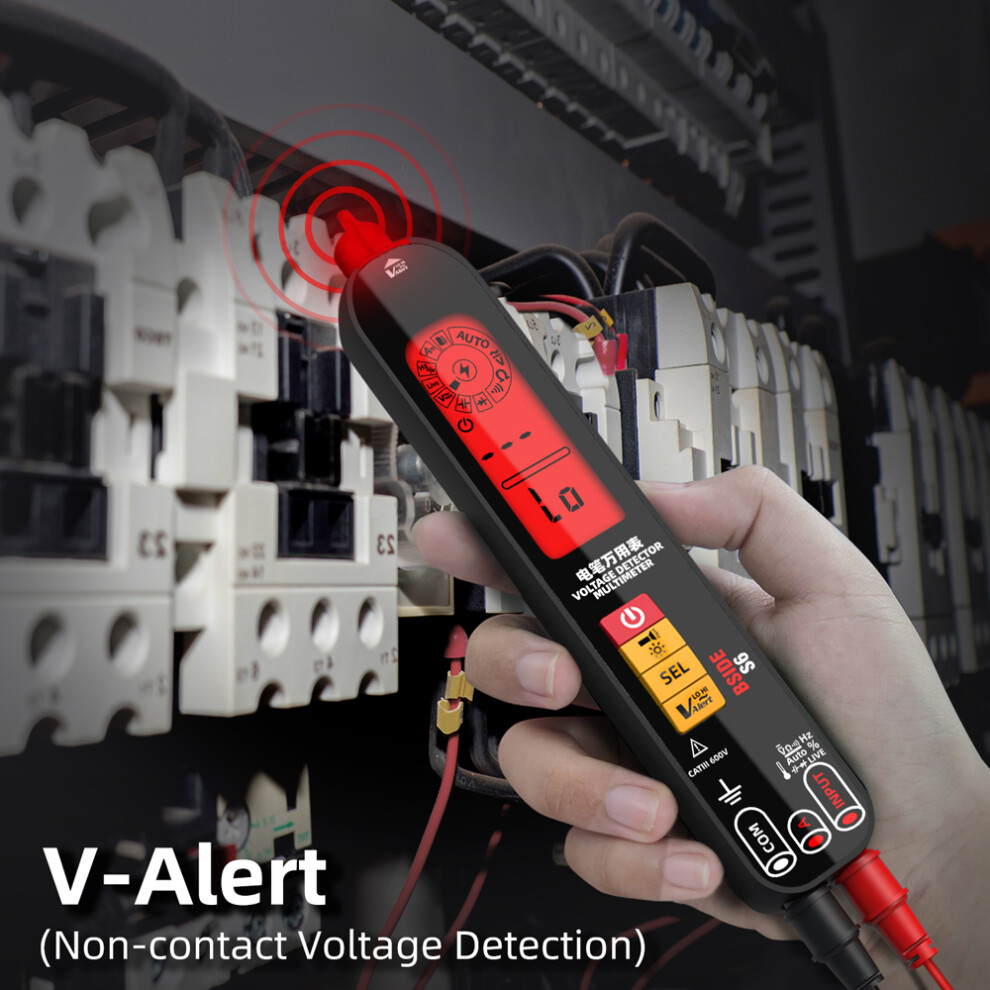

【Multiple Measurement Functions】: Auto-ranging, supports DCVoltage, ACVoltage, VFC (Variable Frequency Voltage), resistance, continuity, diode, capacitance, frequency, duty cycle, true RMS, and temperature measurement; with AUTO mode, NCV sensing (V-Alert), and firewire discrimination function. Low-sensitivity and high-sensitivity two voltage sensing modes are adjustable. No signal input for about 15 minutes, the meter automatically shuts down.
【VFC Inverter Test】: The VFC function measures the voltage of the output inverter and motor.
【Breakpoint Judgment】: Automatic breakpoint detection function, using the NCV function to sense the voltage, along the energized wire to find a normal place to alarm, breakpoint sensing becomes weak or no response.
【Zeroline & Fireline Detection】: In LIVE wire detection mode, a single pen can be used to detect the fireline; if the fireline is detected, the backlight turns red and promotes an alarm sound; if the zeroline is tested, there is no response.
【Buzzer Alarm:】: Sound and light dual alarm design, with loud sound prompts and with screen with a red backlight.

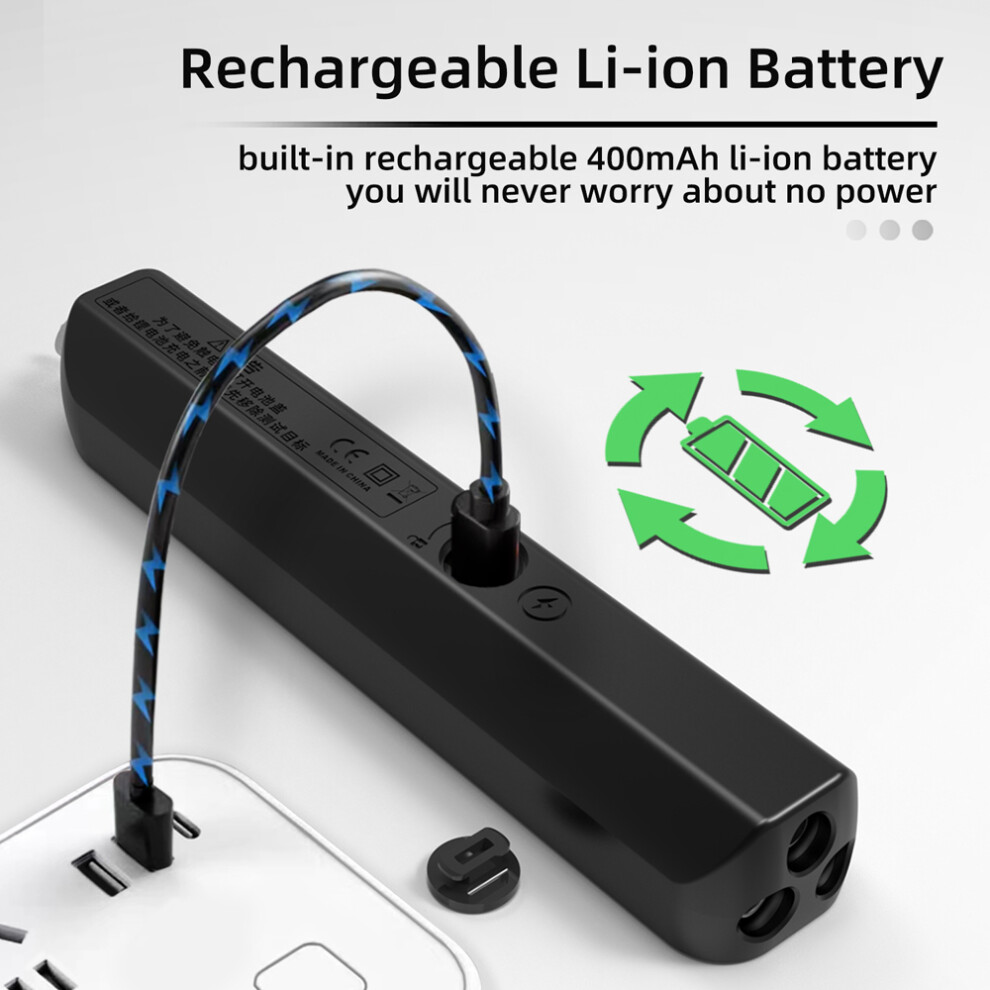

【Built-in Lithium Battery】: Built-in 3.7V, 400mAh lithium battery, with Type-C interface for direct charging the lithium battery, with long endurance.
【Wide Applications】: It can be widely used in electrical testing, automotive repairing, and more household improvements, industrial electrical maintenance, etc.
Specifications:
Name: Multimeter
Material: plastics
Battery: 1 * built-in 400mAh lithium battery (included)
Display: 6000 counts
Display: LCD display with backlight
DCVoltage: 0-620V
ACVoltage: 0-620V
AC/DCCurrent: 1.0-610.0mA
Resistance: 0Ω-60.00mΩ, 1Ω
Capacitance: 1.00nF-60.00mF
Frequency: 1.000Hz-9.999MHz
ON/OFF buzzer: Yes
Live Wire Check: Yes
NCV test: Yes
Item size: 181.5 * 32.6 * 25mm / 7.15 * 1.28 * 0.98in
Item weight: 86g / 3.03ounce
Package size: 200 * 82.5 * 42mm / 7.87 * 3.25 * 1.65in
Package weight: 251g / 8.85ounce

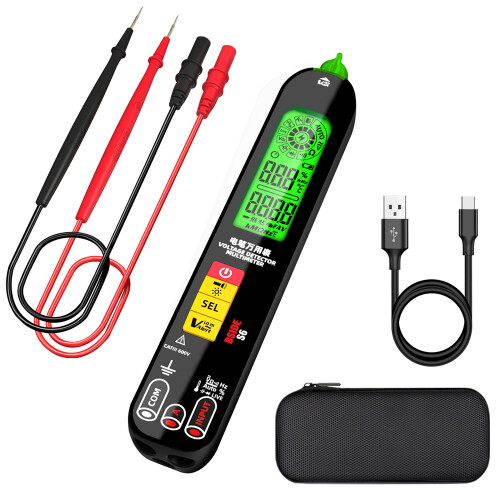

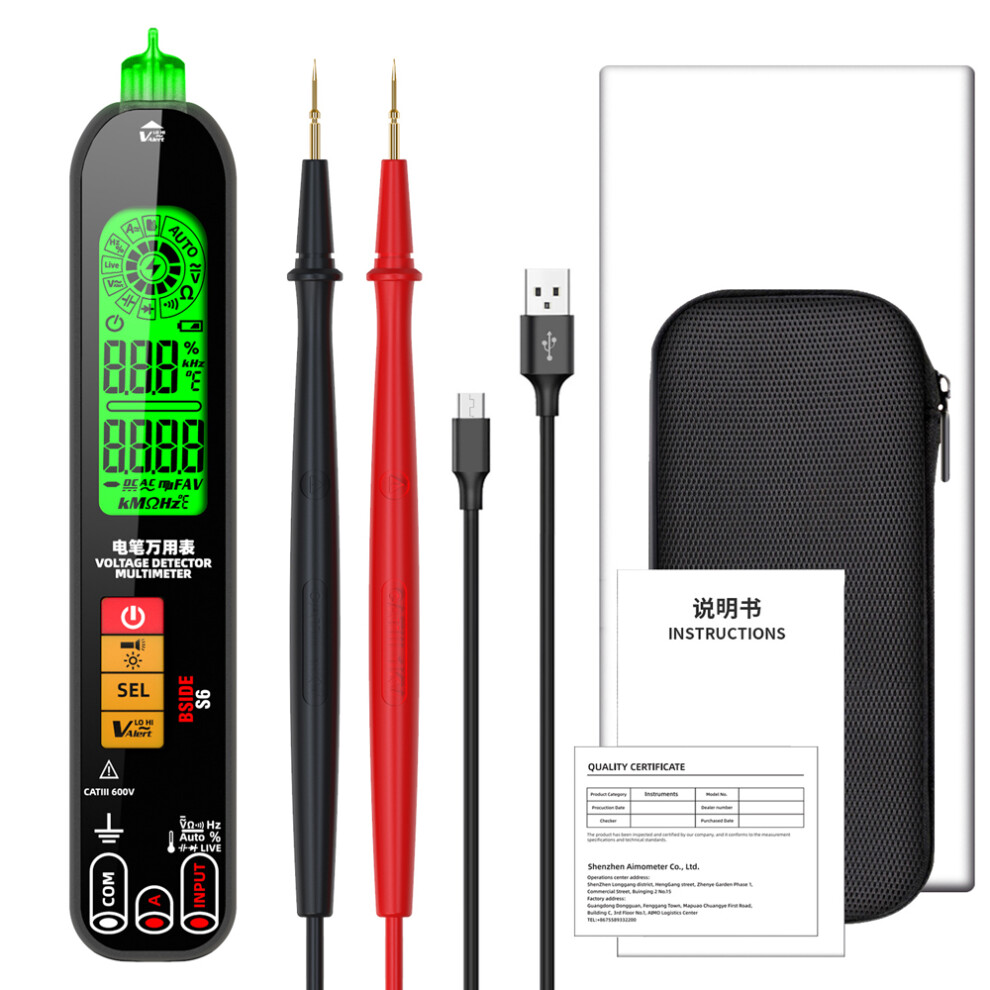

Packing List:
1 * Multimeter
1 * Pair of Test Pen
1 * Cable
1 * User Manual
1 * Carrying Bag
