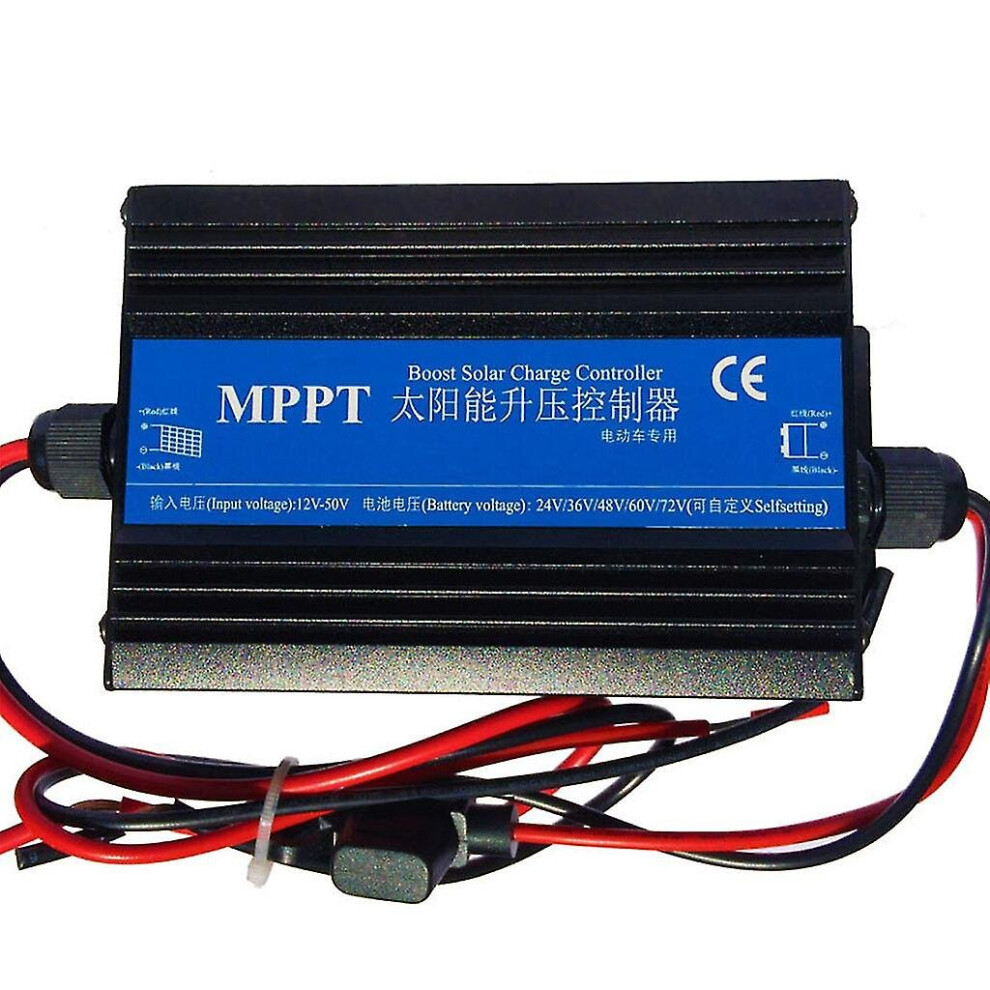

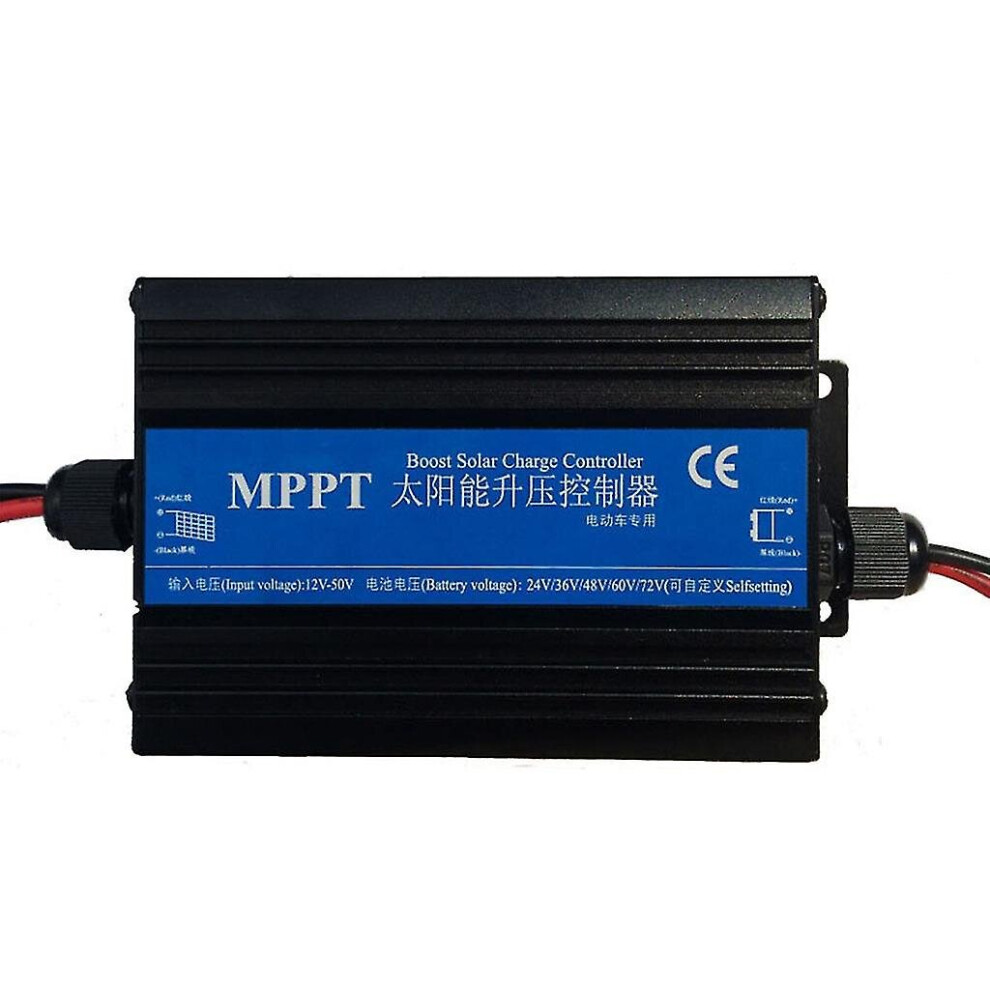

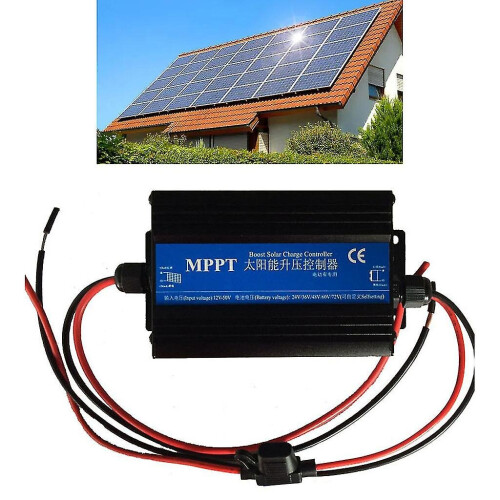

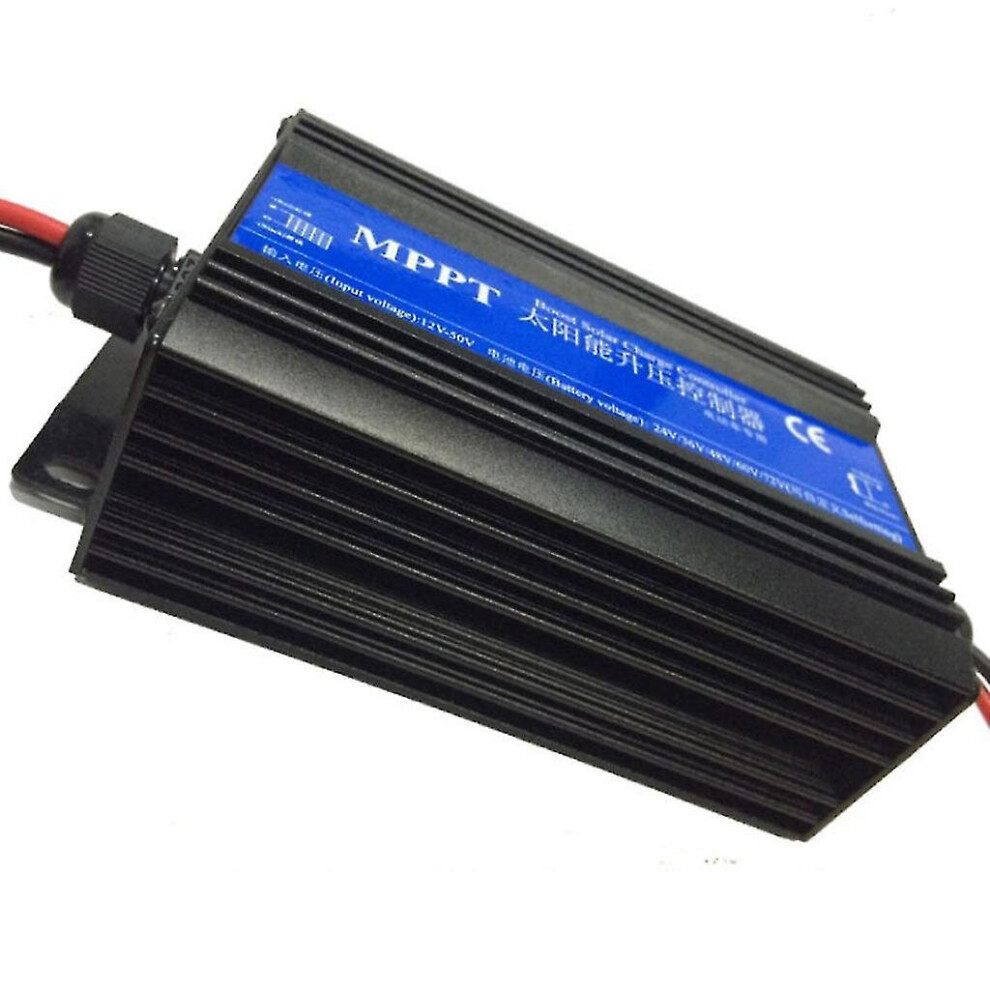

Charging Voltage Regulator Mppt Solar Charge Controller W/overcharge Protection

Features: 100% brand new and high quality MPPT high-efficiency charging method, the charging efficiency is 97%. The overcharge protection function effectively protects the battery from overcharging. Anti-reverse connection protection, both the battery and battery board have anti-reverse connection protection. Short circuit protection, with child lock, safe and convenient. It can be applied to all kinds of batteries, the battery board takes power, and the standby power consumption is 0. Package Includes: 1x Solar Charge Controller Specifications: Battery Voltage Range: 24v/36v/48v/60v/72v (18v Battery Board) 48v/60v/72v (36v Battery Board) Maximum Charging Current: 16.7A Maximum Solar Panel Power: 300w Solar Panel Input Voltage: 12v~50v (the Voltage of the Solar Panel Needs to Be Lower Than the Battery Voltage) The Highest Charging Voltage (that Is, Overvoltage Protection): 28.8v(24v), 43.2v(36v), 57.6v(48v), 72.0(60v), 86.4v(72v), Can Be Set by Yourself Mppt Voltage Range: 12v-50v Maximum Conversion Efficiency: 97% Load Loss: 25ma (18v Battery Board to Charge 24v Battery) 20ma (36v Battery Board to Charge 48v Battery) Mppt Tracking Efficiency: 98% Working Temperature: -35-65 Insulation Resistance: AC1KV, 5min Test/>=20 Megohms Protection Level: IP30 Size: Approx. 156x43x81mm/6.14x1.69x3.18inch note: 1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
