DC 12V 12-Channel Wireless RF Remote Control Switch 20A, 200-500M

DC 12V 12-Channel Wireless RF Remote Control Switch 20A, 200-500M Description

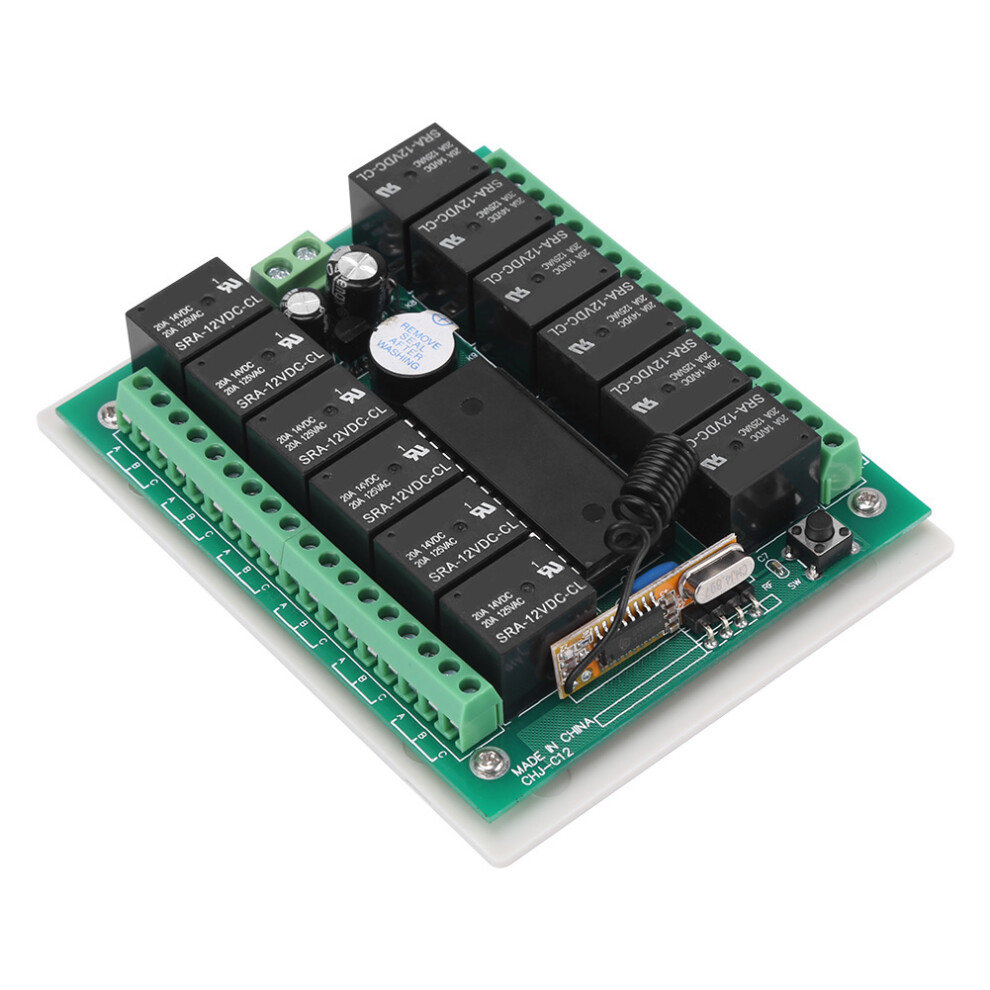

DC 12V Relay 12 Channel Wireless RF Remote Control Switch Transmitter & Receiver
Description:

This 12V 10A relay has large control power and the control performance is stable. Learning button design, one switch can be equipped with multiple remote control, or a remote control with multiple switches. Adopt chip, and double-sided PCB circuit board, which make the relay more durable and compatible. The wireless signal program learning function makes the relay has strong ability of anti-interference


Features:



Perfect relay for your lost or damaged one.


Momentary, Self-locking, Interlock, 3 Commands.


Remote distance range is up to 200-500 meter.


One switch can be equipped with multiple remote control, or a remote control with multiple switches.


This relay is stable, durable and compatible.



Specification:

Type: 12 channel remote control switch

Output current: 20A

Static working current: 6mA

Output voltage: AC 125V / DC 14V

Working voltage: 12V

Battery type: 1 x 23A/12V battery(not included)

Working frequency: 315 433MH

Remote control distance: Approx. 200-500M

Operating temperature: 40C ~ +80C

Receive Sensitivity: 105dBm

Working mode: Momentary, Self-locking, Interlock

Relay size: Approx. 10 x 8 x 2.5cm / 3.93 x 3.14 x 0.98inch

Remote size: Approx. 12 x 5 x 1.5cm / 4.72 x 1.96 x 0.59inch

Weight: 243g


Working mode:



Momentary: Press every button on the switch, and the corresponding relay is connected. Release the switch, the corresponding relay is closed. You can only connect a relay at a time.


Interlock: Press every button on the switch, and the corresponding relay is connected. And then press the other button on the switch, the corresponding relay is connected. The other relay is closed. You can only connect a relay at a time.


Self-locking: The same button control a relay. Press once means opening, press again means closing. Two independent control.



Working mode switching & Switch pair instructions:



Momentary: Learn from the "3" button on the switch, and all 12 relay will jog. Press the 1 button of the switch, and the corresponding A1 relay will open, release it, A1 relay will close. All relays are for this mode of work.


Interlock: Learn from the "6" button on the switch, and all 12 relay will interlock. Press the "1" button of the switch, and the corresponding A1 relay will open and hold, the other 11 relay close, press the "2" button on the switch, the other 11 relay close, A2 relay will open and hold, working successively.


Self-locking: Learn from the "9" button on the switch, and all 12 relay will self-lock. Press the "1" button of the switch, and the corresponding A1 relay will open and hold, press the "1" button again, A1 relay close. The way it works is not related to other buttons. All 11 relay are working in this way.


Learning method: Press the learning key on the receiver. Press the button on the switch to learn after the buzzer sound. It means successful learning after the receiver has the signal and the buzzer sound.


Clearing method: Long press to learning button on the receiver about 10 seconds until the buzzer sound. The stored information is successfully cleared.



Package List:

1 x 12 Channel Relay

1 x Remote Controller
