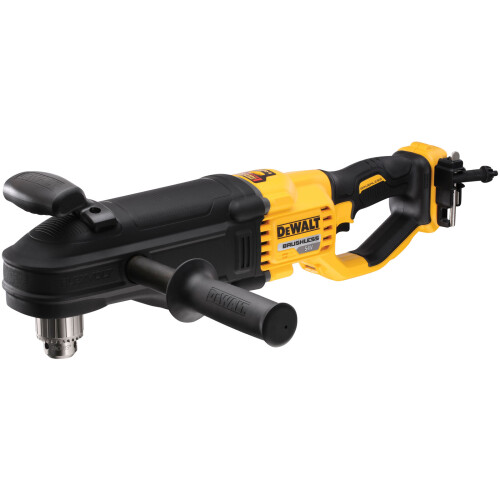

DeWALT DCD470N-XJ 54V XR FLEXVOLT Right Angle / Diamond Core Drill Description
Features
54V Brushless Motor for increased power and runtime
Adjustable bail handle and 2-position side handle for safety,
leverage and control
E-Clutch is a Perform and Protect™ feature that detects
reactionary torque caused by a bind-up or stall and reduces speed
to a manageable level until control is regained.
Power of corded freedom of cordless 2 variable speed ranges (0-400
/ 0-1320 rpm) to match appropriate torque and speed to the
application
Metal-gear housing for jobsite durability and increased
reliability
Specification
Weight 7 kg
Length 190 mm
Height 535 mm
Hand/Arm Vibration 3.6 m/s2
Uncertainty K 1 (Vibration) 1.5 m/s²
Sound Pressure 86 dB(A)
Sound Pressure Uncertainty 3 dB(A)
Sound Power 97 dB(A)
Sound Power Uncertainty 3 dB(A)
Standard Equipment
Body Only - No batteries or charger supplied
Warranty
Features
- Power Supply : Cordless
- Voltage: 36V+
- Motor: Brushless
- Type: Diamond Core Drills
- Keywords: Angle, Diamond Core
Details
| OPC | PSSQGF |
|---|---|
| Brand | |
| Codes | 5035048683439 (EAN) |
| MPN | DCD470N-XJ |
| Links | Dewalt Tools |
| Dewalt Power Tools | |
| DeWalt Angle Drills | |
| Diamond Core Drills | |
| Angle Drills | |
| DeWalt Drills |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
The DCD470 delivers a maximum torque of 269Nm, with a no load speed of 400 -1,320rpm. It is ideal for frequent large diameter commercial drilling into concrete, brickwork or masonry to install pipework or cabling. Part of the 54V XR FLEXVOLT and Perform & Protect ranges, our most powerful cordless drill yet delivers power and enhanced user protection.
ALL OF THE POWER, ALL OF THE FREEDOM
For professionals who need to drill large diameter holes the DEWALT cordless DCD470 is ideal for HVAC, plumbing, electrical and construction applications. Delivering high speed drilling with 269Nm of torque, a variable speed control, and a maximum drilling diameter of 152mm in concrete, effortlessly power through challenging materials.
VARIABLE SPEED CONTROL
Match the correct torque and speed to the application at hand with a large two position speed-selector, allowing you to seamlessly switch between 0-400rpm and 0-1,320rpm.
INTELLIGENT PROTECTION
As part of the Perform & Protect range, the DEWALT XR FLEXVOLT DCD470 features a built-in E-Clutch to ensure safer drilling. It uses gyroscopic technology to detect reactionary torque from a bind-up situation, then cuts the power to avoid injury.
Alternative names:
- DeWALT DCD470N-XJ drill 1320 RPM 7 kg Black, Yellow
Detailed Product Information
Weight & dimensions
| Weight | 7 kg |
|---|---|
| Height | 535 mm |
| Width | 190 mm |
| Depth | 110 mm |
Power
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Power source | Battery |
| Battery voltage | 18 V |
| Output power | 2600 W |
Technical details
| Product colour | Black, Yellow |
|---|
Features
| Motor type | Brushless |
|---|---|
| Product design | Right-angle drill |
| Adjustable speed | Yes |
| Drilling | Yes |
| Adjustable torque | Yes |
Performance
| Drilling diameter in concrete (max) | 15.2 cm |
|---|---|
| Drilling diameter in steel (max) | 1.3 cm |
| Number of gears | 2 |
| Maximum torque (soft applications) | 114 N⋅m |
| Maximum torque (hard applications) | 269 N⋅m |
| Chuck capacity (max) | 1.3 cm |
| Sound power level | 97 dB |
| Idle speed (max) | 1320 RPM |
| Sound pressure level | 86 dB |
| Sound level uncertainty | 3 dB |
| Vibration level uncertainty (concrete drilling) | 1.5 m/s² |
